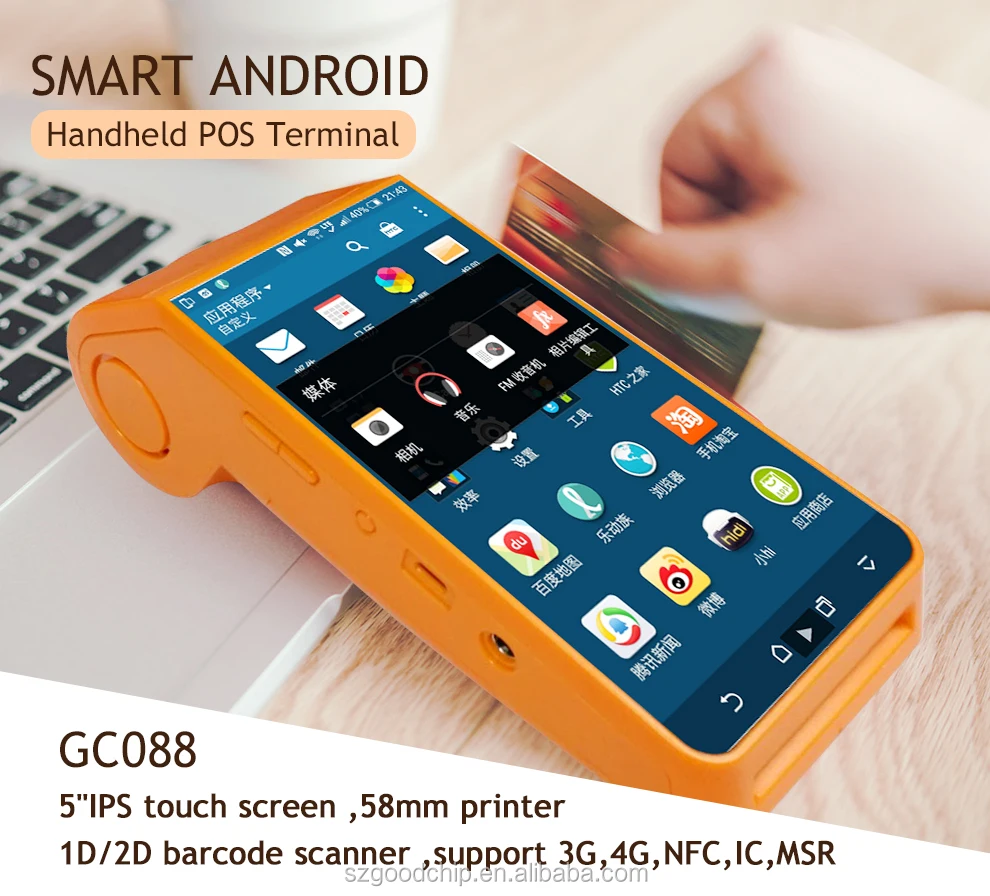

5 inch Android handheld pos terminal with 58mm receipt printer and IC/MSR/NFC from factory

FOB Reference Price:Get Latest Price
$85.00 - $92.00 / Sets | 100 Set/Sets (Min. Order)
Model Number:
GC088
Screen Size:
5 Inch
Lead Time:
Quantity(Sets) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 15 25 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HAODEXIN
After-sales Service Provided:
Video technical support, Field maintenance and repair service
Warranty:
1 Year
Operation System:
Android 5.1, android 5.1 OS
CPU:
1.1Ghz(MSM8909 A7 quad core CPU), 1.1Ghz(MSM8909 A7 quad core CPU)
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
8GB
1D/2D barcode scanner:
embedded semi-finished module
Memory DDR:
DDR3 1GB 2*(256X16) Chip cache
Nand Flash:
8GB support EMMC
Screen:
4 inch capacitive touch screen
Connectivity:
4G/Wifi/GPRS/GSM/WCDMA
Card reader:
IC/MSR/NFC(optional)
Thermal printer:
57mm thermal printer,support print words,picture,barcode,etc
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard industrial packaing
Weight of the full set:0.88kg
Packaging weight:1kg
Port
Shenzhen
Lead Time :
Quantity(Sets) 1 - 100 101 - 1000 1001 - 10000 >10000
Est. Time(days) 15 25 45 To be negotiated
Product Description
Application
1. Registration:SIMs/Vistors Registration/Voting

2. Prepaid Airtime: Electoronic prepaid card/PIN-LESS Top-up/Calling card

3. Bill payment: Electricity/Water/Gas/DTH/TV Recharges/Internet/Broadband/Insurance/Charity

4. E-ticketing: Railway/Ait/Bus/Movie,support various kinds of languages printing

5. Money Transfer: Deposit/Withdrawal/Remittanc

6. Loyalty Program: Loyalty card/Rewards card/Points card/Advantage card/Club card

7. Lottery: Lotto game/Bingo game/Casino game/

8. O2O Shipping

Product Name
5 inch Android handheld pos terminal
Basic CPU frequency
1.1Ghz( MSM 8909 A7 quad core processor)
Memory DDR
DDR3 1GB 2*(256X16) Chip cache
Nand Flash
8GB Support EMMC
LCD screen
4 inch colorful resolution 800*400 QVGA;Multi-touch capacitive touch screen
Camera
5,000,000 pixles with assitant LED light,focus automatically
1D/2D barcode scanner
Embedded semi-finished module
Embedded
57mm thermal printer
Communication
4G/wifi/bluetooth
Card readers
IC/MSR/NFC card reader( optional)
Backup battery
Chargeable Polymer Battery 7.4V 2600mAh, hyper pressure lower power protection
Digital audio amplifier
High-performance DSP processing ,SD audio,3W mono output
External ports
SIM slot,DC IN

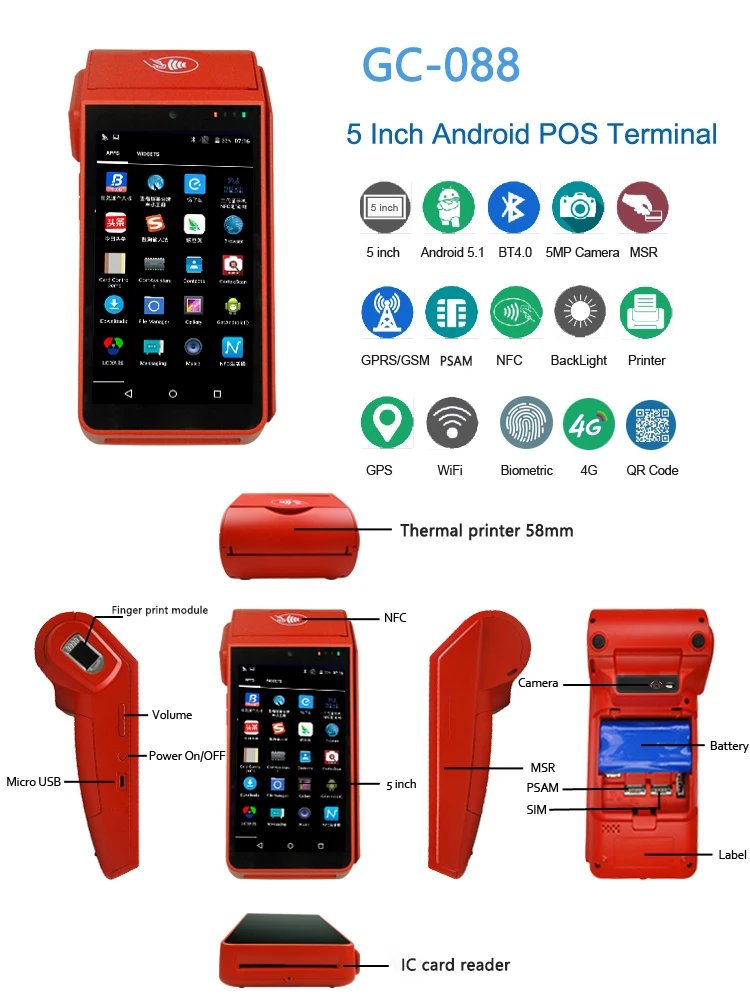

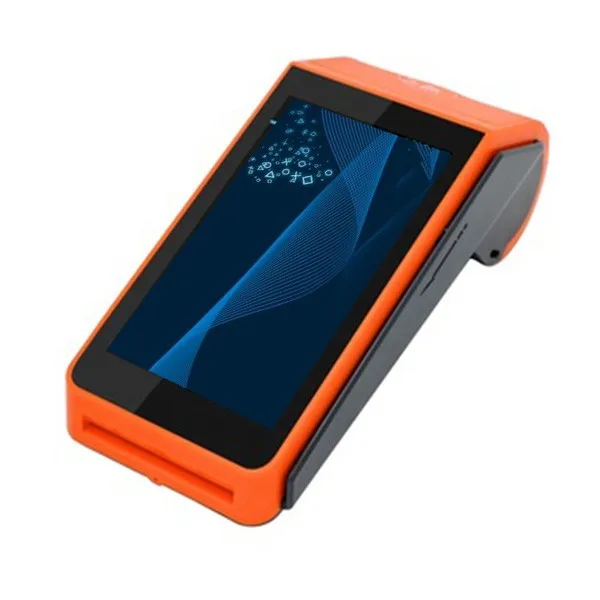

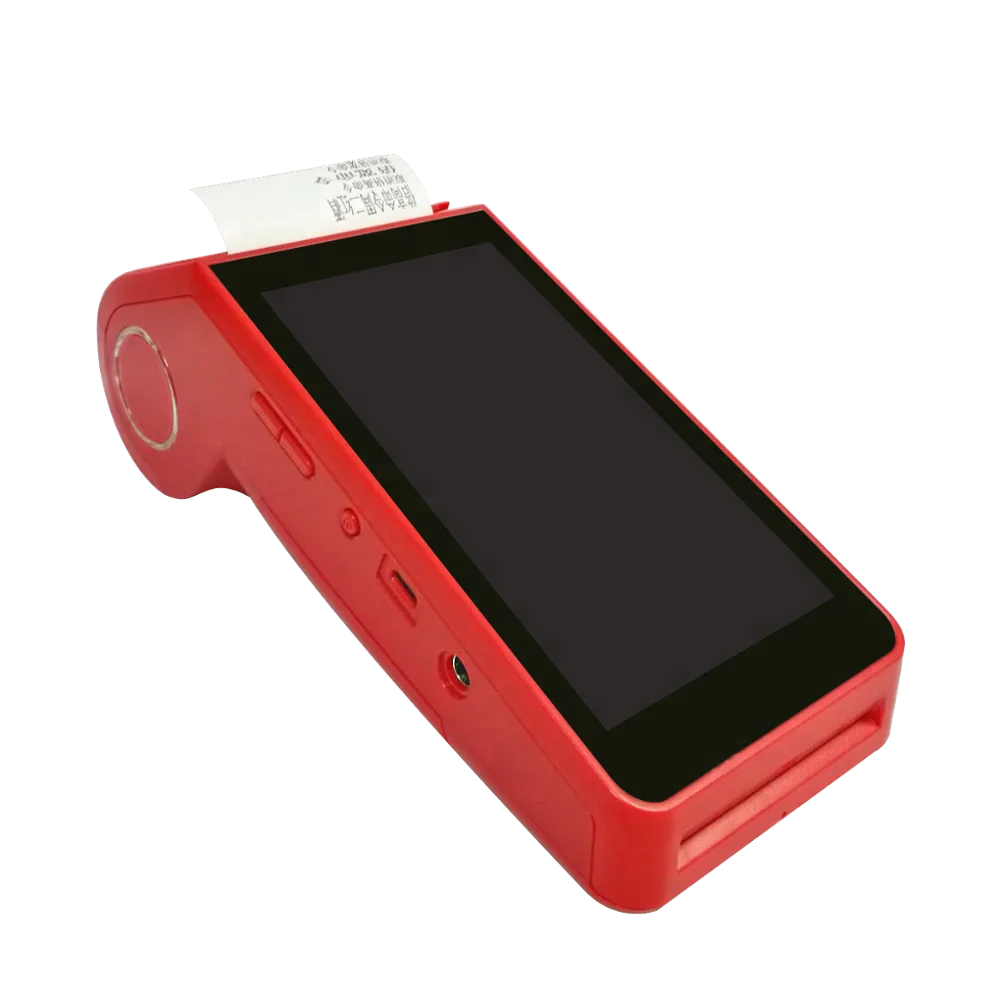

Products Show
Relate Products
Gc079 pos terminal
New arrival android pos
With barcode scanner,printer,MSR,
IC,NFC
Fingerprint reader

Gc062 handheld pos

4 inch touch screen

MSR/IC/NFC card reader

With printer,1D/2D barcode scanner

3G/wifi/Bluetooth

Gc073

12 inch touch screen

3G/wifi/Bluetooth

Various kinds of external port

Our Company

Factory

Our Factory

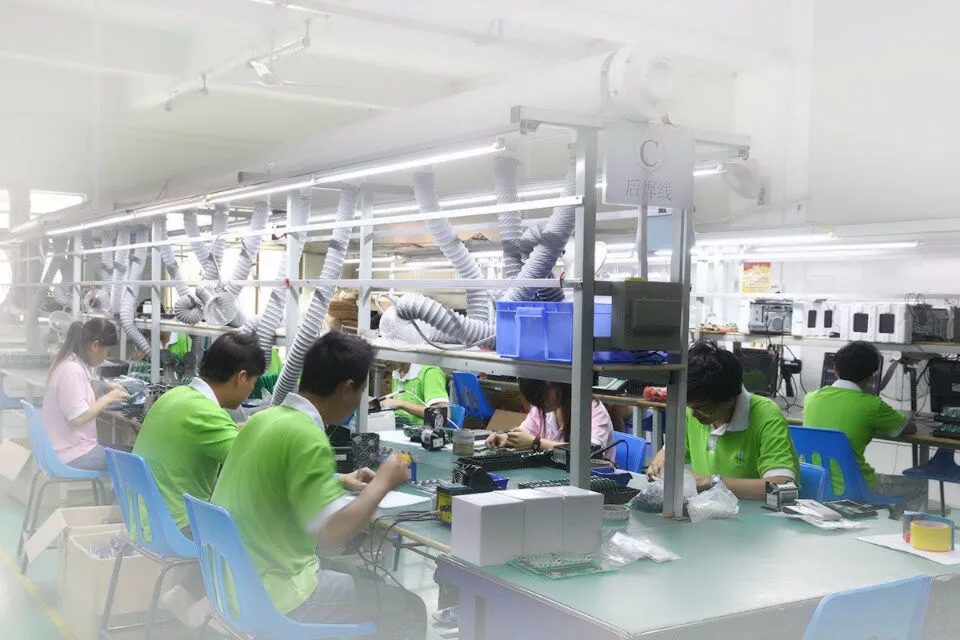

Our Workshop

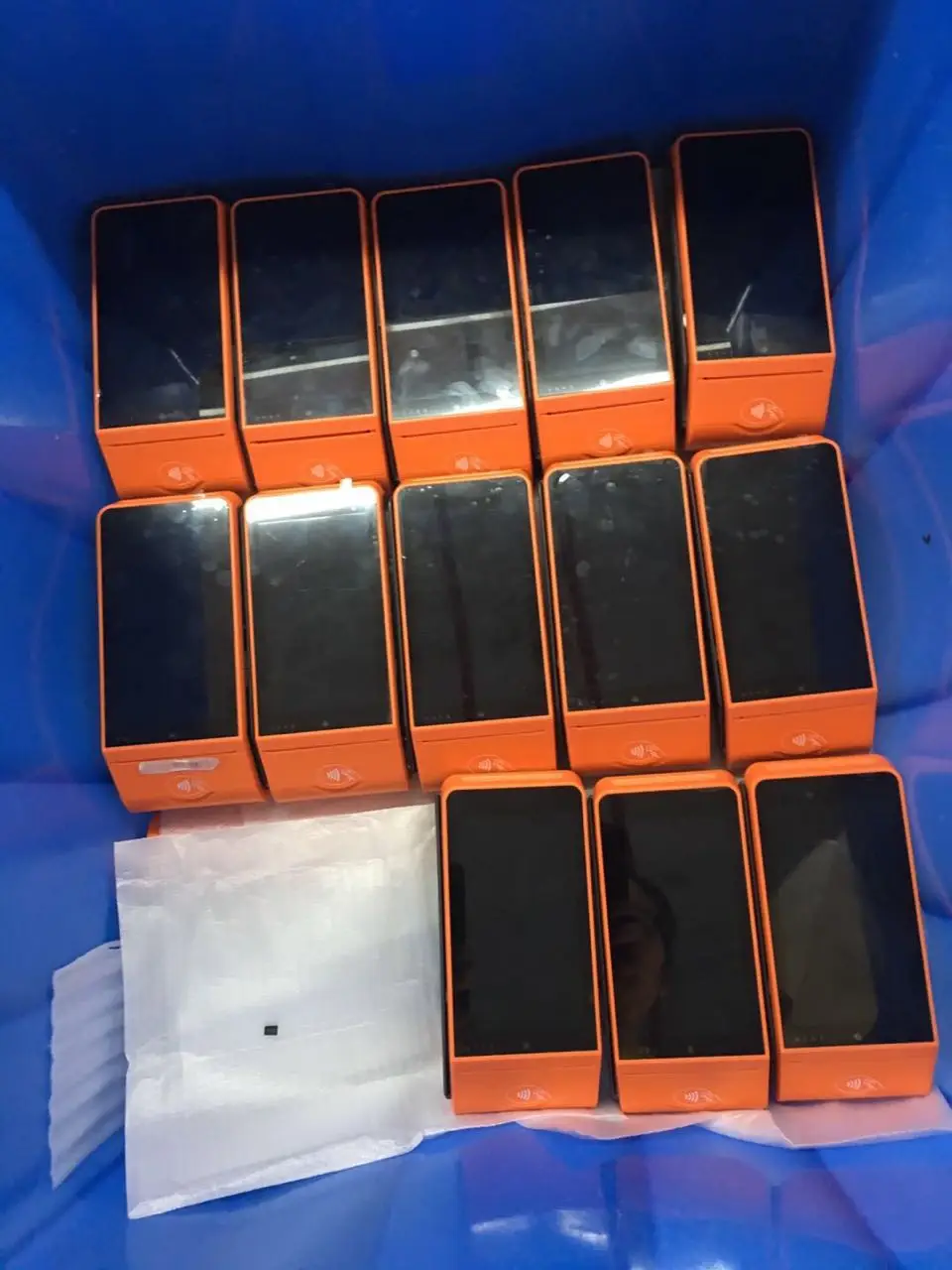

Packing & Delivery

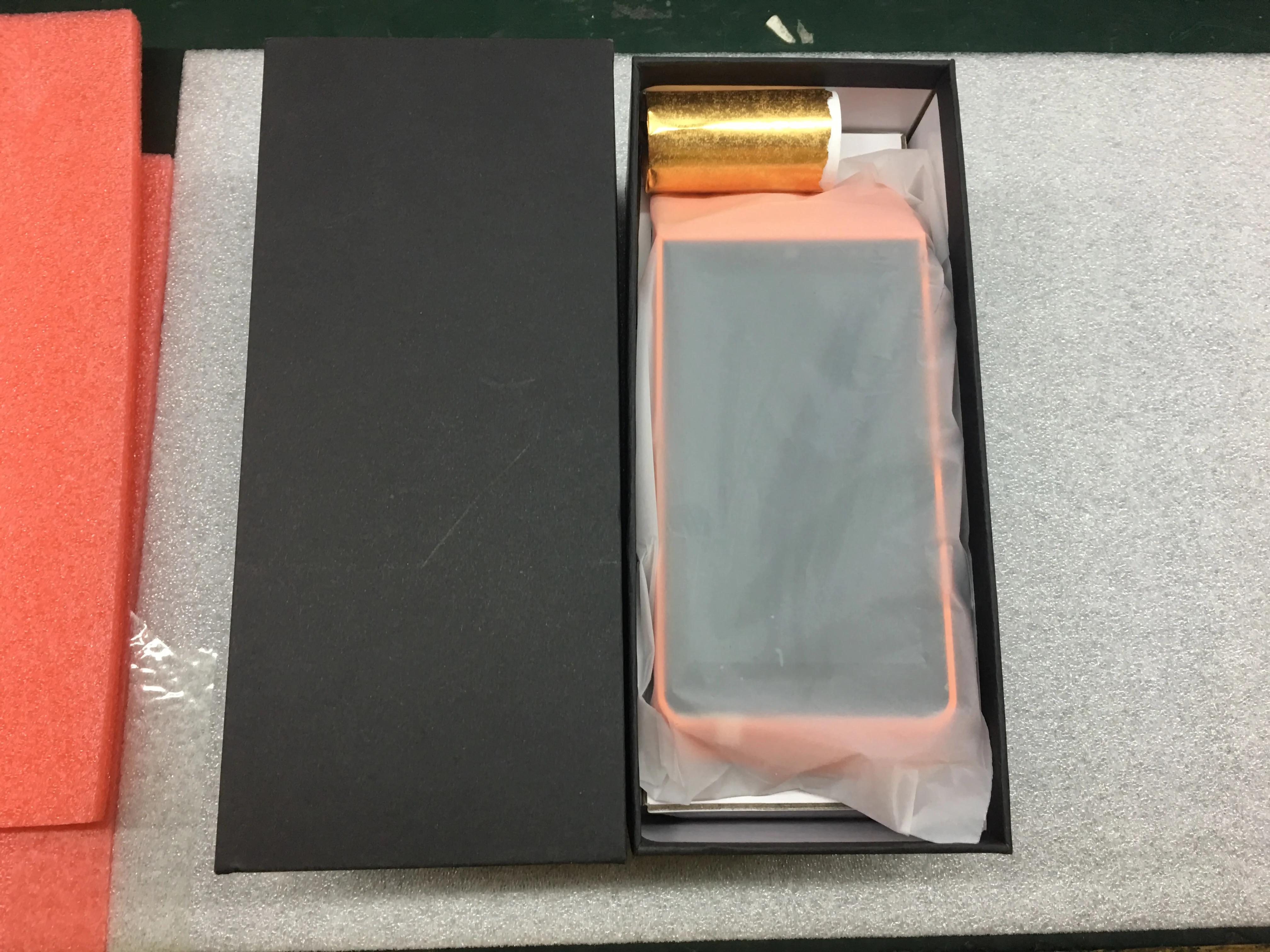

Packing Details  : Standard industrial packing, 1pc in a small box,20 pics in a larger carton

Delivery Details :  3-30 working days, depend on the quantity







Shipped by Express( usually for sample)

Shipped by air( for urgent orders)

 Shipped by sea( for huge quantity)

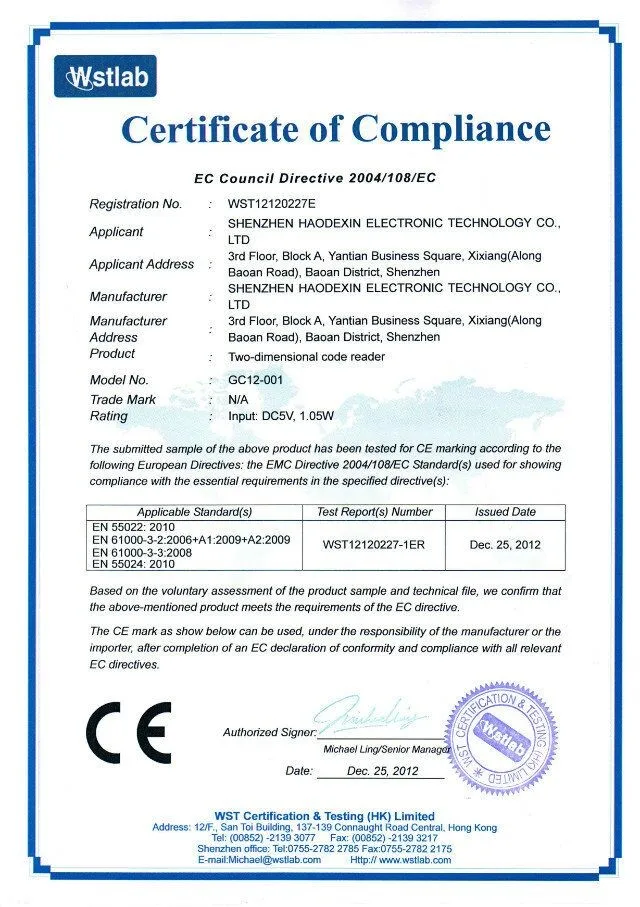

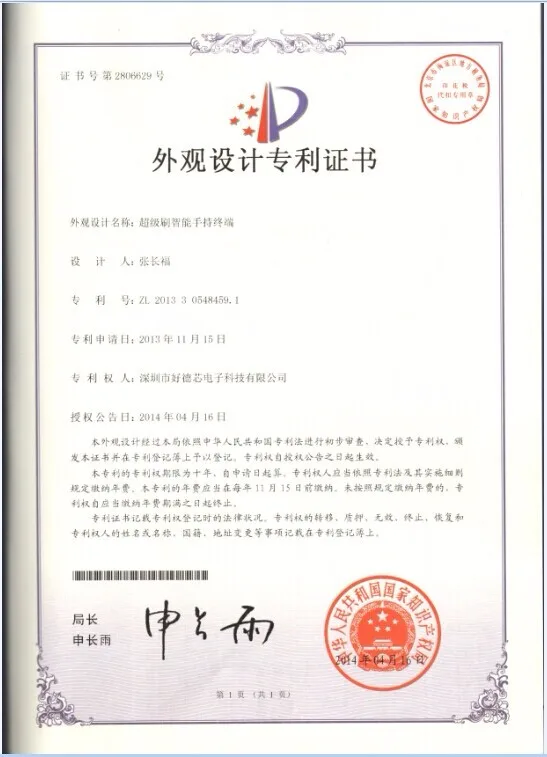

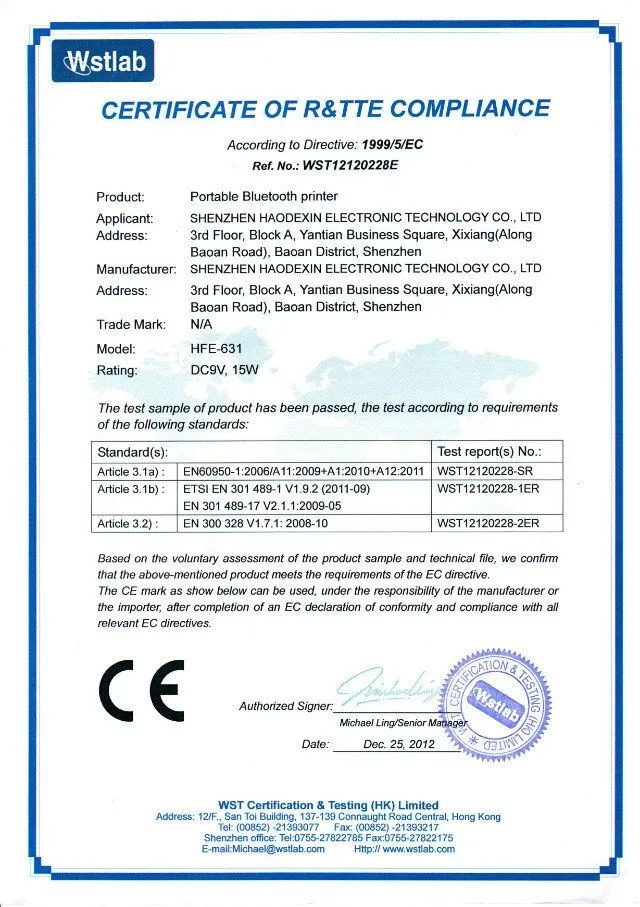

Our Certifications

FAQ

Q1. Can not Turn On

A: Check the power adapter, or try to change another workable power adapter.

Check the battery, or try to change another normal battery.

Remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power Supply Circuit and switch on/off the circuit according the test result.

If the circuit has no problem, and it still can not turn on, please try to discharge.



Q2. Can not detect the SIM CARD

A: Please check whether the SIM card is installed well.

Install the SIM CARD again.

Change another SIM card

Scrape the surface of the metal spring in the SIM CARD slot with knife.

Check whether all the weld point of the SIM CARD slot is welded well or not.. If not, please weld it again.

Replace the part of the SIM CARD slot.



Q3. Can not detect wireless signal

A: Please check whether it has GSM wireless signal in this place. If it has no GSM wireless signal or the signal is very weak, please try to test the terminal in another place with good GSM wireless signal.

Otherwise, please open the shell of the device, and check if the antenna is connected well.



Q4. Print unconventionality

A: If it can't print, or has other print problem, please check the problem device according to following steps:

(1). Open the shell of the POS.

(2). Clean the printer header with ethanol.

(3). Check the connector cable

(4). Disconnect the cable, and clean the connector of the cable

(5). Reinstall, and test it again.



Q5. Print blurred

A: If it prints out blurry receipt, please do following steps.

(1). Clean the print header

Maybe it has some carbon accumulation on the print header.

(2). Check whether the print header installed well or not

Open the cover of the POS. Dismantle the print header.

There are two spring button on the print header.



Q6:Cannot connect with the computer

If the Gc088 android mobile pos terminal cannot connect with the computer by the OTG port,pls check whether you have installed the driver.



Q7: How can you provide the SDK

We will not provide application software but will provide the free development document for our customers' secondary development.Would appreciate it if you tell us your function module before place an

order,we will send the document according to your detail requirements



Q8: What is your warranty policy?



A:Will provide 12 months warranty after the shipment for our normal pos system terminals.For some designated modes, the warranty can be longer. During the warranty, the unworkable pos machines or parts can be repair or replace by free.Considering the high shipping cost in the international trade, we will send some spare parts and machines(1%~3%) in the normal order.



Q9: what is your sample policy?



A:Usually, customers should pay for the sample and the sample price will be a little higher than the normal order.We will retuarn the sample cost in the normal order if your quantity is large enough. We warmly welcome you to come to our factory to test the sample



Q10: How about your delivery?



A: Since we are professional manufacturer and even has our own SMT workshop. From R&D to shipment, all the processing can be controled by ourselves, so, delivery is not a problem for us
