5 liters lab chemical vacuum rotary evaporator price

$1,350.00 / Set | 1 Set (Min. Order)
Application:
Distillation
Model Number:
RE-5000
$1,350.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Sets)
Samples: $1,350.00 /Set, 1 Set (Min. Order): Buy Samples
Contact Supplier
Samples - $1,350.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Online support
Place of Origin:
China
Brand Name:
MINGYI
Voltage:
220V/50HZ
Weight:
43kg
Certification:
CE ISO
Power Source:
Electric
Process:
Rotary
Dimension(L*W*H):
7000L*410W*830H(mm)
Power(W):
40W
Applicable Industries:
chemical laboratory
Key Selling Points:
Long Service Life
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Product name:
rotary evaporator price
Vacuum degree::
0.098Mpa
Evaporation capacity:
20ml/min
Rotary bottle capacity:
5000ml
Collection bottle capacity:
2000ml
Rotational speed:
0-200rpm/min
temperature range:
0-99C (optional 0-400C)
Glass temperature range:
-80-250℃
Main lift stroke:
0-150(mm)
Condenser size:
Diameter 100*590H(mm)

Packaging & Delivery

Selling Units:
Single item
Single package size:
64X54X69 cm
Single gross weight:
43.0 kg
Package Type:
Standard export packing for rotary evaporator price.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 8 To be negotiated

5 liters lab chemical vacuum rotary evaporator price

Product Description

RE-5000 rotary evaporator

RE-5000 rotary  evaporator is a new designed 5 liter rotary evaporator. Its adopts Aluminum alloy body and PTFE seal. About function, it has LCD digital display, which is very comfortable for users to control the speed and lifting.

rotary evaporator



Features



1. The main body adopts aluminum alloy, with reasonable structure and materials stress.

2. The sealing system uses PTFE and imported fluorine rubber, combination of two-way seal to maintain high vacuum.
3. Glass parts are all GG-17 high borosilicate glass, which is high temperature. anti-corrosion.
4. It can be continuously fed. Feeding tube adopts tetrafluoroethylene tube.
5. It adopts upright double layer serpentine coil condenser to ensure high vacuum degree.
6. Temperature and speed are digital displayed. It has intelligent thermostat controlling. PT100 sensor could show accurate temperature.
7. It has fuse safety protection, which could automatic power off when dry.
8. The speed is electronic stepless adjusted. Speed range is from 0 rpm to 200rpm.
9. Pot material adopts stainless steel and t eflon composite pot, with fully enclosed heating.
10. It has micro-motor drive. The host could be automatically lifted.



Technical data



ModelRE-5000 rotary evaporator
Power supply voltage220V/50HZ (can be customized 110V / 60HZ)
Motor power40W
Heating power2KW
Lifting power: 20W20W
Vacuum degree0.098MPA
Evaporation capacity20L/Min
Rotating bottle capacity5000mlΦ131mm / 24 # mark
Collection bottle capacity2000mlΦ131mm / 35 # ball grinding mouth
Rotation speed:0-200rpm / min
Temperature range0-99 ℃ (can be customized 0-400 ℃)
Temperature control accuracy± 1 ℃
Glass temperature range-80-250 ℃
Host lift stroke0-150 (mm)
Condenser sizeΦ100*590H (mm)
Feeding valve19 # mark
Bath size capacityΦ280*170H (mm) about 10.5L (plus organic transparent cover)
Dimension700L*410W*880H (mm)
Packing size640L*540W*690H (mm) carton 0.23m³
Package Weight43KG



Detail Imagine

rotary evaporator



rotary evaporator

Related Products

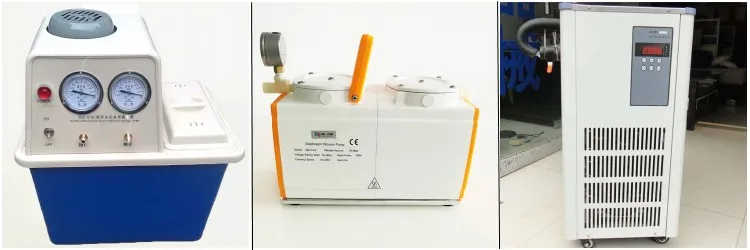

In order to do better reaction, you can also combine our mini rotovape with vacuum pump and chiller. For vacuum pump, we have desktop water vacuum pump, vertical water vacuum pump, diaphragm vacuum pump, rotary vane vacuum pump and so on.  And for chiller, the capacity is up to 200 liters and the lowest temperature  is up to -120 ℃. The standard voltage of these machines is 220V. Users could also customize the voltage to 110V.
Water vacuum pumpDiaphragm vacuum pump Chiller
rotary evaporator



Company Information

Zhengzhou Mingyi Instrument Equipment CO., Ltd has many years production and development experimences of rotary evaporators, galss reactors,  molecular distillation machines and other related products. Until 2019, we have exported products to 32 countries and more than 1200 customers. We will continue to provide quality products, cheap price and warm after-sales service to our customers.

 rotary evaporator

Our Services



Pre-sale service
24hours online to ensure quick response to customers' inquiry or online message;
Guide customers to choose the best suitable machine model;
Offer detailed specification and competitive prices;


Contract execution
Machine production will be arranged strictly according to the contract;
Machine photos will be sent to you for inspection during production;
Send customs clearance documents by DHL;
Update latest news after delivery and prepare customs clearance;


After-sale service
12 months warranty except for wear parts;
Broken spare parts (except for wear parts) will be sent for free due to quality problems;
In time response to customers technical problems;
New products update for customers' reference

rotary evaporator

You may like

Besides RE-5000 5l rotary evaporator, we also have other capacity rotary evaporator with cheap price, such as 1L, 3L, 5L, 10L, 20L,30L, 50L and 100L.  The following is our lab scale 1L to 5L models,  you can click the link to check more information.

RE-201D rotary evaporatorRE-5299 rotary evaporatorRE-2010 rotary evaporator
Rotary flask:1L Collect flask:1L   Rotary flask:1L Collect flask:1L   Rotary flask:3L Collect flask:2L
Unit Price:$480Unit Price:$540Unit Price:$850
rotary evaporatorrotary evaporatorrotary evaporator
RE-2000A rotary evaporatorRE-301 rotary evaporatorRE-501 rotary evaporator
Rotary flask:1L Collect flask:1L   Rotary flask:3L Collect flask:2L Rotary flask:5L Collect flask:3L
Unit Price:$730Unit Price:$680Unit Price:$730
rotary evaporatorrotary evaporatorrotary evaporator
