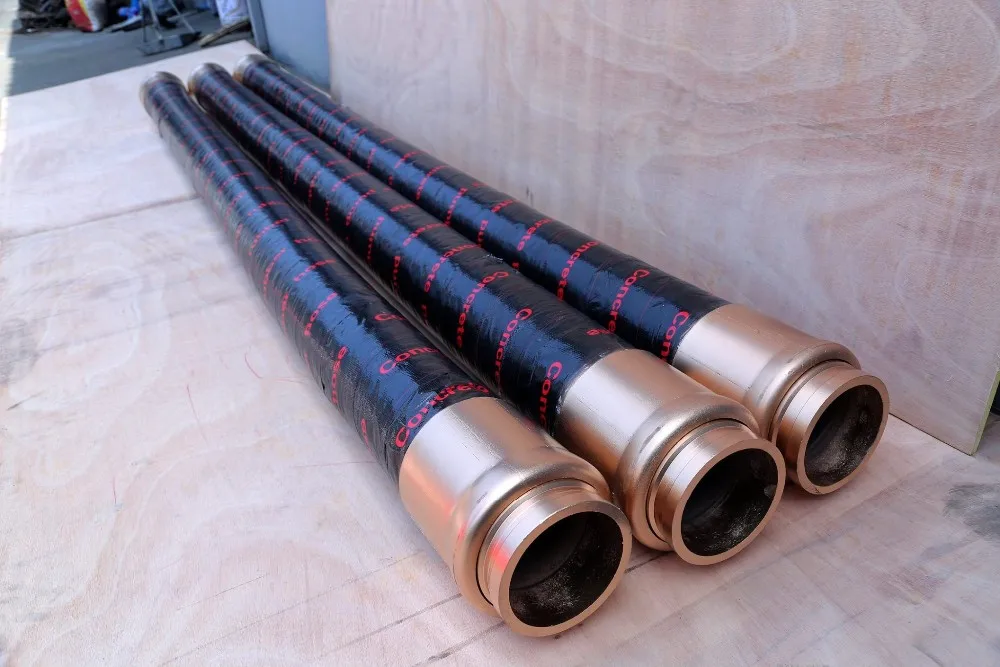

5"x3000mmx2 Ends steel wire reinforcement concrete pump rubber hose

FOB Reference Price:Get Latest Price
$110.00 - $200.00 / Pieces | 1 Piece/Pieces Concrete Pump Rubber Hose (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Cangzhou Pengkun
Model Number:
DN50-DN150
Name:
Concrete Pump Rubber Hose
Working pressure:
85bar
Burst Pressure:
250bar
Wire braid hose size:
2"-5"
Ply:
2/3/4-ply wire braided etc
Life:
25000-35000 CBM
Color:
as clients's required
Length:
3--10m or other length
Export goods:
Pump Pipe, Boom Elbow, Clamp, Rubber Hose, Flange, etc
Export country:
Southeast Asia, Africa, South Asia, Western Europe ,etc
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month Concrete Pump Rubber Hose
Packaging & Delivery
Packaging Details
one container will load 350 piece concrete pump rubber hose
Port
Tianjin
Lead Time :
Shipped in 10 days after payment
Video Description
Product Description
size
inner diameter
wall thickness tolerance
outer diameter
working pressure
burstiong pressure
bend radius
weight
2"
50.0 mm
9.0±0.75 mm
68±1.50 mm
85 bar
240 bar
200 mm
2.60 kg/m
2.5"
64.0 mm
10.0±0.75 mm
85±1.50 mm
85 bar
240 bar
250 mm
4.30 kg/m
3"
76.2 mm
12.9±1.00 mm
102±1.50 mm
85 bar
240 bar
270 mm
6.10 kg/m
3.5"
89.0 mm
13.5±1.00 mm
116±1.50 mm
85 bar
240 bar
290 mm
8.00 kg/m
4"
101.6 mm
14.2±1.00 mm
130±1.75 mm
85 bar
240 bar
300 mm
9.00 kg/m
4.5"
115.0 mm
14.0±1.00 mm
143±2.00 mm
85 bar
240 bar
320 mm
10.20 kg/m
5"
127.0 mm
16.0±1.00 mm
158±2.00 mm
85 bar
240 bar
360 mm
12.50 kg/m
6"
150.0 mm
18.0±1.00 mm
168±2.00 mm
85 bar
240 bar
570 mm
14.85 kg/m

Specifications

1.application:

used for high-rise buildings, highway, tunnel, water conservancy project , nuclear power station and so on construction machinery , concrete pump delivery concrete.

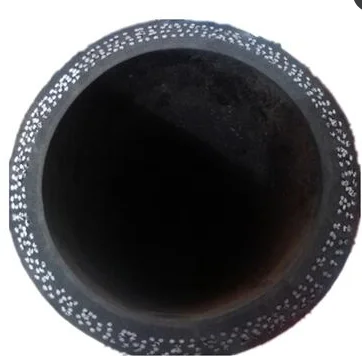

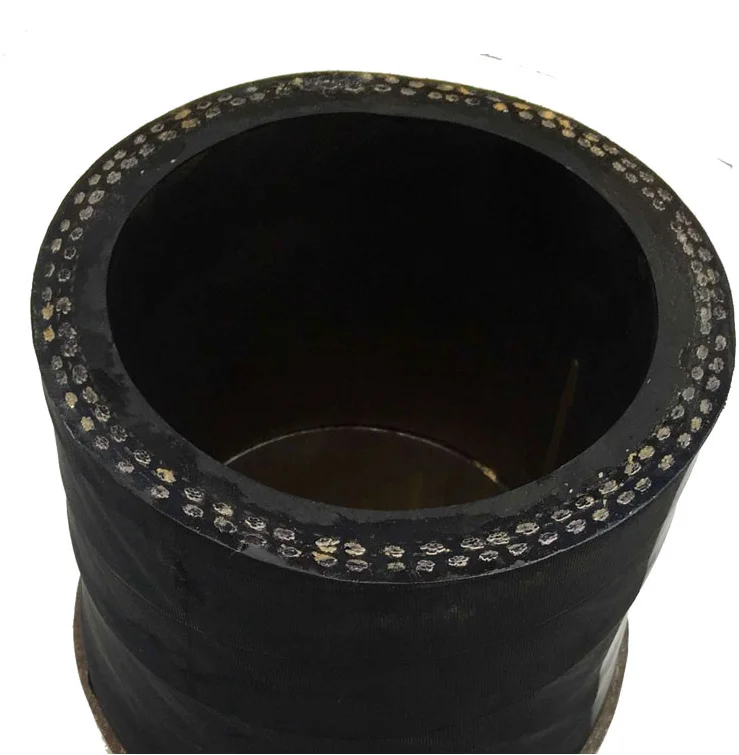

2. product structure: inner layer rubber, enhancement layer, outside layer rubber

(1) inner layer rubber:

 polyurethane and butyl rubber are the mainly material, and put in special reinforced material to make mixed rubber .its colour is black and transparent. With high wear resistance, high toughness, high pressure, smooth, and so on.The friction resistance of concrete Wipe, tube has the pressure transmission medium, wire protection from erosion effect.

(2) enhancement layer:

 4 layer of steel wire wound, the use of copper wire braided hose, bearing the work pressure is the ordinary hose 3-4 Times, with a high degree of resistance, flex features superior performance, enhancing effect.

(3) outside layer rubber:

Black, smooth (wrapped), SBR/NR compound, anti aging, wear resistance.
[material ] natural rubber and steel wire

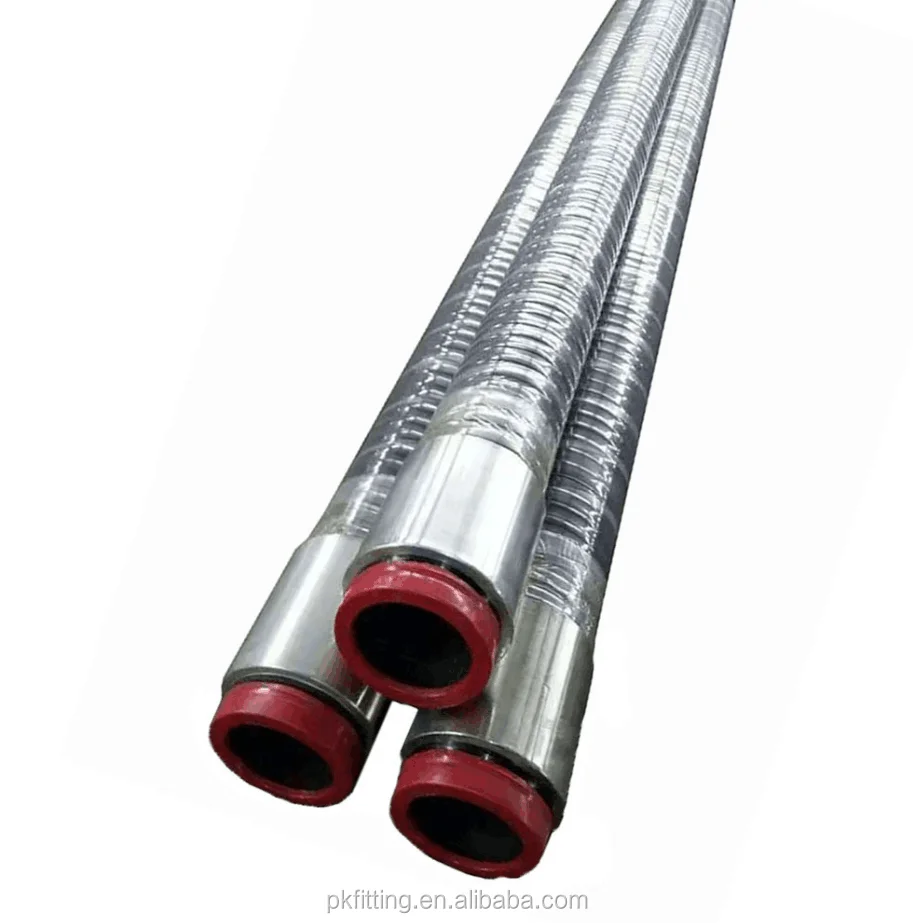

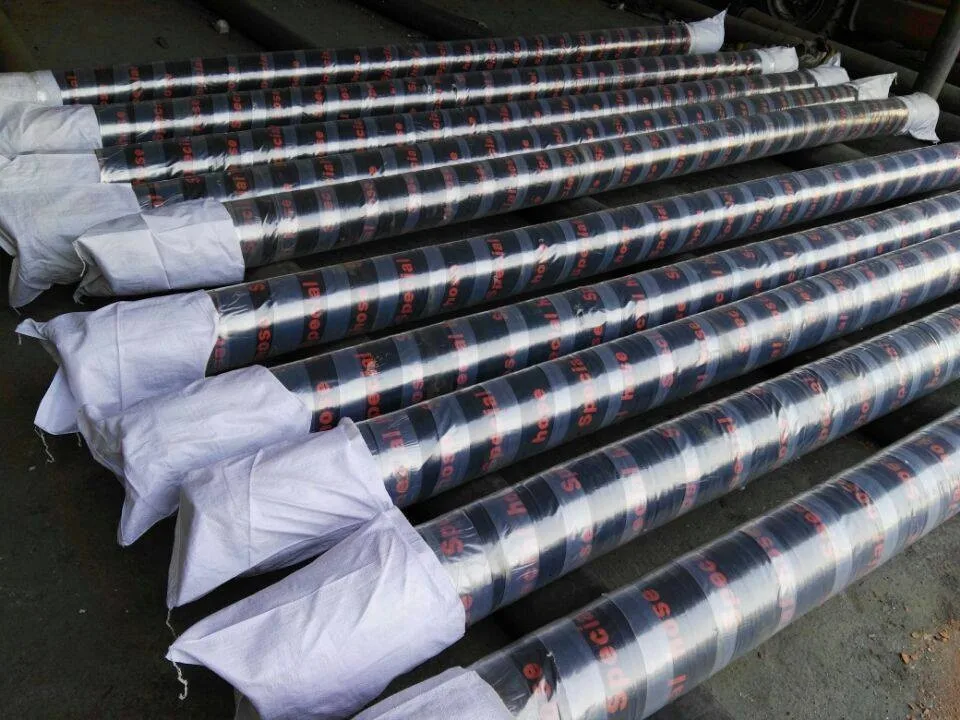

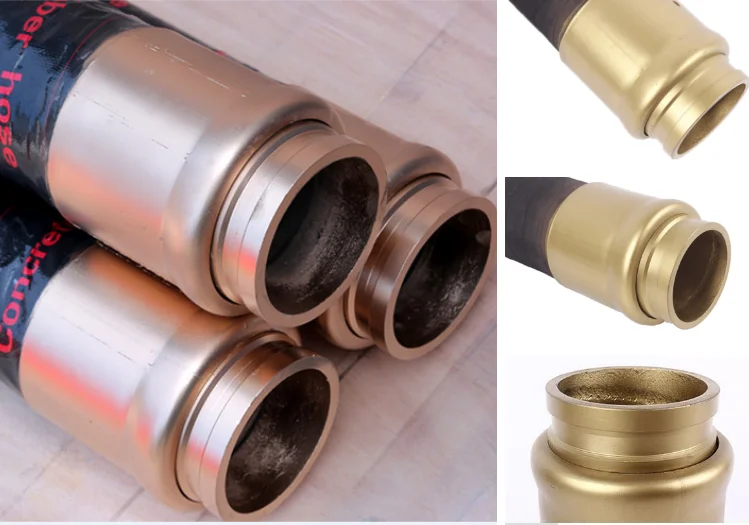

Detailed Images
Application
DN125(5") 2 plies steel wire cord reinforced concrete pump hose usually can be used for concrete placing boom, tralier concrete pump


DN125(5") 4 plies steel wire cord reinforced concrete pump hose usually can be used for concrete boom pump truck, screw pile machine.
Our Company
Cangzhou Pengkun Construction Machinery Pipe Fitting Co.,Ltd is a professional manfuacturer of concrete pump spare  parts for more than ten years and win good repution in the world. we located in Yanshan County, Cangzhou City, Hebei Province, China. we have progress production line, and compete quality test department. send the best quality product is our pursuit.

Our factory

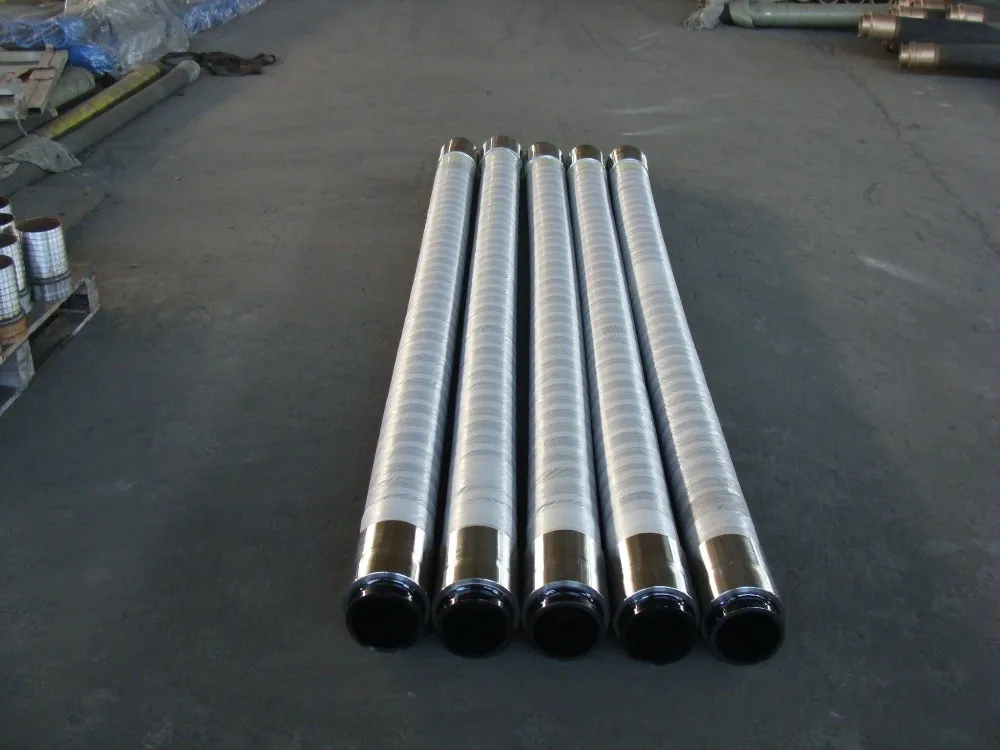

Our warehouse


Our team


Related Products

concrete pump pipe


concrete pump elbow


concrete pump clamp


concrete pump piston


concrete pump sponge ball


concrete pump rubber gasket


concrete pump s valve


concrete pump wear plate


concrete pump flange

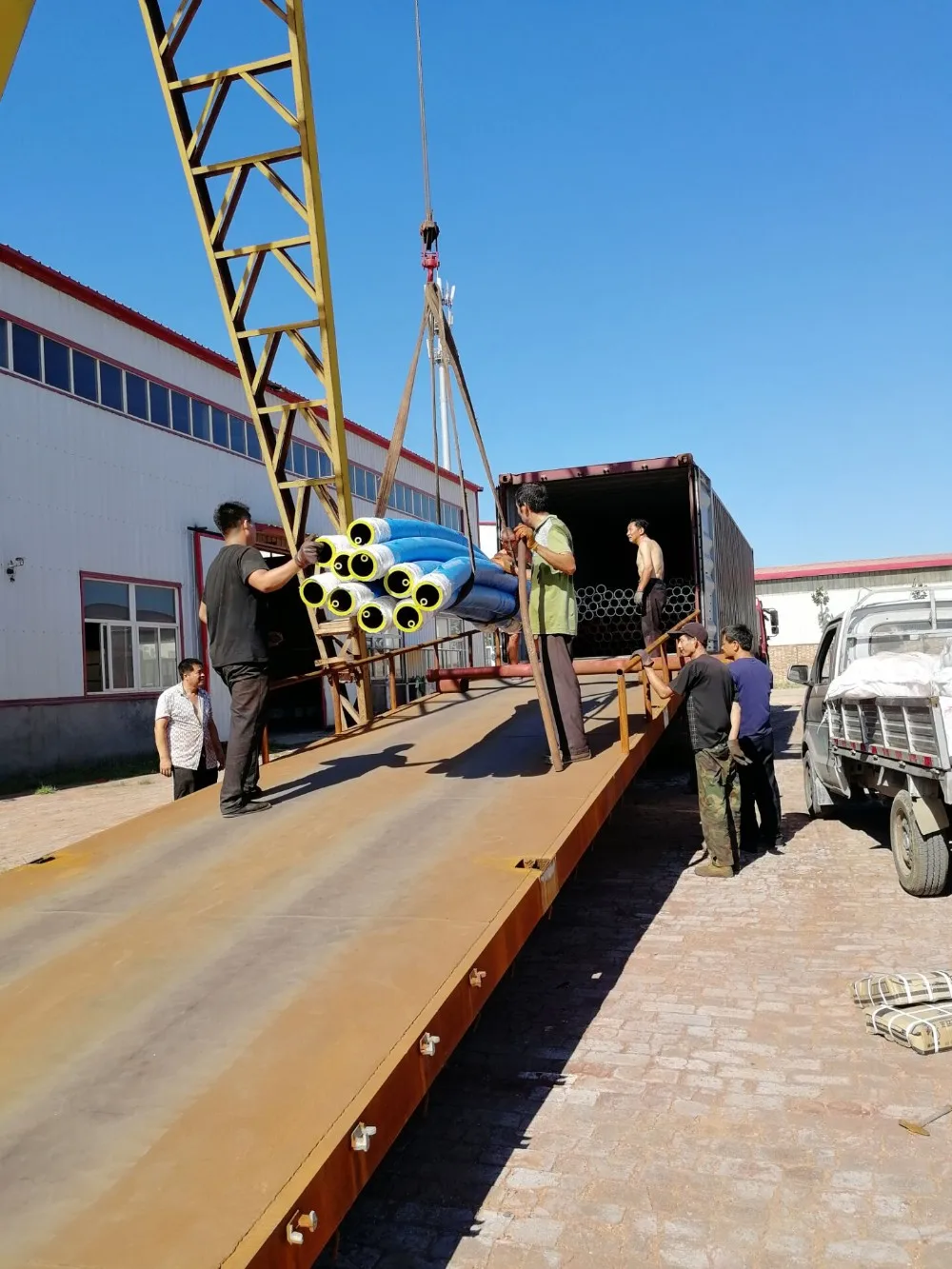

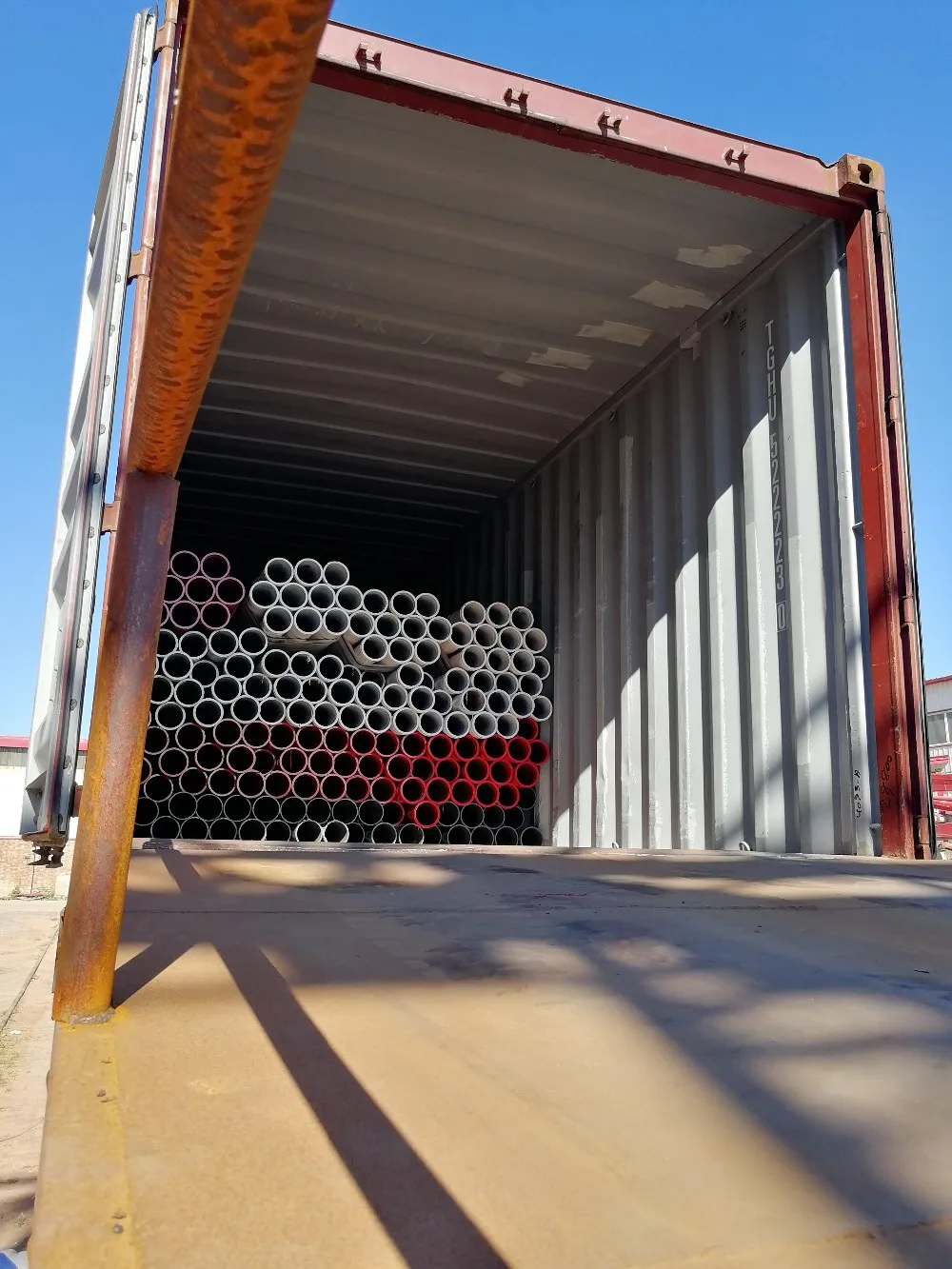

Packing & Delivery
