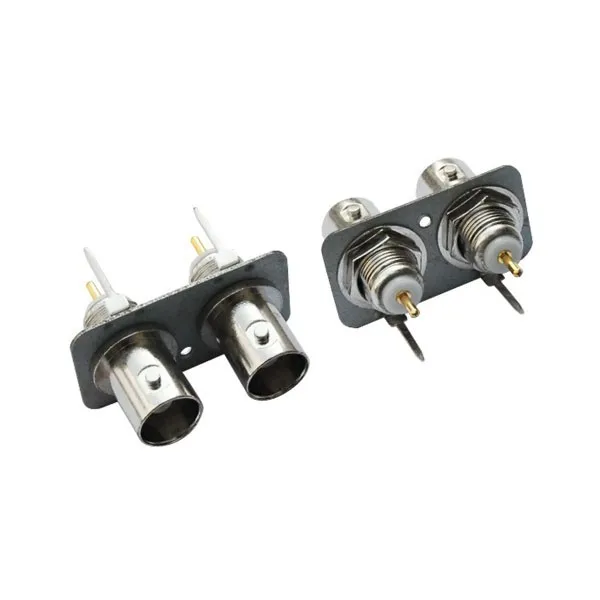

50 Ohm Straight 2 Pin BNC Jack Connector for Cable

FOB Reference Price:Get Latest Price
  • 100 - 49999 Pieces
    $1.00
  • >=50000 Pieces
    $0.20
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 12 Negotiable
Samples - $5.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Model Number:
BNC
Application:
PCB
Place of Origin:
Guangdong, China
Gender:
Female, Female
Orientation:
Straight
Polarity:
Standard
Impedance:
50 Ohm
Termination Style:
Crimp
Mounting Feature:
Cable
Body Material:
Brass
Body Plating:
Nickel Plating
Frequency Range:
DC-4GHz
Temperature Range:
-55~+1500℃
Type:
BNC
Brand Name:
Renhotec
Supply Ability
Supply Ability:
5000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.100pcs/pe bag or blister tray,1000pcs/carton
2.Carton package or as clients requirement
Port
Shenzhen Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 12 To be negotiated
Product Description

We're professional RF connector manufacture since 2005, if you can't find what you need in this page, please contact us directly, we will offer you more immediately

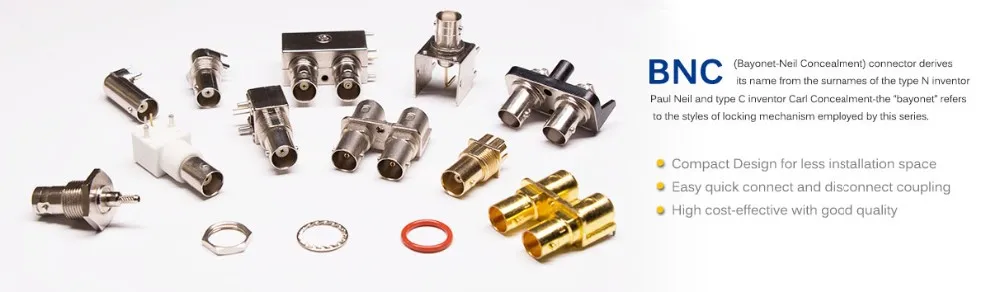

Renhotec BNC connectors.

50 ohm BNC connectors feature a simple bayonet coupling requiring only a quarter turn to connect or disconnect. The easy to use coupling make BNC one of the most popular general purpose connectors used in all markets. Designed to meet the requirements of IEC 61169-8, typical applications include, instrumentation, security, telecom, broadcast, mil/aero and many others. See also our 75 ohm BNC connectors and Mini BNC & Micro BNC sections for smaller versions of this popular interface

• 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements
• 50 Ω and 75 Ω connectors are intermatable to ensure non-destructive mating
• Three grades of connectors are available for military, industrial and commercial applications

Technical Infomation
Major Technical Characteristics
Temperature Range
-5 degree to +155 degree(PE cable -40 degree to +85 degree )
Impendance
50ohm, 75ohm
Frenquency Range
DC-4GHZ
Working Voltage
500V r.m.s at sea level
Workstandinging Voltage
1500V r.m.s at sea level
Center Contact Resistance
≤1.5Mohm
Outer Contact Resistance
≤1Mohm
Insulation Resistance
≥5000Mohm
Center conductor Retention Force
≤0.57N
Insertion Loss
≤0.20dB/3GHz
VoltaggeStanding Wave Ratio
Straight
≤1.22/3GHz
Right Angle
≤1.30/3GHz
Dutability (Mating)
≤500(cycles)
Materials
Body
Brass.........................Nickel
Insulator
Delrin.........................Natural
Contact Pin
Brass.........................Gold
Ferrule
Copper......................Nickel
Suitable cable
RG6, RG58, RG59, RG174, RG179, RG316. (More Option, please contact US)
Related Products
Company Profile
Packing & Delivery

Packing :
Normal packing: 100 pcs per tray or polybag ,1000pcs per carton.
Private packing and label service are available as per your requirement.

Shipping:
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.

Contact US

Shenzhen Renhotec Electronics Co., Ltd

Sales: Monica
