50 ton truck scale 60 ton truck weigh bridge scale price

  • 1 Sets
    $6,398.00
  • 2-3 Sets
    $6,350.00
  • >=4 Sets
    $6,300.00
Type:
Truck Scale
Rated Load:
10~150T
Accuracy:
5~ 50kg
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
CIMT / OEM
Model Number:
SCS
Power Supply:
220V(AC) 50HZ
Display Type:
LED Display
Product name:
Truck Weight Scale
Capacity/accuracy:
10~150T/5~50kg
weighing body structure:
6-8 main longitudinal girders
Name:
Truck weighbridge
internal cavity:
omniseal and anticorrosion
steel plate surface:
epoxy zinc rich primer and acrylic marine paint
load cell function:
anticorrosion, moistureproof and lighthing prevention
oil film thickness:
100 microns, stronger anticorrosion ability
modular platform:
4, 5 meters module
load cell protection class:
IP68

Packaging & Delivery

Selling Units:
Single item
Single package size:
580X230X230 cm
Single gross weight:
7200.000 kg
Package Type:
The body of truck scale is nude packed in Container / the accessories are packed in Wooden box Container / Wooden box According to customers' request
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 4 >4
Est. Time(days) 7 8 12 To be negotiated
Product Description

Truck scale description

1.Weighing Capacity: Series
2.Structure: U-shape beams
3.Thickness of plate (8mm 10mm 12mm 14mm)
4.Painting: Anti rust and anti corrosion painting

Truck scale description

5.Accuracy class: OIML(III

6.Body:3 section 6 pcs
7.Safe Overload: 120%
8. NO. of load cells: 8 ZEMIC load cells

Truck scale description

9.With XK3190 A9p indicator

(mini printer)
10.All the screws and tools used for installation has been included in the price

Standard part:

1.Scale body
2.ZEMIC load cells
3.Indicator
4.junction box
5.cable (50m)
6. foundation drawings
7. screws & tools. Etc

A.With a top cover on the platform for access to the load cells.
B.Composed of 4 or 6 U beams and C channel beams,robust and rigid.
C.Middle dissected,with bolts connection. Double shear beam load cell or compression load cell selectable.
D.Pit & pitless mounted alternatively,and pit mounted more often.
E.Easy assembly and installation Width available:3m,3.2m,3.4m.
Standard length available:6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,24m.

Max Capacity available:30t,40t,60t,80t,100t,120t,150t.

3 sets of 3x18m can be placed in one 40'high containerk.

Parameter List
Name
Data
Truck scale width
3m,3.2m.3.4m,3.5m
Truck scale length
6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,22m,23m,24m
Accuracy class
OIML(III)
   Capacity range
10-150(Ton)
   Safe overload
150%
Material
Q235 steel
   Thickness of plate
10mm or 12mm
     Structure
U shape bridge construction stucture
Structure Thhickness
6mm
Painting
Anti rust and anti corrosion painting
   Work temperature
Indicator:-10°C to +40°C Scale platform: -30°C to +65°C
power supply
220V 50HZ to 230V 60HZ or 110V 60HZ
Packing detail
Carton packing
Quality system
ISO9001:2008
Certificate numble
04809Q11426R0M
Produce permit certificate
 China Metrology Certification
Standard accessory part include:
Weighing indicator
Electronic type or digital type
Load cell/sensor
Electronic type or digital type
Printer
Panasonic Brand/Epson Brand optional
Junction boxes
Waterproof type wire junction boxes
Connect cable
20m or 30m(depends on the distance from scale house to scale)
Screw
Bolts-screws,limit screw,loading cell screw,cover plate screw
Installation tools
Inner six angle spanner,Uncrock spanners,Screwdriver.
Optional accessory part include:
Scoreboard
Convenience for seeing weighing result in the long distance.
Weighing management software
Install software in PC and operate the truck ID,tare,net,gross,accumulation etc intelligence automatic system.
PC
    Brand desktop computer
Detailed Images

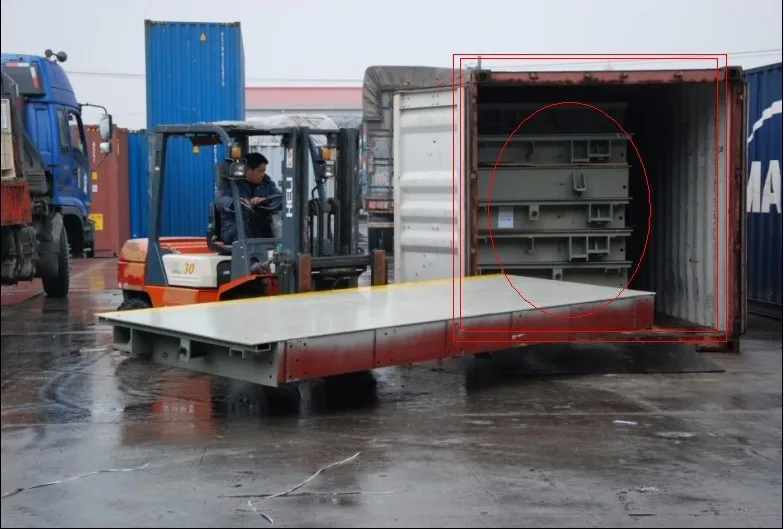

Packing & Delivery
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

1.Standardization of Service “212"

   2: response in 2 hours 1: provide solution in 1 day 2: solve complaint in 2 days.
2.Installation Service
   Installation Services are available with all JKD machines. We dispatch technician to customer's factory

   for installation and pre-operation of machines. ( Customers only  need to pay the airfare  and hotel )
3.Training Service
   Our technician is available to your factory and offer training of how to use our machines.
   As well, you may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
 We guarantee the quality of machine (e.g. processing speed and working performance is the same as the    data of samples making). We sign the agreement with detailed technical data.
   We arrange final test before shipment. We run the machine for a few days, and then use customer's

   materials for test. After making sure machine is the best performance,then make shipments.

Company Profile
Our Weigh Bridge

1.Modularization, serialization weighing platform, multi-module combination

2.Automatic reset force transmission system

3.Digital displays gross weight, net weight and tare weight

4.10 times overload record recently

5.The indicator can filters the noise wave and delete the weight of small objects

6.Don't need to Calibrate when replace indicator

7.With accurate clock, calendar, automatic leap year leap month, don't influence by off power.

8.Store vehicle No., tare weight, sub-item accumulation and total accumulation
