500 Million Square Meters Output Per Year Gypsum Board Machine

FOB Reference Price:Get Latest Price
$2,350,000.00 - $3,600,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JX-001
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 120 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Overseas service center available
Place of Origin:
China
Brand Name:
jingxing
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Material:
Stainless steel
Motor Brand:
SEW
Raw material:
Gypsum
Capacity:
200million
Fuel:
Oil or Natural gas
Thickness:
9.5-13mm
Board length:
1.8m-3.6m
Supply Ability
Supply Ability:
3 Set/Sets per Year
Packaging & Delivery
Packaging Details
wood package
foaming film package
as customer need
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 120 To be negotiated
Video Description

Gypsum board production line

The gypsum board production line includes hot oil type and direct burning type, the capacity is from 2million square meters per year to 30million square meters per year, ajusted by customers' request.Our production line consists of the parts below:

specializes in manufacturing paper-faced gypsum board machines and relative spare parts, and proceed the customized design based on customers’ requirements like quality,quantity,raw materials and so on.

500 Million Square Meters Output Per Year Gypsum Board Machine

Gypsum board production line specifications

Anual Capacity (m2)

Capacity

1200*2400*9mm

Drier Layer

Control

2 Million

2000

4

Computer

3-4Million

3000-4000

6

Computer

5-8 Million

5000-8000

8

Computer

10-15 Million

10000-15000

10

Computer

20-50 Million

20000-50000

12

Computer

Advantages



Main Advantages

Paper Gypsum panel making machine

1)The gypsum boards are advocated by the China as green building materials. Besides the natural gypsum, we also utilize our machines to recycle and reuse the gypsum produced by the high-polluting industries like chemical plants,power plants,etc., which highly improves the social living environment.

2) Our company adopts the dynamic foaming,hot-air drying and computer programming, which immensely improves the automation of production line.


The paper-faced gypsum board machines take the building gypsum as raw material that is mixed together with some moderate additives and fibers to make the board core which is covered by specially-made paper as a protection to finally produce the paper-faced gypsum boards out. For production of paper-faced gypsum boards, we our company adopts the hot-oil drying technology,the interactive drying technology ( heat-conducting oil and hot air) and complete hot-air technology to fully satisfy the demands from different customers.




Product Description

Product Description





 1.Paper supplying system of plasterboard production line

Paper Gypsum panel making machine

It adopts special pneumatic shaft and magnetic powder brake. The high accuracy paper connecting way and high precision electro hydraulic alignment device, along with the automatic marking device played very big roles for shaping, and ensured the good appearance quality.

 2.Gypsum powder supply system of plasterboard production line

It takes the exclusive impeller feeder and high precision weighing belt as the core of powder feeding. Thus it ensured normal supply of the gypsum powder. Moreover, it contains series of powder additive storages, discharging and metering feeding systems; glass fiber cutting and its metering feeding systems.etc.

3.Water supply system of plasterboard production line

It has the accurate screw measurement pump and visual liquid flow meter device which lead great convenience for operation.
4.Foaming system of plasterboard production line

It adopts high volume pressostat for gas supply, got screw metering pump and advanced foaming station. The foaming station adopts advanced dynamic and static combined foaming system which makes the foam uniformly enter into the mixer.Thus it has a key effect on improving product quality and testing products’ weight.

5.Forming System of plasterboard production line

The vertical mixer and the pneumatic forming device are made of special wearable stainless steels which enhance the system’s wearable ability and prolonged its life span. The vertical mixer got pin type, none-pin type and other types to choose

6.Conveying System of plasterboard production line

This system added the waste board dumping device which reduces the workers’ labor intensity and ensures the cleaness of workshop.

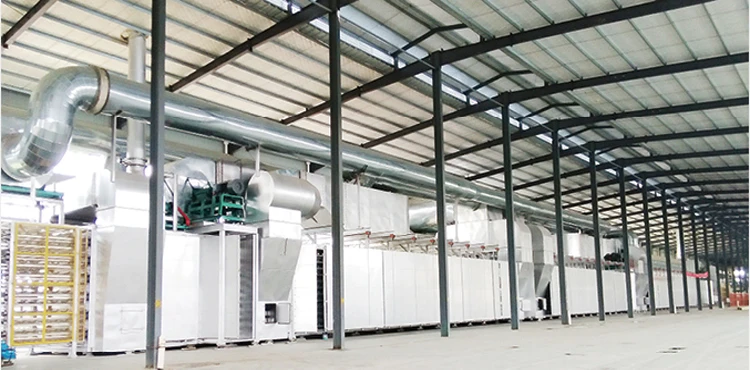

7.Drying System of plasterboard production line





8.Heating System of plasterboard production line



9.Edge Cutting and Sealing System of plasterboard production line

After turning over and folding the board, the system cuts the folded board and seals it together. The waste rawmaerial after cutting is chopped into powder, let this powder absorb slurry, then can be used as accelerator.

10.Dust removal system of plasterboard production line
This system uses the pulse blow bag dust collector, this kind of dust collector improves the dust removal effect, and makes it reach the environmental standard. In addition.

Our Services



Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit zenith working machines or complete plant in the site.


To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.



After-sales Service:

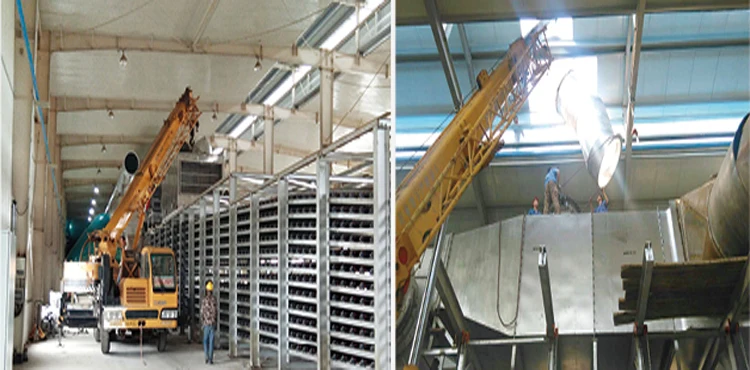

Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
