5000K 250W Aluminum Rubber Seal IP65 Prismatic Glass Lens Wall mounted Light

FOB Reference Price:Get Latest Price
$80.00 - $200.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lamp Power(W):
250
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
220
CRI (Ra>):
80
Working Lifetime(Hour):
100000
Place of Origin:
Chongqing, China
Brand Name:
Rongbiao
Model Number:
TGS019
Lamp Luminous Flux(lm):
21250
Working Temperature(℃):
-40 - 50
Color Temperature(CCT):
Cool White
Lamp Luminous Efficiency(lm/w):
80
Color:
white
Protect:
water-proof
Warranty:
5years
Price:
factory price
Main application:
factory, tunnel, gymnasium
Adapter light source:
40w/60w/80w/100w/120w/150w
Light source shape:
Rectangular
Keyword:
wall light
Item Type:
Flood Lights
Light Source:
Induction Lamps
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
BV, CCC, ce, CQC, C-tick, FDA, FCC, GS, RoHS, Saa
Base Type:
B15
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month wall light
Packaging & Delivery
Packaging Details
Paper box.Special export cartons and pallet, special package that depends on the clients' requirements.
Port
Shanghai
Basic information
Basic information
process
Silver grey and black
rated voltage
80 V to 277v
material
ADC12 Iintegrated die casting aluminum
power
40w to 150w
installation
Hanging chain,hang tube mounting, wall mounting
temperature
2000K to 18000K
IP grade
IP65
Warranty
5 years

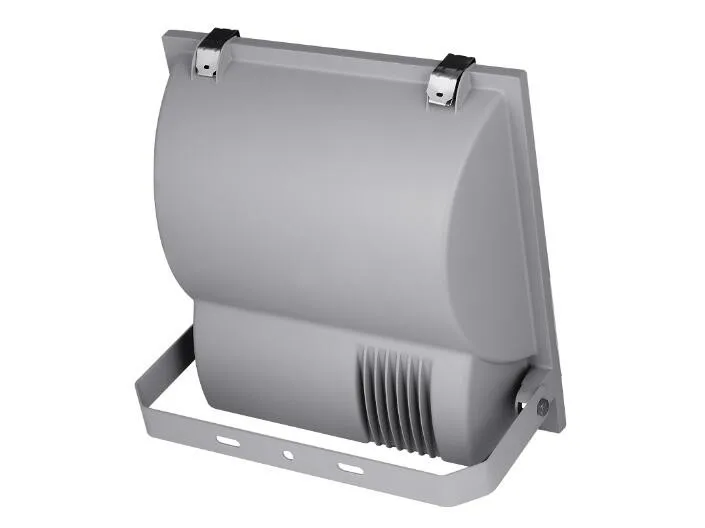

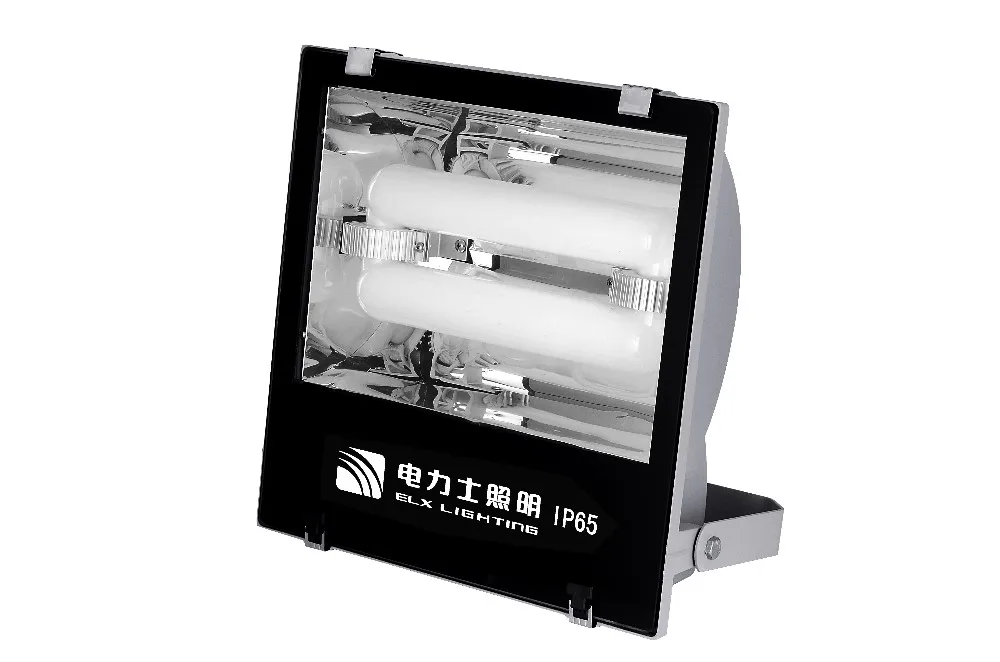

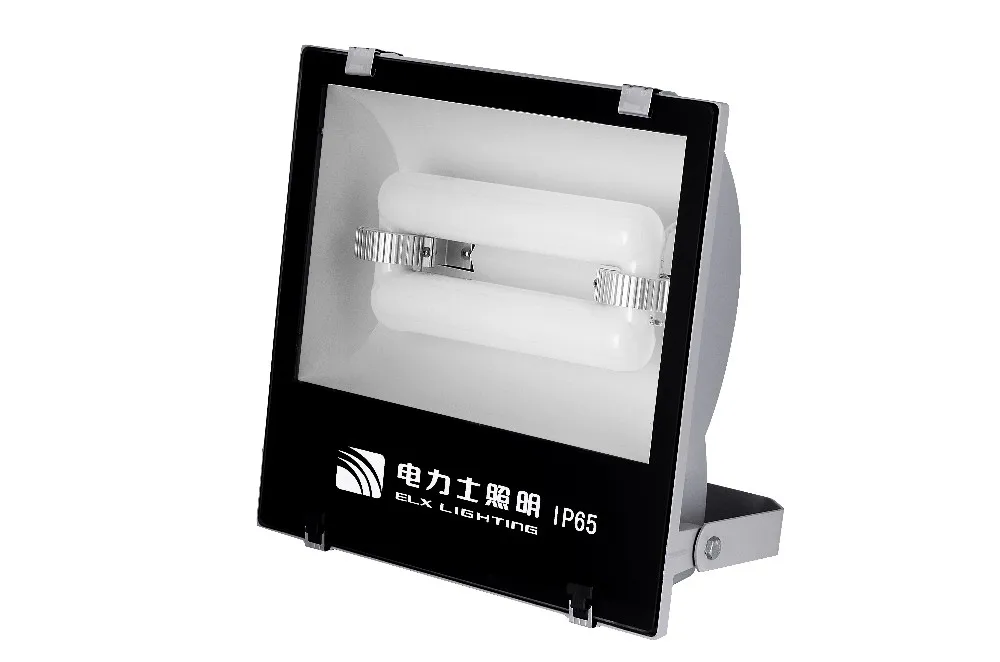

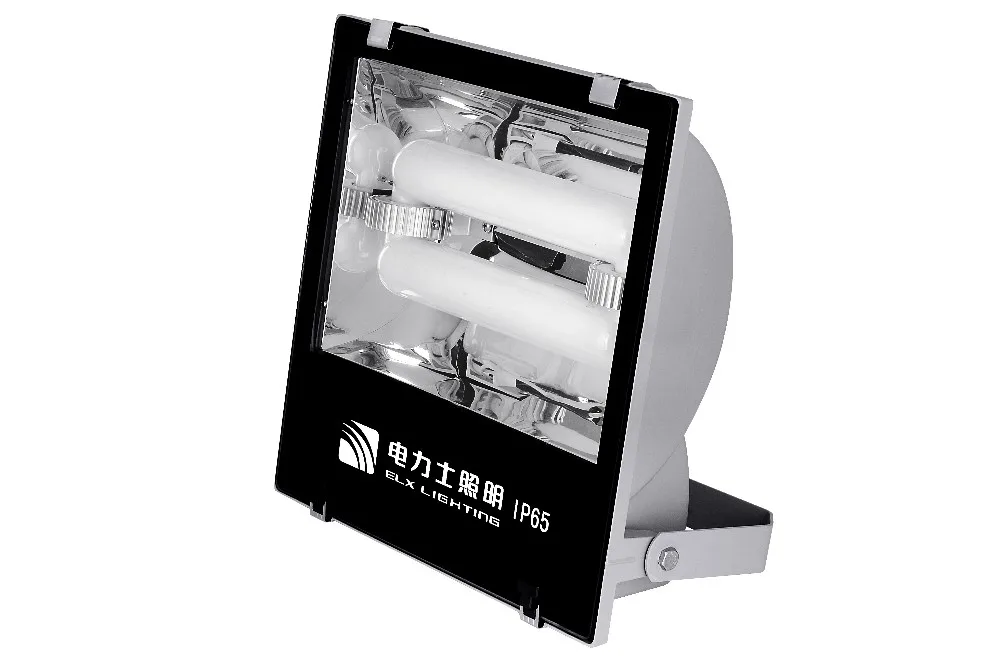

5000K 250W Aluminum Rubber Seal IP65 Prismatic Glass Lens Wall mounted Light
Product Description

Product Features

>According to different power matching corresponding reflector,
its light distribution is reasonable and efficiency.
>With adjustable angle for upward and downward installation.
>Install tube directly without bracket.
>Form a complete set of electronic ballasts, high power factor.

Product Features

>Built-in electronic ballast, excellent heat dissipation efficiency.
>IP66 protection grade.
>High power factor, no flicker, no glare, high color rendering.

>ADC12 die-casting aluminum electrical box
>Lamp body is used the high quality dark grey corrosion
spraying process.

Material and technique

>Reflector coating with mirror aluminum (TGS019 Series).
>Nano coating reflector (TGS028 Series).
>5mm thick tempered glass illuminating surface.
>Silicone sealing ring.

The main features of our low-frequency induction lamps:


Long lifespan:
The average lifespan of low-frequency induction lighting source is up to 100,000 hours, integrating the electronic ballast with use would be 50 times longer than incandescent bulbs, 10 times than CFL, 5 times than HID.

High energy efficiency:
Integrating the electronic ballast with specialized lamps and lanterns, the luminous efficacy is up to 90Lm/w. Comparing with the incandescent bulbs, CFL and traditional HID, the energy saving is respectively up to 85%, 50% and 50%.

High color rendering:
The color rendering index is more than 80, 30% and four (4) times higher than that of traditional metal halide lamp and high pressure sodium lamp. And it can be realistic in all sorts of color.

Little lumen decay:
Lumen decay is less than 5% after being lightened 2,000 hours, 15% for 20,000 hours. It is much better than traditional lighting source and high power LED.

No flickering:
The operating frequency is up to 250KHz. It eliminates the harm from strobe by the traditional LED, fluorescent tube, energy saving lamps, and greatly protects people eyes to avoid eye fatigue and myopia caused by strobe.

Environment friendly:
It is recycled and greatly protects the environment. Low heat: As the temperature of the working surface is below 80℃, and with the low thermal sensibility, it would not cause serious decline of light, decreased stability, aging of reflectors and other issues due to the heat.

Stable working:
No matter how the supply voltage changes, the operating voltage source is always the same, particularly suitable for the power fluctuation occasions.

Soft light:
Large light-emitting area, dispersed brightness, less glare, could be looked directly and avoid light pollution effectively.

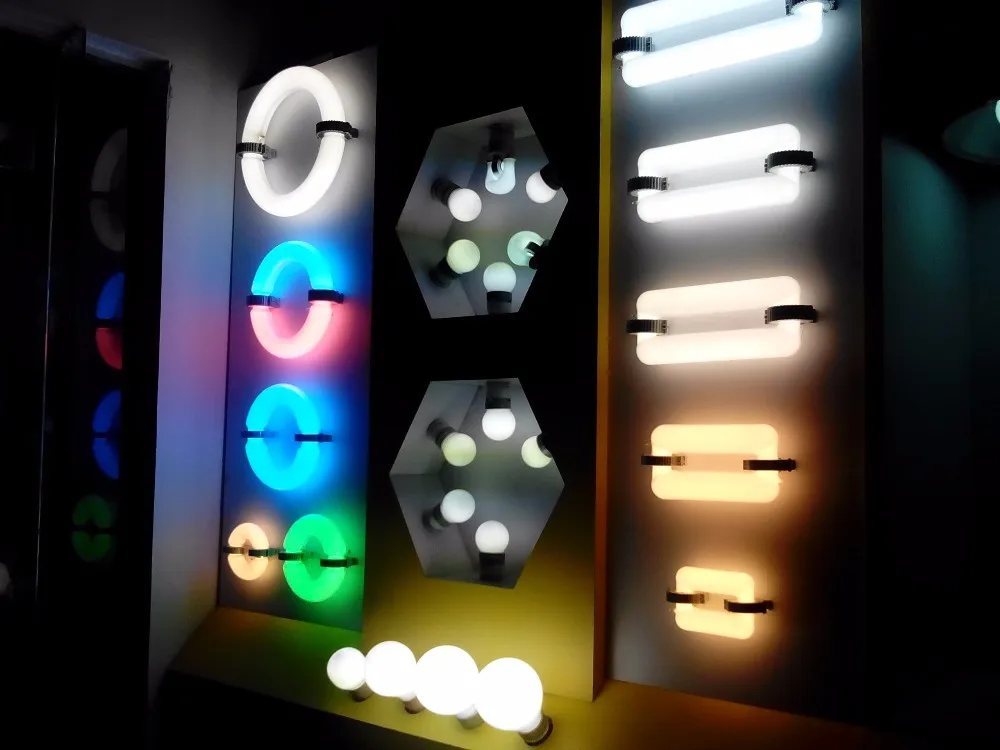

Comparison with other light sources

Long lifespan: 100,000 hours
Ultra high illuminating efficiency (visible light): up to 150PLM/W, much higher than other conventional light sources
Excellent color rendering, comprehensive color temperature range

Dimming system

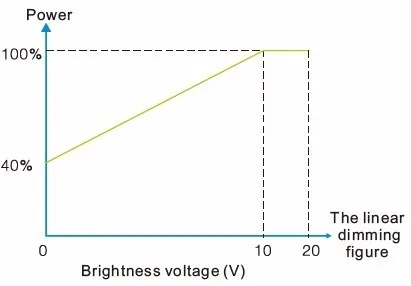

Linear dimming ballast, 0-10V, DC dimming voltage, can dim the power 100% to 40% stepless for induction lamps.

Segment timing dimmer ballast using single chip microcomputer grogram control, can switch power supply at setting time and working in half power of full power working at setting time.

External relay or photo switch dimming, fixed light amount dimming. When the external relay breakovers, it turns into dimming state. When the relay is disconnected, the lamps work in full power.

Ronbo  lighting control ballast adopts an advanced technique, applying with independent function control  modules or components, including dimming module, switch module, control module, intelligent sensor ,programming socket , clock management, monitoring software (bridge) and other components, which with various control functions are connected with data communication lines to be a lighting control network.This network not only can serve as a subsystem of the whole building' s automatic management system access through the management system via network soft, but also can serve as a independent system working alone, more professional and flexible and it can be realized on a variety of lighting fixtures dimming control or switch control. This system is not only an effective way to achieve a comfortable lighting nsolution but also a means of energy saving measure.

Specification
Model
TGS019
Wattage
40
60
80
100
120
150
luminous
3200
4800
6400
8000
9600
12000
Voltage
AC165V-330V, can be produced according to customers requirements
Current
0.2
0.3
0.39
0.49
0.58
0.73
power factor
0.9-0.98
color temerature
Standard color temperature: 5000K. to be ordered for additional color tempperature
Ambient Temperature
Standard product working at -25°C ~50°C,products can be customized for-40°C~20°C
IP rated
IP65
Dimming
Timing dimming or dimming external trigger terminal
Product size(mm)
326*354*117
423*440*138
Carton size(cm)
37*41*14
47*45*16
NW(kg)
6.2
6.3
6.56
6.56
7.81
7.81
GW(kg)
7.33
7.43
7.69
7.69
8.75
8.75

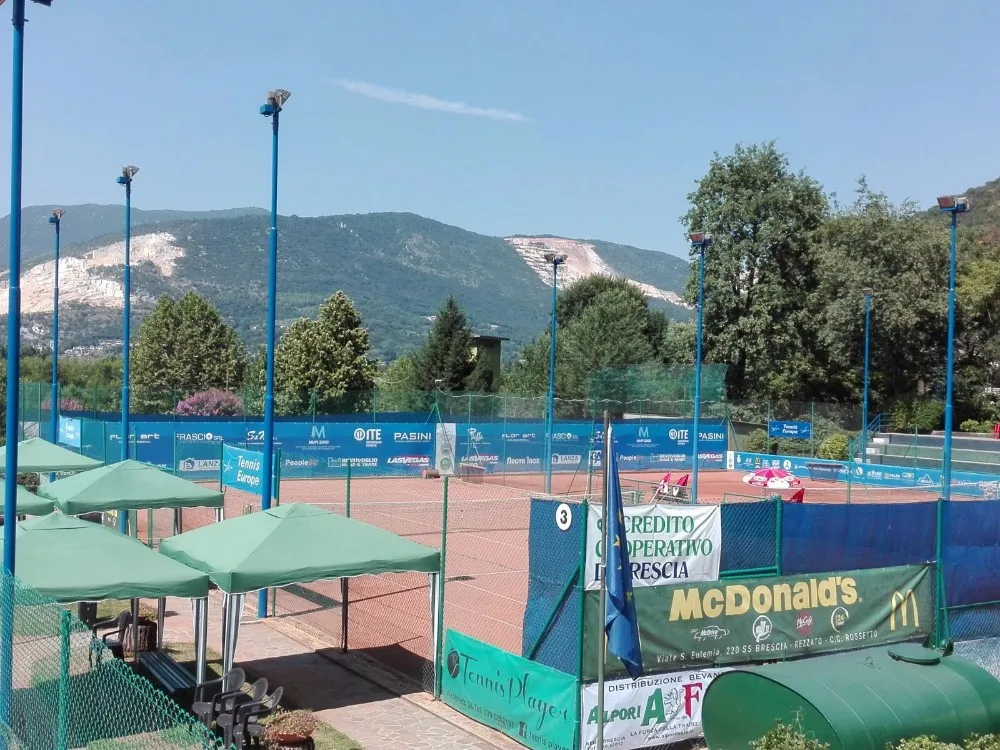

Applications

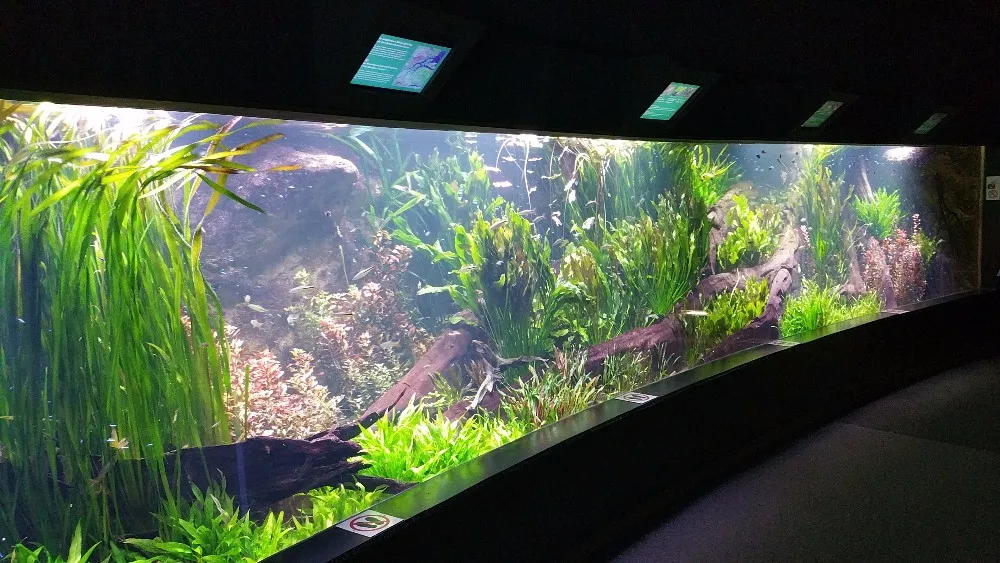

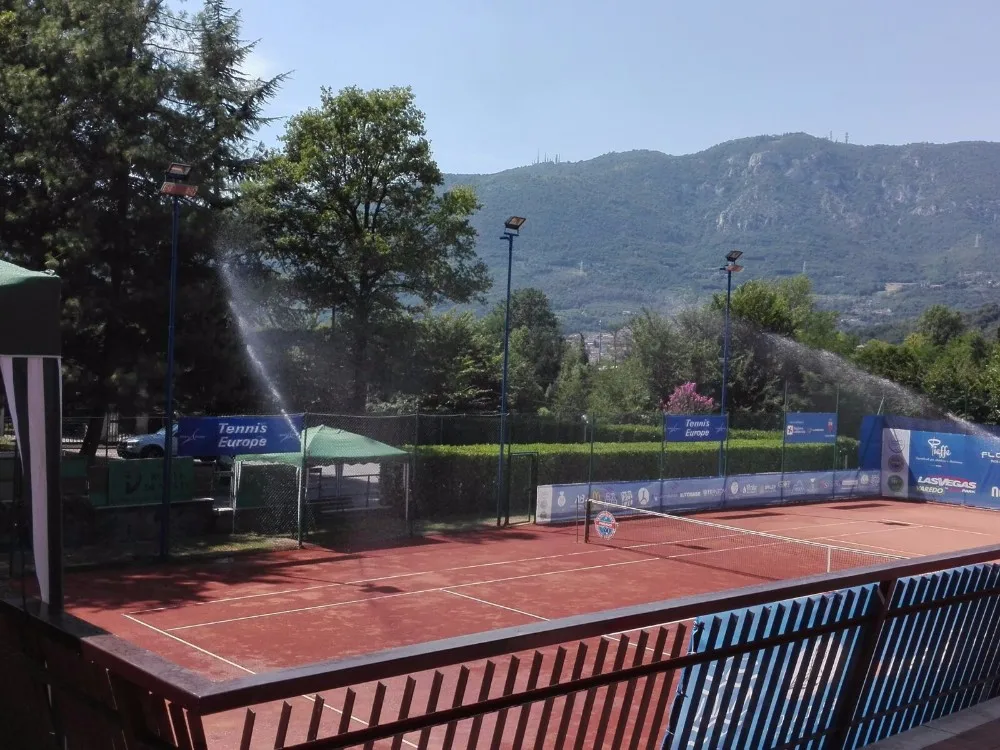

Airports, sports venues, building lighting, Ga stations, playgrounds, Railway stations, warehouses, workshops.super market, football field, aquarium, zoo, gymnasium, livestock farm, vegetable farm etc.

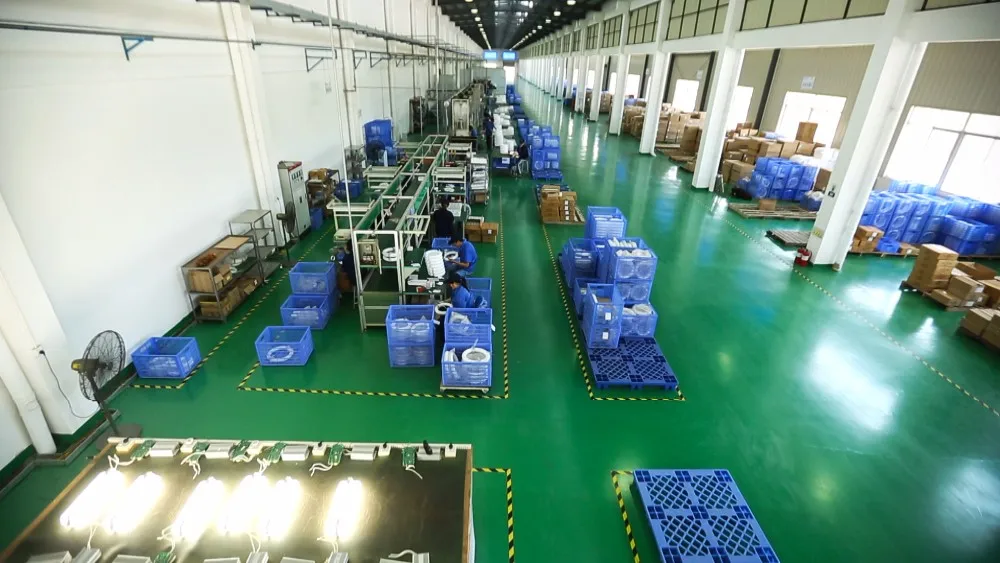

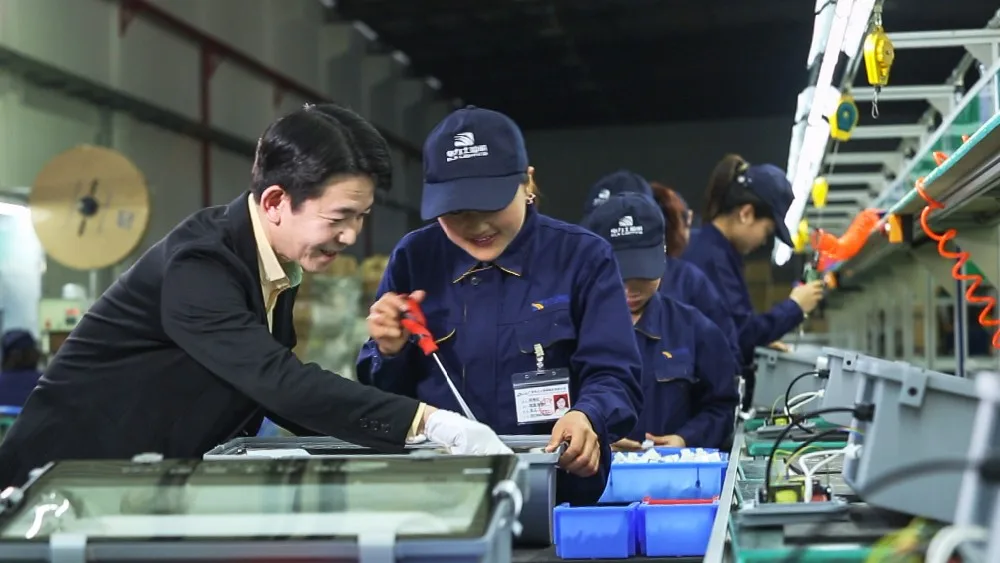

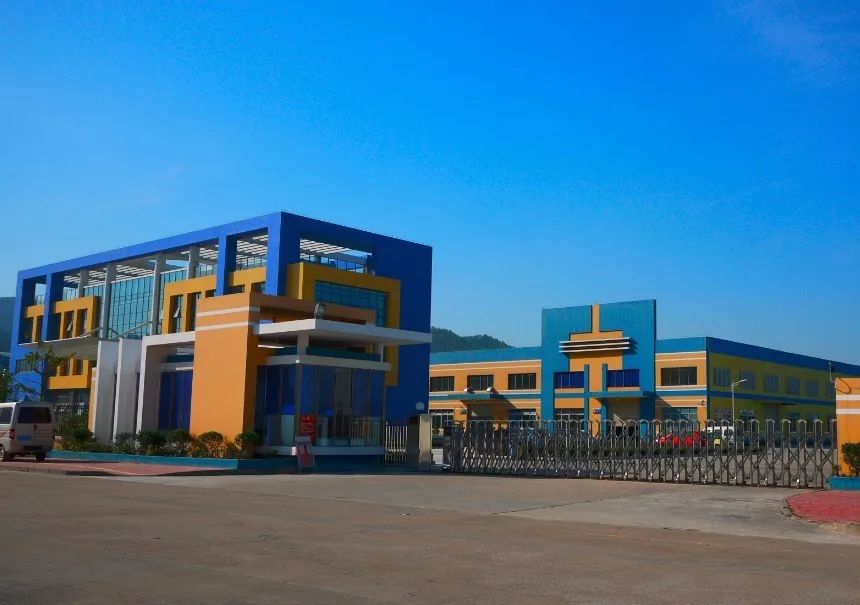

Company Information

Ronbo Lighting Technology Co., Ltd. is the one of the largest manufacturers of lighting products established in 2008 with the commitment of providing energy efficient and affordable lighting to the world. In 2014, Ronbo established its new world headquarters in Southern California with its core structured in magnetic induction lighting, LED lighting, and grow lighting development. The goal of Ronbo is to provide superior lighting products and lighting applications; with top-rated services we provide our clients around the world. As a world leading manufacturer, we focus highly on green technology initiatives with aims to reduce energy consumption and cost with smarter technology. Our design and R&D team development & manufacture leading edge lighting solutions best suited for any lighting application. Together with Ronbo we will build a greener, brighter, and smarter environment for us and for generations to come.

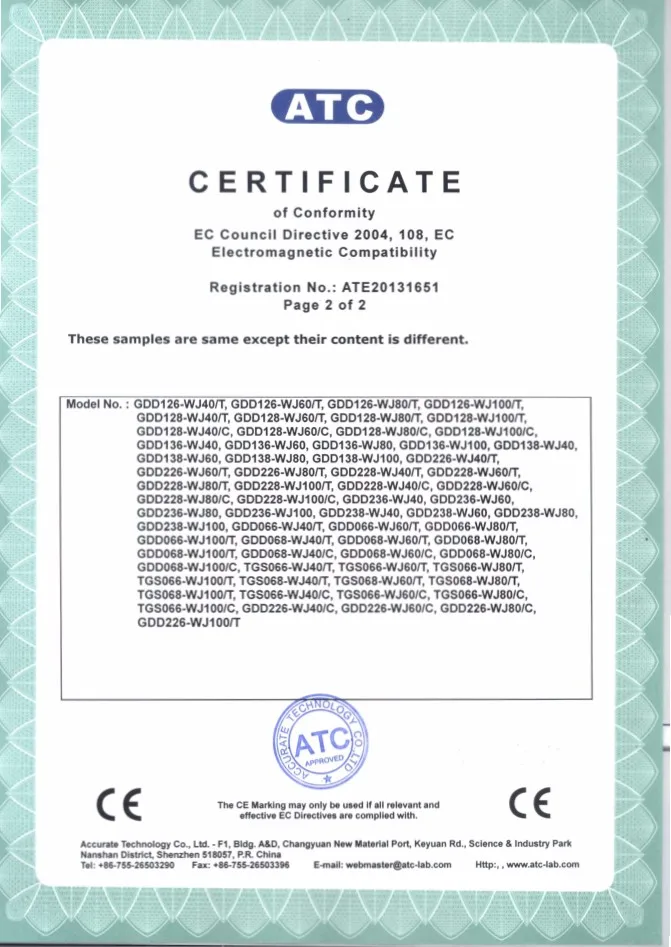

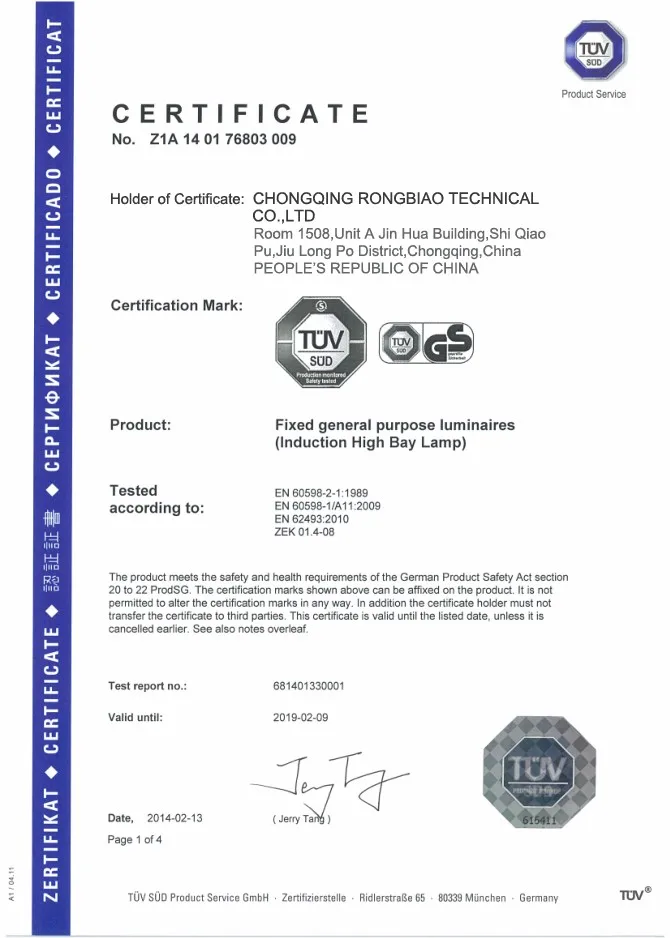

Quality Standard
Packing & Delivery

We have especially reinforced out pacing in order to minimize the extent of any possible damage to the goods. Our packing will be on a par with that of the Japanese.
