500L brew kettle, 300L mini beer brewing equipment ,200L malt beer brewing

$1,899.00 - $2,599.00 / Set | 1 Set (Min. Order)
Model Number:
SDET-200L
$1,899.00
- +
available
SDET-300L
$2,099.00
- +
available
SDET-500L
$2,599.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
14 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Shendong
Processing Types:
Carbonated Beverage
Voltage:
220V/380V 50HZ/60HZ
Power(W):
20-35KW
Dimension(L*W*H):
Accordingly
Weight:
1800-3500KG
Certification:
CE ISO SGS
Warranty:
5 years
After-sales Service Provided:
Field installation, commissioning and training
materails:
red copper and stainless steel
cooling:
all cooling jacket and cooling system
insulation:
polyurethane 80mm
fermenter design:
60-75 degree
inner cleaning:
omnibearing spray cleaning ball
surface:
mirror polish
control:
PID PLC control system
jacket:
glycol ice water coil pipe
Application:
Brewpub Beer Brewery Restaurant
Product Name:
beer brewing equipment

Packaging & Delivery

Selling Units:
Single item
Single package size:
1800X760X760 cm
Single gross weight:
60.0 kg
Package Type:
PVC film, wooden case, steel frame, we also can design under clients' requirement
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 14 To be negotiated

500L brew kettle, 300L mini beer brewing equipment ,200L malt beer brewing



Product Description



All our professional food-grade stainless steel beer brewing equipment with your special and innovated idea to make it practical and popular in the world. Welcome your new design on our standard brewing equipment and get more suitable in your local brewing market. Welcome your any new inquiry at anytime.



1. SDET Beer Brewing Equipment Main Configurations:



Main Parts

Main Components

1. Milling System

01.Malt Miller

2. Heating System

01.Steam Boiler(Optional)

02.Burner(Optional)

03.Electric Heating (Optional)

3. Saccharification System

01.Mash Tun/Lauter Tank & Brew Kettle/Whirlpool Tank(2 vessel)

02. Mash Mixer & Lauter Tank & Brew Kettle/Whirlpool Tank(3 vessel)

03. Mash Tun/Lauter Tank & Brew Kettle &Whirlpool Tank(3 vessel)

04. Mash Mixer & Lauter Tank & Brew Kettle &Whirlpool Tank(4 vessel)

4. Fermentation System

01.Fermentation Tank(Unitank optional)

02.Bright Tank

5. Cooling System

01.Glycol Tank

02.Glycol Unit

6. Cleaning System

01.Disinfection Tank

02.Alkali Tank

7. Control System

01.PID

02.PLC(Siemens)

8. Packing system

01.Bottling

02.Canning

03.Kegging

2. Saccharification System

SDET experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With a SDET Brewhouse you will hit your gravity targets quicker and run up and down the platform less often.

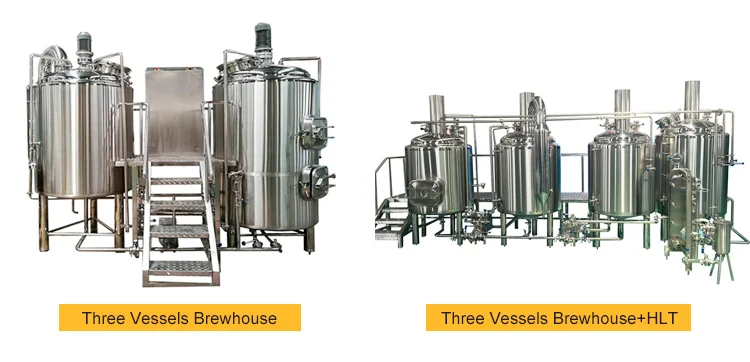

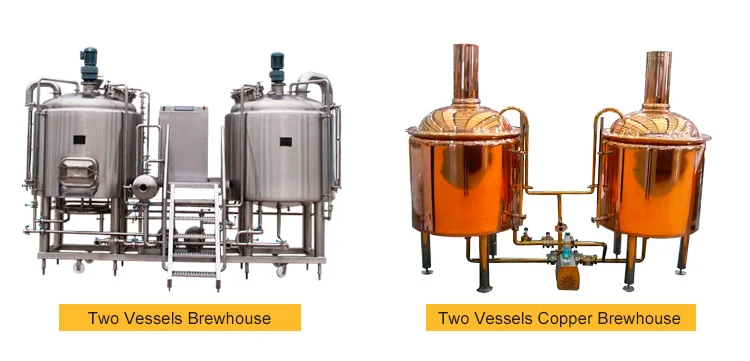

Choose State-of-the-Art 2, 3 and 4 Vessel Brewing Systems
Whether you want to save space, money, and time by only using a 2 vessel mash and boil kettle or you need a dedicated HLT tank alongside them, we have a solution for you.

Our stainless steel vessel brewing systems are insulated using chloride-free, 100mm Rockwell insulation, keeping temperatures at exactly the level you need them to be.

They also allow you to produce batches at record speeds, from the beginning to the cleanup process. Maximize your brewhouse’s efficiency with our systems!
2-Vessel Main Features:
3-Vessel Main Features:
4-Vessel Main Features:

3. Fermentation System

SDET professional fermenters are made from stainless steel as it is easy to clean and can be reused almost indefinitely. They all have a valve at the very bottom of the cone which can be used to remove sediment, and also drain the finished beer for bottling or kegging when done. Most also have a second port higher on the cone which can be used to draw samples of beer for measurement or tasting.



Fermentation tank series

Volume in US Gallon

Diameter

Height

100l Fermentation tank



26US Gallon

640mm

1500mm

200l Fermentation Tank



53US Gallon

760mm

1800mm

300l Fermentation Tank



79US Gallon

860mm

2000mm

500l Fermentation Tank



132US Gallon

960mm

2350mm

1000l Fermentation Tank



264US Gallon

1260mm

2650mm

2000l Fermentation Tank



528US Gallon

1560mm

3150mm

3000l Fermentation Tank



793US Gallon

1800mm

3550mm

5000 Fermentation Tank



2642US Gallon

2200mm

6100mm

10000 Fermentation Tank



5283US Gallon

2200mm

10200mm

4. SDET Grouped Equipment

SDET offers all necessary peripheral equipment to ensure that your beer brewery equipment/ Brewpub has everything it needs for a high quality brew and the means to give your clients the best drinking experience.

Company Profile

Company Information:

SDET is one of the most well-known beer brewery equipment supply companies in China which has 40 years brewing experience and more than 10 years manufacturing experience.Our company combines both the world’s most sophisticated brewing technology with economical prices in order to provide our customers with the best equipment at an affordable price. Our product line caters to every possible customer in the market: from pilot systems / home brewery equipment to microbrewery equipment / macrobrewery as well as renovating or upgrading current commercial beer brewing equipment. If you are unsure as to what products to select or where to start, we will help you find EXACTLY what you are looking for.

Exhibition:


Sale cases:

Certifications

SDET has passed International Certification, such as ISO, CE, BV etc

Our Services

1.Pre-sales:
-Layout:Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
-Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
-3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience.


2.After-sale
-We can provide weekly production report to let you clear of production progrss and production details;
-We will do equipment test and test report available for you;
-Providing piping connection drawing and English operation manuals;
-Providing equipment installation, debugging, and personnel training service;
-We can help you to arrange transportation till to your location;
-Main machine guarantee for three years; Accessories and electronic components will have one year free warranty; Supply lifetime maintenance and technical service.

Packaging & Shipping

1.With export standard bubble film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment.-LCL shipping.
2.If more tanks or complete set of brewery, with bubble film packaging, the for containers for FCL shipping.
3.By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
4.Buyers requirement on packaging and shipping, tell us in advance.
5.Transportation method: By sea/Railway/Road/Air.
