500L hot sale beer making machine small beer brewery equipment

FOB Reference Price:Get Latest Price
$15,000.00 - $41,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
500L
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
SLET
Processing Types:
beer
Voltage:
220v/380v,50HZ/60HZ
Power(W):
15-70Kw Depends
Dimension(L*W*H):
Depend on
Weight:
1~5 Tons
Certification:
CE,LV,PED
Warranty:
3 years
After-sales Service Provided:
Field installation, commissioning and training
Material:
SUS304,red copper
Heating method:
Electric/steam/direct fire heating
Insulation:
Polyurethane/rockwool 100mm
Cooling jacket:
Dimple Cooling Jacket
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
PE film,wooden case packaging,steel packaging
Port
Qingdao
Product Description

500L hot sale beer making machine small beer brewery equipment

The complete brewing equipment include some major systems:Milling system,beer brewhouse,beer fermenting system,cooling system,cleaning system,cleaning system,control system,filling and washing system.

Our company can supply more types brewery for the beer lovers:

1.Home brewery 50L,100L,easy operate in home,cover little space,suitable for the home brewers.

2.Hotel,pub,restaurant beer machine,the red copper material is very beautiful.200L/300L/500L/700L/1000L

3.Micro beer brewery equipment,1000L/10BBL/1500L/15BBL/2000L/3000L

4.Industrial brewing machine 4000L/5000L.........30000L

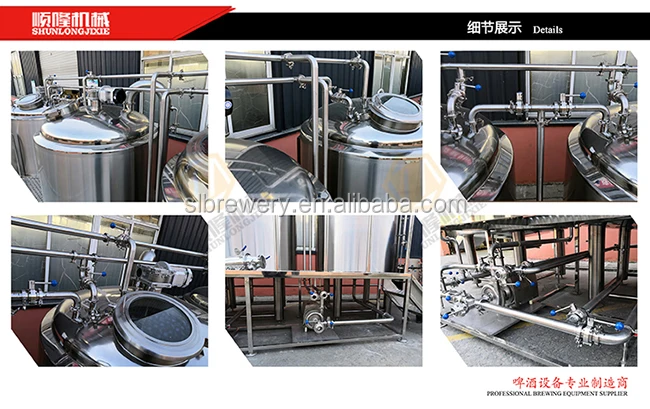

Detailed Images
Complete beer brewery equipment introduction
Milling System for the brewery equipment
No
Item
Introduction
Remark
01

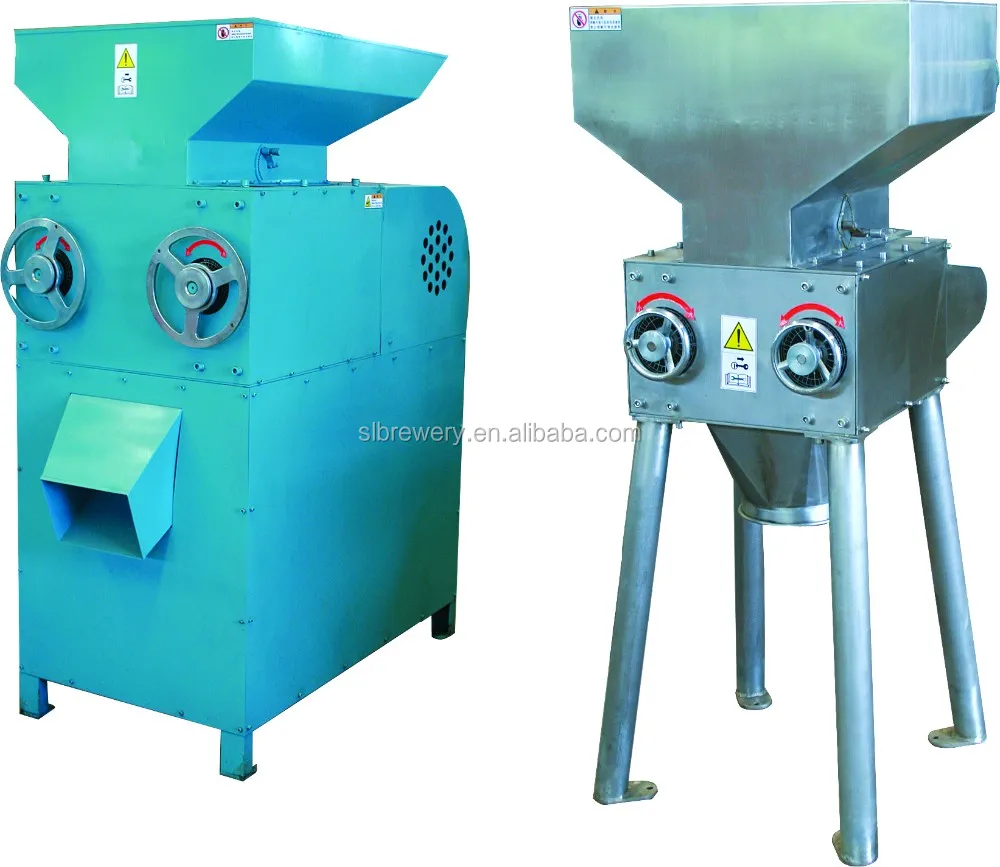

Grains miller
Production ability: 200/300/500/1000KG/H;
Necessary
Material: Stainless steel or carbon steel;
With Double rollers, the distance can be adjustment;
New design, reduce malt residue automatically
With explosion-proof motors;
02

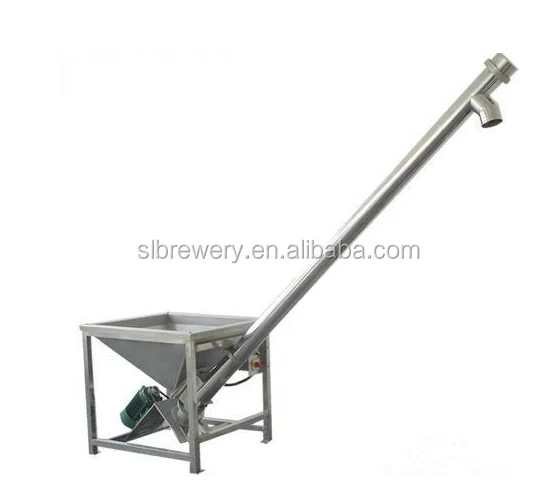

Auger

(grains transport

machine)

Used for transporting the grains from miller to hopper;
Optional
Material: stainless steel;
With explosion-proof motor;
Economize on manpower for bigger brewery systems;
03
Hopper
Placed on the top of mash tun, stainless steel 304, used for store the grains.
Optional
0.5m3, 1.0m3, 2.0m3...

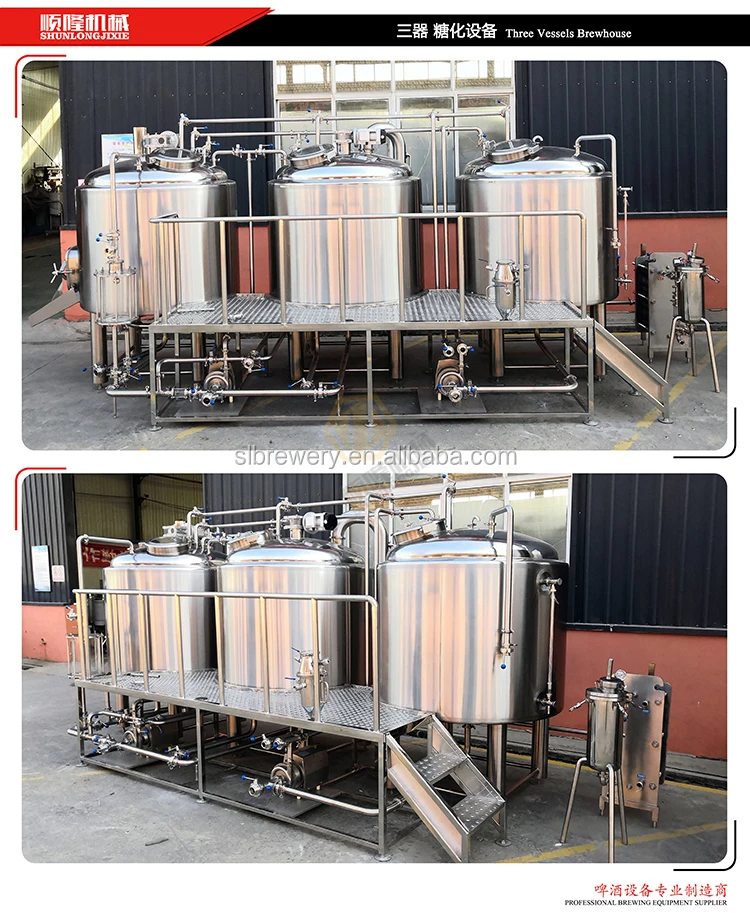

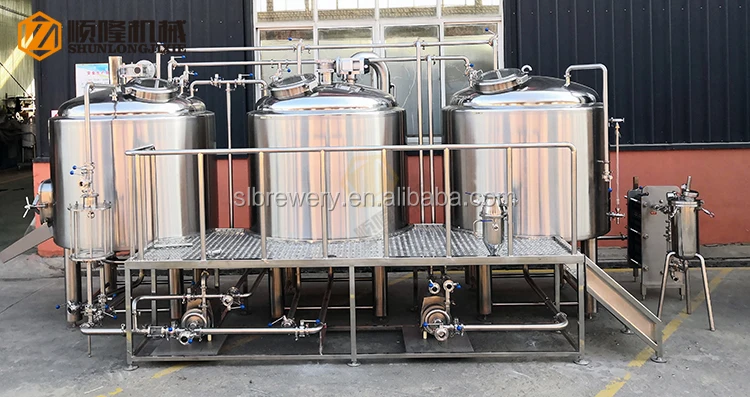

Beer Brewhouse for the brewing equipment
No
Name
Introduction
01
Brewhouse Configuration
Two vessels: Mash/lauter tank, Kettle/whirlpool tank
Three vessels: Lauter tank+whirlpool, Kettle;
Or Mash tun, Lauter tank, Kettle/whirlpool tank;
Four vessels: Mash tun, lauter tank, kettle, whirlpool tank;
02
Heating Method
Electric heating via electric elements:Lower cost; easy operate;
Steam heating via natural gas,electric,fuel,Stable; it's good for the beer taste; cost more to buy extra steam boiler.
Direct fire heating via gas burner:It's difficult to control the temperature; unsafty.
03
Control Method
PID controller: show brewhouse's temperature, control all motors & pumps;
PLC touch screen: Step heating is automatically, all motors/pumps operated on the panel;
Remote control by computer or mobile;
04
Motors /Pumps
ABB or Siemens brand Anti-explosion motors With speed controller
05

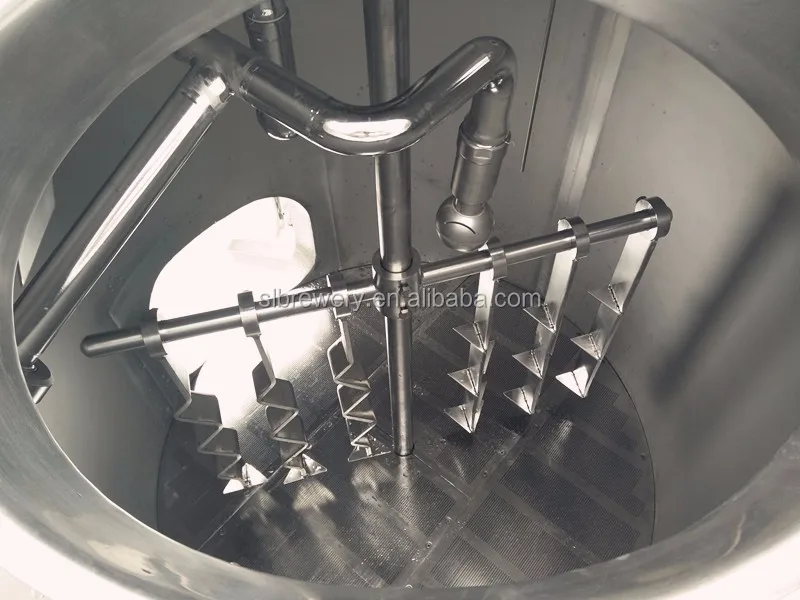

False bottom(lauter tank)
Laser cutting V-wire false bottom, stronger enough and also help you get clear wort.

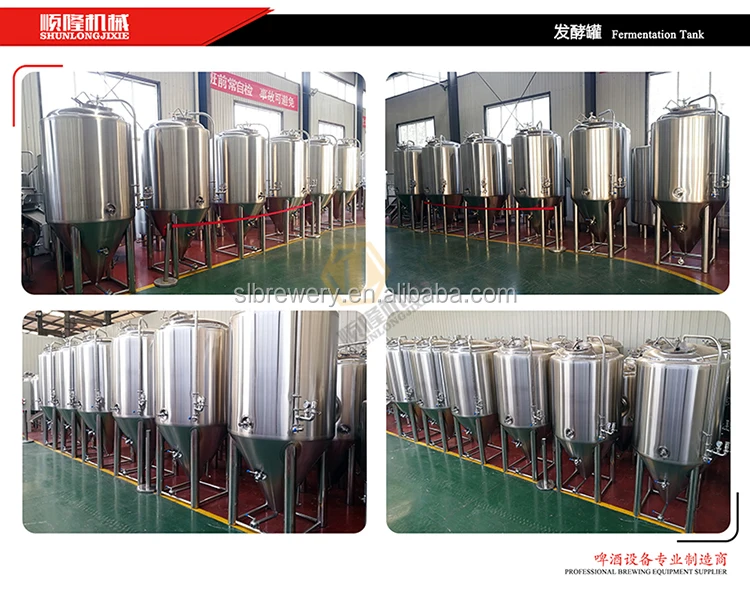

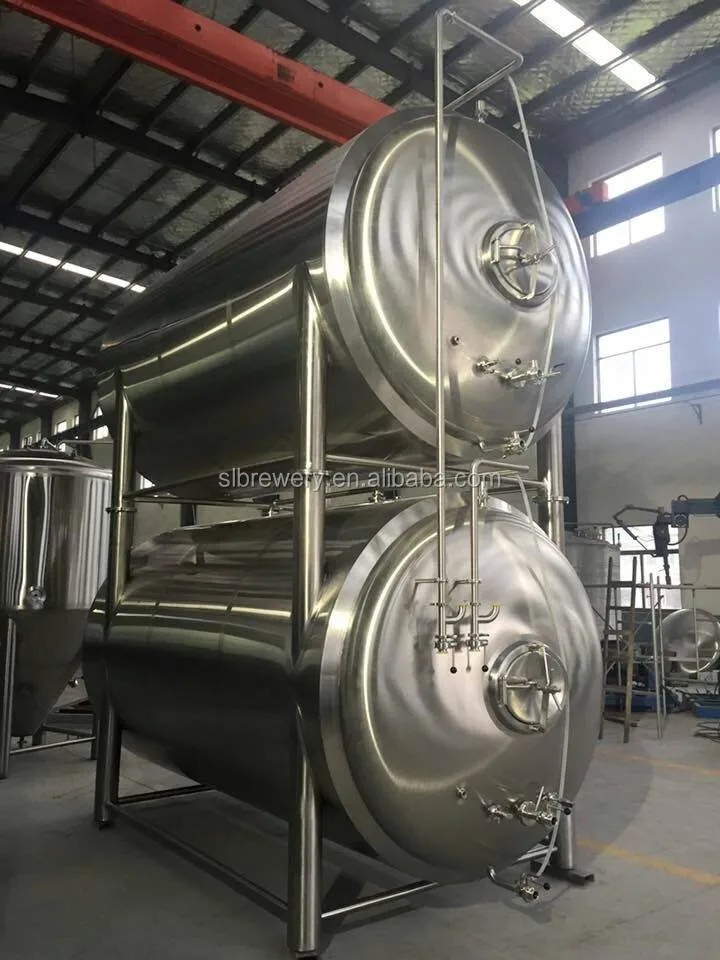

Beer Fermenting System for beer brewing equipment
No
Name
Introduction
01
Volume
100L-100000L or even bigger
02
Material
Stainless steel 304/316/316L
03
Insulation
Polyurethane, TH: 80-100mm
04
Glycol jacket
Dimple jacket on the cone and side
05
Manhole
Double or single dish head on the top
06
Polish
Inside is Mirror polish
07

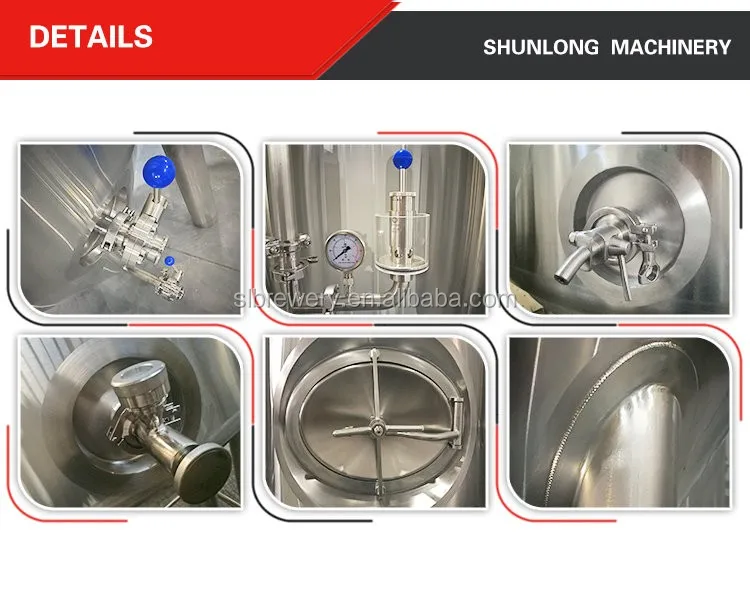

Accessories
Sample valve, pressure gauge, temperature proble PT100, solenoid valve, pressure relief valve, side or top manway, racking arm, CIP arm and Blow off arm, dry hops port and so on.
Cooling system for the beer brewing equipment
Regarding the cooling system of brewery, normally we will equip glycol tank, chillers, and ice water pumps.
Glycol tanks used for wort cooling and all fermenters/BBT/lagers cooling, this works together with two stages plate
heat exchanger. Besides, we also can provide the cold water tank, if so, the glycol tank just works for cooling the
fermenters and cold water tank, cold water tank used for cooling hot wort via heat exchanger,
We equip two chillers for all of the breweries. In winter, one piece of chiller is effective for cooling the whole system,
save energy; besides, if there is one chiller does not work, another one can take place of it and continue to cool, so the
beer in fermenter would not be affected.

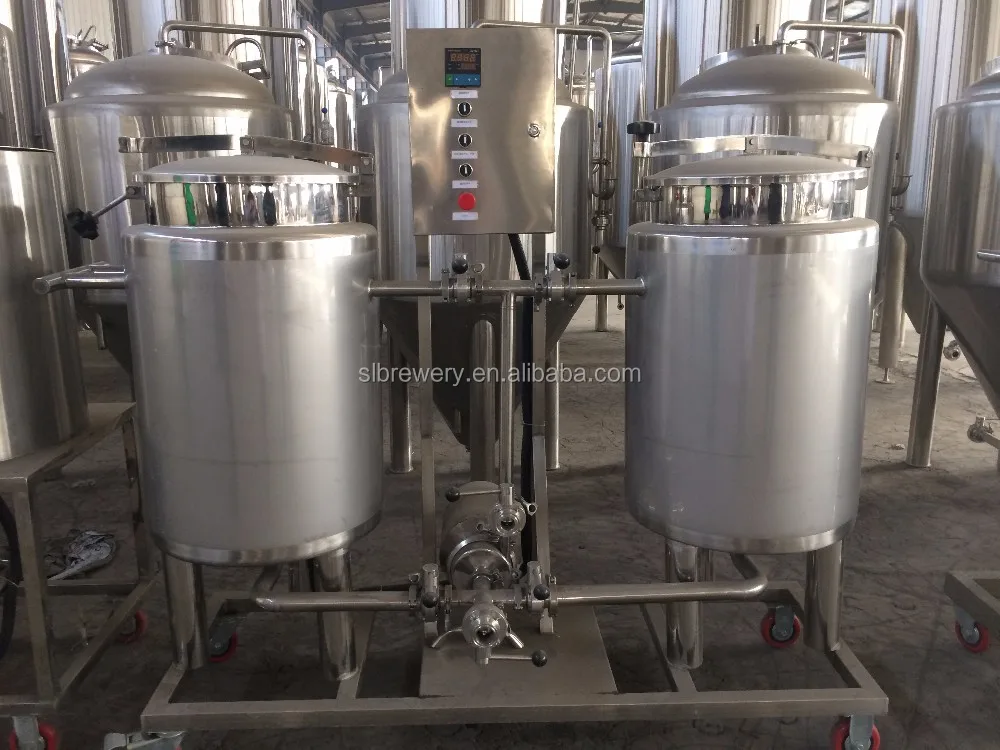

Cleaning system for the beer brewing equipment
No
Name
Introduction
01
Volume
50L-3000L or even bigger
02
Function
Cleaning the tanks
03
Structure
Alkali tank, disinfectant tank, Cleaning pump.
The controller for the brewing equipment
PID semi-automatic controller: Simple operation, easy maintenance.
Cabinet material: stainless steel or spraying plastics;
Function: Show brewhouse tanks temperature, turn on/off all motors and pumps by button, control all fermenters/BBTs
/glycol tanks temperature, chillers soft start, supply power for CIP cleaning system and so on.
PLC touch screen controller: Programmable, stable, Brewing recipes can be stored
Cabinet material: stainless steel or spraying plastics;
Function: Show and control brewhouse tanks temperature, step heating is automatic, turn on/off all motors and pumps
by touch screen, control all fermenters/BBTs/glycol tanks temperature, chillers soft start, supply power for CIP cleaning

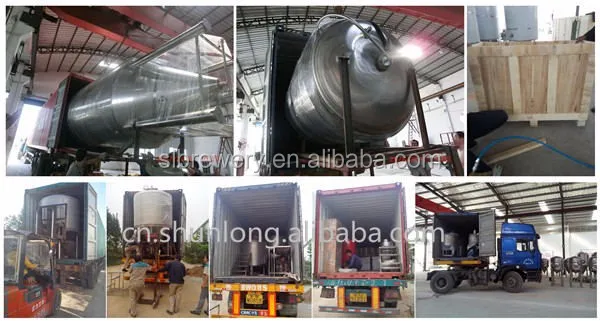

Packing & Delivery

1.LCL shipping:the separate tanks with the home brewery tanks,outter for the PE film packaing,then for wooden case packaging,load in to the container with other machines

2.FCL shipping:the complete brewery tanks outter for the PE film packaging,then load into the containers directly.

Our Company

Jinan Shun Long Machinery Co.,Ltd is one of the biggest and best professional beer brewing equipment
manufacturer and exporter in China.Our products include all kinds of large,medium and small brewery equipment,daily
output from 50L~5000L and even larger capacity beer equipment for beer plant.All the equipment can be customized.
Our company strictly follow German beer equipment production technology,design and manufacture beer equipment applying to domestic and foreign customers.
With our perfect before and after sales service,we serve the customers all over the world.You are welcomed to visit our factory and office.

Our company have the CE certificate,LV controller certificate,PED pressure certificate

What you can get from us ,get the new products ,and meet your processing requirements. our quality products help you to win more money and earn much time .we always do our best to save cost for you and ensure the quality goods. our rich -experience technical teams are standing by all the time . you can know the advance overseas technology form our products .which bring you more competitive andvantages
