500l 1000l brite tanks bright beer tank/beer brite tank for sale

FOB Reference Price:Get Latest Price
$100.00 - $1,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ACE-QJG-A61
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
ACE
Processing Types:
Wine
Voltage:
220V/380V/415V
Power(W):
Customized
Dimension(L*W*H):
User Requirements
Weight:
100KG---1000KGS
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Material:
Stainless Steel 304/Stainless steel 304
Thickness:
Inner:3.0mm, Exteior:1.5mm
Cooling/Steam Jacket:
Dimple plate jacket
Welding:
Bothe sides TIG welding
Mashing Process:
Decoction,Infusion and Multi-ste
Control cabinet:
Schneider,SIEMENS,Allen-Bradl
Plants Type:
Turnkey or Customerized
Polish:
0.4-0.6 micron
Capacity:
1BBL to 100BBL, even large
Usage:
To make beer through Mashing, Fermenting, Cooling etc
Supply Ability
Supply Ability:
100 Set/Sets per Month Wine fermenter
Packaging & Delivery
Packaging Details
Export standard Wooden/Veneer case for LCL
Plastic film wrapped and steel frame fixing for FCL
Port
Ningbo/Shanghai
Section One
    We specialize in manufacturing beer brewing equipment,
Quality is the Assurance of Orders,
We are Wenzhou ACE machinery.

500l 1000l brite tanks bright beer tank/beer brite tank for sale

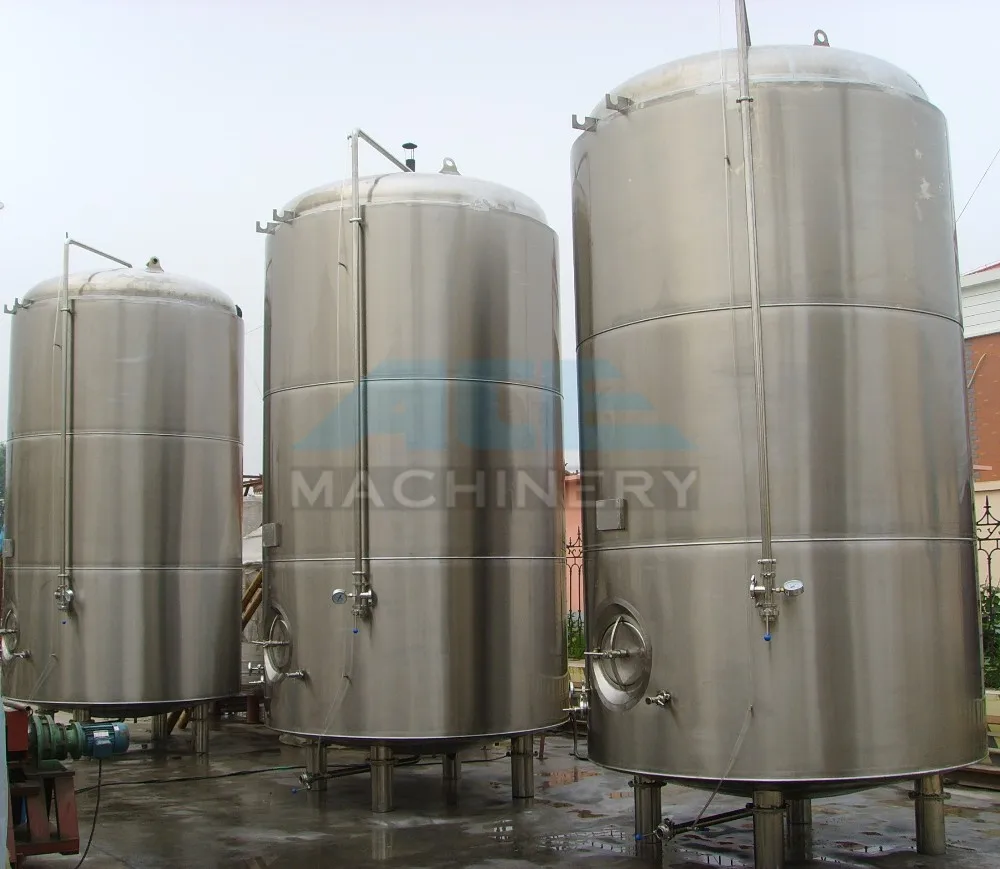

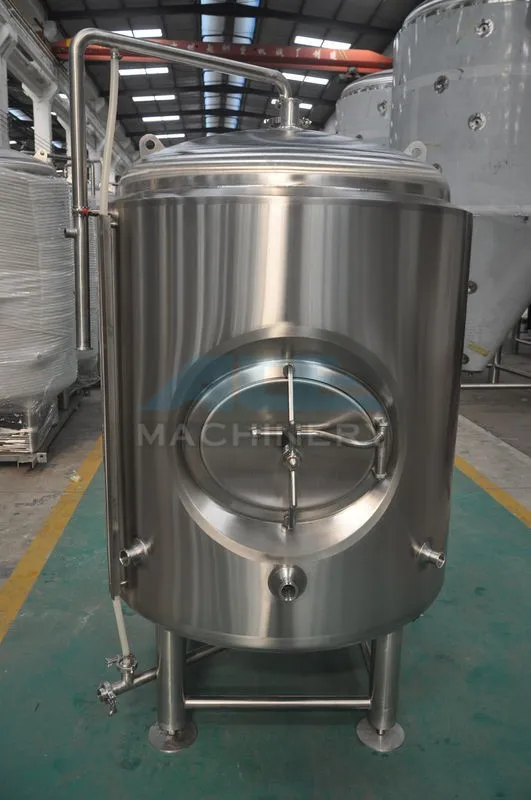

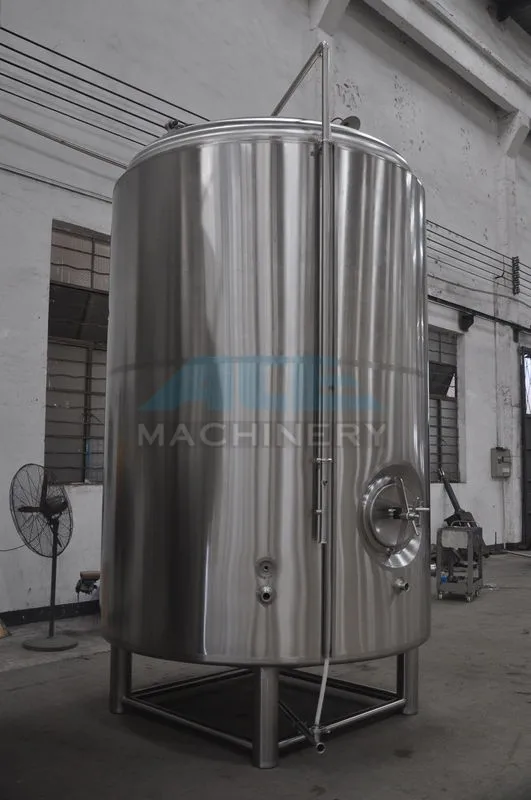

A bright tank
is a dish-bottomed pressure-rated temperature-controlled tank used to hold beer in preparation for packaging. The term “bright” refers to “bright beer,” beer that has been rendered bright (clear) by filtration, centrifugation, fining, and/or maturation. In most breweries, beer will be filtered after leaving a uni-tank or lagering vessel and be directed into a bright tank. If the beer is to be force-carbonated, then the beer may be carbonated in-line, under pressure, between the fermenter or lagering tank and the bright tank. In this case, the beer should arrive at the bright tank with full carbonation. For in-tank carbonation (or adjustments), the bright tank will be fitted with a carbonation stone, a device through which carbon dioxide is forced, dispersing fine bubbles into the liquid for fast dissolution. Carbonation stones are usually made from either porous stone or sintered stainless steel. After carbonation, the beer is ready to be bottled or kegged (or both) directly from the bright tank. As the bright tank is the last stop before the package, careful attention is paid to quality assurance at this stage. Carbonation is closely checked and the brewery’s laboratory will run a series of tests.
In larger breweries, color may be added at the bright tank stage, and adjustments may be made to bitterness and aroma using pre-isomerized hop extracts or hop oils. In craft breweries, bright tanks may play any number of roles besides those enumerated above. As many craft beers are not filtered or clarified, the beer sent into the bright tank may not be bright at all. The beer may have flavors added at the bright tank. The volatile flavors of honey, for example, do not always survive fermentation, and therefore many honey ales have honey added at the bright tank, where it will add some sweetness as well as flavor and aroma. Coffee or coffee extracts are also often added here for similar reasons. Bright tanks are also often used for blending one or more beers to create something new.
Bright tanks are also sometimes used as mixing tanks for beers that are to be bottle-conditioned. Here, the beer will be mixed with priming sugar and possibly with new yeast intended to carry out re-fermentation. The beer is then bottled (or, in rare instances, kegged) from the bright tank. In brewpubs, the bright tank is often also the serving tank; beer may run directly from this tank to the taps at the bar.
See also bright beer, carbonation, and fermentation vessels.

Low cost 1000l stainless steel bright beer tank

Company introducation
We ACE machinery is a production enterprise of dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields.
Usage
It is used for Wine fermentation & brewing. It applies in brewing industry.
Material
Stainless Steel 304 or 316L








Technology & Design
1). It is made of double jackets with dimple jacket and insulation layer filled with PU which is imported from Japan.
2). Dish top, conical bottom for good fermenting, improving the quality of beer as well as breeding yeast, cylinder body.
3). As to polish, interior layer and dish top will adopts mirror polish while exterior layer and conical bottom adopts 2B satin polish.
4). As to transition of interior, we will adopt arc to make sure that there is no dead corner of sanitation.
5). 10-30% headspace, 60 degree cone, rotating racking arm is designed according to your demands
6). All clamps valve and fittings except for cold water inlet and outlet which is Tri-clamp.
7). As to the thickness, we can make it according to your requirement.
8).etc

Advantage
1.Configuration details can be designed as your requirements
2.Competitive price and also higher quality tank.
Working Volume (L)
Dimension of Tank (D*H) mm
Total Height (H) mm
Diameter of Inlet&Outlet (mm)
Diameter of Inlet&Outlet (mm)
Diameter of Inlet&Outlet (mm)
500
Dia 800*800
1750
Dia 38
50
440*320
1000
Dia 1000*1200
2200
Dia 38
50
440*320
1500
Dia 1100*1400
2500
Dia 38
50
550*430
2000
Dia 1200*1500
2700
Dia 38
50
550*430
3000
Dia 1400*1700
3150
Dia 51
50
550*430
4000
Dia 1500*2100
3450
Dia 51
50
550*430
5000
Dia 1600*2200
3590
Dia 51
50
550*430
6000
Dia 1700*2200
3650
Dia 51
50
550*430
8000
Dia 1800*2700
4350
Dia 51
50
550*430
10000
Dia 2000*2800
4450
Dia 51
50
550*430
Section Two
500l 1000l brite tanks bright beer tank/beer brite tank for sale
1). Made of single-layer,double layer or three layer stainless steel structure.
2). Materials are all sanitary stainless steel.
3).Humanized structure design and easy to operate.
Section Three

3mm Inner Tank Wall Thickness

2mm Outer Cooling Shell Thickness

2" Thermal Polyurethane Insulation with both cone and shell coolant jackets

Pressure/Vacuum Relief Valve

Pressure Gage, Liquid Filled

Large Dial Thermometer with a 10" probe

2" Spinning CIP Ball

4" Hop Port

440mm x 330mm Shadowless Manway (Large and Clean)

Tri Clamp Fittings on all ports including Gycol Ports

NPT on temp control thermowell

Sample Valve

20 PSI working pressure, Tested to 45 PSI

Internally Polished to 2n Sanitary Finish

All Fermenters are designed for 25% Head Space

3 butterfly valves, outlet, racking arm, cip
Section Four
Other Products

    ACE Machinery specialize in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer,pharmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.

1.Brewery equipment

2.Sanitary Valves,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.

3.Sanitary Pumps,such as Sanitary Centrifugal Pumps,Sanitary Rotary Lobe Pumps

4.Sanitary Manhole Covers,such as square/round/elliptical manhole covers.

5.And so on.Welcome to visit our factory, to win, cooperate and develop together in the future.
FAQ

Why choose ACE Machinery

   1).Specialist manufacturer

    We have own factory. We get CE certification.We specialize in manufacturing beer brewing equipment.


    2).Quality and price
    We have professional purchasing team. Comparing multiple vendors,choose

best raw materials and the most preferential price. We have skilled worker and
strict quality control system,provide the best quality products to our customers.


    3).Convenient transportation
    Our company is located in Wenzhou Zhejiang. It just takes 15minutes from Longwan Internation airport to our factory or 50 minutes from the Train Station.

    4).Clear order process
    We have clear order process. From mails &calling→Order confirmed→Make advance payment→Workshop produce→Pay the balance→ Arrange goods delivery→Buyers receiving confirmation→Satisfaction survey.

5).Quality of service
We will provide photos make our customers to know the order status.Of course,we welcome our customers to our factory to inspect any time!Stainless Steel Wine Fermentation Tank
