500l DYE beer and china beer wine home brewing components equipment

FOB Reference Price:Get Latest Price
$2,000.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DYE-beer plant-500L
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 50 60 80 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
DYE
Processing Types:
beer
Voltage:
according to customer
Power(W):
No motor
Dimension(L*W*H):
according to the volume, according to the volume
Weight:
200KG-2000KG
Certification:
CE Certificate
Warranty:
2 Years
After-sales Service Provided:
Online support
name:
500l DYE beer and china beer wine home brewing components equipment
keyword:
500l DYE beer and china beer wine home brewing components equipment
alcohol Certification:
CE, PED, ISO9001
Durable years:
more than 10 years
Supply Ability
Supply Ability:
50 Set/Sets per Quarter 500l DYE beer and china beer wine home brewing components
Packaging & Delivery
Packaging Details
Packaging Details: wooden case or container
Delivery Detail: within 45 days after receiving the deposit payment(500l DYE beer and china beer wine home brewing components equipment)
Port
NingBo or ShangHai
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 50 60 80 To be negotiated
Video Description
Product Details

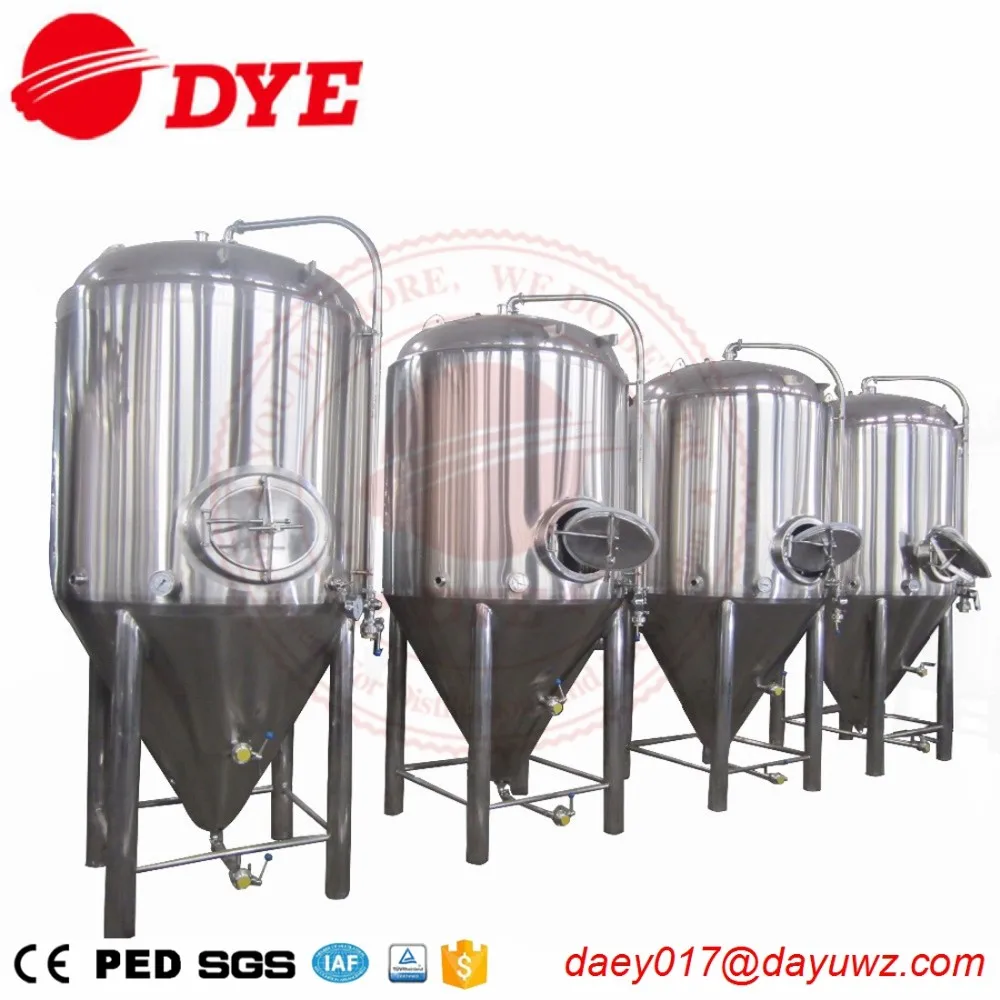

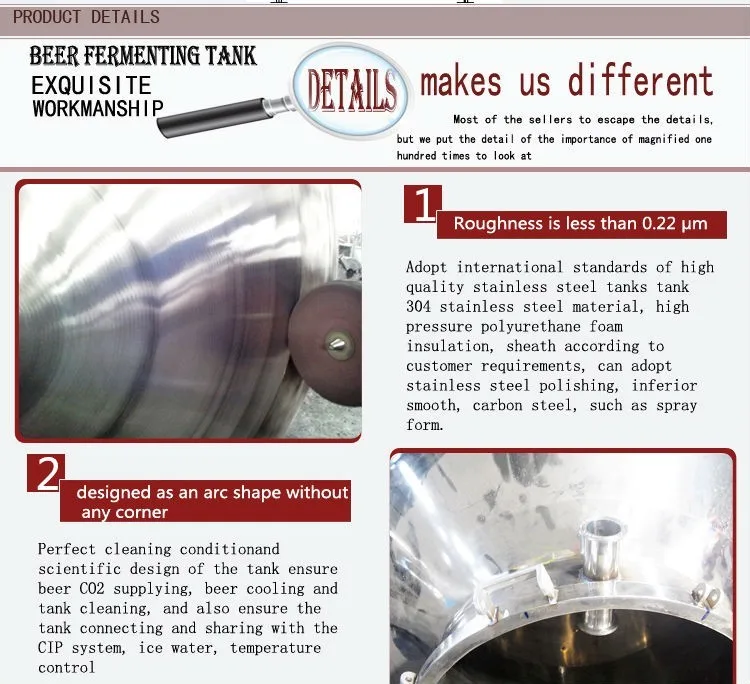

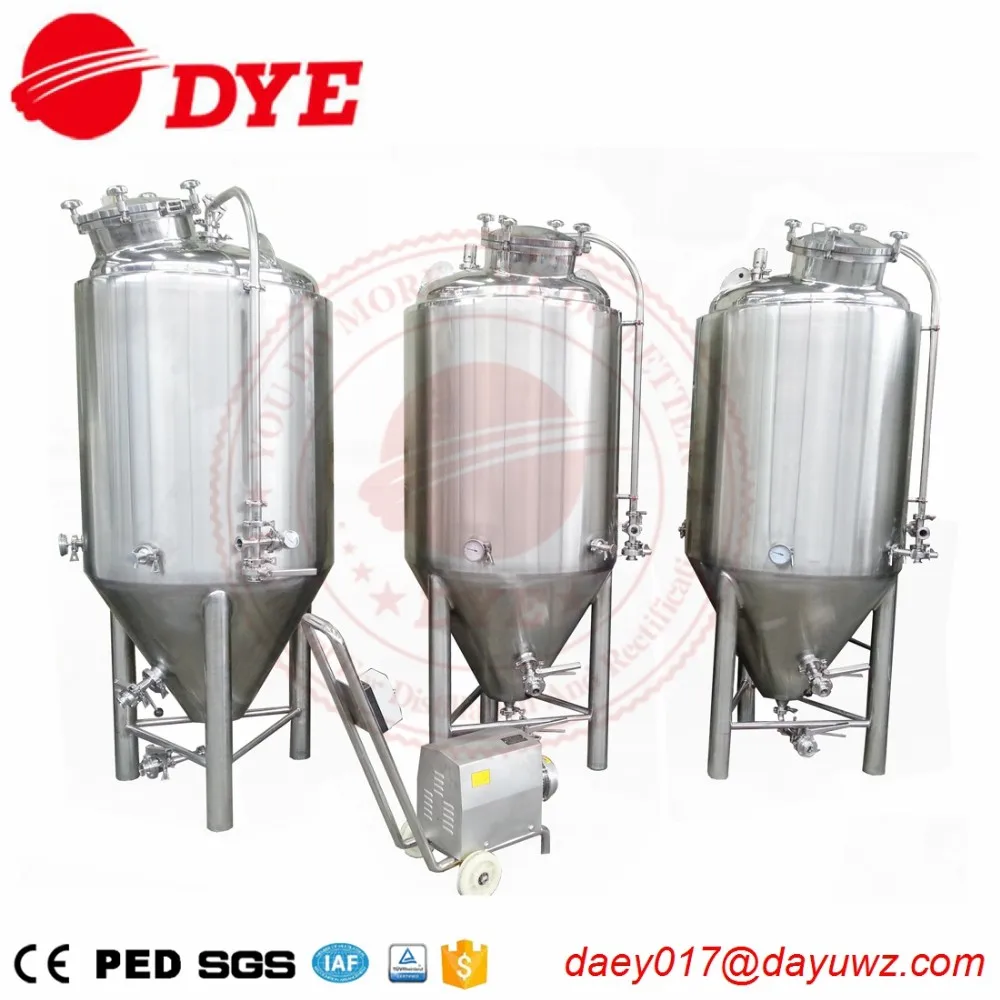

Conical fermenter/Beer fermenter/fermentation tank

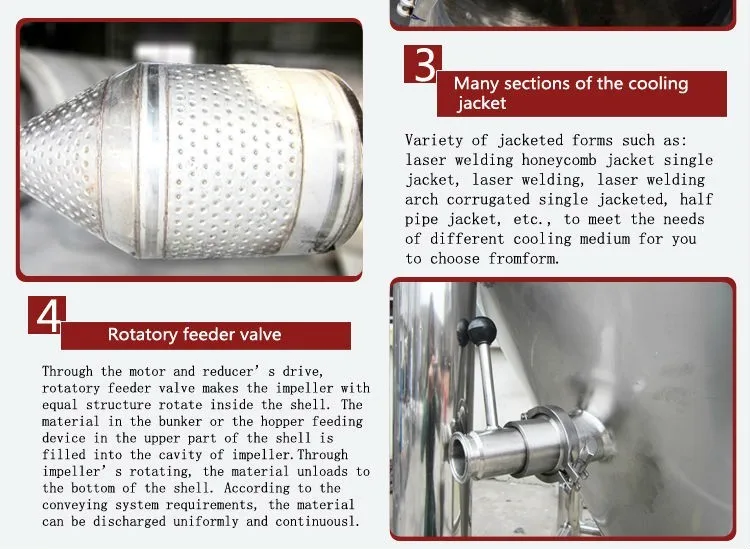

1.Beer fermenter tank is made of high quality stainless steel,. The bottom is a 60°small conical bottom,which is designed for fermenting and improving beer. Our conical fermenteration tank can make according to customer's requirement for the structure, single-layer, double-layer(jacket) and three-layer(insulation layer) or make dimple jacketed or limpet coil(inside or external ) to heat and cold. All the connections adopt round coner transitional welding,which are free of dead corner and easy to be cleaned.it completely meet the hygiene standard. The cooling jacketed can achieve all countries' standard,it adopts dimple plate to exchange heat.the jacketed are provided at tank body and cinical bottom to effectively increase the cooling speed.

Structure
dimple plate jacket cooling,with PU Foam insulation,it can keep warm well
Coolant medium:
glycol or cooling water
Thickness
inner shell 2.5~4mm,dimple jacket 1.5mm,PU foam 50/80/100mm,cladding 2mm
Material
Inner and outer of the tank are all made of SUS304 stainless steel,red copper can also custom
Surface finish
the internal side by mirror polished, the external is polished by auto-polishing machine.

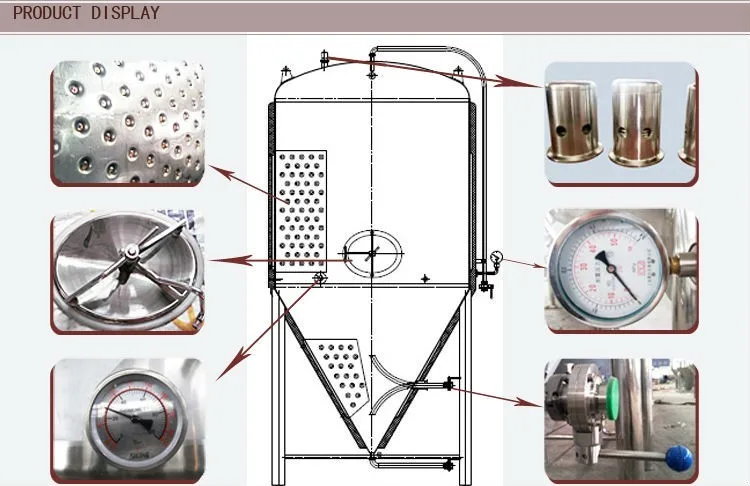

Accessories
1 x 14.5psi safety valve;
1 x 1.25" CIP ball and CIP pipe with vent hole;
1 x NPT 1/2" thermometer;
1 x sample valve
1x NPT 1/4" pressure gauge
1 x racking arm with butterfly valve
1 x drain outlet with a butterfly valve
On the bottom there is a drain , on the top there is an vent and CIP port, coolant in and coolant out pipe.
1 x manway

inside of dish top

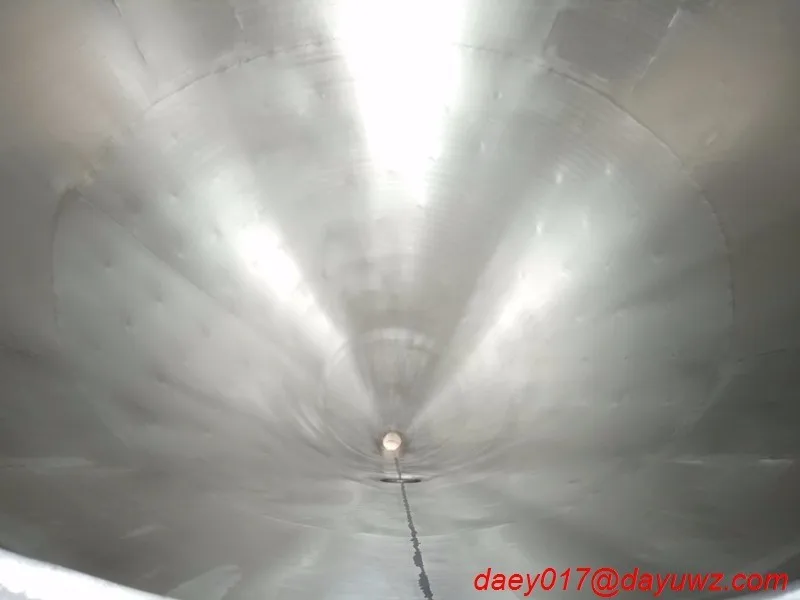

inside of conical bittom

Normaly,for capacity less than 500L, we use top manway, and more than 500L, we use side manway.

brewery plant

Grain Milling/malt mill


Particle adjustable rolling crusher
Output: 300-500kg/hr.
Roller type: two rollers, three rollers, four rollers

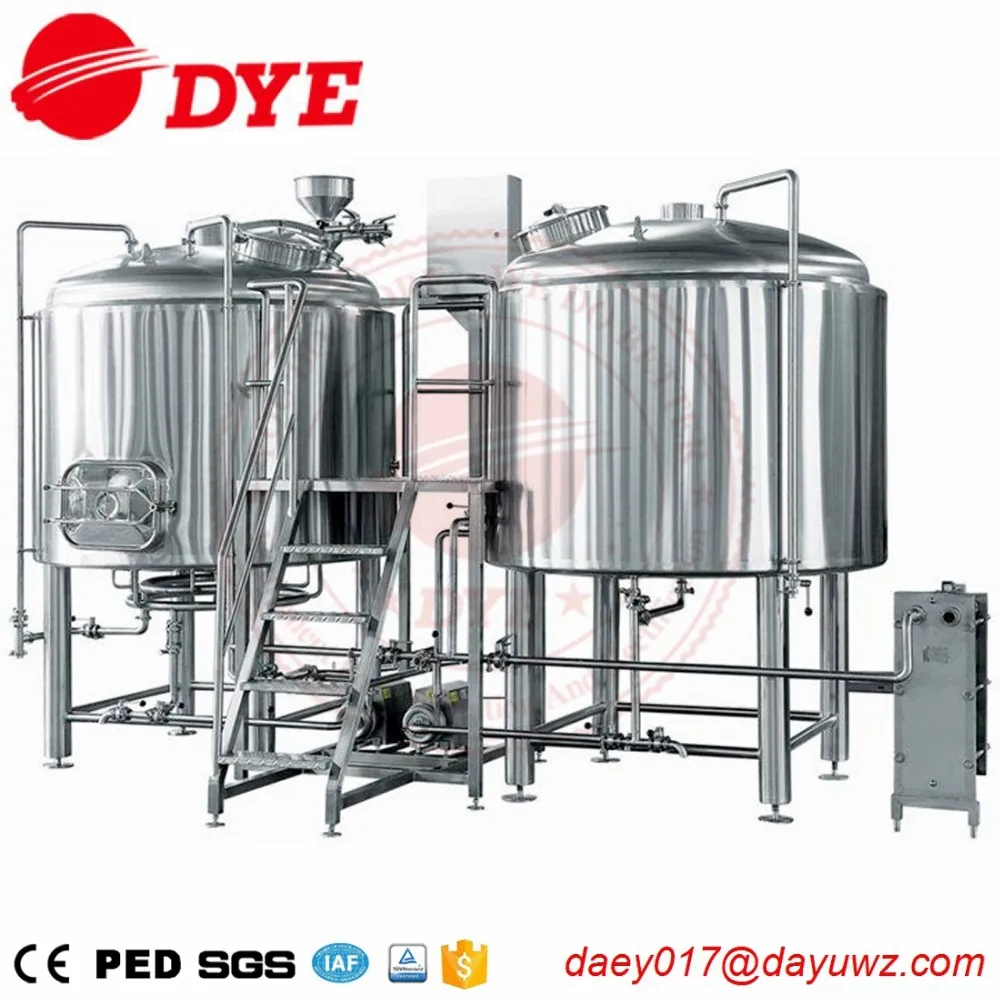

Brew house

Configuration: Mash/Lauter tun, Kettle/Whirlpool tun and Hot liquor tank. Three vessels altogether also include all needed parts like HE(heat exchanger), Manifold, Work platform and all valves and fitings.

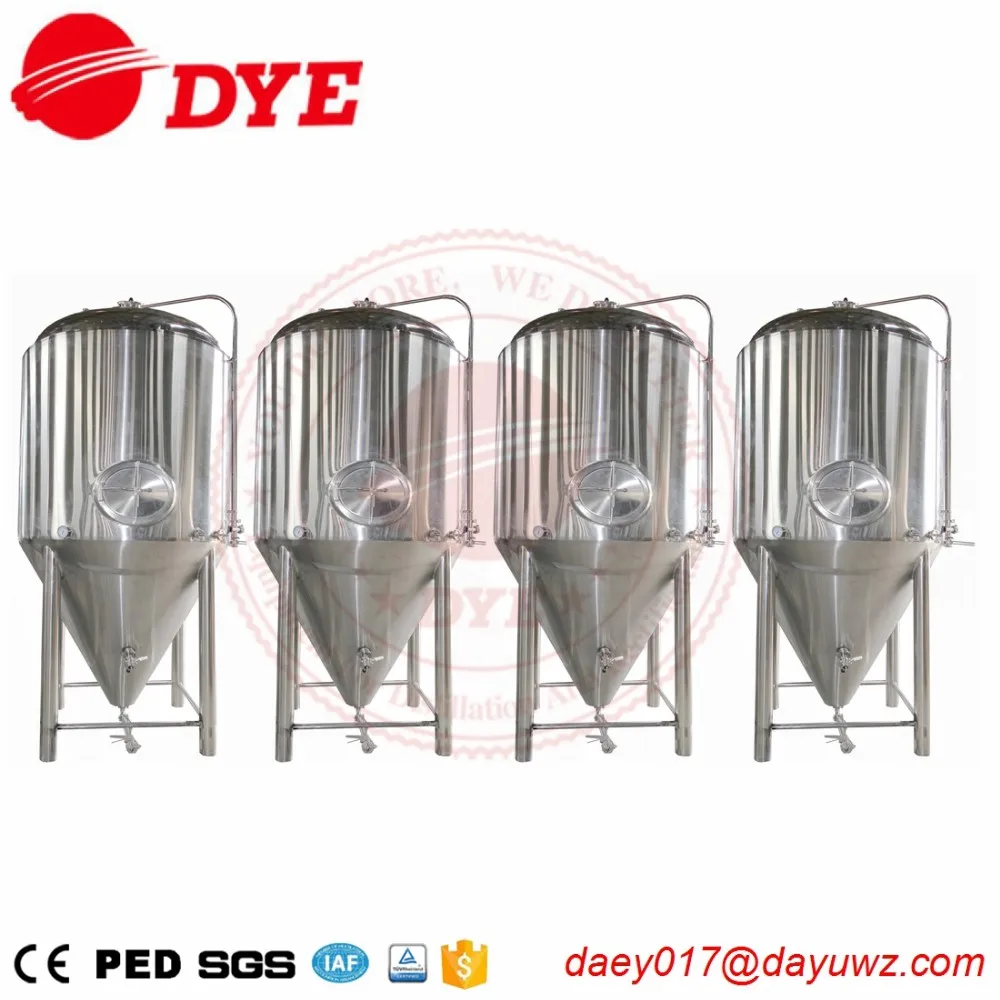

Fermentation Tank

Model Type:dish bottom or cone bottom

with top manway or side manway or two of them

With cooling jacket

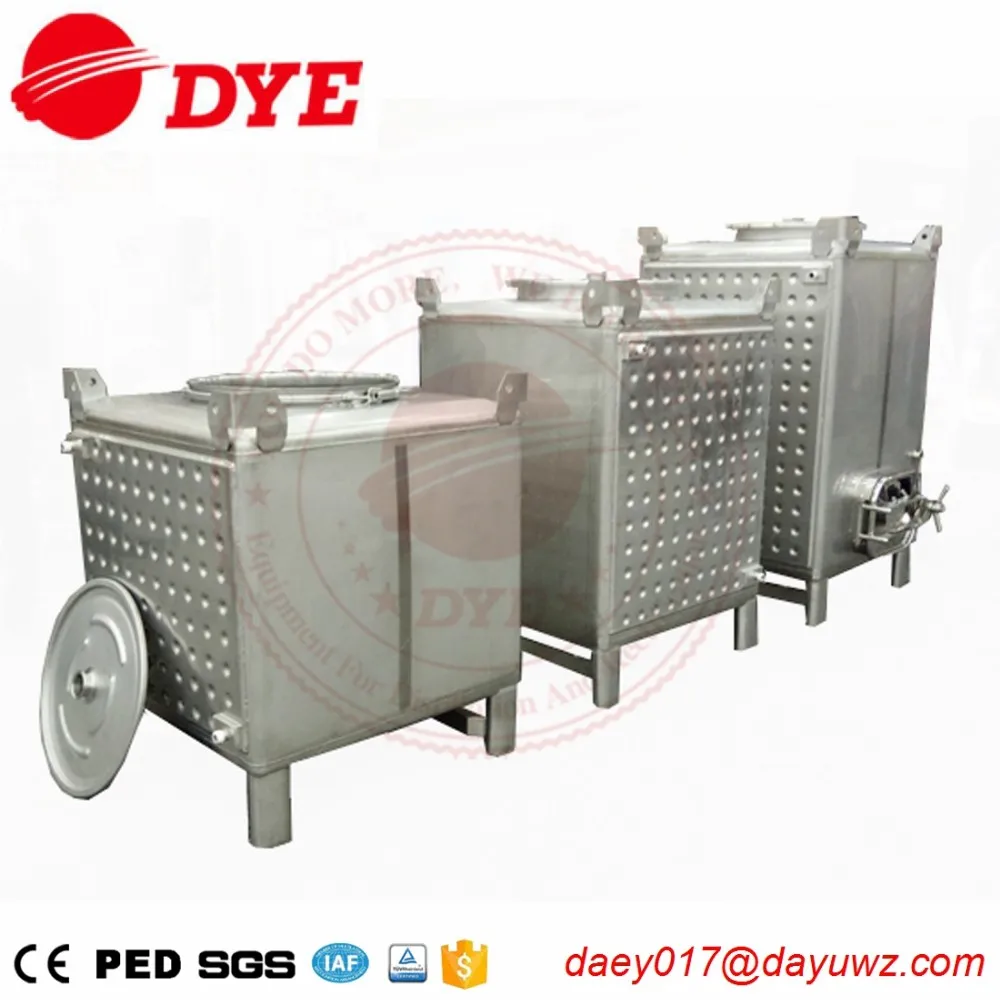

IBC totes

Certified stainless steel material for all tanks,with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated. All tanks use Tri-clamp connections,are designed for up to 14.7 PSI and tested at 30 PSI.

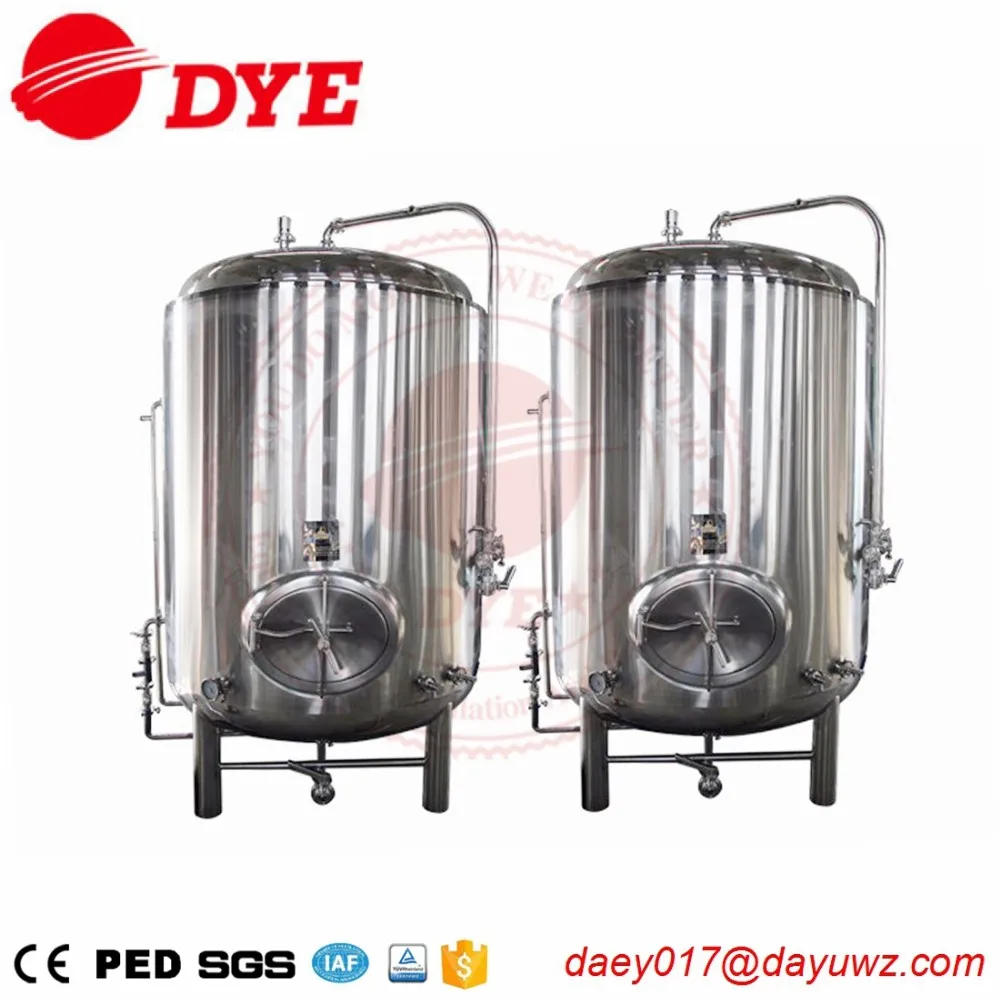

Bright Beer tank (BBT)

If you need it for beer maturation and carbonation to make your beer taste more colourful
Let us offer you the best suitable bright beer tank.

Glycol tank

2sets Chillers can make it work alternately to enlarge the service span for every chiller, Because it can keep working in case one of them get problems.

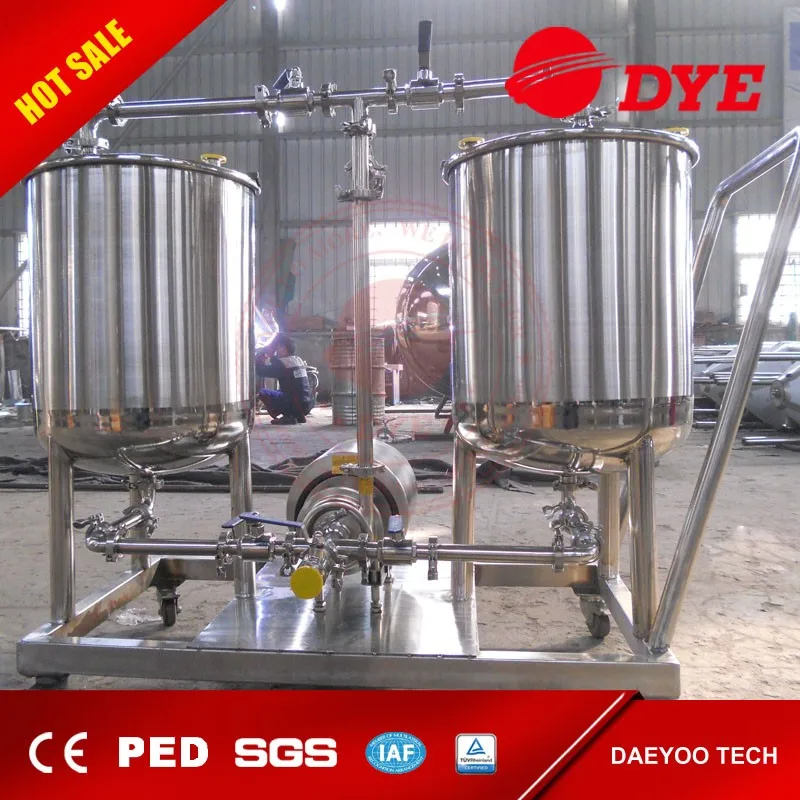

CIP system (Two tanks model)

one is for caustic liquid, the other is for H2O2.

Other Product

Models of DYE distilling equipment

We are a leading manufacturer who is specialized in manufacturing of alcohol distillation equipment for home and commercial distiller,to meet each customer's specific demand.We can custom design your Batch Stills, Pot Stills, Column Stills, Pot and Column Stills, Stripping Stills, Turnkey Systems, Mash Tuns, Tanks, Fermenters, Wort Coolers, and so much more.

We are dedicated and committed to creating and designing exceptional all original distillation systems and equipment brought to you at affordable prices. All of our systems and equipment are designed to seamlessly combine traditional and cutting-edge techniques to create highly efficient machines that can craft beautifully distilled spirits.

Because we design all of our systems and equipment in-house, we are able to offer you a custom design service that is unparalleled in the industry. DYE can take your individual requests and ideas into consideration when designing your custom distilling and brewing equipment.

Thanks for choosing us,please feel free to contact us if there are anything we can do for you with the equipment.We will try our best to offer you the most suitable equipment with competitive price and high-quality.

We can also supply mash tank,fermenters,wine tanks,spirit storage tank.

Mash/lauter tun

91.8% Response Rate

Fermentaion tank

92.8% Response Rate

Spirit storage tank

91.5% Response Rate

Qaulity Control
packaging & delivery
About DYE

DYE products have been exported to the United states,Canada,UK/France/Germany etc. EU countries, Australia,Japan,Singapore,Korea,India,Russia,Mexico etc. more than 50 countries and regions. We've been establishing long-run business relationship with customer friends all over the world.
We can also supply some customer reference if you want to know equipment running.

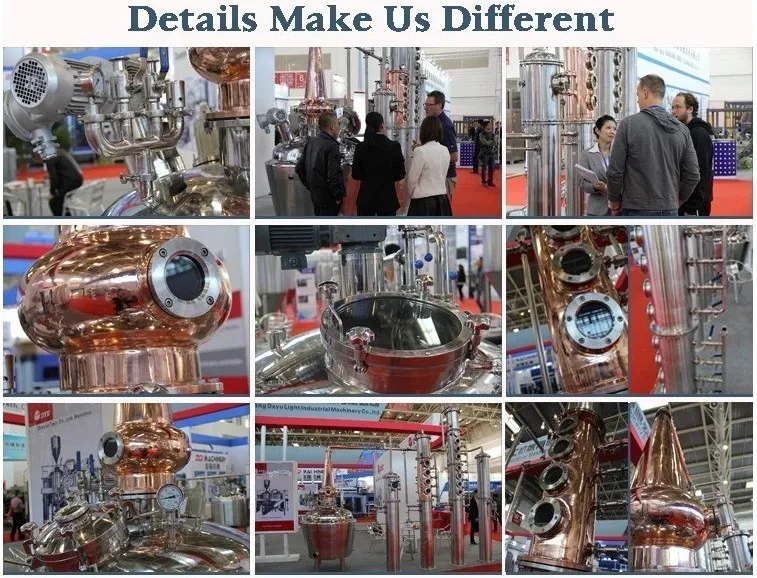

Advantages

I.Fully dedicated welding line

At DYE company,all widths of C1100 red copper(99.9% pure copper) are customized to fabricate dished tops, bottoms and kettle shells that are 2200mmin diameter or less on only one welding line.This makes for a more attractive apprearance ,and to fully avoid the risk of leakage which could sometimes occur because of an inappropriately sized welding line.

II. Adjustable still column structure

We DYE company develops new distilling equipment with column heights that can reach 2000mm; up to 10 plates with a pair of flanges;all bubble pates integrated within a tightly embedded inner shell;all features so the surface appearance looks smooth and attractive,yet simple and generous.

III.Dephlegmator

Adopts a counter-bore style, a benefit to gas-liquid separation,permitting alcohol vapor to interface with more copper surface area,thus reducing cyanide and sulfur,and therfore making better-tasting spirits.

IV.Bypass valve

DYE has conducted independent research to develop a bypass valve for use in an automation control system and one can also use pneumatic valve as an option.

V.Cleaning ball(CIP) valve

Original manual valves have been changed to customized check valvesmand this change can reduce operation time when the still undergoes CIP cleaning.

VI.Explosion-proof LED light

Low-heat LEDs are energy efficient and they avoid the hazards of fire or explosion.

VII.Additional cooling water collection tank

Saves space and offers stability

VIII.Additional spirits heads/hearts/tails tanks

Save space and offer stability

IX.Automation

Heating control,temperature disply,cooling water control, raw material flow control,all valves pneumatically controlled for your option.

Values of DYE company are based on the concept of creating a craft-built system for you as its principal mission.
Traditional manual craftsmanship is employed in the construction of each system,supported in combination with industrial manufacturing.

DYE research and development team of coppersmiths have many years of manufacturing experience with copper distilling equipment and have access to technology for even large-scale manufacturing. These coppersmiths skillfully fabricate wach coppersmithing quality. The spirit distillate that flows out of artificial blending essence.The DYE spirit is smooth and sweet,combing elegance and balance,no matter if the spirit is distilled twice or just as a result of a single pass.The flavor is much better than the spirit that is produced uing traditional still.
