500l sanitary stainless steel 2 vessel micro beer brewing equipment for brewpub

FOB Reference Price:Get Latest Price
$5,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, cutting-rolling -welding -polishing -assembing -testing -warehousing
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
TONSEN
Model Number:
TS-1000
Processing Types:
beer brewery
Voltage:
Request
Power(W):
15-70Kw Depends
Dimension(L*W*H):
Capacity Request
Weight:
200KG-2000KG
Certification:
CE ISO UL CSA
Name:
500l 2 vessel micro beer equipment
Heating method:
Electric /Steam heating /direct fire
Control:
semi-automatic/full automatic
Thickness:
2.0mm ~ 3mm
Surface:
Beer Brewing, Beer Fermentation, Beer Production ect
Technology Advantage:
PU insulation, dimple jacket, cooling system ect
Sizes and Parts:
Sizes and Parts details can be customized by customers
Application:
Beer Brewing Equipment
Equipment Usage:
Brewpub
Warranty:
3 Years
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with seperated box.
3. After loaded into containers, all equipments will be well fixed to the containers.
Port
Qingdao port

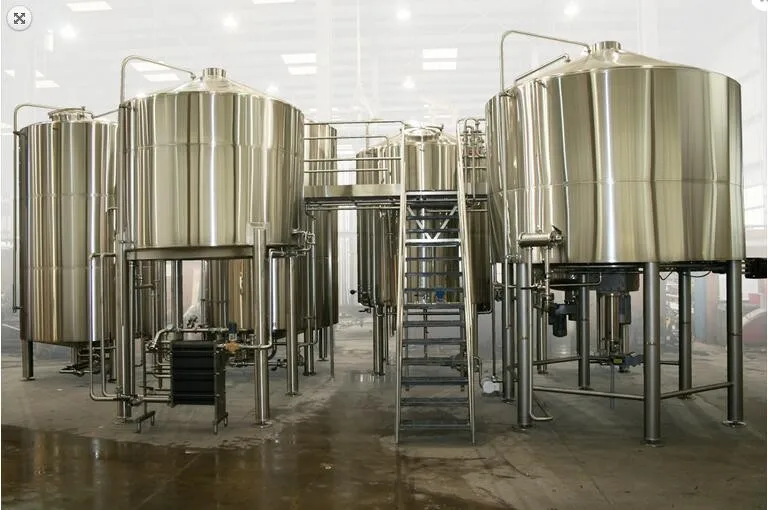

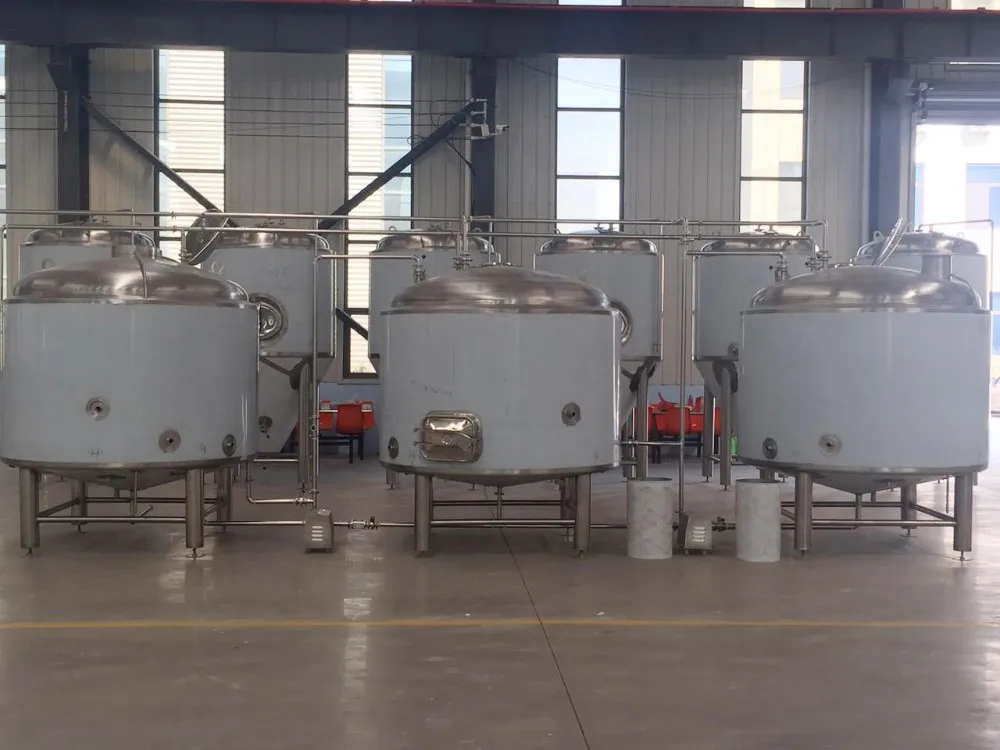

Brewhouse system

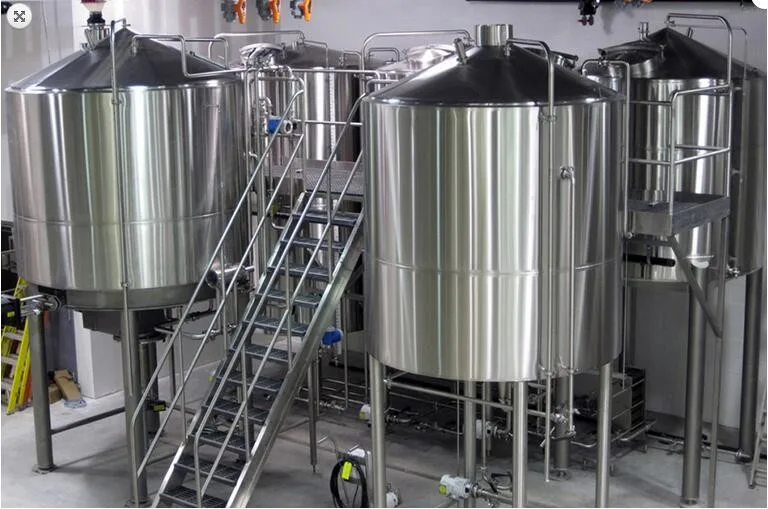

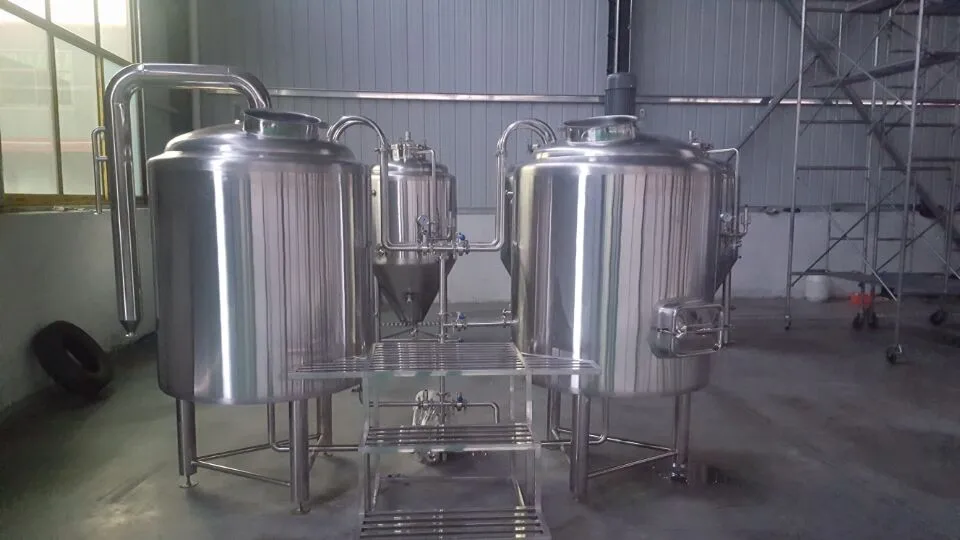

500L two vessels brewhouse system

Various combination of brewhouse:

Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing,lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,sparging water, brews in certain time, brewing method etc. TonsenBrew Company accepts special design for these variations.

                             2 vessels Brewhouse
-Mash/Lauter Tun + Boil Kettle/Whirlpool Tun
-Mash/Lauter Tun/Hot Liquor Tank Combi vessel + Boil Kettle/Whirlpool Tun
-Mash/Lauter Tun + Boil Kettle/Whirlpool + Hot Liquor Tank

                             3 Vessels Brewhouse
-Mash/Lauter Tun + Boil Kettle + Whirlpool Tun

-Mash(kettle) Tun + Lauter Tun + Boil Kettle/Whirlpool Tun

                        4 Vessels Brewhouse
Mash(kettle) Tun + Lauter Tun + Boil Kettle + Whirlpool

5 Vessels Brewhouse
-Mash Tun + Lauter Tun + Boil Kettle + Whirlpool+ Holding Kettle

Fermenting Equipment

Sanitary Stainless steel 304 / 316 / copper

conical vertical tank,
25% top space to avoid beer foam out;
dome top head, cone bottom;
Surface brushed, welding line polish sanding light belt;
dimple plate cooling jackets( on wall and cone);
With rotary CIP spray balls and arm;
Pt100 temperature sensor; dry hopping port on top head;
Sample valve in the cylinder;
separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank
Relief valve, Pressure regulating valve; Pressure gauge;
Glycol solenoid valves,
Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height
if you require, we can design with an extra arm on the opposite side of the tank than the CIP arm.

5BBL concial fermenting tanks

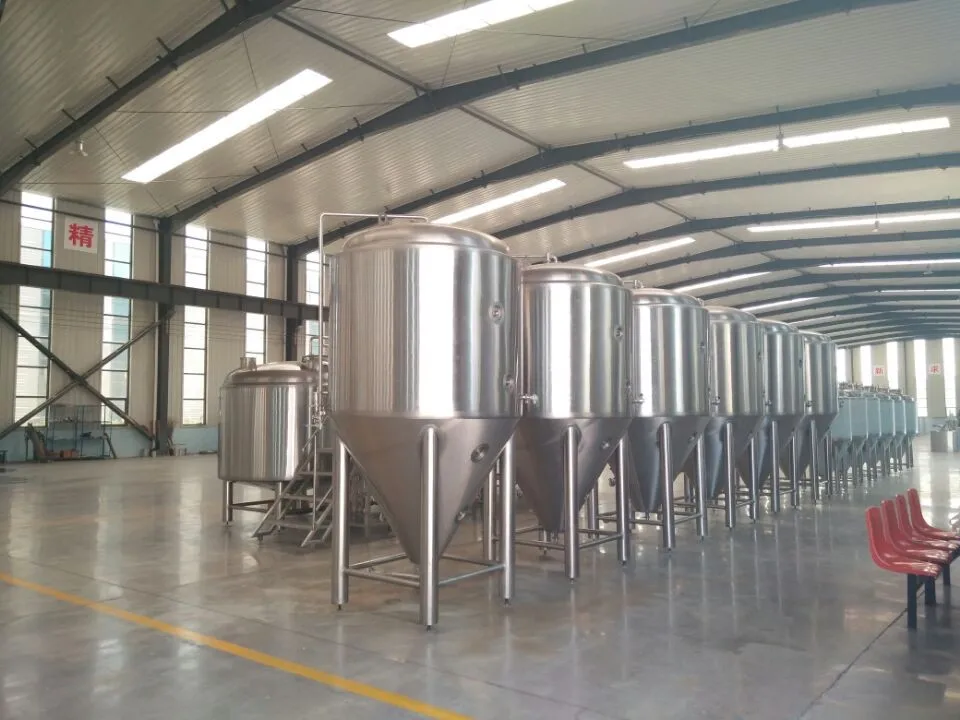

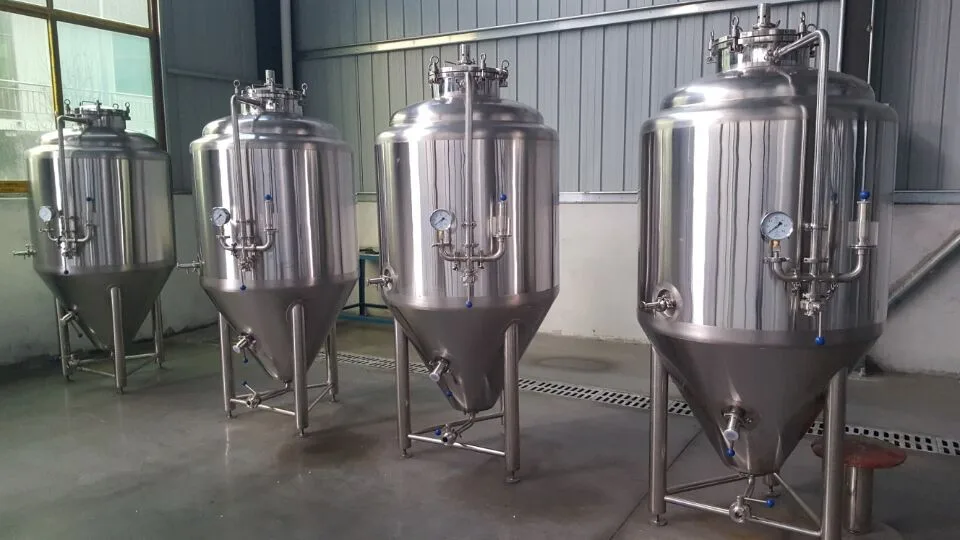

1000L conical fermenters or unitanks:

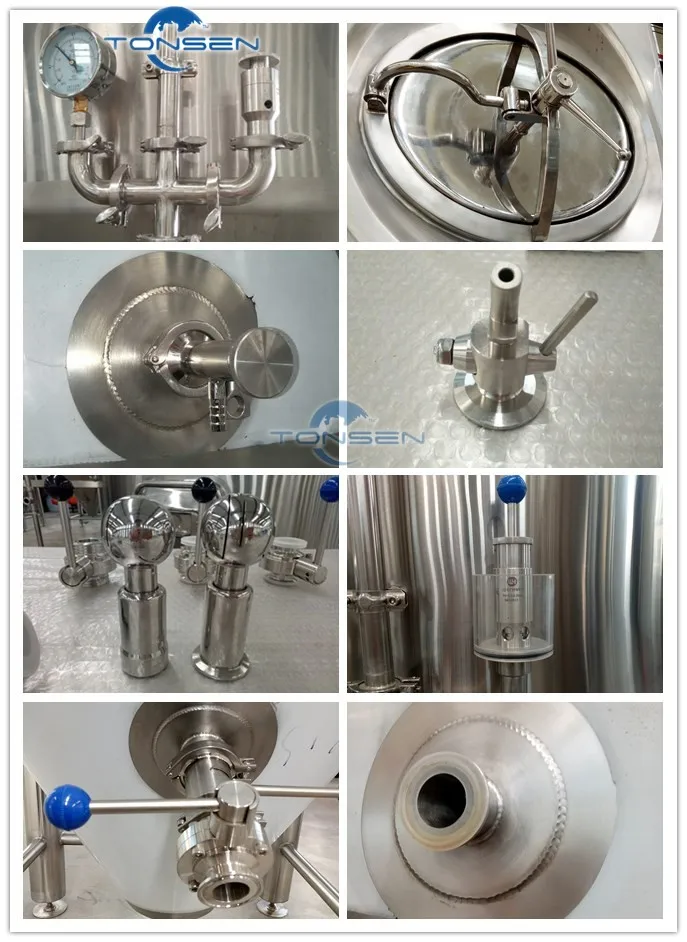

Materials

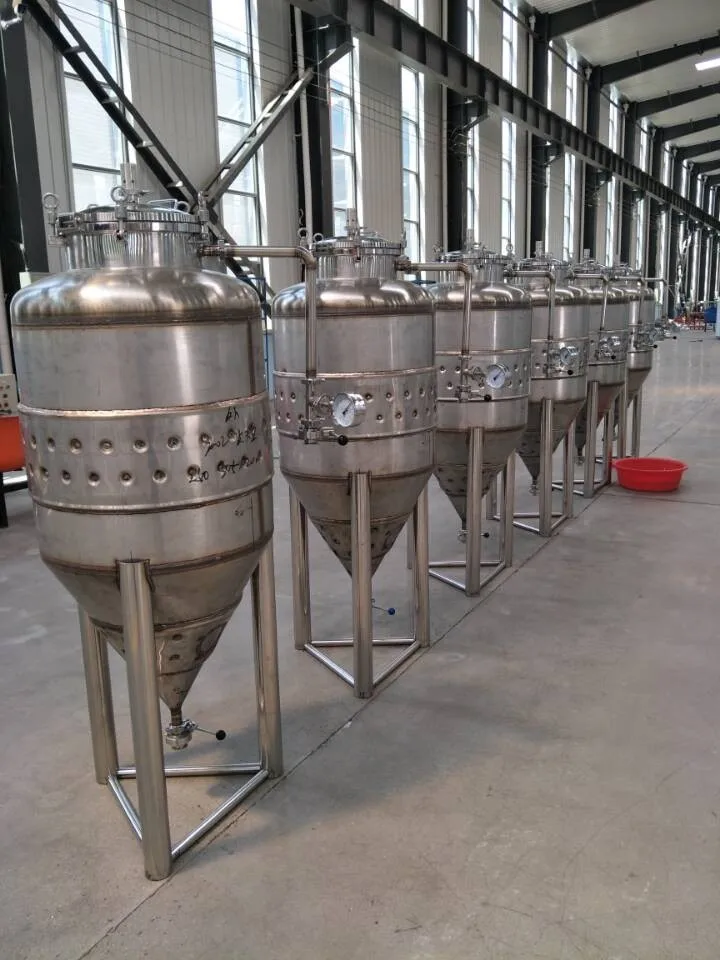

Dimple cooling jacket

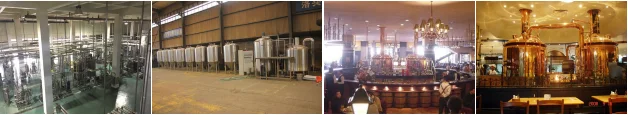

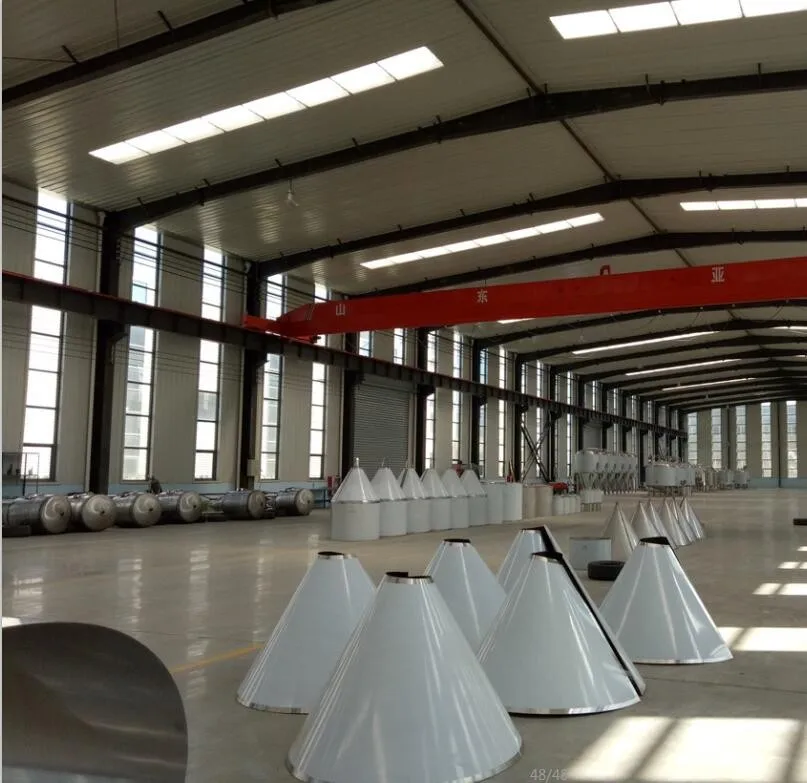

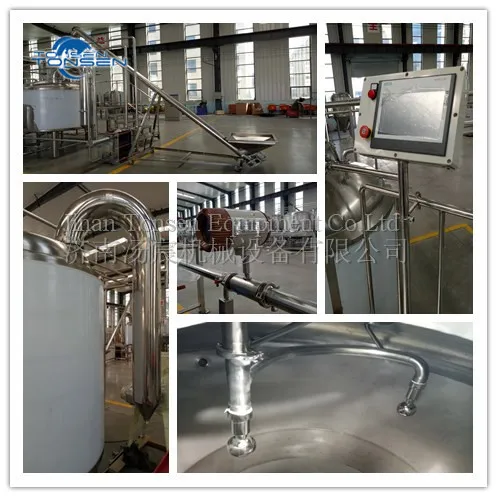

Finished products

Company Introduction

Jinan Tonsen Equipment Co., Ltd. is an international comprehensive enterprise specializing in R&D,production,technical support and services for beer equipment and wine equipment .Our company has 80 front-line production employees,10 production management staff,5 top Professional and Technical Personnel,the product includes large,medium and small brewery equipment,hotel/bars brewed beer equipment,teaching laboratory equipment,various types of wine equipment,and provide beer equipment accessories, auxiliary equipment,control equipment,supply the main and auxiliary materials of beer brewing,brewing technique training and other services

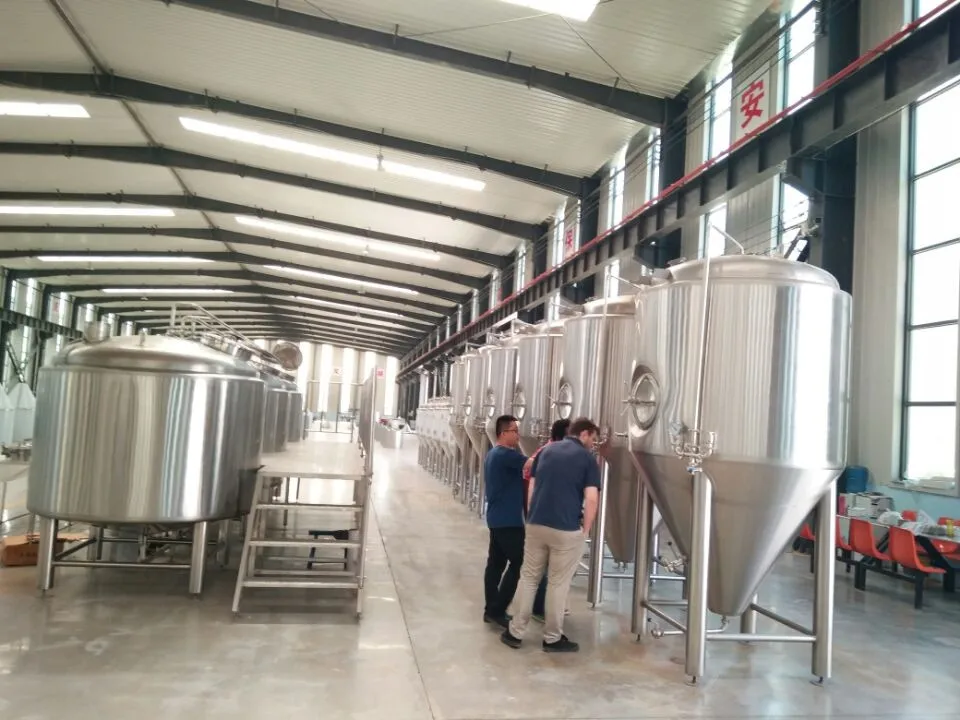

Customer Visiting:

BEER BREWING EQUIPMENT / MICRO BREWERY EQUIPMENT STAND SETUP LIST:
Components
Specification
Milling System

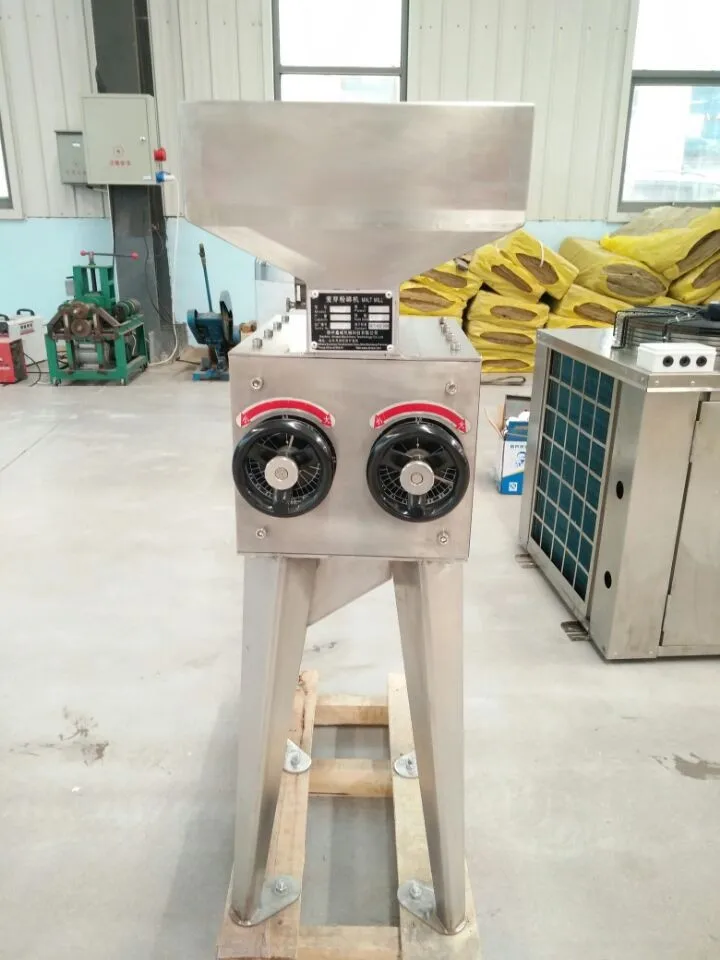

Miller
Double Roller,Noise<60db
Heating System
Boiler (steam heating)
Electric or steam or direct fire


Brewhouse System
Mash / Lauter tun
Heating jacket
Material: SUS 304/316 or Red copper
1 Thermometer / tank
Boiling / Whirlpool Tank

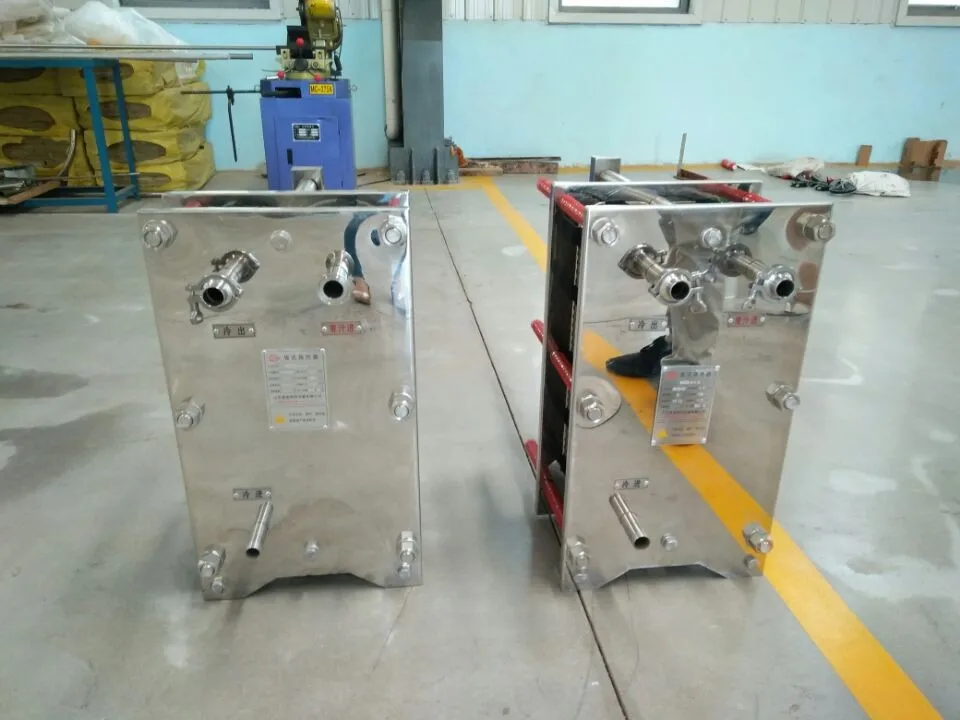

Heat-exchanger
Plate type

Fermentation System
Fermentation Tank
Top manway/Side manway ,  Glycol cooling jacket
Yeast Adding Tank
SUS304 Stainless Steel


Refrigerator System
Refrigerator machine
With control system
Pump / valve
Ice water tank
Fluorine filling

CIP Cleaning System
Acid Tank

SUS304 full welded
Alkali Tank
Pump
Control System
Control Cabinet
Semi-automatic
Costing Specifications for Brewing Systems :
items
TS-0.1
TS -0.2
TS -0.3
TS -0.5
TS -1.0
TS -2.0
Production capacity
100L
200L
300L
500L
1000L
2000L
floor space
15m2
25m2
35m2
50m2
80m2
120m2
Total power
12kw
12kw
12kw
15/36kw
22/72kw
31/144kw
Consumption of malt
20kg
40kg
60kg
100kg
200kg
400kg
Consumption of hops
60g
120g
180g
300g
600g
1.2kg
Yeast
100g/1L
200g/2L
300g/3L
500g/5L
1kg/10L
2kg/20L
Auxiliaries

1.All auxiliary system and spare parts purchased from famous manufacturers who worked in this business over 10 years.
2.Suppliers cooperate with us for many years.
3.Saving energy, enviromental protection, stable performance
4.Lifetime guarantee

Our Service

1.We supply the complete turnkey beer brewery equipment include the bottle and barrel filling system
2.The detailed floor plan,CAD drawing and 3D drawing of the brewery,installation pipeline connection drawing,the operation manual
3.We can transport the goods to your delivery place
4.Support sending engineer to install and training technology on site and supervised-installation with remote support
5.We supply the beer recipes,brewing technology
6.3 Years Guarantee service for the beer brewery equipment

Packing & Delivery

PACKING & SHIPPING
1)All tanks will be packed with soft protection material and mounted on steel frame
2)All accessories and spare parts will be packed with soft protection material and then put into iron box
3)After loaded into containers, all equipment will be fixed to the containers.
for kingfisher beer brewing system beer equipment from Jinan Tonsen
Delivery Detail:25working days

FAQ

1.Q: It’s the first year(1st year) for you to produce brewing equipments?
A: No. We worked in this business for many years but it’s the 1st year to generalize by alibaba

2.Q:How any years does your warranty ?
A:The main equipment for 3 years, auxiliary ones for 1 year.

3.Q;What’s your advantage ?
A:We are pioneer and know this business. Our 3 top-level technicists worked in this business over 10 years, 2 senior engineers worked over 8 years, workers average production experience is 3 years.

4.Q: Can you do OEM or ODM?
A: Yes, we can do.

5.Q: How to control temperature ?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.

6.Q: Is possible to supply installation in our country ?
A: Yes, we could supply engineer to supply installation guidance and training.

7.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
