50A npt male thread brass water rotary union quick coupler joint

Quality Choice
FOB Reference Price:Get Latest Price
US $10-35 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Week
Port:
shen zhen/ guang zhou/ foshan
Seller Support:
Payment protection
On-time shipment
Product quality protection
Payment:
More
Overview
Specifications
Material:
Copper
Technics:
Casting
Type:
Union
Place of Origin:
Guangdong, China (Mainland)
Model Number:
JF2001
Brand Name:
HONG CHANG JUFA
Connection:
Male
Shape:
round
Head Code:
round
Size:
50A 2''
medium:
coolant water/hot water
rotor type:
thread
Product name:
50A npt male thread brass water rotary union quick coupler joint
certification:
ISO9001
passage:
one passage
customzied:
yes
inventory:
1000
kind:
pipe fitting
temperature:
80℃
Packaging & Delivery
Packaging Details:
Wooden box, standard export packing, according to customer's request for rotary union
Delivery Detail:
after confirm payment 5-7-14 days







Product Description







 50A npt male thread brass water rotary union quick coupler joint




Condtion:




medium

Cooling water/hot water

Max temperature

80℃

Max pressure

2.5MPA

Max speed

2000RPM

Size

3/8"-4"

 options

Mono flow and dual flow configurations available

Connection

Flange or thread

Material

Brass  housing with 304 stainless steel rotor and spring







Advantages:



1. High speed operation enabled at High Temperature & pressure media

2. Featuring stainless steel rotor and spring with a copper housing

3. The 2001 series rotary unions are designed for applications with high pressure requirements and limited space.

4. Available in both monoflow and duoflow models with thread or flange end

5. Each joint thoroughly pressure tested ensuring longer life



Hydraulic joints used to transfer fluids or air from an inlet pipe or other device to an outlet pipe or other device rotating to each other, preserving and isolating the fluid connection.

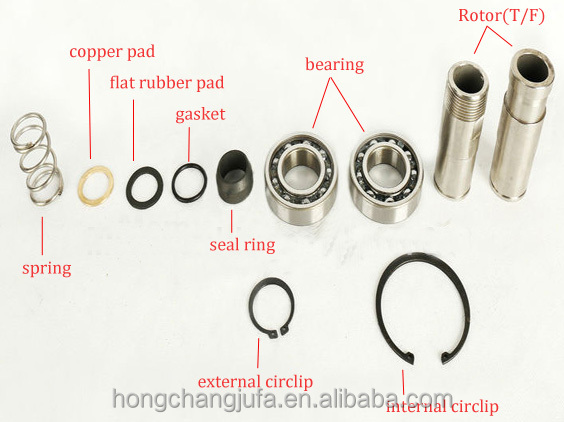

Structure:

Parts

Material

Housing

Brass

Rotor

Stainless steel304

Spring

Stainless steel304

Gasket

Graphite Asbestos

Seal Ring

Carbon/ Graphite

Bearing

NSK Bearing

Head

Brass

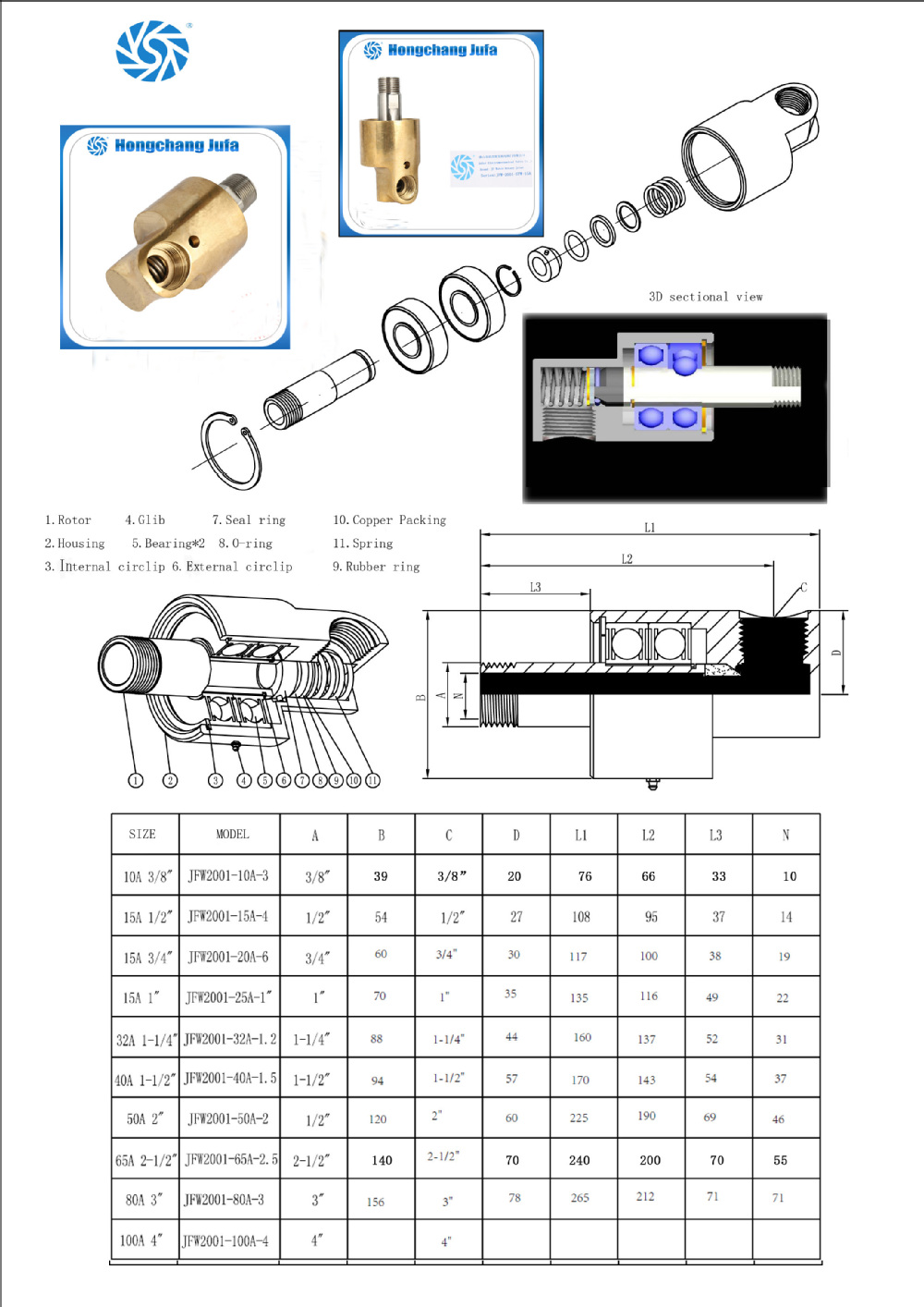

  Parameter

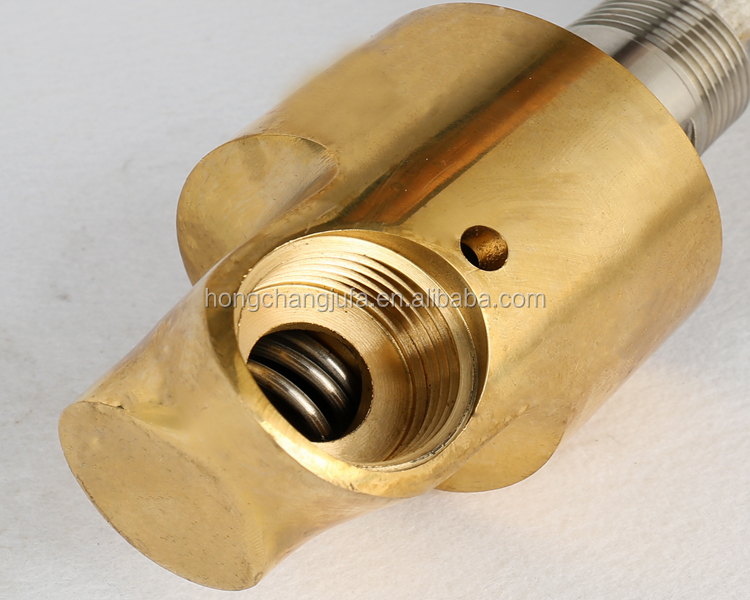

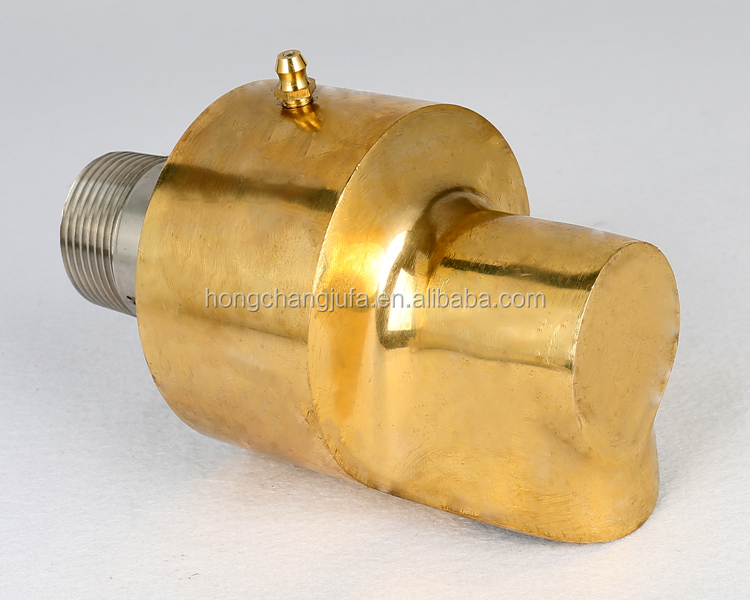

Photos show for 50A npt male thread brass water rotary union quick coupler joint  :

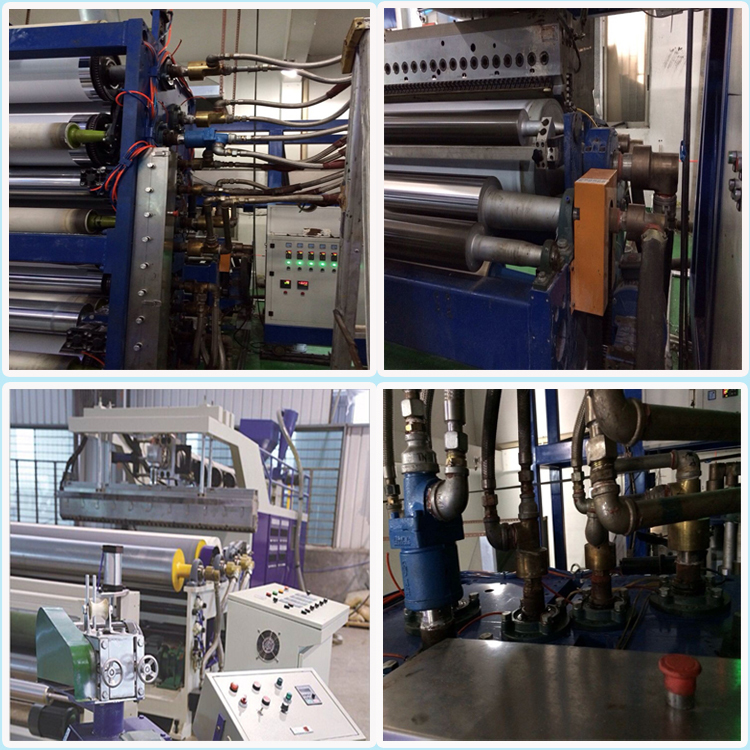

The application field of rotary joint cover almost every manufacturing industry. Such as: metallurgy, machine tool,The power, Oil,Rubber plastics,Spinning,Printing, Pharmaceutical, Cigarette, Paper,Food,Feed processing.











Production Flow

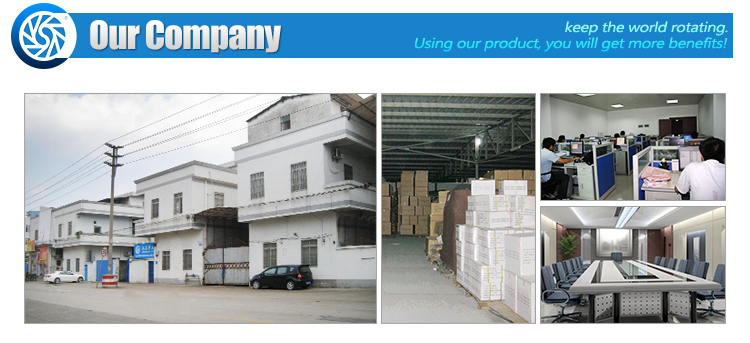

Company Information










Foshan Nanhai Hongchang Jefer Electromechanical Valve Co.,Ltd is a factory set up in 2006. We are specializing in  researching, developing and manufacturing different kinds of rotary joints,  flexible metal hose,  rubber hose , bellow expansion joint and valve   equipment in China.





Our factory is covering over 10,000 square meters.  Our R&D department consists of 3 engineers. Also, we have experienced QC personnel  to check all our  products strictly before packaging .  All of our products meet the national standards  and  have pass ISO9001 certification. We obtain trust from customers by advanced technology, excellent quality and satisfactory service. Also, we specialized in customized rotary joints tailored to meet your project requirements.





Our mission is: Offer high-quality goods, excellent service, and reasonable price to customers; Use our product, you will get more benefits!









Packaging & Shipping





Our Services

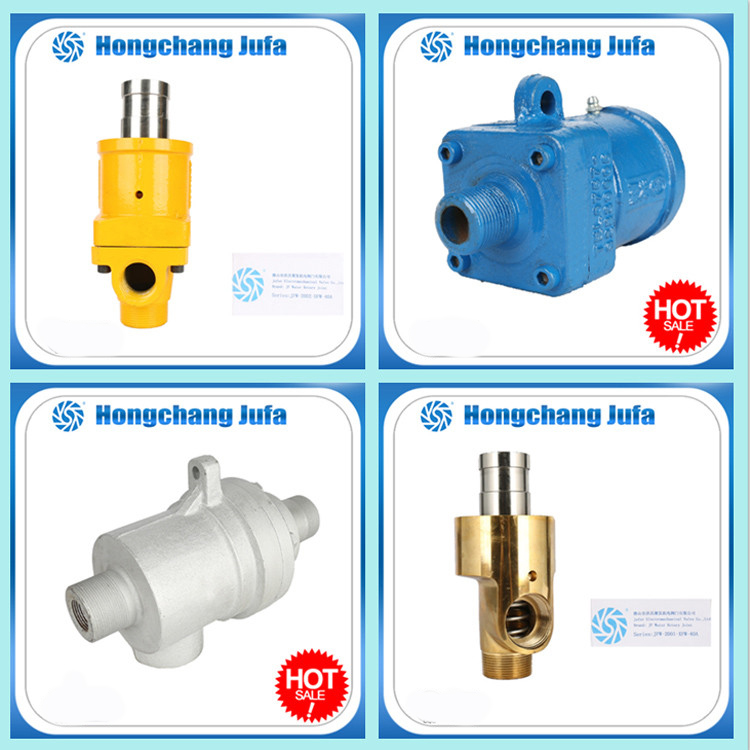

Related Products

 Please click the below picture:





FAQ



1.Q.What kind of medium that the rotary joint used for ?

  A.We have different kind of rotary joint for hot /coolant water,steam, hot/oil,air.



2.Q.Can you custom based on my specification or drawing?

  A.Yes, customized the specification or drawing is aviailable, just according to your request.



3.Q.What is Minimum Order Quantity?

  A.The MOQ is 1pcs of each kind.



4.Q.What is the price of your products?

  A.Different kind of our products have different price, should be decided according to specified size.we can supply the best and competitive price to you.



5.Q.What is the payment terms?

  A.Normally 30% deposit ,and 70% balance payment before shipment.



6.Q.What is the delivery time?

  A.Norrmally after confirm payment 5-25 days.



7.Q.What is your after-sale service?

  A.Our products warranty for 1 year.If you have any problems can contact us.
