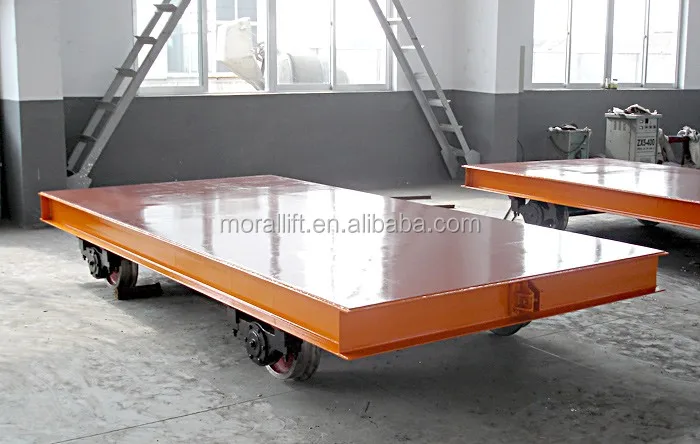

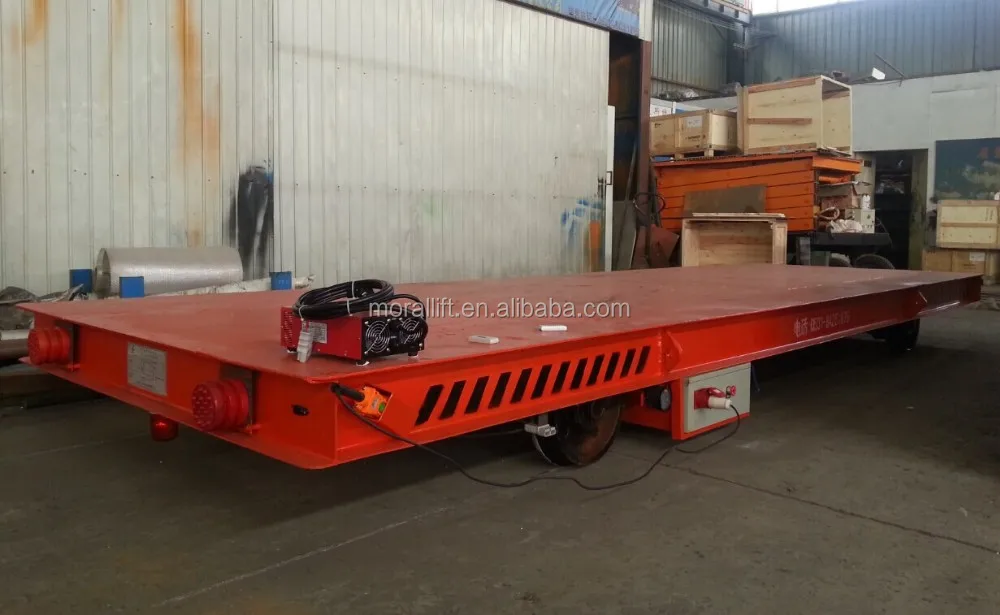

50T Large Gauge Rail Electric Flat Cart

FOB Reference Price:Get Latest Price
$5,000.00 - $9,000.00 / Sets | 1 Set/Sets ok (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Moral, Moral
Model Number:
KPD-50
Warranty:
12 Months
Item:
Cart
Material:
Heavy Duty Flat Cart
Certificates:
CE
Application:
Transfer Materials
Power source:
As customer's demand
Capacity:
Customizable
Color:
Optional
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
200 Set/Sets per Month ok
Packaging & Delivery
Packaging Details
plywood box package
Port
qingdao
Lead Time :
15 days after confirm order
Product Description

Product Application

KPDZ series railway flat carts are powered by the low voltage electricity from the railways. The power source AC 380v is transformed into AC 36v two-phase and are respectively connected to the two rails. Then the wheels and conducting plate lead the AC 36v electricity to the electrical appliance box which is installed on the carts. And then the AC 36v is transformed into DC 36V through the transformer. then controls DC Metallurgy motor through DC control system to make the flat carts start, stop, go forward and backward and adjust the speed and so on.

Characters
•powered by low voltage electricity from railways
•using time is not limited
•load capacity is not limited
•high safety level
•flexible, stable start ,big starting torque,small impact to the gear reducer
•high use frequency and not too short running distance
•long service life
•run on the rails "S", arc-shaped, direct running
•variable speed device(VFD)
•hydraulic lifting device can be installed
•can be used frequently

Model`
KPDZ-10
KPDZ-20
KPDZ-50
KPDZ-100
KPDZ-150
Rated Load(t)
10
20
50
100
150
Table Size(mm)
Length(L)
2000
4000
5500
6500
10000
Width(W)
1500
2200
2500
2800
3000
Height(H)
450
550
650
850
1200
Wheel Base(mm)
1200
2800
3200
4900
7000
Rail Inner Gauge(mm)
1435
1435
1435
2000
2000
Wheel Diameter(mm)
400
400
500
600
600
Wheel Quantity
4
4
4
4
8
Ground Clearance(mm)
50
50
50
75
75
Running Speed(min)
25
20
20
20
18
Motor Power(kw)
2
2.5
5.5
11
15
Transformer power(KVA)
3
6.8
10
30
30
Transformer quantity
1
1
1
1
1
Running distance(m)
80
80
50
50
50
Max Wheel Load(KN)
14.4
77.7
174
343.8
265.2
Recommended Rail Model
P15
P24
P43
QU100
QU100

Main Features

(1) KPX series are more safe and flexible.
(2) It has no strict requirement for the construction of the railway
(3) No limit of running distance
(4) Safe and convenient operation for there is no wire outside the car
(5) Adjustable speed

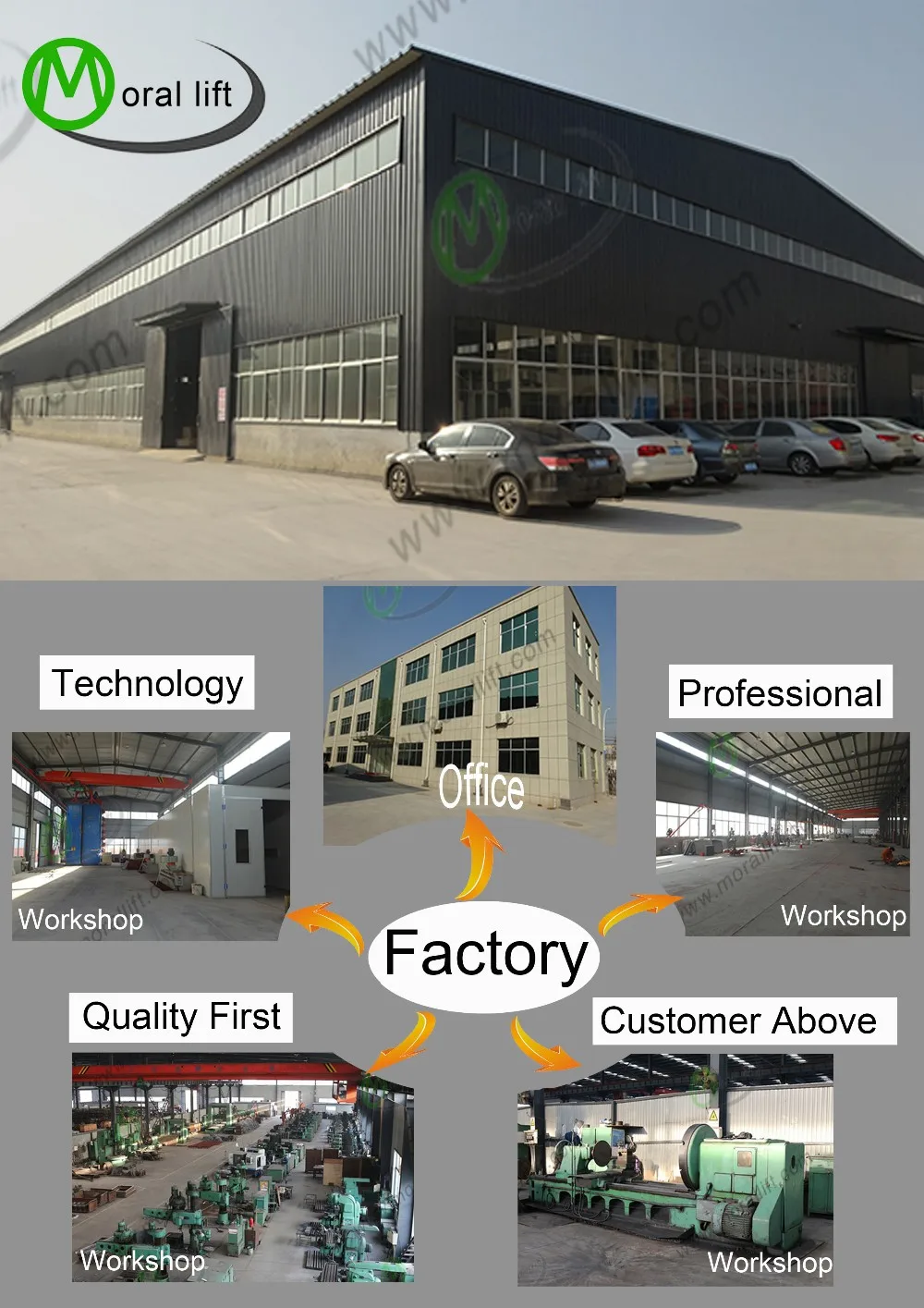

CE&Factory

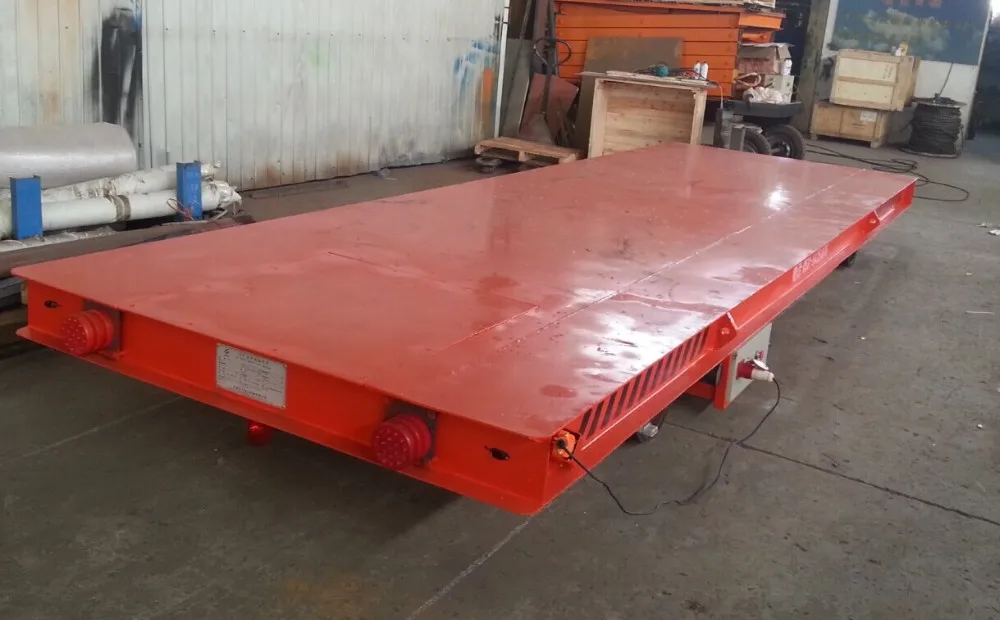

Detailed Images

Main Features

Brand: MORAL
Original: China

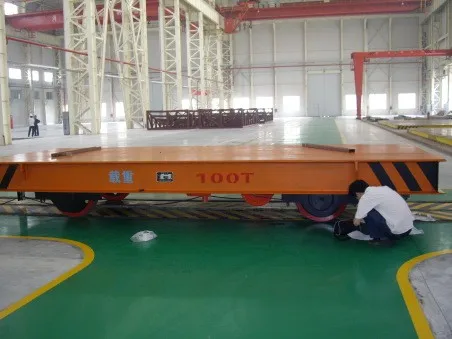

The Rail Transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc




Main Features
Brand: MORAL
Original: China
The Rail Transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc



Main Features
Brand:
MORAL
Original: China
The Rail Transfer cart is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc



Packing & Delivery
Packaging



Packaging Details

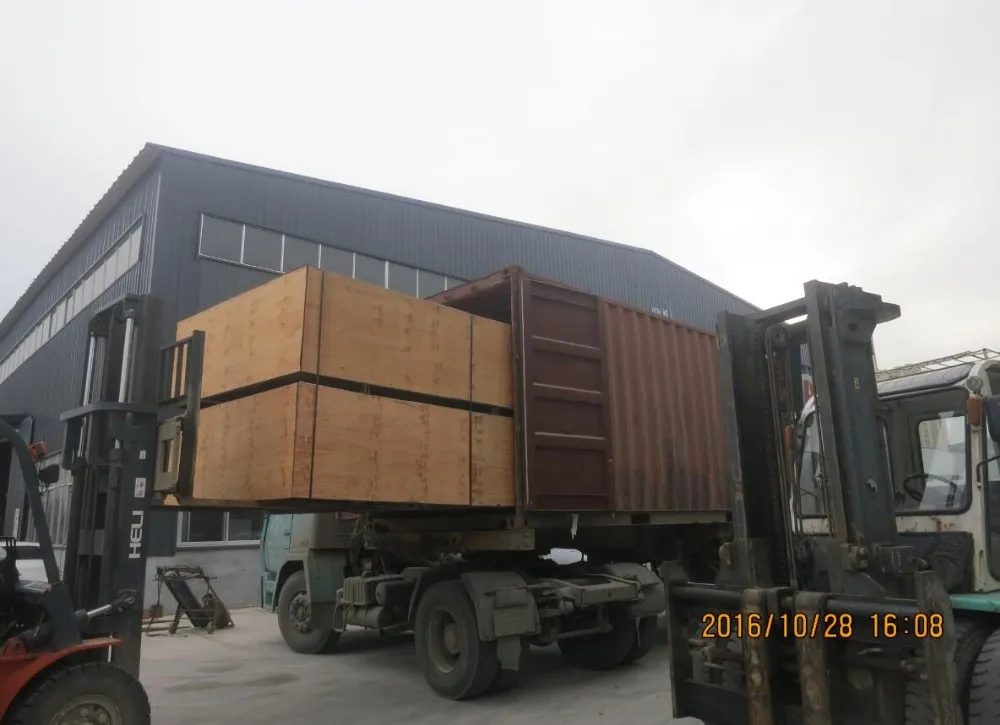

The normal package is plywood box.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
