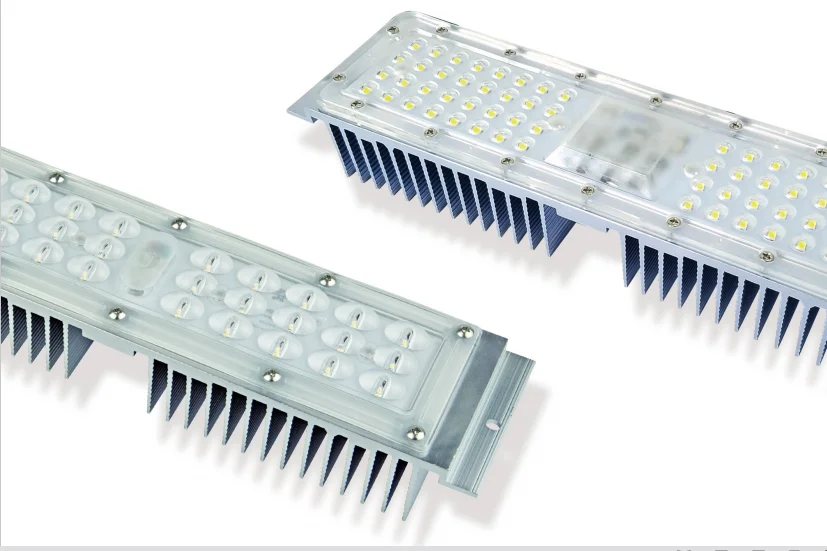

50W high power 3030/5050 Smd Led Module for street light

  • 4-199 Pieces
    $16.00
  • 200-499 Pieces
    $15.30
  • >=500 Pieces
    $13.30
Wattage:
30w 60w 50w
Emitting Color:
Cold White Warm White White
Color:
Dark Grey
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Samples: $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $15.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
DC28-32V
Lamp Luminous Flux(lm):
7000
CRI (Ra>):
70
Working Temperature(℃):
-40 - 60
Working Lifetime(Hour):
50000
IP Rating:
IP68
Certification:
CCC, CE, CQC, EMC, RoHS, SAA, SASO
Warranty(Year):
8
Place of Origin:
Zhejiang, China
Brand Name:
BOPIN
Model Number:
BSM30-30
Beam Angle(°):
150*80
Application:
ROAD
Product name:
Led Module for street light
Color Temperature(CCT):
Pure White
LED Light Source:
Lumileds
Lamp Power(W):
50
Lamp Luminous Efficiency(lm/w):
130
Payment:
Alibaba Assurance/ T/T & Sight LC/ Western Union
Applicatable Light:
led modular street light, tunne light, flood light, tube light
warranty time:
8 years
Delivery Date:
2-6 working days
Delivery time:
9-18 working days for bulk order
Item Type:
Street Lights
Dimension:
29*6.8*4.7CM

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X15X10 cm
Single gross weight:
1.1 kg
Package Type:
1 pc/ 1 CTN, along with protective films inside, packing belt, and wooden tray.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 5000 >5000
Est. Time(days) 15 To be negotiated
Application Need

For high-power light(street light/tunnel light/flood light/high bay light/garden lighting/LED specific housing/housing of traditional light)



DO YOU HAVE CLIENTS WHO WANT TO PURCHASE GARDEN LIGHTING ,PARK  OR GOLF,TENNIS COURT ETC WITH  PROFESSIONAL  INDOOR OR OUTDOOR LED MODULE HIGH IP RATING LIGHT?


ARE YOU LOOKING FOR THE 100% ECO-FRIENDLY LED MODULE LIGHTINGS WITH REASONABLE AND SUPER ONES?


I-1 Specification

BSM30-50
LED Source
Lumileds
rated voltage
DC28-32V
watts
20-60W
light color
Black&Grey & OEM
C.R.I
>70
C.C.T
3000K/4000K / 5000K / 6000K
Driving Current
1.3-1.8A
Luminous Flux
2600lm-7800lm
Warranty year
8 years
iiProduction

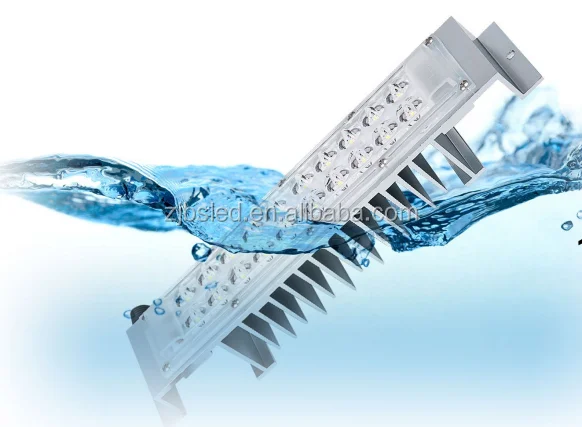

High IP rating modules

High thermal conduction and high IP rating modules.

IK10 Waterproof

Connecting the water-proof, driver on request of the input voltage and current.


Adjustable number of modules

The number of modules is adjustable according to the size of the housing of light so as to satisfy the need for lighting in different areas.

Multipled applicable
Applicable to most high-power lights,like street light,tunnel light,flood light,high bay light.Mainly installed in the housing of tradtional lights or LED specific housing.

SAVING COST & NO NEED TO REPLACE THE HOUSING.

Just replacing the illuminant or its fittings can meet the requirement.


II-1 Technical Parameters


Model
M9
M18
BSM30-30
M30
M60
Watts
20-30W
40-60W
30-60W
30-60W
30-60W
Input Voltage
DC24-36V
DC24-36V
DC42-54V
DC24-36V
DC24-36V
Products Material
Aluminum Alloy+PC
Driving Current
750-1050mA
750-1050mA
0.67-1.3A
140mA
620-1200mA
IP Rating
IP68
C.R.I
>70
>70
>70
>70
>70
C.C.T
3000K/4000K/5000K/6000K
Light Efficacy
>120lm/w
>120lm/w
>130lm/w
>120lm/w
>120lm/w
Working
Temperature
-40 to 60 celsius

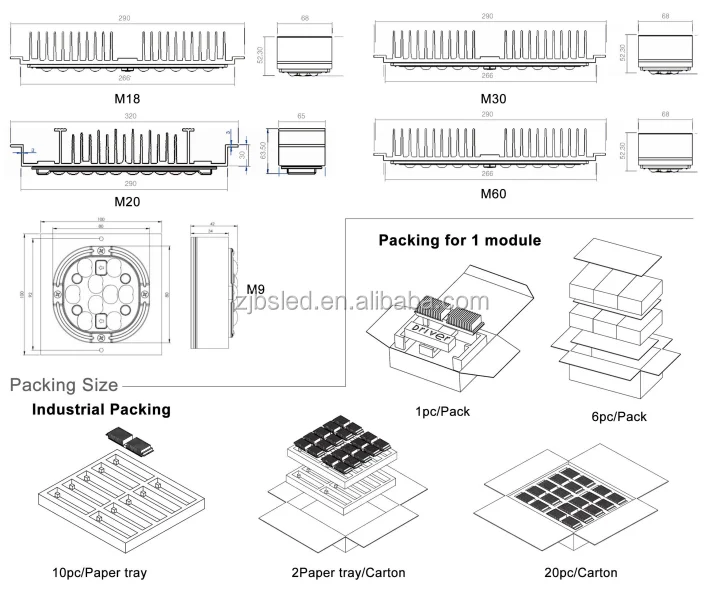

II-2 Packing Details

Bopin Team in Fair
Certifications
Bopin

Zhejiang Boshang Optoelectronic Co.,Ltd (Founded in 2008). is a leading designer and manufacturer in modular high power LED outdoor lighting industry & Commercial indoor and outdoor lighting field in China.We offers a wide range of LED solutions to make the world full of energy-saving.


Based on top-of-the-line patented
IP68 LED modules, we have developed a series of modular LED lighting products including street lights, high bay lights,high mast light, tunnel lights, flood/spot lights and canopy lights, which are CE, RoHS, TUV, SAA, CCC, CQC, CB, LM-79,LM-82 and etc approved.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 5-7 days, mass production time needs 20-25 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

I. How do we deliver the sample to you?

II. Please free to message us if you have any questions,we'd like to help you and extend your market in the near future.


LED light Modular, IP66 for whole light, suitable for different design of light housing: street light, garden light, garden lamp etc.
