50W integrated Driver Dimmable AC220V high voltage cob power AC led module

Feedback Ratings
$18.00 / Piece | 10 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
YDG-L50W3KDD001
Chip Material:
AlGaInP
Emitting Color:
Neuter
Luminous Intensity:
95LM/W
Luminous Flux(lm):
4500
Optical Attenuation(%):
1
Power:
50W
Power Dissipation:
50W
Viewing Angle(°):
120
Color Rendering Index(Ra):
80
Color Temperature:
4000K
Operating Temperature(℃):
-20 - 60
Storage Temperature(℃):
-10 - 40
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JOYINLED
Certification:
CE, RoHS
Size:
30*40 mm
Phosphor:
25*25 mm
Dimmable:
yes

Packaging & Delivery

Selling Units:
Single item
Single package size:
4X4X1 cm
Single gross weight:
0.01 kg
Package Type:
Neutral or OEM
Lead Time :
10

  50W integrated Driver Dimmable AC220V high voltage cob power AC led module

Product Description



20W 30W 50W High power led chip integrated Driver Dimmable for led flood light landscape assembly Ceiling down light indoor lamp beads



Driver and LED together ,only one housing more ,you can make wonderful light by yourself



Features

Apply new integrated LED driving technology,more stable and longer lifetime.
New LED driving technology lowers the cost of the LED driver significantly.
Optimized LED array design makes light smoother.


Welcome to contact with us for more detail info.

Input Voltage(V)AC220-230VAC
Power(W) 50W

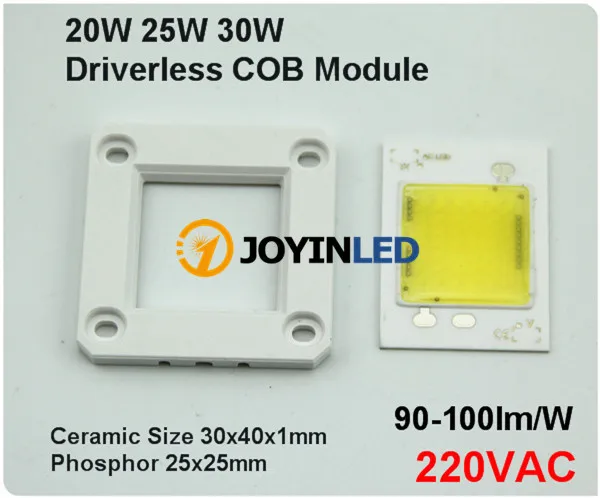

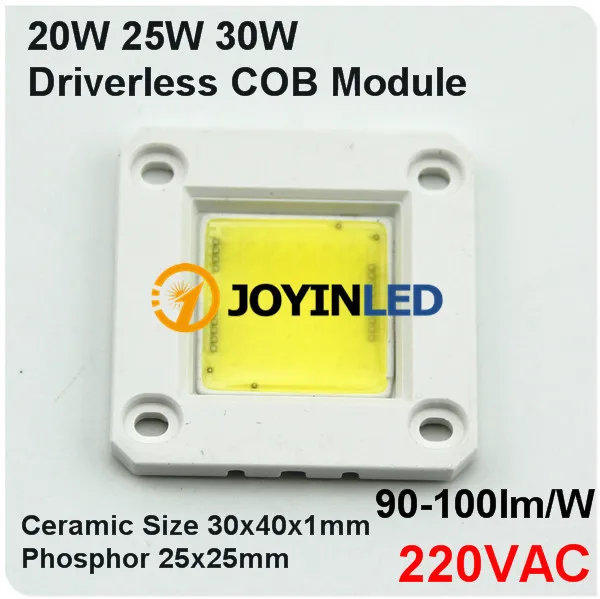

PCB Dims (MM)30*40*1mm
Phosphor  (MM) 25*25 mm
Power factor (PF)>0.95
Color TemperatureWW, CW
Luminous Flux(lm)4500LM
CRI(Ra)>80
Dimmable Yes
Warranty2 Years








//////////////////////////////////////////////////////////////////////////////////////////

High voltage AC led module
