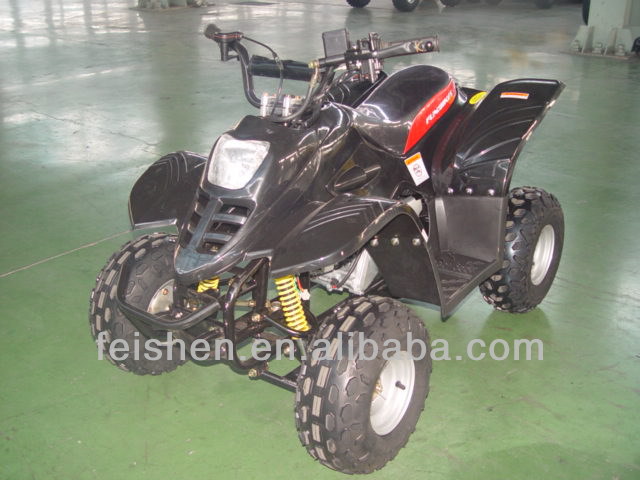

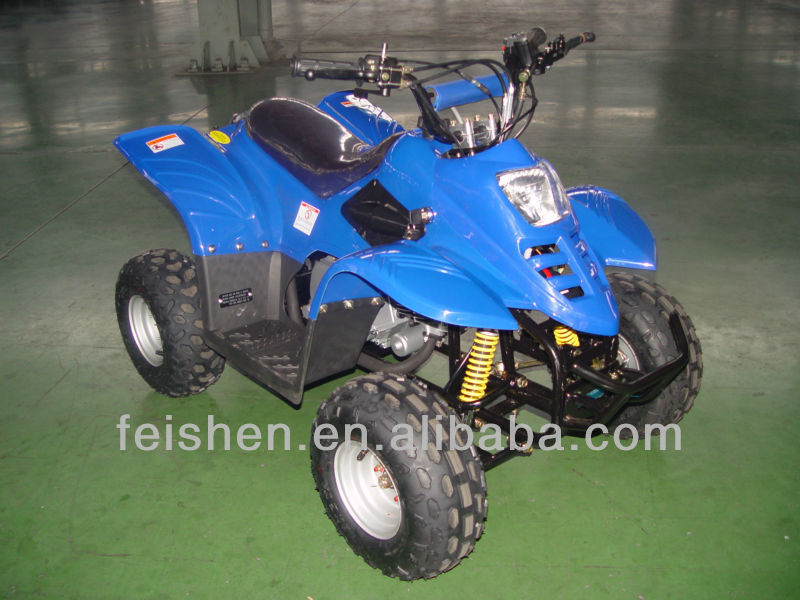

50cc mini ATV 110cc chain drive kids ATV 90cc atv quad bike(FA-C50)

FOB Reference Price:Get Latest Price
US $300-350 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
300 Unit/Units per Day
Port:
FOB NINGBO
Report Suspicious Activity
Overview
Quick Details
Fuel:
Gas / Diesel
Displacement:
50cc
Engine Type:
4 Stroke
Transmission Type:
Automatic
Transmission System:
Chain Drive
Certification:
CE
Brand Name:
buyang
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
FA-C50
ENGINE TYPE:
Single Cylinder, 4 Stroke, Air Cooled (Loncin engine)
MAX.POWER(KW/rpm):
2.0KW/7500rpm
MAX.TORQUE(N.m/rpm):
2.5N.M/6000rpm
MAX.SPEED:
48KM/h
GEARSHIFT:
Circle Gearshift / Automatic
FUEL CAPACITY:
3.4L
MAX.LOAD(kgs):
75kg
NET WEIGHT(kgs):
85kgs
WHEELBASE(mm):
830mm
COLOR:
Red, Blue, Yellow, Black
Packaging & Delivery
Packaging Details
STEEL FRAME + CARTON
Delivery Time
25 DAYS

50cc mini ATV 110cc chain drive kids ATV 90cc atv quad bike(FA-C50)



 FA-C50FA-C70FA-C90FA-C110
ENGINE TYPESingle Cylinder, 4 Stroke, Air Cooled (Loncin engine)
MAX.POWER(KW/rpm)2.0KW/7500rpm3.7KW/8000rpm4.0KW/8000rpm5.5KW/8500rpm
MAX.TORQUE(N.m/rpm)2.5N.M/6000rpm4.5N.M/6000rpm5.6N.M/6000rpm6.5N.M/6000rpm
MAX.SPEED48KM/h
BORE STROKE39.0mm × 40.0mm47.0mm × 41.4mm47.0mm × 49.5mm52.4mm × 49.5mm
DISPLACEMENT47.8ml72ml86ml107ml
COMPRESSION RATIO8.8:18.5:18.5:19.1:1
CARBURETORPZ19
LUBRICATIONCombined Force-Feed and Splash Lubrication
AIR FILTER TYPEDry Air Filter Net
SPARK PLUGA7RTC
STARTINGElectric Start
IGNITIONC.D.I
STARTING PROCEDUREStart Electric Lock, Hold Brake, Press Start Switch
GEARSHIFTCircle Gearshift / Automatic
TRANSMISSIONChain Transmission
BRAKE FRONTDrum Brake
BRAKE REARDisc Brake
BRAKE DISTANCE7m/30km/h
FRONT SUSPENSIONDouble Swing Arm
REAR SUSPENSIONSingle Swing Arm
SHOCK ABSORBER(F)Double
SHOCK ABSORBER(R)Single
BATTERY12V/4AH
ENGINE OIL0.7L
FUEL90# unleaded gasoline
FUEL CAPACITY3.4L
TURNING RADIUS3800mm
MAX.LOAD(kgs)75kg
FRONT TIRE145/70-6
REAR TIRE145/70-6
OVERALL1200×725×810mm
PACKING SIZE1160×730×640mm
WHEELBASE(mm)830mm
SEAT HEIGHT(mm)620mm
GROUND CLEARANCE100mm
NET WEIGHT(kgs)85kgs
COLORRed, Blue, Yellow, Black
LOADING QUANTITY45pcs/20'GP, 118pcs/40'HQ
