50kg/hr CO2 plant for beverage Food stage CO2 recovery plant

FOB Reference Price:Get Latest Price
$100,000.00 - $500,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Hang Tong
Model Number:
50kg/hr
Usage:
CO2
Production Rate:
50%~100%
Voltage:
400v, 3 phases, 50hz
Power:
based on capacity
Weight:
based on capacity
Dimension(L*W*H):
based on capacity
Certification:
ISBT, Food / Industrial Grade
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Product name::
50kg/hr CO2 plant for beverage Food stage CO2 recovery plant
Plant output::
50kg/hr cryogenic liquid CO2
Product pressure::
1.6~2.2Mpa
Product quality::
Food or industrial grade
Gas Source::
Sugar/ brewery/ METHANOL/ REFINERIES, CHEMICAL PLANTS, etc
Quality standards::
Pepsi, Coca-cola, and ISBT
Annual running time::
8000 hours
Scope of supply:
specfied in proposal
Installation time::
1-2 month
Delivery time:
5~6 months
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Skidding or packing by sea
Port
FOB Shanghai
Lead Time :
5~8 months
Gas sources

1) LCO2 Recovery Plant from Carbon - contained Fuel

1. Basic situation of raw material being used: LNG, Oil like diesel, gasoline, Coal, Acid base neutralization or other source
2. Scope of capacity: 20kgs/hour-500kgs/hour
3. Product quality:
Purity of CO2: ≥99.99% Standards: ISBT, , Food / Industrial Grade, Requirements of beverage additives
4. Product modality
Cryogenic liquid CO2; Pressure: 1.6~2.0Mpa; Temperature: -20°C~-25°C

2) LCO2 Recovery Plant from Rich CO2 Source

* Alcohol plant fermentation gas
* Sugar plant fermentation gas
* Synthesis ammonia (fertilizer) plant
* Methanol plant
* Refineries,
* Chemical plants
* CO2 mine
* Other CO2 gas source
* Scope of capacity: 800kgs/hr or above

Process description of fermentation CO2 gas recovery

The CO2 generation process adopts a composed process of water scrubbing, cryogenic adsorption and fractional distillation. After buffer, the fermentation gas is pressurized firstly by the compressor, and then scrubbed by water (this type is grading scrubbing and not much water is needed) so as to remove dissolved solids like alcohols in the raw gas.
Secondly pressurized by the compressor to 2.0~2.5Mpa, the fermentation gas goes through cooling dehumidifier so as to be removed a certain amount of saturated water, and then through molecular sieve drier so that the water content is down to less than 10ppm, and then goes into pre-rectifying tower where meets liquid carbon dioxide coming from return line in the tower so as to remove those impurities of higher boiling points.
When the cryogenic gas who comes out from pre-rectifying tower goes through absorber and at the lower temperature those impurities of high boiling points further be removed, in which we get gas product qualified.
Next, gas product goes into liquefier where one part of liquefied carbon dioxide returns the pre-rectifying tower and the other part goes into main rectifying tower so as to remove those impurities of lower boiling points, thus we get food-grade liquid carbon dioxide product.

Detailed Images

CO2 stack gas recovery plant

- Capacity: 50kg/h—6000kg/h
- Standard: ISBT; Food Grade Quality Standard;
Coca-Cola's Standard
- Apply to thermal power station, chemicals factory or other industry with CO2 emission.

By-Product CO2 Gas Recovery


- Capacity: 2kt/a—300kt/a
- Standard: ISBT; Food Grade Quality Standard; Coca-Cola's Standard
- Apply to ethylene production, hydrogen production, ammonia production, alcohol production.


CO2 generating plant


- Capacity: 2kt/a—20kt/a
- Standard: ISBT; Food Grade Quality Standard; Coca-Cola's standard
- Available raw material: diesel , kerosene , natural gas, LPG, or any carbon-containing fuels.

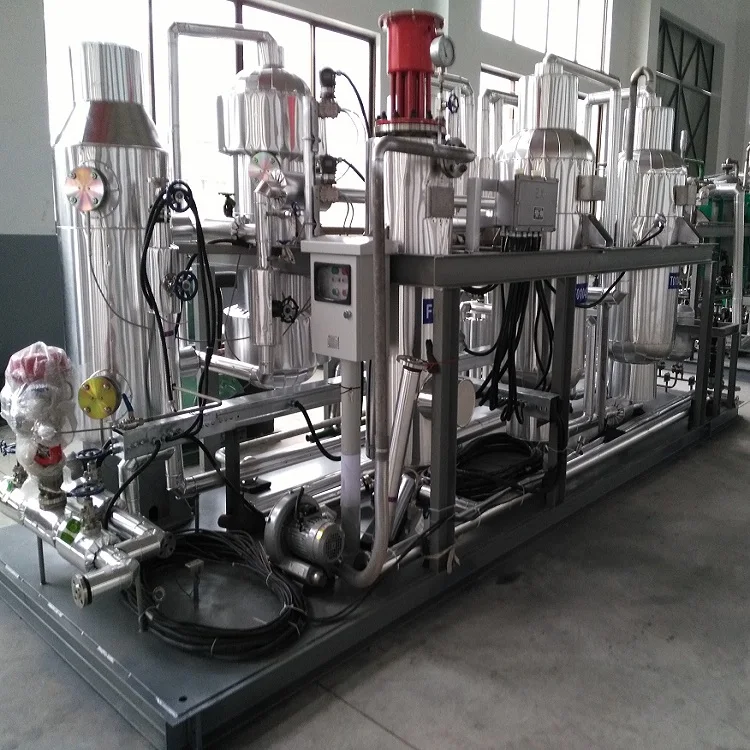

Skid-mounted CO2 generating plant
1. Compact in scale, easy to operate in order to save your space.
2. Economically feasible capacity based on your demand from 50kg/h—600kg/h
3. Easy to be transported and installed
4. DCS,PCL control system and high automation. 5. High energy-utility
6. Very suitable for area without gas source or where CO2 is quite costly.
Available raw material:
diesel,  kerosene,  natural gas, LPG, or any carbon-containing fuels.
Our Service

Pre-sales

- Communication by emails

- Face-to-face negotiation

- Make professional proposals


Production

- Strictly observe industrial standards

- Keep customers updated with production progress

After-sales

- Installation at site

- Commissioning at site

Packing & Delivery

Sound packaging and timely delivery

We take different packing approaches according to specific requirements. Wrapped bags and wooden boxes are commonly used for waterproof, dust-proof and shock-proof purposes, ensuring that every equipment remains in perfect condition after delivery.


In terms of logistics, the company has a large warehouse and a unique 800 ton private-owned wharf. We can deliver 500 tons of oversized cargos directly through the canal to Shanghai port. We also have several highways near us for land transport. We are 180 km from Shanghai port and 80 km from Hangzhou Xiaoshan International Airport. Customer visit and equipment delivery are both very convenient.

Our team
Reference list
Company
Capacity
CO2 Standard
Remark
DOMESTIC PROJECTS
Fujian Zhisheng Chemical Factory
20kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Guangxi Liuhua Group Dali Gas Factory
40kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Shandong Jinan Dongsheng Gas Ltd.
20kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Henan Datong Products Ltd.
50kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Sinopec Sichuan Wei Nylon Factory
10kt/a
ISBT, Coca-Cola’s Standard
Tail gas from methanol factory
Qingdao Hengyuan Chemical Ltd.
20kt/a
Food grade quality
Tail gas from synthetic ammonia
Hubei Xinbite Gas Company Ltd.
20kt/a
Food grade quality
Tail gas from synthetic ammonia
Shanxi Baoji Weitian Chemical Ltd.
30kt/a
Food grade quality
Tail gas from synthetic ammonia
Shanxi Fengxi Group
30kt/a
ISBT, Coca-Cola’s Standard
Tail gas from methanol factory
Shandong Weifang Ocean Chemical Ltd.
20kt/a
Food grade quality
Tail gas from synthetic ammonia
Henan Yanshi Shuangjia Chemical Ltd.
10kt/a
Industrial grade quality
Tail gas from synthetic ammonia
Yunnan Shennong Huifeng Fertilizer Ltd.
10kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Hebei Xinhua Stock corporation
60kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Shanxi Dachuan Zhongtian Chemical Ltd.
100kt/a
ISBT, Coca-Cola’s Standard
Tail gas from methanol factory
Henan Pingdingshan Tianya Gas Company
10kt/a
Food grade quality
Tail gas from synthetic ammonia
Zhejiang Jinju Petrochemical Ltd.
60kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Yunnan Dexiong Petrochemical Ltd.
10kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Guangdong Shunning Glucose Pharmaceutical Ltd.
10kt/a
ISBT, Coca-Cola’s Standard
Fermentation gas from alcohol factory
Henan Qinyang Longwang Chemical Ltd.
30kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Hebei Cangzhou Dadi Chemical Ltd.
20kt/a
Industrial grade quality
Tail gas from methanol factory
Sichuan Longchang Longqiao Chemical Ltd.
10kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Yunnan Yuxi Eshan Fertilizer Ltd.
30kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Zhejiang Wenzhou Pingyang Nitrogen Fertilizer Plant
20kt/a
Food grade quality
Tail gas from synthetic ammonia
Yunnan Yinhe Chemical Ltd.
10kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Henan Tianguan Alcohol Company Ltd.
20kt/a
Food grade quality
Fermentation gas from alcohol factory
Hunan Anxiang Jindadi Chemical Ltd.
30kt/a
Food grade quality
Tail gas from synthetic ammonia
Jiangsu Taixing Chemical Ltd.
50kt/a
Food grade quality
Tail gas from petrochemical corporation
Huaneng Group Beijing Thermal Power Plant Company Ltd.
3kt/a
ISBT, Coca-Cola’s Standard
Smoke gas from power plant
Guangdong Maoming Petrochemical Huayuan Gas Company Ltd.
Fujian Changqing Carbonated Beverage Company
20kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Shanxi Tianyu Gas Ltd.
50kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Fujian Shaowu Fertilizer Factory
30kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Fujian Haihui Chemical Ltd.
20kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Fujian Zhangping Chemical Ltd.
20kt/a
ISBT, Coca-Cola’s Standard
Tail gas from synthetic ammonia
Jiangsu Ocean Wine Company Ltd.
30kt/a
ISBT, Coca-Cola’s Standard
Fermentation gas from alcohol factory
Hubei Shayang Qinjiang Chemical Ltd.
20kt/a
Food grade quality
Tail gas from synthetic ammonia
Zhejiang Jiangshan Hydrogen Peroxide Ltd.
30kt/a
ISBT, Coca-Cola’s Standard
Tail gas from Coal hydrogen production
Jiangxi Jinjiang Wine Ltd.
50kt/a
Food grade quality
Fermentation gas from alcohol factory


FAQ

1. Q: What products I can order from your company?
Re: We specialize in producing air separation plants, CO2 recovery plants with or without source gas, cryogenic liquid storage tanks (LO2, LN2, LAr, LCO2, LNG and LPG), ISO tanks, semi-trailer tankers, vaporizers, LPG and LNG filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc. Any interests you can feel to contact us for details. Thanks.

2. Q: What is your production standard? Can you manufacture your products under ASME standard?
Re: Our products are designed, manufactured and tested as per reference standards of GB150, Safety technology supervision regulations of pressure vessels and some other reference Chinese standards.
Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates, Grade GC1 Pressure Pipe& Vessel Construction Certificates, ISO9001 Quality Certificate, ASME Certificate and U Stamp. So, if you ask for ASME stamp, we are able to manufacture your products under ASME standard.

3. Q: What’s the difference between Chinese GB standard and ASME standard?
Re: Our GB standard on PV is equivalent to ASME VIII and GB electrical standards are equivalent to IEC standards, for electrical products.
The following are used by European countries for export in Gulf and all of them have equivalent Chinese standards as per WTO rule.
- DIN-Standards
- VDI/VDE-Regulations
- IEC-Standards
- AD-Specifications
- UVV-Regulations
We can send you a document specifying relationship between GB150 and ASME on your request.

4. Q: Have you supplied tanks to any renowned companies?
Re: Our group company is a regular strategic partner of some big gas companies,We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank. We also made high pressure storage vessels for them, such as 100m3 LCO2 tanks, 10m3 (20m3, 30m3)LO2 (LN2, LAR) tanks.
As a giant cryogenic equipments company with more than 40 years history, we are a top two manufacturer producing air separation plants in China. The biggest air separation plant we have ever made is 60,000Nm3/h, famous for its advanced technology and reliable performance.
