50kw Brushless AC Alternator

FOB Reference Price:Get Latest Price
$700.00 - $850.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Farrand
Model Number:
FLD224E
Rated Power:
50kw/ 58kw
Output Type:
AC Three Phase
Rated Voltage:
190v- 690v
Rated Current:
AMPS
Speed:
1500rpm/ 1800rpm
Frequency:
50Hz/60Hz
Product Name:
50kw Brushless AC Alternator
Power Factor:
0.8
Insulation Class:
H
Protection Class:
IP23
Pitch Standard:
2/3
Copper Wire:
UL certificate 200°C H Class
AVR:
SX460
Warranty:
24 months
Certificate:
CE, ISO9001:2008
OEM:
Available
Supply Ability
Supply Ability:
1200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood cases
Port
Shanghai, Ningbo, Qingdao
Product Profile
50kw Brushless AC Alternator

1.Overload protection for safe running
2.Top quality & Easy Maintenance
3.Stamford technology
4.Single bearing or Double bearing
5.Easy to be connected with power networks or other generator sets
6.4 POLE, Brushless, H class insulation, IP23, A.V.R. 100% Copper
7.Farrand Series AC Brushless alternators are conformity to GB755, IECBS5000, VDE0530,NEMA MG1-22 & IEC34, CSA C 22.2-100standards
8.The 2/3 pitch windings avoid excessive neutral currents, ensure low waveform distortion.

9.The alternators with SX460 AVR, low-frequency protection & exterior voltage adjustments.

Product Introduction

Features

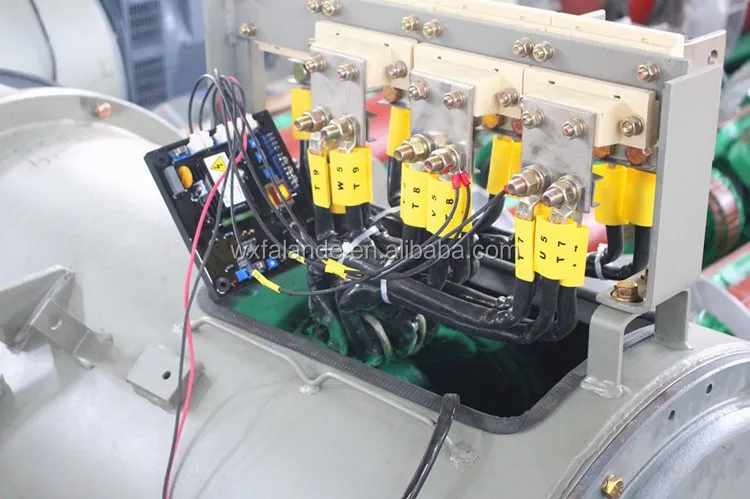

Terminal and Terminal box
The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non-drive end. The box is equipped with removable panels.

Voltage regulation
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%s fluctuations of the speed of the engine. Voltage is adjusted via potentiometer of AVR.

INSULATION
Insulation Class H.
All wound components parts are all immersed in varnish twice.

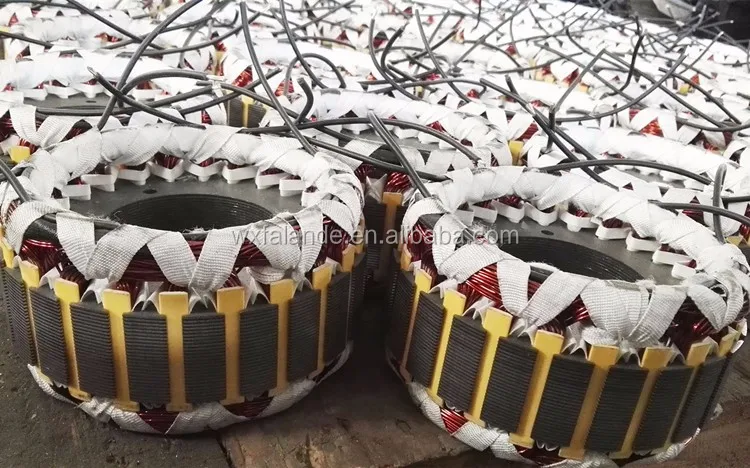

Winding and electric features:
2/3 pitch winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage. Connected to the network in parallel, the structure can restrain excessive currents in the midline
A continuous damp winding abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.

Overload
Short time load rating of up to 150% of the rated current in 2 minutes. The alternators can carry a load of 110% for one hour in six.

Phone interference
THF is less than 2%. TIF is less than 50.

Product Parameters
Product Name: 50kw Brushless AC Alternator
4-Pole Farrand Brushless Alternator Specifications
3 phase H-Class Temperature-rise(125°C) Winding 311
Model
FLD224E
Power
62.5kva/ 50kw(50Hz); 72.5kva/ 58kw(60Hz)
Exciter type
Shunt self- excited brushless
Power factor
0.8 lagged
Frequency/ Speed
50Hz/ 1500rpm, 60Hz/ 1800rpm
Characters
4 poles, 1 or 2 bearing
A.V.R Model
SX460
With AVR voltage regulation
±1.5%
Insulation Grade
H
Protection Grade
IP23
THF/TIF
THF≤2%, TIF≤50
Winding Pitch
2/3
Terminal
12
Certificate
CE, ISO, etc
Warranty
24 months

FLD224 Series

Model
50Hz KVA
50Hz KW
60Hz KVA
60Hz KW
FLD224C
42.5
34
52.5
42
FLD224D
50
40
62.5
50
FLD224E
62.5
50
72.5
58
FLD224F
72.5
58
87.5
70
FLD224G
85
68
100
80
Product Details

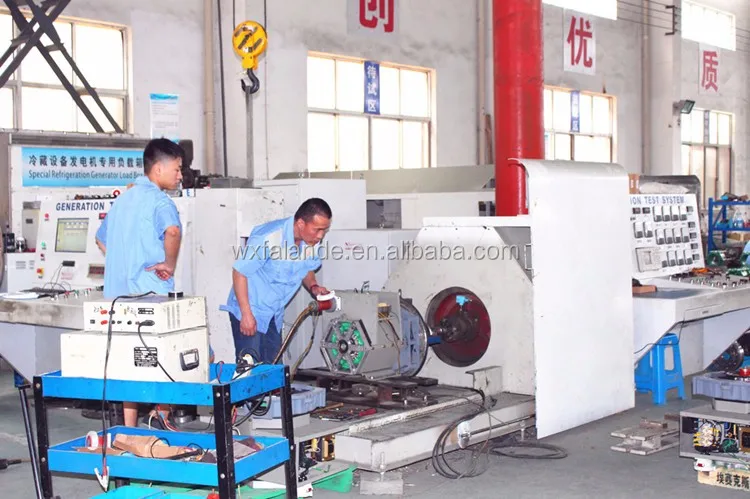

Every delivered alternator passed strict loading test.

Our alternators are best used with continuous heavy loads, high temperature and in harsh environments.

Why Choose Us

OUR ADVANTAGES:

1. Decade of years' experience in manufacturing brushless alternators for generator& reefer generator
2. Stron
g QC teams, experienced sales people &skilled workers, professional service
3. 100% tested & guaranteed before shipment to assure the top quality
4. ISO9001:2008, CE certificates
5. Competitive in the market on reliable quality
6. Fast and on time delivery.
7. OEM/ ODM meet clients' requirements.

Product Packing

Using plywood case packaging.
Using packaging
film to dust.

U & Farrand

Farrand Generator has been displayed in many countries and fairs for a face-to-face cooperation with you.

We keep insisting on being your trustworthy partner and caring about your benefit & development.
