50l-6000l Jacketed Beer Fermentation Equipment

FOB Reference Price:Get Latest Price
$5,000.00 - $12,000.00 / Sets | 3 Set/Sets (Min. Order)
Model Number:
TF-50/100/200/400/600/1000/2000/4000/6000
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment, Beer Brewing
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tiantai
Processing Types:
malt
Voltage:
380V
Power(W):
15-70Kw Depends
Dimension(L*W*H):
Diameter550-1960mm;Height800-4200mm
Weight:
Various in different models
Certification:
CE ISO
Warranty:
36 months from commissioning
Equipment Material::
SUS304 or Red Copper M2 for outer shell
Thickness of Tanks::
2.5-3mm for inner container/1.5mm for outer shell
Color Available::
Mirror SUS, Polish
Inner Polishing Precision::
0.4 Micrometer
Volume Design::
Properly according to the capacity request
Controlling System::
PLC; HMI or Touch Panel
Accessories::
Available
Function:
fermentation tank
Capacity:
50l-6000l
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL
Port
Qingdao,China
Video Description

50l-6000l Jacketed Beer Fermentation Equipment/Fermentation Tank





Product Description

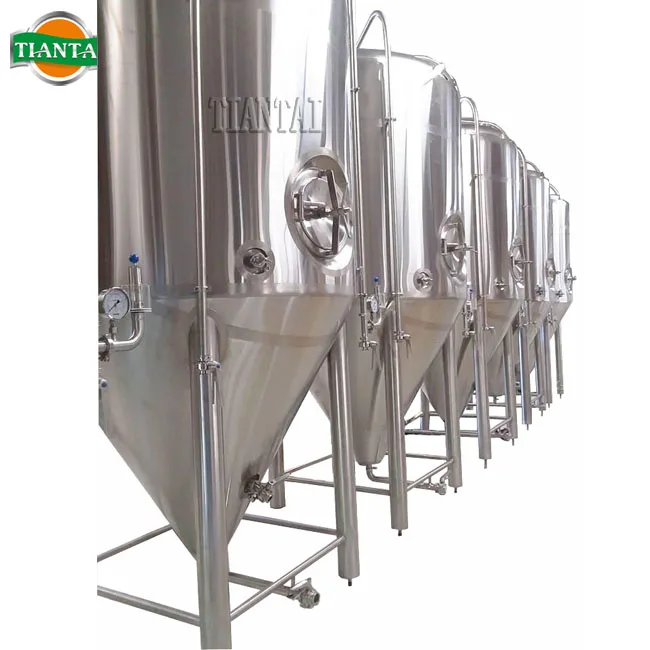

1. Introduction of beer fermentation tank





Beer fermentation tank are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), conical fermenter,

primary fermentor or unitanks as they are used both for fermenting and lagering.

Fermenting is the process during which the yeast transforms the wort into beer.

Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

 The design of TBE fermenters is based on our vast beer knowledge and especially the conical fermenter

bottom and the fact that we combine fermentation and maturation in the same vessel is very important.

When calculating your fermenting and lagering capacity and configuration sufficient time

for fermenting and lagering to produce quality beers must be taken into consideration.

If you are would like to change, add, remove or modify any part of the tanks, we can accommodate

that. Specific fitting sizes, changes and locations will be set during the design process after a

deposit is taken.



2. Fermenter Configuration



60 degree cone bottom

Combined drain extensions and beer port in cone are standard

Top manway or side manway door

Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet

Polyurethane insulation thickness 80mm for cooling jacket on side and bottom

Fully welded exterior shell

Non welding CIP arm and rotating 360 degree reach spray ball

Solenoid relief valve, pressure relief valve (safe valve) are standard

Pressure gauge

Temperature sensor well

Sanitary sample valve and port

Carbonation port is available for special request (stone not included)

Ladder hooks is available for special request

Dry hop ports and/or hop bag hooks in any fermenter of any size for special request











3.Different volume Fermenter dimension

Fermentation Tank Series

Volume in US Gallon

Diameter

Height

1HL Fermentation Tank

26US Gallon

620mm

1600mm

2HL Fermentation Tank

53US Gallon

820mm

1800mm

3HL Fermentation Tank

79US Gallon

960mm

1900mm

4HL Fermentation Tank

106US Gallon

960mm

2100mm

5HL Fermentation Tank

132US Gallon

1010mm

2100mm

6HL Fermentation Tank

159US Gallon

1060mm

2150mm

8HL Fermentation Tank

211US Gallon

1060mm

2550mm

10HL Fermentation Tank

264US Gallon

1210mm

2550mm

12HL Fermentation Tank

317US Gallon

1360mm

2550mm

15HL Fermentation Tank

396US Gallon

1560mm

2620mm

20HL Fermentation Tank

528US Gallon

1560mm

3100mm

25HL Fermentation Tank

660US Gallon

1560mm

3450mm

30HL Fermentation Tank

793US Gallon

1760mm

3500mm

35HL Fermentation Tank

925US Gallon

1760mm

3750mm

40HL Fermentation Tank

1057US Gallon

1760mm

4050mm

50HL Fermentation Tank

1321US Gallon

1760mm

4540mm

60HL Fermentation Tank

1585US Gallon

1960mm

4700mm

70HL Fermentation Tank

1849US Gallon

1960mm

5200mm

100HL Fermentation Tank

2642US Gallon

2250mm

5700mm

150HL Fermentation Tank

3963US Gallon

2250mm

7550mm



Certifications



Our Services



NO1

Free consultation service before, during, and after sales;

NO2

Project planning and design services;

NO3

Free debugging instruction of equipment until everything is functional;

NO4

Management of equipments' long distance shipping from seller's factory to named port or station

by buyer;

NO5

Training of equipment maintenance and operating personally;

NO6

New production techniques;

NO7

Provide 36 months complete warrantee for main parts and life-time maintenance service;The seller is responsible for the nature damage of the machinery

in the warranty period except for manmade damage. All spare parts and wearing parts are

attached with the machinery for free;

Advantages



6.The Packaging as your require





7.Our Company

Our company is a professional beer equipment manufacturer.

We are specialized in professional design, manufacture, installation

and commissioning of various beer equipments and supporting facilities.

Our products include mashing equipment, fermentation equipment, yeast spread cultivation equipment,

and refrigeration equipment for small and medium-sized brewery, hotel, pub and etc.
