59mm 12v dc table fan motor

FOB Reference Price:Get Latest Price
$1.00 - $20.00 / Pieces | 1000 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 30 Negotiable
Customization:
Performance and shaft (Min. Order: 1000 Pieces)
mounting holes (Min. Order: 5000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ACP
Model Number:
RS-59104-122000
Voltage(V):
12V DC
Output Power:
TBD
Usage:
Car, Fan, Home Appliance, liner actuator, curtain and blind
Certification:
ROHS
Type:
Micro Motor
Torque:
0.65Nm stall torque
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Totally Enclosed
Speed(RPM):
2000RPM no load
Continuous Current(A):
0.5A Max No load
Efficiency:
IE 1
Motor type:
DC Brushed motor
Rated Voltage:
12V DC
color:
Black
Size:
Dia59*L104mm
Typical Applications:
electric curtain, blind and home appliance
shaft diameter:
8mm
Roration:
bi-drection reversible
Structure:
Permanent Magnet Stator
Brush type:
carbon
Keywords:
12v dc motor
Supply Ability
Supply Ability:
80000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Cartons
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10000 >10000
Est. Time(days) 30 To be negotiated
Product Description

1. Structure: permanent magnet stator+carbon brushes

2. Size: Dia59*L104mm

3. Shaft Dia:8mm

4. Certification: ISO9001, ROHS

5. Rotation: CW/CCW

6.No load: 12V  2000rpm 0.5A Max

7. Rated: 0.158Nm 1600rpm 4A

9. 0.65Nm  13.5A stall

10. Long life design with low noise and high torque

11. Ball bearing+Class F winding wire+steel tube  housing

12. Connector, worm shaft, gearbox, encoder available

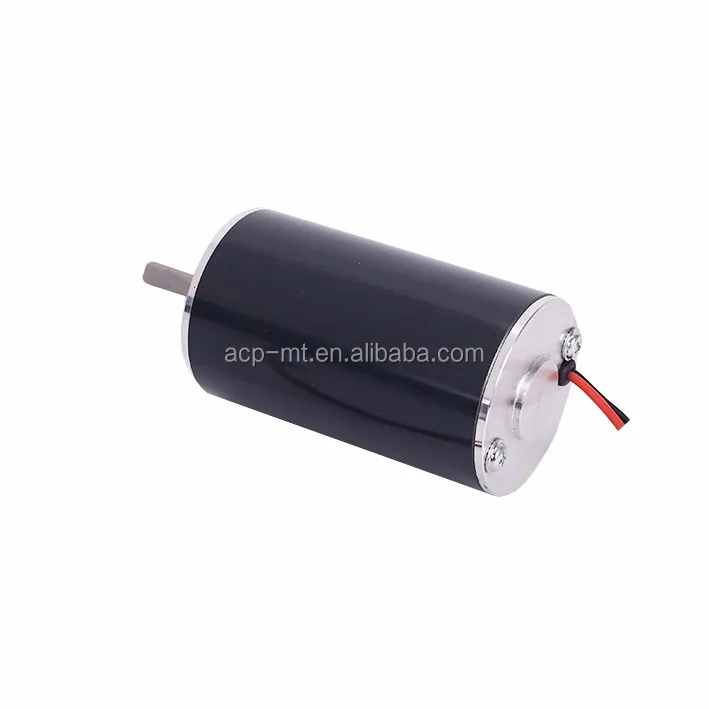

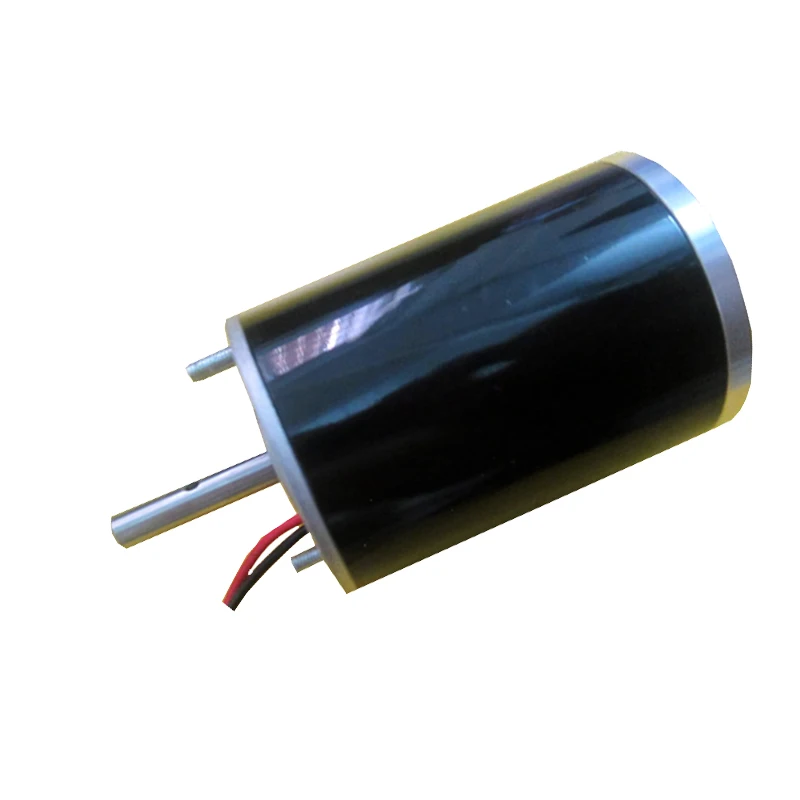

Products Show
Our Service

                     Flexible

All of our products are made based on different requirements by choossing suitable materials and design.
Except the product itself, we also provide OEM service and related accessories for your convenience.

              Professional

40+ engineers with more than 20 years experience in motor industry.
We provide our clients professional service and high quality products.

                            Swift

We ensure your inquiry and query before and after sales can be handled within 24 hours except the weekends and holidays.

Our Company

Factory

450+ Experienced staff

Workshop

Clean and tidy production lines

Warehouse

Manage the warehouse based on FIFO

Team

40+ experienced engineer and 10+ professional sales

FAQ
Q: What kind products you can provide?
A: Our main products are AC Motors, DC Motors, Gear Motors, Stepper Motors, Synchronous Motors and Generators(dynamos). We also have our own plastic injection and metal stamping and die casting factories which enables us to provide plastic parts and metal parts and OEM service for whole products including packing.

Q: Can I have a motor with 12V or for XXX application?
A: Please share more details like the speed, torque, motor size. If you can send us a picture with marked dimension or detailed datasheet, that'll be great. We can't tell what kind motor you are looking for just by voltage and application.

Q: Can you share the lifetime of the motor?
A:    For all of our motors, they are custom made based on different requirements, so there is no standard lifetime. And lifetime is also related how you use the motor under which load. Normally our client will provide lifetime requirements and noise level etc. in the beginning then when we arrange samples, we will take those into consideration to choose suitable motor and materials to reach. Client will perform lifetime testing in their lab and their order will be arranged based on the passed samples.

Q: Can you provide accessories like cables, connector, gear, encoder etc.?
A:Yes, we can. If those are not standard, extra cost for moulding might be needed.

Q: What kind encoder you can provide? What is the resolution?
A: We can provide magnetic and optical encoder based on different resolution requirements(3PPR, 12PPR, 13PPR, 100PPR etc.). Extra cost for pcba might be needed if not existed.

Q: What kind certifications you can provide?
A: ROHS is the basic certification. For others, part of them we can provide REACH, CE etc. For others, extra cost might be needed if we need to provide.

Q: Can I place a credit order via Alibaba directly without commnication with you?
A: I am afraid NOT except for those online wholesales products which you can see specific price for certain range.
We are not retailer and if there is no further order which can meet our MOQ, we can't provide any sample even you pay.

Q: How long is your delivery time?
A: For samples, 5~25days and for orders, 20-35 days depends on quantity and requirements.

Q: Do you provide samples ? Is it free or not?
A: Yes, but we only provide samples for clients can meet our MOQ for further order after sample approval.Some of them are free and the others are not. Freight will be paid by the buyer.

Q: Can I get a spec before sample arrangement?
A: For all of our motors, we customerize them based on different requirements. We don't make standard ones and put then in warehouse then sell to clients. Spec is available after sample making.
Sometimes if we arranged similar ones before, we can provide for reference. For others, we can only provide the outline.

Q: How can we start from samples?
A: Our sales will communicate with you about the technical requirements and also quantity, application etc. After we agree on price and also the performance requirements , we will send you PI or establish an order via Alibaba. Once get your payments, we will arrange the sample making.

Q: Can you arrange the delivery via our account?
A: Sure. But if you don't have any courier account, we can also check the freight here and add that part in the PI.

Q: Can I pay via Paypal, Credit card or West Union?
A: Yes, we can accept those ways.

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have any other question, pls feel free to contact us as below:
