5HP Industrial Water Chiller Milk Cooler

  • 1 - 4 Sets
    $1,750.00
  • >=5 Sets
    $1,550.00
Model Number:
MG-5C
Cooling Capability(kw):
5hp/13.1kw
Shipping:
Support Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Italy, Peru, Russia, Morocco, Colombia, Kazakhstan, None
Showroom Location:
Canada, Saudi Arabia, Spain, Uzbekistan
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Compressor
Condition:
Brandnew
Type:
Air-cooled
Place of Origin:
China
Brand Name:
Mgreenbelt
Voltage:
3ph-380V/50hz(optional)
Dimension(L*W*H):
1200*600*1100
Weight:
200kg
Certification:
ce
Warranty:
one year after shipment
Working Temperature Range:
-5~30℃
Key Selling Points:
Automatic
After-sales Service Provided:
Engineers available to service machinery overseas
Refrigerant:
R410a/R407c/R134a/R22
Compressor Brand:
Copeland/Danfoss/Sanyo
Product name:
Air Cooled Scroll Chiller
Compressor:
Hermetic scroll/piston
Cooling capacity:
11266 kcal/h,13.1KW
Evaporator:
Brazing plate heat exchanger/Shell-and-Tube/Stainless steel tank
Condenser:
Finned copper tube with low noise outer rotor fan
Temperature range:
7~35℃
Flow Rate:
2.25m3/h
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
The package is fumigation free plywood case,inside with polyethylene film.The package is strong enough for air or sea transportation
Port
QINGDAO
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description
Specification for 5hp Air cooled scroll chiller
Nominal
Cooling capacity
kcal/h
11266
kw
13.1
Power
kw
5.61
Power supply
3ph-380V/50hz(can be customized)

Refrigerant
Type
R22/R407C
Control
Thermostatic expansion valve

compressor
power(kw)
18.1
Type
Hermetic scroll/piston


Evaporator
Type
High efficiency copper tube shell and tube
chilled fluid flow(m3/h)
2.25
inlet and outlet pipe diameter (inch)
DN20

Condenser
Type
Hydrophilic aluminum foll finned type
fan Power(kw)
0.52
Safety
Protection System
Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension
L*W*H(mm)
1200*600*1100
Net weight
Kg
200

Pump
Type
centrigual Stainless steel water pump
Power(kw)
0.75
Lift(m)
20
Control System
type
Schneider Full-automatic micro-computer LCD


Mgreenbelt optional

1.Power supply:Single or three phase ,220V,380-415V,440V-460V, 50Hz or 60Hz;

2.Refrigerant R-22 or Eco friendly R-407C,R-410A,R-134A

3.Outlet temperature range: From -35 °C to +35°C

4.Cooling capacity: 1HP-671HP (0.8tons-573tons)

5.Cooling way: air or water

6.Compressor type:Screw type,Scroll type

7.Scroll Compressor brand: SANYO, COPELAND, DANFOSS,HANBELL,BITZER

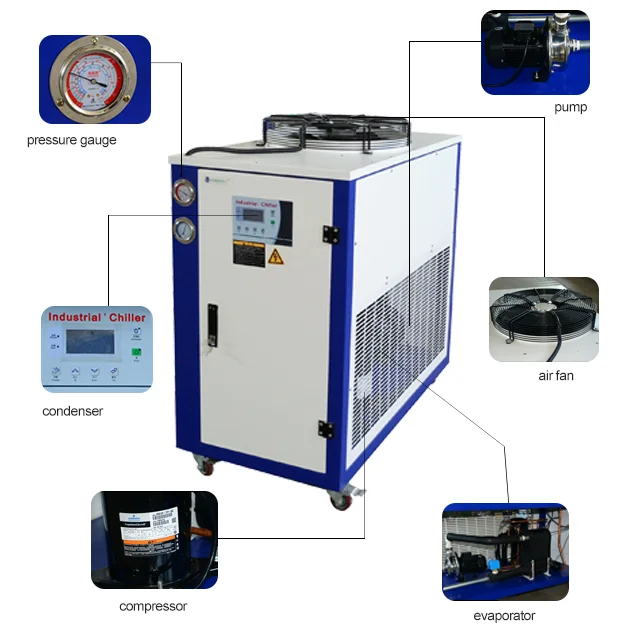

Detailed Images

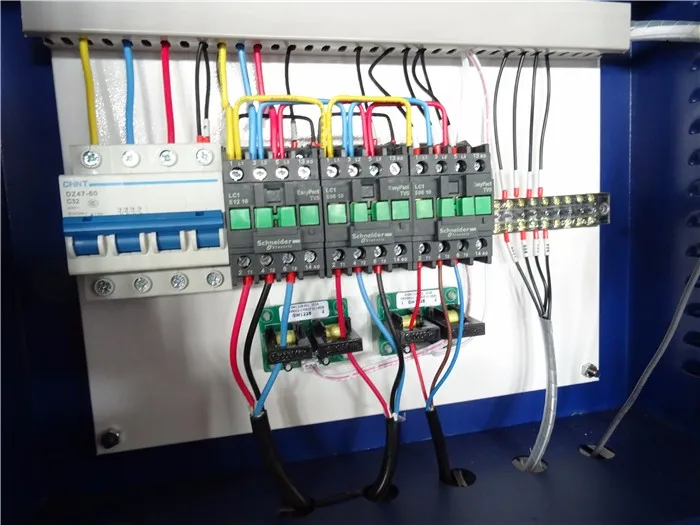

PUNP Controller


French Schneider,LS electric accessories.


Well designed and reasonable Pipelines-ensures power supply and saves energy.

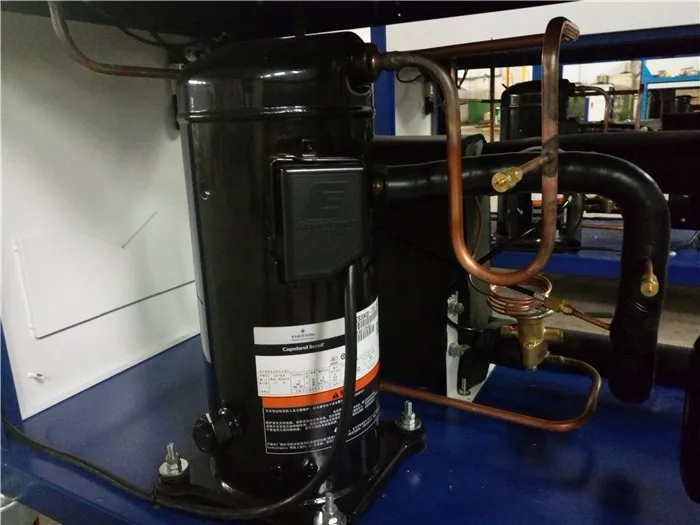

Brand Compressor

Bulit with world-market-leading

component

 brands as Panasonic,

Copeland, Danfoss compressors.

New and original(not re-condition)

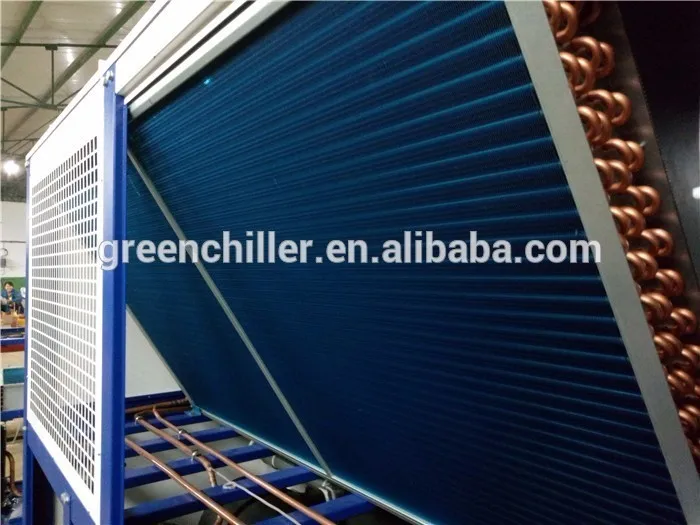

High efficiency Finned Air Cooled Condenser

High efficiency,
30% higher than normal condenser

Integral design

Anti-dirty
Able to working in humid conditions


Siemons Touch Led/Lcd

Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system - Safe and durable.

Liquid crystal display showing temperatures of outlet and inlet chill water-provides visualized and direct setting.


Evaporator optional.

Three types  evaporator for different machine requirements.

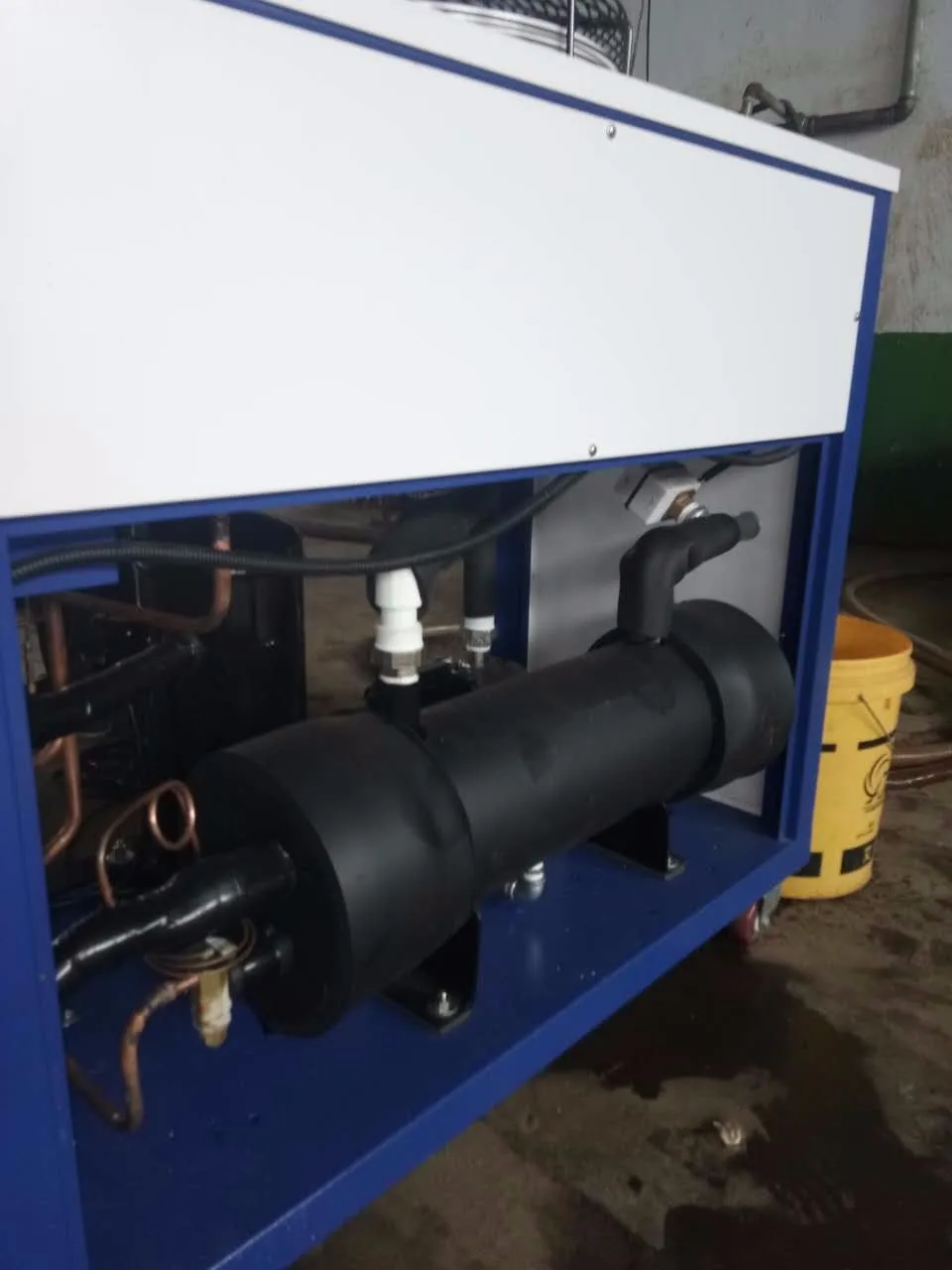

Shell-and-Tube evaporator


Higher efficiency
sealed and closed loop

Brazing plate heat exchanger

type evaporator

Highest cooling efficiency

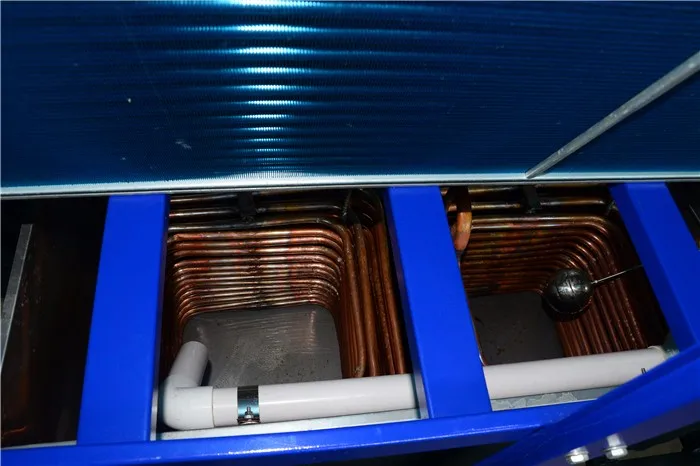

Stainless steel reservoir tank

with copper tube inside.

insulated to save cooling capacity

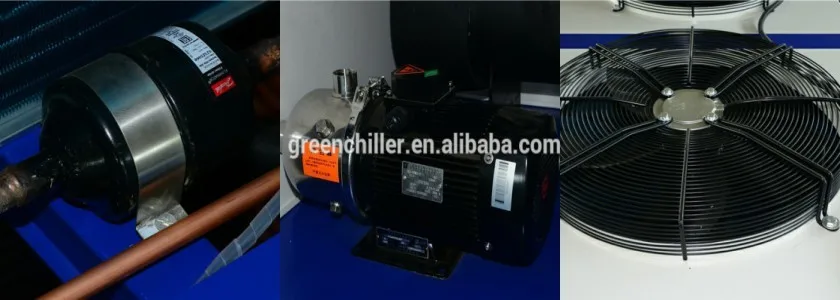

             Efficiency filter                      Water Pump                                    Rotor Fan

Packing & Delivery

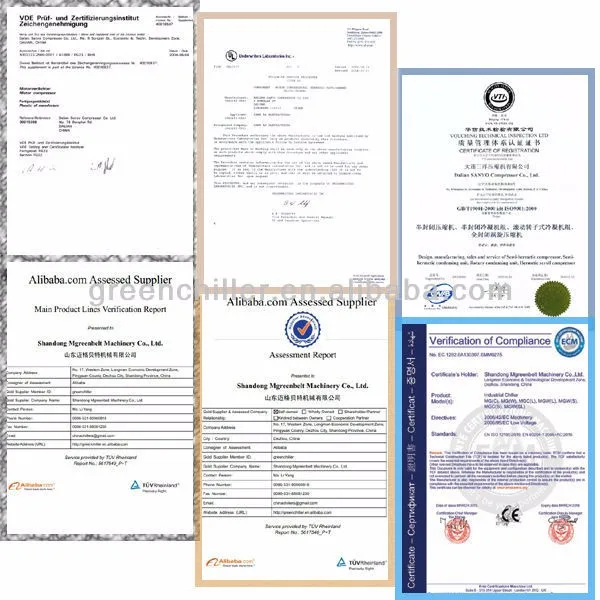

Certifications
Our services

Full-services.


A.14 Months warranty and life time technical maintenance offered.

B. All extra parts for the machine can be purchased with agent price from Mgreenbelt

C. 24 Hours working phone call:+86 15562486871/Email/Skype/MSN/Trade manager online to support.

D. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

E. Free and Professional Training at our Factory under the relaxed condition
