5L full automatic bottle plastic blowing machine for sale

FOB Reference Price:Get Latest Price
$27,000.00 - $33,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TVHD-5L
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Place of Origin:
Zhejiang, China
Brand Name:
TONVA
Voltage:
380V
Dimension(L*W*H):
3.7*2.2*2.0
Certification:
ISO9001;BV;CE;SGS
Warranty:
1 Year
Raw Material:
PE/PP/PA/PVC etc
Working Stations:
double
Product range:
3ml -5L
Clamping Force:
80KN
Clamping:
hydraulic
Parison Controller:
Optional
View-stripe:
Optional
Multilayer:
Optional
Blow Moulding Type:
Extrusion Blow Moulding
Automatic:
Yes
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
22kW
Weight:
6800kg
Supply Ability
Supply Ability:
35 Set/Sets per Month
Packaging & Delivery
Packaging Details
Film packaging or wood packaging usually
Port
Ningbo
About Us
Product Description

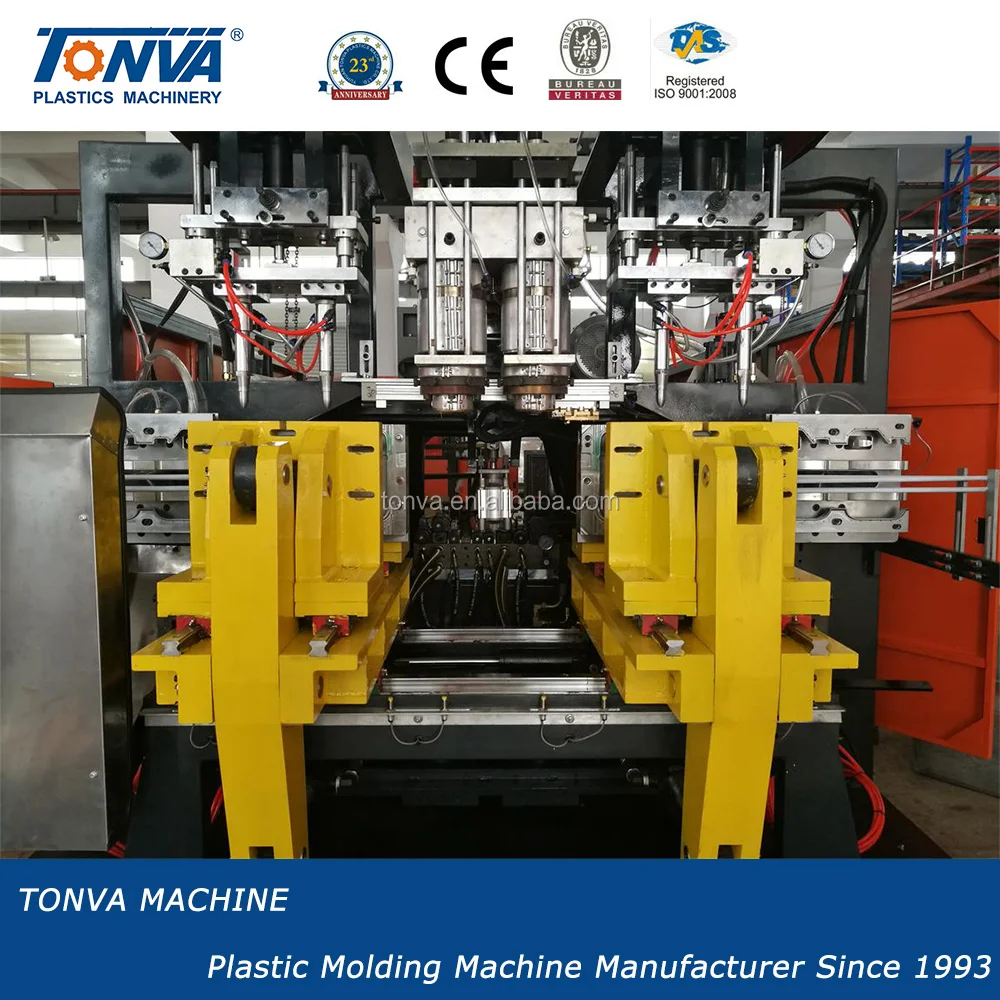

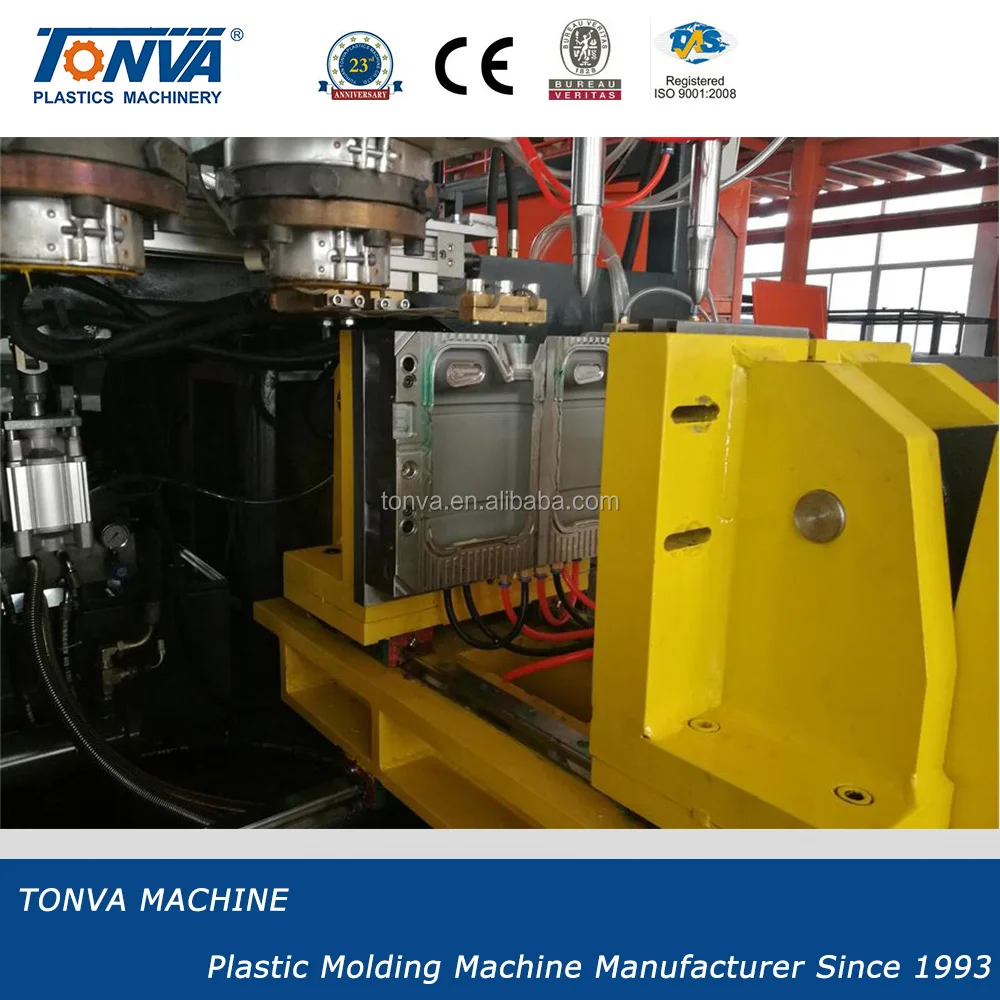

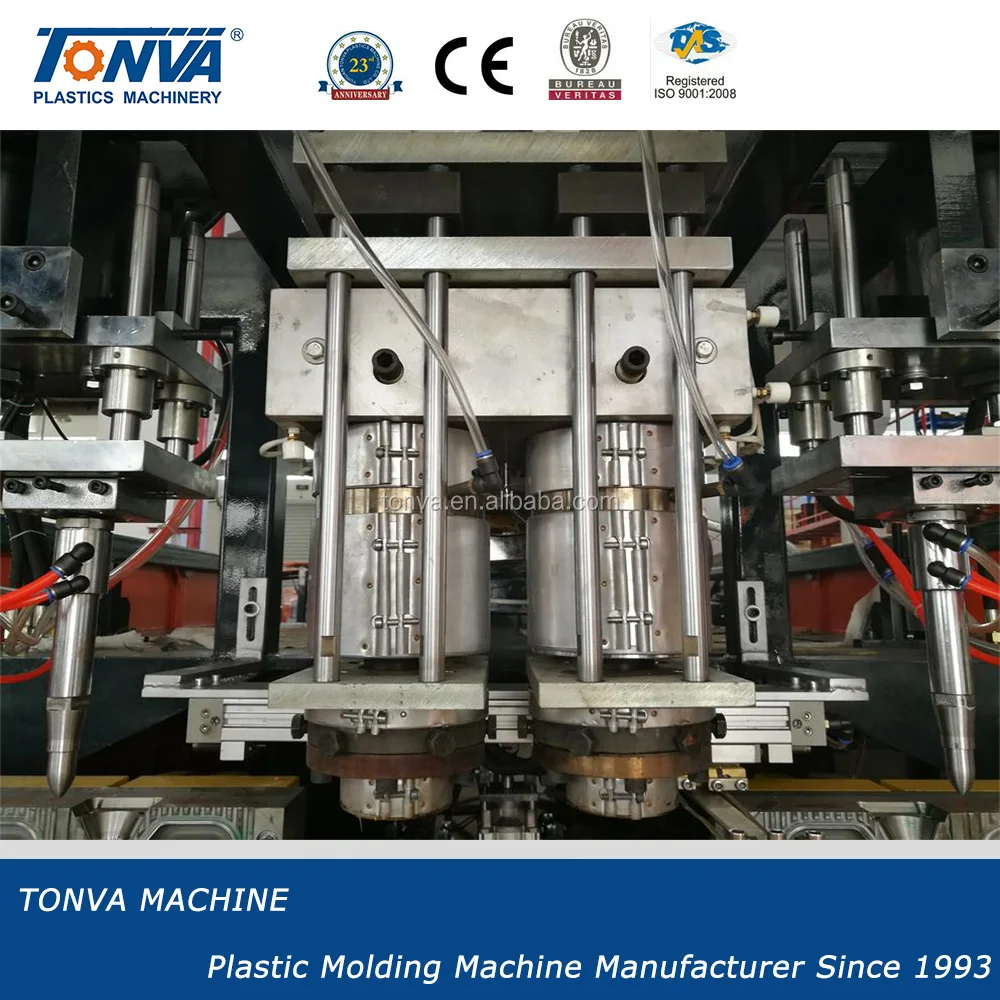

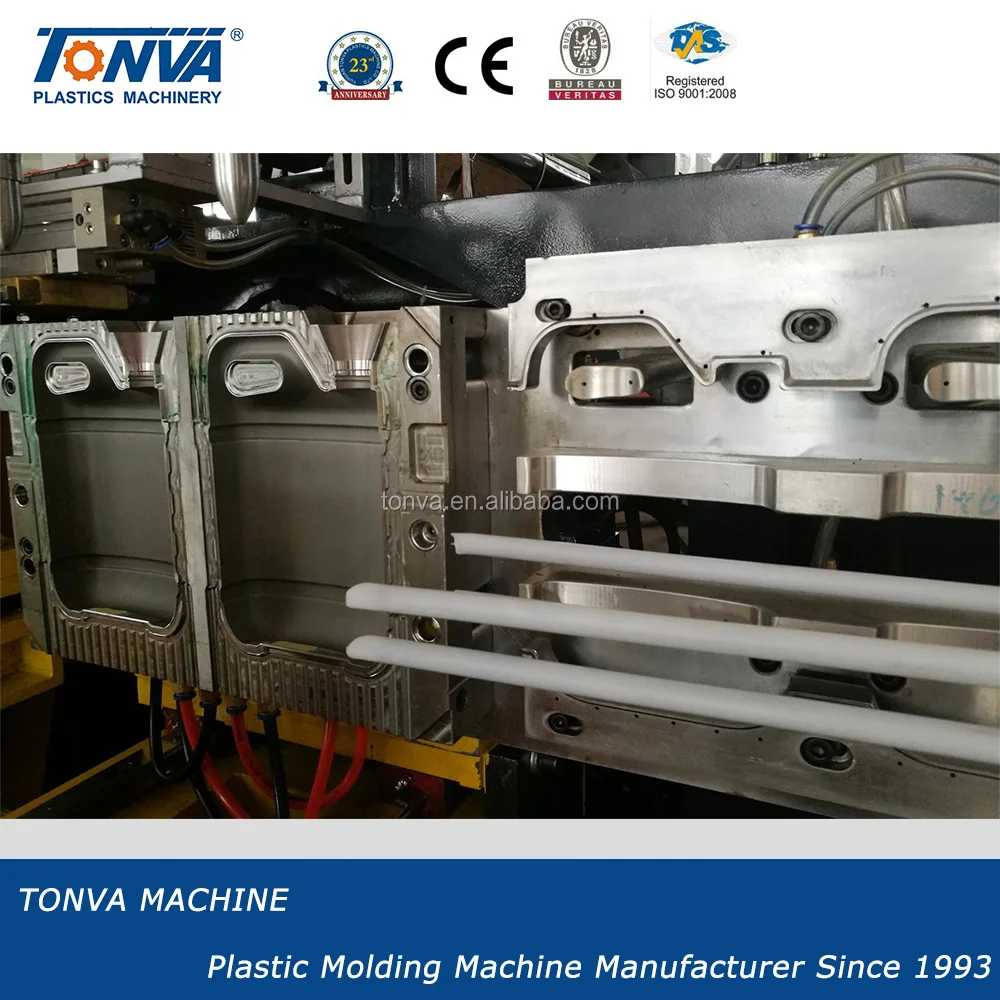

5L Two Cavity Extrusion Blow Molding Machine For Detergent Bottle
Model: TVHD-5L-2cavity,Fully automatic with deflasher
Product: For detegrent bottle with hadle
Max Product Volume: 5L,80mm screw,double station
Plastic Material: PE etc
Capacity:550-700pcs per hour

Features:
-Simple structure in liner type,easy in installation
-Adopting advanced world famous brand components in hydraulic parts,electric parts and operation parts
-High pressure double crank to control the die opening and closing
-Running in a high automatization and intellectualization,high speed,stable and energy-saving

TVHD-5L Technical Parameter
CATEGORY
ITEM
UNIT
TVHD-5L

Basic Specification
Raw Material
--
PE/PP/PA/PVC etc
Dimension
m
3.7*2.2*2.0
Total Weight
kg
7800




Extrusion System
Diameter of screw
mm
80
Screw L/D ration
L/D
25:1
Plasticizing capacity
kg/h
95
Number of heating zones
pcs
6
Extruder heating power
kw
20
Extruder drive power
kw
22

Die Head
Number of heating zones
pcs
2
Heating power
kw
5

Clamping System
Clamping range
mm
200-250
Sliding Distance
mm
400-450
Clamping force
kn
80





Power Consumption
Air pressure
Mpa
0.6
Air consumption
m3/min
0.8
Cooling water pressure
Mpa
0.3
Cooling water consumption
m³/h
1.5
Oil pump power
KW
11
Oil pump capacity
ml/r
59
Total power
KW
58
Average power consumption
KW
22

Technical Characteristic:

1) TVHD series Double station machine is adopted pure hydraulic system.With compact structure,running stable and easy to control.

2) Products size range:suitable for 5ml to 5L all kinds of hollow products.

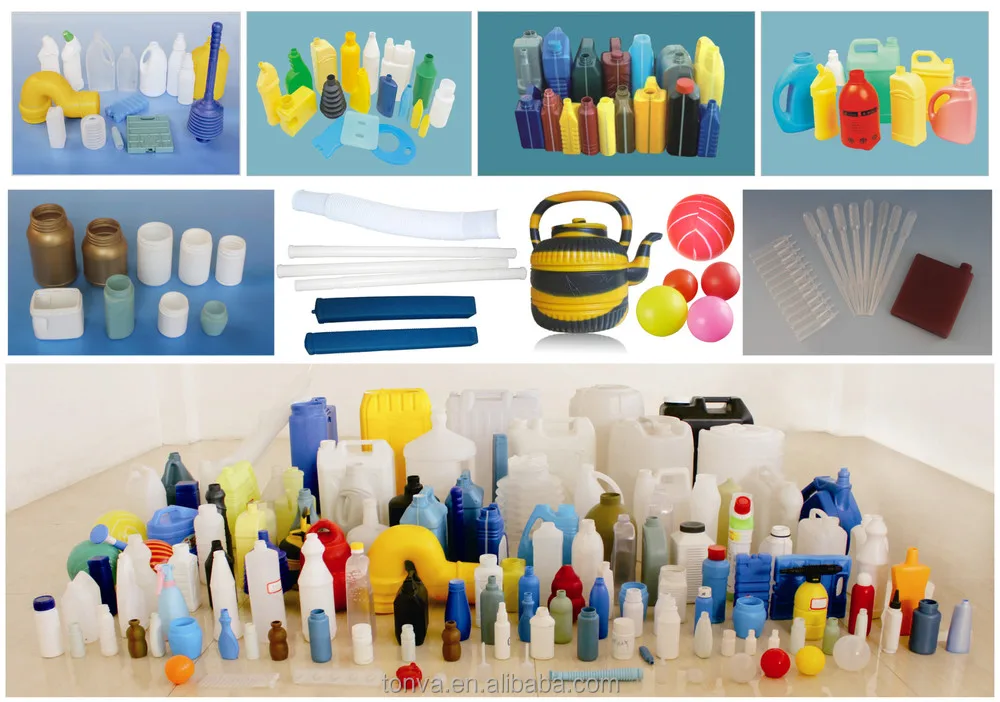

3) Application range:can be used as packing for food,medical,oil,chemical, cosmetic, autoparts,tools and toys etc.

4) Suitable for raw materials of PE,PP,PA,PC,PS,ABS,TPU,EVA,PETG etc.

5) Pure hydraulic system:Optimized hydraulic oil loop design gains a stable,fast,power saving property.

6) All parts adopts international famous brand,easy for installation and matainence.

Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.


1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.


2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
