5MP 20X IP PTZ auto tracking camera
- Shipping fee:
- Depends on the order quantity.
- Lead Time:
- 5 day(s) after payment received
Customized logo (Min. Order: 30 Pieces)Customized packaging (Min. Order: 500 Pieces)
MoreGraphic customization (Min. Order: 30 Pieces) Less
- Place of Origin:
Guangdong, China (Mainland)
- Brand Name:
- Model Number:
- Special Features:
Waterproof / Weatherproof
- Key Feature1:
Pan / Tilt / Zoom
- Key Feature2:
- Key Feature3:
- Image Sensor:
1/3" 5.0M Pixel Hi3516D+AR5521 CMOS
Day / Night / External control(IR Cut Filter)
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 21X21X32 cm
- Single gross weight:
- 3.0 kg
- Package Type:
- Standard Paper Box Packing/Carton Packing
- Picture Example:
- Lead Time :
Quantity(Piece) 1 - 10 >10 Est. Time(days) 5 To be negotiated
1.1/2.5” 5.0M Pixel AR5521 CMOS
2.20X optical zoom, auto focus
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)
1.Main Stream:(2592*1944)1-15fps; (2592*1520)1-16fps; (2304*1296)1-25(30)fps; (1920*1080)1-25(30)fps; (1280*960)1-25(30)fps; (1280*720)1-25(30)fps

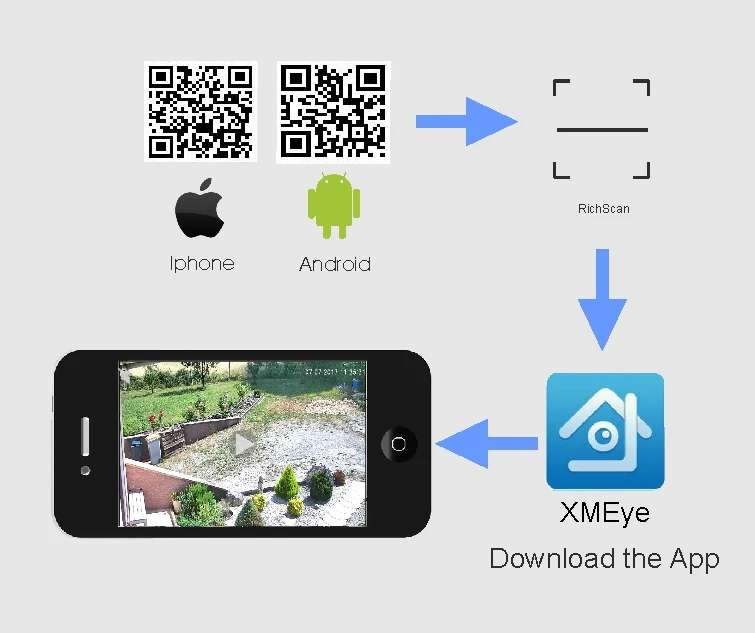

2.Support the P2P or Android, IOS
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
1. Auto tracking moving target according to movment ;
2. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
3. Imported array IR LED, auto adjust zoom according to different distance
4. IR range 100M
5. With digital temperature controlling system protecting IR LED
6. 360 degree continued rotation, manual pan speed 0~200°/S, manual tilt speed 0~90°/S, preset speed 400°/S.
7. 4 tours, DC12V
|Mode||Name and Description||H.265 5.0MP 4 inch mini IR 100M Auto tracking PTZ Camera|
|Camera||Image Sensor||1/2.5” 5.0M Pixel AR5521 CMOS|
|Effective Pixels||5.0 Mpixes|
|Min. Illumination||Color:0.1Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)|
|Zoom||20X , f=4.7mm~94mm, D/N( ICR-Cut) ,F1.6~F3.0|
|Day/Night||Day / Night / External control(IR Cut Filter)|
|AGC||Auto / Manual|
|White balance||Auto/Manual /ATW/Indoor/Daylight lamp/Sodium lamp|
|Digital noise Reduction||DNR,3DNR|
|Shutter speed||1/2 - 1/20,000s|
|Network||Video Compression||H.265 Main Profile/H.264 Main Profile/M-JPEG|
|Frame Rate||Main stream:|
|2592*1944, 1-15fps; 2592*1520, 1-16fps; 2304*1296, 1-25(30)fps; 1920*1080, 1-25(30)fps; 1280*960, 1-25(30)fps; 1280*720, 1-25(30)fps|
|640*480, 1-25(30)fps; 480*360, 1-25(30)fps; 352*288, 1-25(30)fps; 320*240, 1-25(30)fps; 176*144, 1-25(30)fps;|
|1920x1080, 1280x960, 1280x720, Close|
|Bitrate||CBR/VBR, bitrate:32Kbps~10Mbps variable|
|Protocols||TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P|
|Privacy Zone Masking||Support|
|Network||10/100M Base-TX Ethernet, RJ45 Connector|
|Mini SD Card||Up to 128GB(Optional)|
|IR Parameters||Luminary||Array Φ20 6pcs|
|Night vision distance||100M|
|Lamp control||Auto, Manual, by Zoom|
|Dome Features||CPU Type||32 bit ARM CPU|
|Address||0~255(soft address and hard address)|
|Pan Range||360° continued rotation|
|Tilt Range||0~90°(Auto Flip)|
|Manual pan speed||0~200º/S|
|Manual tilt speed||0~90°/S|
|Actual preset Accuracy||±0.10°|
|Other function||4 Tour, Intelligent Three dimensional Scan, 3Pattern group ,Operation recall, Manual continued Auto Scan|
off real time memory
|automatic save functions setting ,automatic wake up tour function|
|Work Humidity||0%~90% (Non condensing)|
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
We could offer OEM and ODM services for our clients.
Sample order 3-5 working days, bulk order 7-15 working days.
2 years for free repair. Whole life service for continue cooperating customers!
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
