5X 2.0 Mpixes Mini CCTV Security IP Speed Dome Camera

Feedback Ratings
$64.00 - $76.00 / Piece | 1 Piece (Min. Order)
Type:
IP Camera
Style:
Dome Camera Add Internal POE Add audio Add Internal POE+Audio
Resolution:
1920 x 1080
$64.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
6 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Graphic customization (Min. Order: 50 Pieces)

More

Customized packaging (Min. Order: 200 Pieces) Less
Contact Supplier
Samples - $64.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Anxinshi
Model Number:
ASIH302-005-027
Sensor:
CMOS, CMOS Hi3516E +307
Special Features:
Waterproof / Weatherproof
Key Feature1:
Pan / Tilt / Zoom
Key Feature2:
1/2.8" CMOS
Key Feature3:
Metal Housing
Multiples:
2.0 Mpixes
Resolution:
1080P
Color:
White+black
IR Distance:
20m
Certificate:
CE FCC RoHs
Product name:
cctv security camera

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X16X15 cm
Single gross weight:
1.5 kg
Package Type:
carton box packing for the cctv dome camera
Lead Time :
Quantity(Piece) 1 - 88 >88
Est. Time(days) 6 To be negotiated

5X 2.0 Mpixes Mini CCTV Security IP Speed Dome Camera





Product Description

Form parameters
ModeName and DescriptionASIH302-005-027 2" Metal IP PTZ Camera
ASIH302-005-027
CameraImage Sensor 1/2.8"  CMOS Hi3516E +307  2.0MP
Effective Pixels2.0 Megapixels
Min. IlluminationColor:0.1Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)
Zoom5 x, f=(2.7mm~13.5mm), , D/N( ICR-Cut)
DWDR , Color: 0.1lux, B/W:0.01lux.
2MP
Day/NightDay / Night / External control(IR Cut Filter),IR 20M
SNR≥50dB(AGC OFF)
WDRDigital WDR≥70dB
AGCAuto / Manual
White balanceAuto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise ReductionDNR, 3DNR
Shutter speed1/25s~1/50,000s , 1/30s~1/60,000s
NetworkVideo CompressionH.264 Main Profile/M-JPEG
StreamsDual streams
Frame RateMain stream:
1920*1080, 1-25(30)fps;  1280*720, 1-25(30)fps
Sub-stream:
480*640, 1-25(30)fps;     480 *360 1-25(30fps
352*288, 1-25(30)fps;     176*144, 1-25(30)fps
MJPEG:
1920*1080, 1280*720, Close
BitrateCBR/VBR, bitrate:32Kbps~10Mbps variable
Audio CompressionG711,PCM
P2PAndroid,IOS
ProtocolsTCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP,  NTP, UPNP
Motion detectSupport
Privacy Zone MaskingSupport
OnvifONVIF Hikvision XM jovision personal protocol
Network10/100M Base-TX Ethernet, RJ45 Connector
Mini SD CardUp to 64GB(Optional)
IR ParametersLuminary 42µ x 3pcs
Night vision distance 20M
Lamp control Auto, Manual, by Zoom
Dome FeaturesCPU Type32 bit ARM CPU
Address0~255(soft address and hard address)

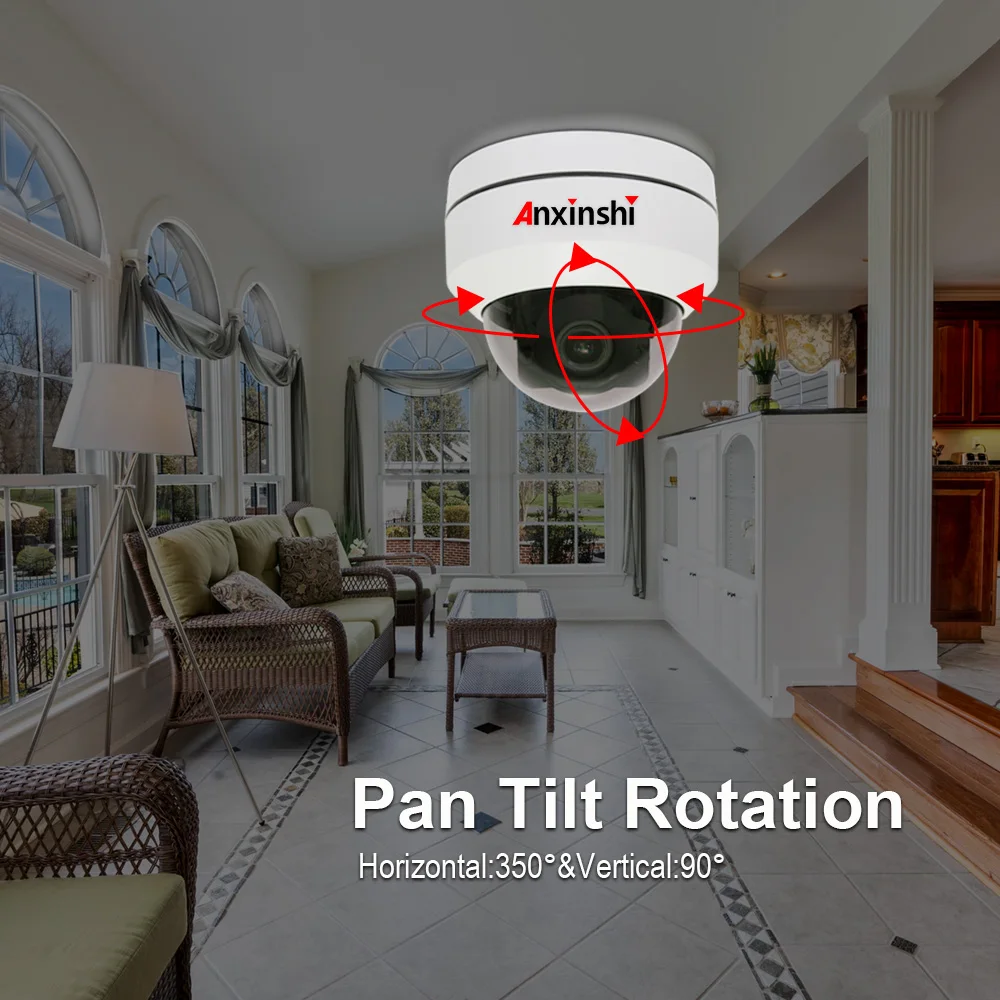

Pan Range0°~355°, Horizontal
Tilt Range0°~90°, Vertifcal
Manual pan speed30º/S
Manual tilt speed20°/S
Preset speed100°/S
Actual preset Accuracy±0.10°
Preset points128
Intelligent power
off real time memory
automatic save functions setting ,automatic wake up tour function
GeneralIngress ProtectionIP66
Power SupplyDC12V±10%
Working Environment-10°C~+50°C / Less than 95%RH (no condensation).
Protection gradeTVS3000V lightning protechtion ,surge protection and voltage transient protection weather proof
Weight450g.



Camera:
1.1/2.8" CMOS Hi3516E +307
2. 5 x,  f=(2.7mm~13.5mm), Auto Focus
3.2.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)
Network Features:
1.Main Stream; 1920(H)x1080(P)@25fps/30fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. Nano-tech IR LED: 42µ x 3pcs, IR Range: 20M
4. With digital temperature controlling system protecting IR LED
5.Built-in Surge and Lightning Protection Devices
6. Pan Range: 0°~355°, Pan Speed: 120°/s, Tilt Range: 0°~90°, Tilt Speed: 45°/s
7.Ingress Protection: IP66

Packaging & Shipping

Packading Details: Standard Paper Box Packing / Carton Packing
Delivery Detail: 3-7 working days after payment comfirmed

Our Services


OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.

Company Information

Anxinshi Technology Co.,Ltd is a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
