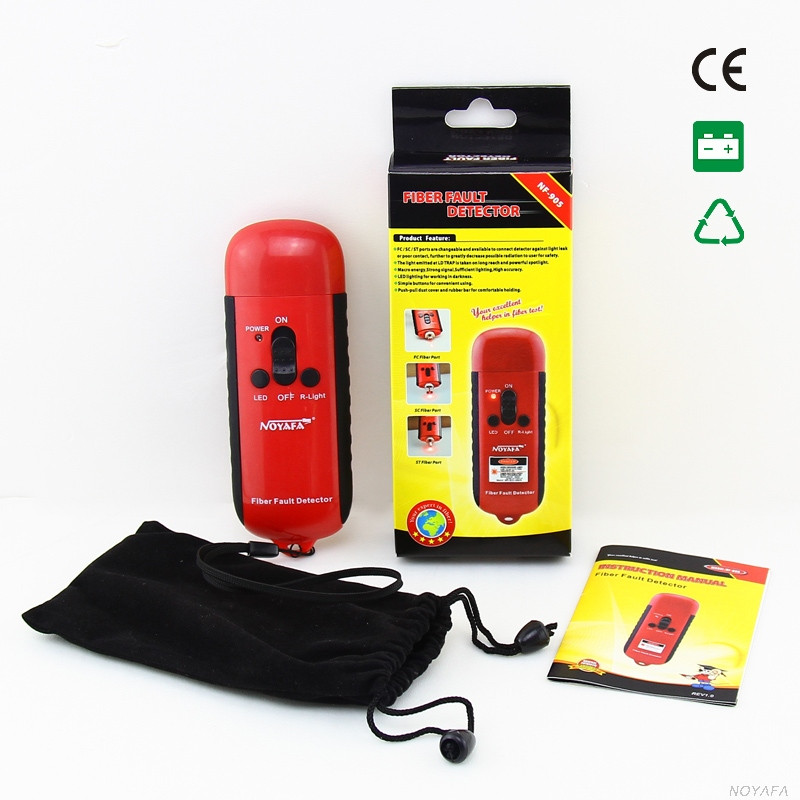

5mw 10mw 20mw red light source for fiber optical testing

FOB Reference Price:Get Latest Price
US $22-26 / Unit | 10 Unit/Units 5mw 10mw 20mw red light source for fiber optical testing (Min. Order)
Supply Ability:
10000 Unit/Units per Week 5mw 10mw 20mw red light source for fiber optical testing
Port:
shenzhen
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Noyafa
Model Number:
NF-905
Power:
Electronic
Usage:
Fiber Red Light Source
Product name:
Fiber Red Light Source
Color:
Silver
Is customized:
yes
Connector:
FC/SC/ST interchangeable
Main function:
locating fiber breakage and winding.
Power supply:
1.5V Alkaline battery
Warranty:
1 Year
Packaging & Delivery
Packaging Details
Standard package
Delivery Time
Shipped in 1 days after payment
Product Description

5mw 10mw 20mw red light source for fiber optical testing

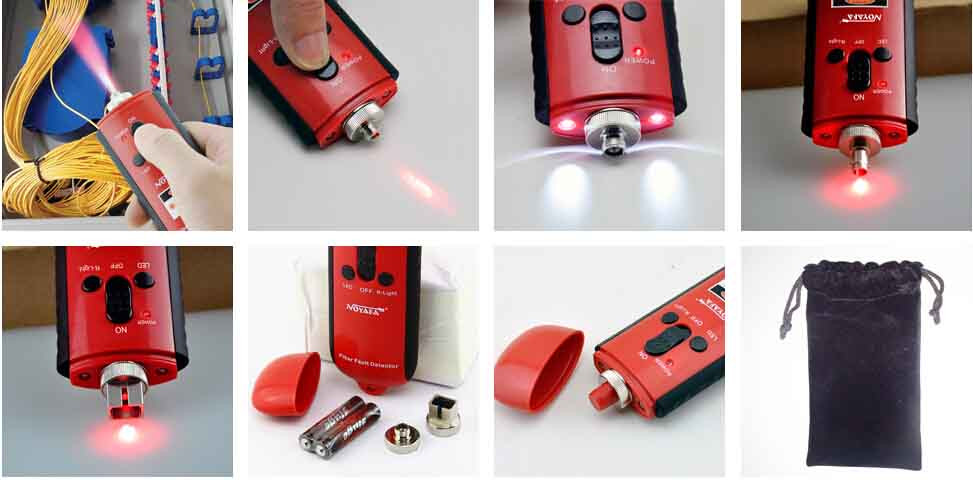

 Features:

1. Locating the fault of fiber breakage, winding and so on.
2. End-to-end fiber recognition.
3.  The optimization of the machine connection point.
4. Continuous or pulse working modes interchangeable.
 5.Led light helps working in dark.
6. Potect the interfaces with a special lid.

7. Push-pull dust cover and rubber bar for comfortable holding

Technical indexes:



ModelNF-905
Wavelenth (nm)650±10nm
Fiber TypeSM/MM
Connector2.5mm Universal
Emmiting Energy5mW/10mW/20mW
Working temp-20 ~ +60 ℃ (no dew)
Storage Temp-40 ~ +85 ℃
Power Supply1.5V AAA battery
FC interface1pc (Bundled)
SC/ST interface1pc (Optical)
User Manual1pc
Case1pc
Color box1pc












Application:



Packaging & Shipping

 Packing:

 Standard carton :


Shipping:

 All shiiping way is available .

Our Services

 After-Sale service Commitment



1.Product quanlity

All products are guaranteed on consistency

All products are stabilized after 24-hour aging testing.

All products are 100% inspected PASS before shipment.

All products are ensured compliance with national standards, GB4793.1-GB1094.6-96 Degrees of protection provided by enclosure, GB4793-1984 Safety

requirements for electronic measuring instruments, GB191 Packaging storage and transportation signs.



2. After-sales service Clause

2.1 Responsibility

We are only responsible for the samage or loss before opening-box inspections, otherwise, it is out of our responsibility in 6 months calid from the sate of purchasing to provide with further services for repair, maintenance or replacement.
2.2 Escape Provision
The following is out of our commitment and maintenance for free:
A. No any other valid proof.
B. Unauthorized repair to misuse or removal.
C. Normal wear and tear of accessories.
D. Abnormal connection to high-voltage equipments or long-time unuse.
E. Damage or defects caused by force majeure.
F. Improper maintenance and repair.
