6 inch High Speed Submersible Cutter Suction Dredger Pump for River Dredging

FOB Reference Price:Get Latest Price
US $1,633-10,202 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MIMO
Model Number:
MSS
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Slurry, Mud, Sand, Lime, Sludge, Sewage, Water
Power:
7.5-315kw, 10-420hp
Standard or Nonstandard:
Standard
Fuel:
e, Motor, Diesel, GasolinSolar, Turbine
Pressure:
High Pressure
Application:
Slurry
Pump Head:
8.6-70m
Max. Pump Flow:
22-2400m3/h
Pump Driving type:
Motor, Diesel, Gasoline, Solar, Turbine
Pump Impeller No.:
Single-Stage Pump
Influent Type of Impeller:
Single Suction Pump
Position of Pump Shaft:
Vertical Pump
Pump Casing Combined:
Vertical joint Surface Pump
Pump Impeller:
Semi-Open
Transport Package:
Plywood Case
Specification:
ISO, SGS,CE
Supply Ability
Supply Ability:
600 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Packaged by Sandwich Plate/ Ply Wooden Case/ Wooden Box/As customer required
Port
Tianjin/ Qingdao/ Shanghai/Guangzhou/As customer required
Lead Time :
Within 15 days after received payment
Product Description

Product Introduction

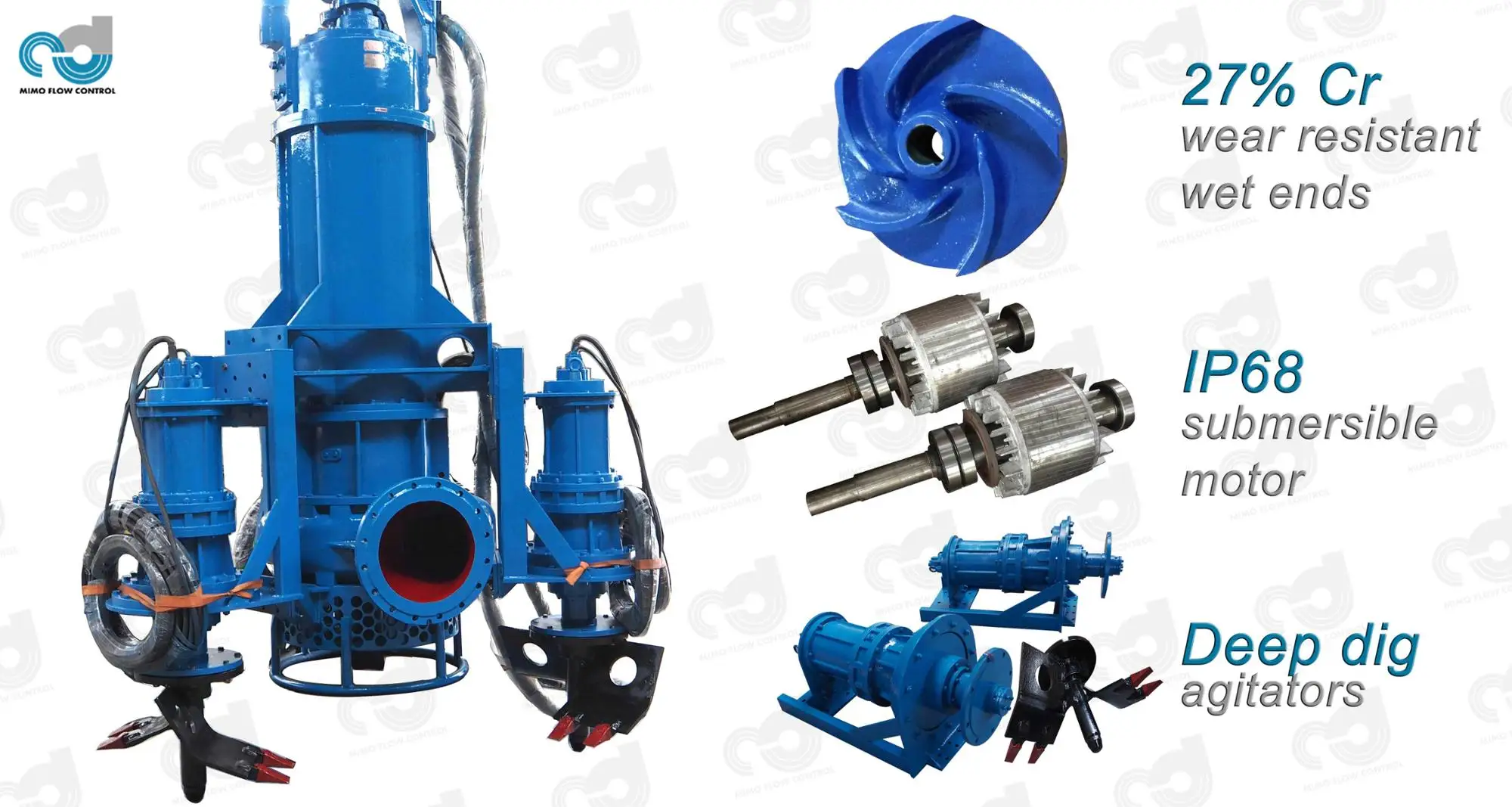

MIMO SS series are a heavy duty, electro-submersible slurry pumps designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and industry.SS pumps feature a rugged construction using the highest quality materials to ensure reliable performance and excellent service life. The high quality electric motors incorporate multiple protection features to detect the ingress of water or excessive temperatures to shut off the pump and prevent damage.

       Type
     Flow Rate
      Head
      Media
   Application
Other Characteristics
SS100-25-22
70-120m3/h
22-27m
Slurry
Transporting
Submersible Vertical

 SS Submersible Slurry Pump Series

1.Submersible work without influence of suction head;
2.No assistant vacuum pump, save invest;
3.No noise, keep the silence of work station;
4.With agitator, no need extra stirring devices, more convenience for operating;
5.It need not build pump house.
6.Directly work on the surface of slurry, with higher efficiency to deliver slurry.

Specification
No.
Type
Flow
Head
Power
Dimensions(mm)
Volume
Weight
m3/h
m
kw
L
A
B
m
kg
1
SS-7.5
30
30
7.5
840.74
604.52
391.16
0.20
113.85
2
SS-11
25
40
11
911.86
607.06
406.4
0.22
216.82
3
SS-15
25
40
15
990.6
673.1
439.42
0.29
249.93
4
SS-22
75
35
22
1402.08
924.56
650.24
0.84
580.14
5
SS-30
100
35
30
1460.5
835.66
629.92
0.77
550.21
6
SS-37
100
45
37
1567.18
1069.34
650.24
1.09
850.03
7
SS-45
100
60
45
1699.26
1049.02
680.72
1.21
1000.17
8
SS-55
150
45
55
1719.58
1051.56
711.2
1.29
1140.33
9
SS-75
150
55
75
1905
1422.4
800.1
2.17
1540.40
10
SS-90
200
60
90
1940.56
1422.4
848.36
2.34
1550.38
11
SS-110
250
60
110
2407.92
1640.84
853.44
3.37
1970.41
12
SS-132
400
60
132
2540
1640.84
853.44
3.56
2000.34
13
SS-160
600
50
160
2890.52
1600.2
822.96
3.81
2650.34
14
SS-185
1750
15
185
2900.68
1661.16
820.42
3.95
3500.83
15
SS-200
600
55
600
3060.7
1879.6
899.16
5.17
3500.83
16
SS-220
80
55
220
2933.7
2148.84
977.9
6.16
3400.58

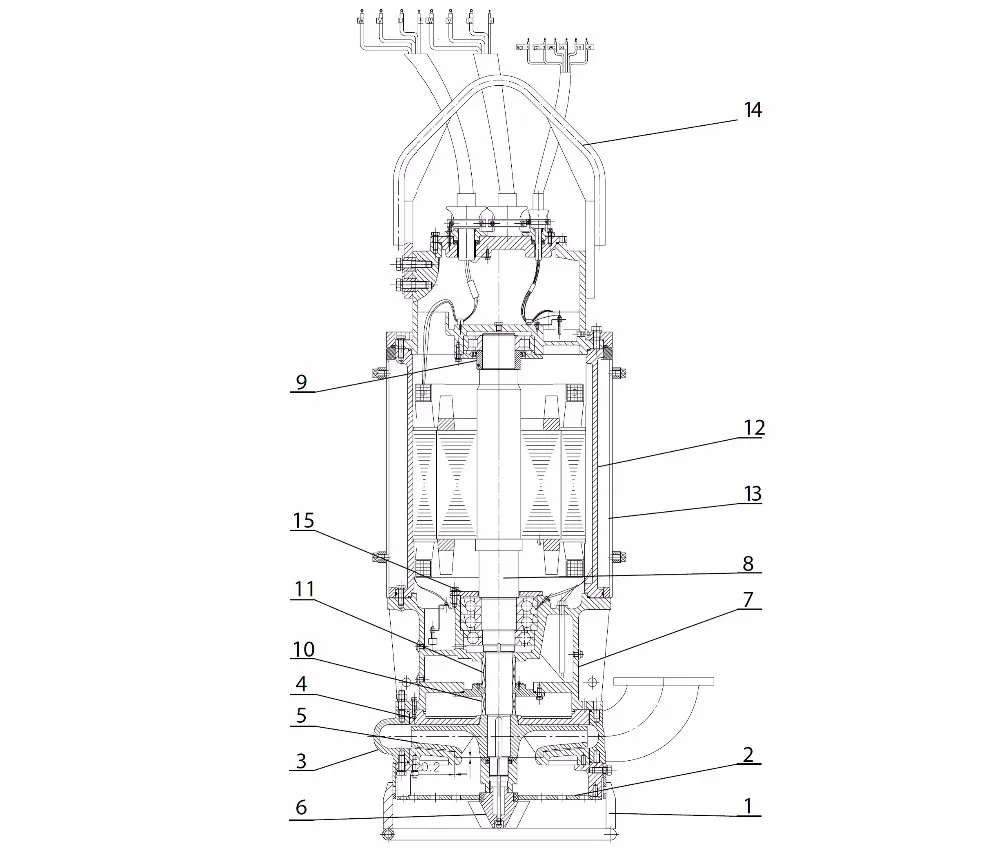

SS Pump Structure
Part Description
Material Specification
Material Options
Shaft
420 SS

Support Frame
Mild Steel

Strainer
420 SS

Pump Casing
27% Chrome
316 SS

Wet End Mechanical Seal
420 SS

Bearing Covers
Cast Iron

Suction Plate
27% Chrome

Dredger
27% Chrome

Applications

Transfer of waste water, effluent and solids laden water for
Water Treatment
Building Services
Sumps and Basements
Mining
Civil Construction
Industry
Municipal
Processing
