6 meter warehouse indoor transfer one man telescopic lift

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
mobile Scissor lifting platform
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 11 - 20 >20
Est. Time(days) 10 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
BEFANBY
Lift Mechanism:
Scissor Lift
Lift Drive / Actuation:
Hydraulic Motor
Power:
3.0kw-4.5kw
Rated Loading Capacity:
230kg-450kg
Min. Lifting Height:
1850mm
Max. Lifting Height:
14m
Table Size:
Customized
Overall Dimensions:
Customized
Weight:
1260kg-3180kg
Certification:
CE ISO
Warranty:
12 Months, 12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
6 meter warehouse indoor transfer one man telescopic lift
Application:
Aerial work
Color:
Customized
Material:
High strength manganese steel
Control method:
Ground control and aerial control
Battery:
Trojan 4*6v/240ah
Gradeability:
25%
Feature:
Easy Operation Safety Convenience
Tire:
non-marking tires
Key words:
one man telescopic lift
Product Certification certification
CE Certified.
Valid from 2019-04-18 until 2049-12-31
Supply Ability
Supply Ability:
300 Set/Sets per Month hydraulic lift table parts manufacturer since 2003.
Packaging & Delivery
Packaging Details
The whole one man telescopic lift will be packed by the tarp, the parts will be packed by polywood case..
Port
Qingdao/Tianjin/Shanghai
Lead Time :
Quantity(Sets) 1 - 10 11 - 20 >20
Est. Time(days) 10 15 To be negotiated
Product Description

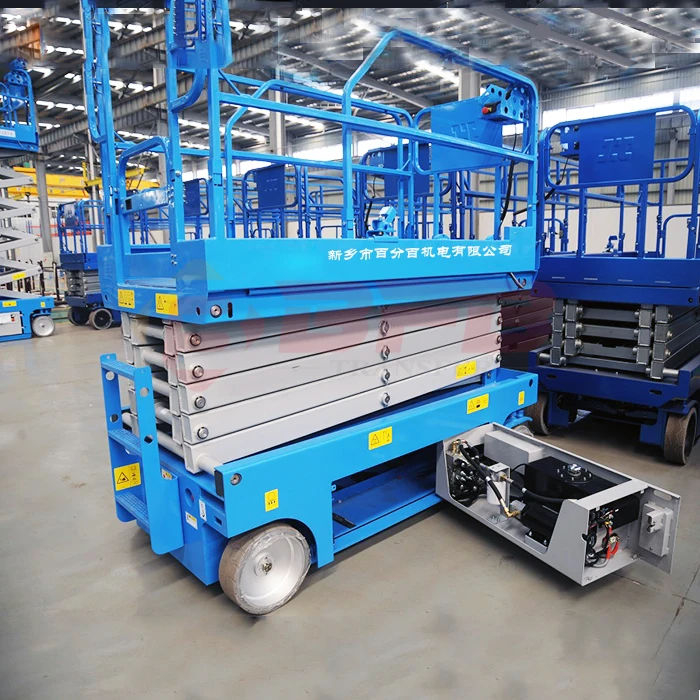

6 meter warehouse indoor transfer one man telescopic lift

Self-propelled scissor lift platform with automatic walking function, can be in different working conditions, no external power supply, no manual traction, mobile and flexible, easy to operate, lift freely, just one person can complete the forward, backward, turn, fast, slow Speed walking and up and down movements save labor and effort.

Self-propelled scissor lift platform does not need external power supply, does not need external force to drive traction and lift up and down freely. Only need one person can operate in the air to complete up and down, forward, back, turn and so on.The fork lift type lifting platform has the advantages of flexible movement, convenient operation, labor-saving and time-saving, making the aerial work more convenient and fast.

Power and Use Occasion of the self-propelled scissor lift platform

The self-propelled scissor lift platform is powered by battery , which control the hydraulic lifting system and platform drive system.
The self-propelled scissor lift platform is suitable for airport terminals, stations, wharf, shopping malls, sports venues, residential properties, factories and mines.

Ttems
SJZ-6
SJZ-8
SJZ-10
SJZ-12
SJZ-14
Capacity
230kg
230kg
320kg
320kg
200kg
capacity-extension deck
113kg
113kg
113kg
113kg
113kg
Max working height
8m
10m
12m
14m
16m
Max platform height
6m
8m
10m
12m
14m
Overal dimension
1.86*0.76*1.85m
2.42*0.83*2.07m
2.42*1.17*1.93m
2.42*1.17*2.06m
2.79*1.27*2.06m
Platform size
1.67*0.74m
2.27*0.83m
2.27*1.14m
2.27*1.14m
2.64*1.14m
Extension size
900mm
900mm
900mm
900mm
900mm
Wheelbase
1400mm
1870mm
1870mm
1870mm
2240mm
Min turning radius
1600mm
2250mm
2230mm
2230mm
2250mm
lifting/driving motor
24v/3.0kw
24v/3.3kw
24v/3.3kw
24v/4.5kw
24v/4.5kw
Driving speed (fold)
3.5km/h
3.5km/h
3.5km/h
3.5km/h
3.5km/h
Driving speed (rising)
0.8km/h
0.8km/h
0.8km/h
0.8km/h
0.8km/h
Battery
4*6v/225Ah
4*6v/225Ah
4*6v/240Ah
4*6v/260Ah
4*12v/300Ah
Charger
24v/25A/Customized
24v/25A/Customized
24v/25A/Customized
24v/25A/Customized
24v/25A/Customized
Gradeablity
25%
25%
25%
25%
25%
Tires
non-marking tires
non-marking tires
non-marking tires
non-marking tires
non-marking tires
Weight
1260kg
2100kg
2480kg
3100kg
3180kg
Company Information
Our Service

1) We can design the customized Hydraulic Scissor Lifting platform as per your requirement.

2) Operation video can be sent to you if needed ;All machines sold will be tested before shipment.

3) One year warranty without man-made fault.

4) English manual for machine installation using and maintenance will be send together with the goods .

5) We will send you parts for free if there are any non-human factors faults during warranty time.

6) Supply 24-hours technical assistance by email, telephone or other video online.

7) Engineers are available to your country if necessary.
