60 Test/Hour 3 Part Differential Blood Cell Counter Intelligent CBC Test Machine Auto Hematology Analyzer

FOB Reference Price:Get Latest Price
$2,000.00 - $2,300.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 5 6 - 20 21 - 100 >100
Est. Time(days) 7 15 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Blood Analysis System
Brand Name:
Convoy
Model Number:
KH3000
Place of Origin:
Shandong, China (Mainland)
Instrument classification:
Class II
Product name:
Blood Cell Counter CBC Test Machine Auto Hematology Analyzer
Function:
blood analyzer system
Certificate:
CE ISO
Language:
Enlglish
Warranty:
1 Year
Display:
LCD displaying
Throughput:
60tests/hr
Power Supply:
AC110V/220V 50/60Hz
Dimensions:
235*370*545mm
Weight:
25kg
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
We use export-specific packaging wooden box packaging to ensure that the first phase is intact during transportation.
Port
Qingdao port
Lead Time :
Quantity(Units) 1 - 5 6 - 20 21 - 100 >100
Est. Time(days) 7 15 30 To be negotiated
Product Description

Performance:

High Stability&Accuracy

Use the most advanced binuclear embedded digital circuit system,to make the analytical ability great and stable

2 counting channels of WBC and RBC,to make the test results more accurate and less cross-contamination

Use CPLD technology in data precessing,to avoid the interference of electromagnetic signals.


User-friendly System

10.4'' large color LCD displays main menu and all parameters&color histograms in one screen

Brief operation instruction built in software,easy for user to view

Separate module design,very simple mechanical structure,easy maintenance

Self check for hardware,alarm for error

Reagent volume detectors for lyse,cleanser and Dilutent,as optional function


Reliable Operation System

ARM intelligent micro-processing technology

Data analysis:intelligent pulse formulation technology

Classification:floating landmark technology

Module design,fast maintenance


Technical Features:

2 counting modes:whole blood,pre-dilution blood

Sample pre-dilution:internal diluter,add 1ml diluent automatically by the needle,no need to add diluent manually,to avoid error

Calibration:automated or manual

QC:comprehensive QC program,forming and printing the histogram automatically

Block removal:Real time monitor,high ignition,soak,flush and back flush


Principle
Electrical impedance for counting and SFT method for hemoglobin
Parameters
WBC,LYM#,MID#,GRA#,LYM%,MID%,GRA%,RBC,HGB,HCT,MCV,MCH,MCHC,RDW-CV,RDW-SD,PLT,MPV,PDW,PCT.P-LCR and 3 Histograms for WBC,RBC and PLT.
Throughput
Up to 60 samples per hour
Sample Volume
Whole blood: 9ul, Pre-dilution blood: 20ul
Aperture Diameter
WBC:80μm RBC:50μm
Alarms
Error message
Display
10.4'' large color LCD
Printout
Built-in thermal printer,various print-out formats;external printer optional
Input
Mouse and keyboard,connected by USB port.
Interface
USB*3,RS232*2
Storage
10,000 sample results including histograms,available to increase storage by expanding memory card.
Working onditions
Temperature:15-35℃,Humidity:≦80% Atmospheric pressure:70Kpa-106Kpa
Power supply
AC220±22V,50±1HZ
Dimension
325*370*545mm(L*W*H)
Weight
16kg(net),25kg(gross)
Detailed Images

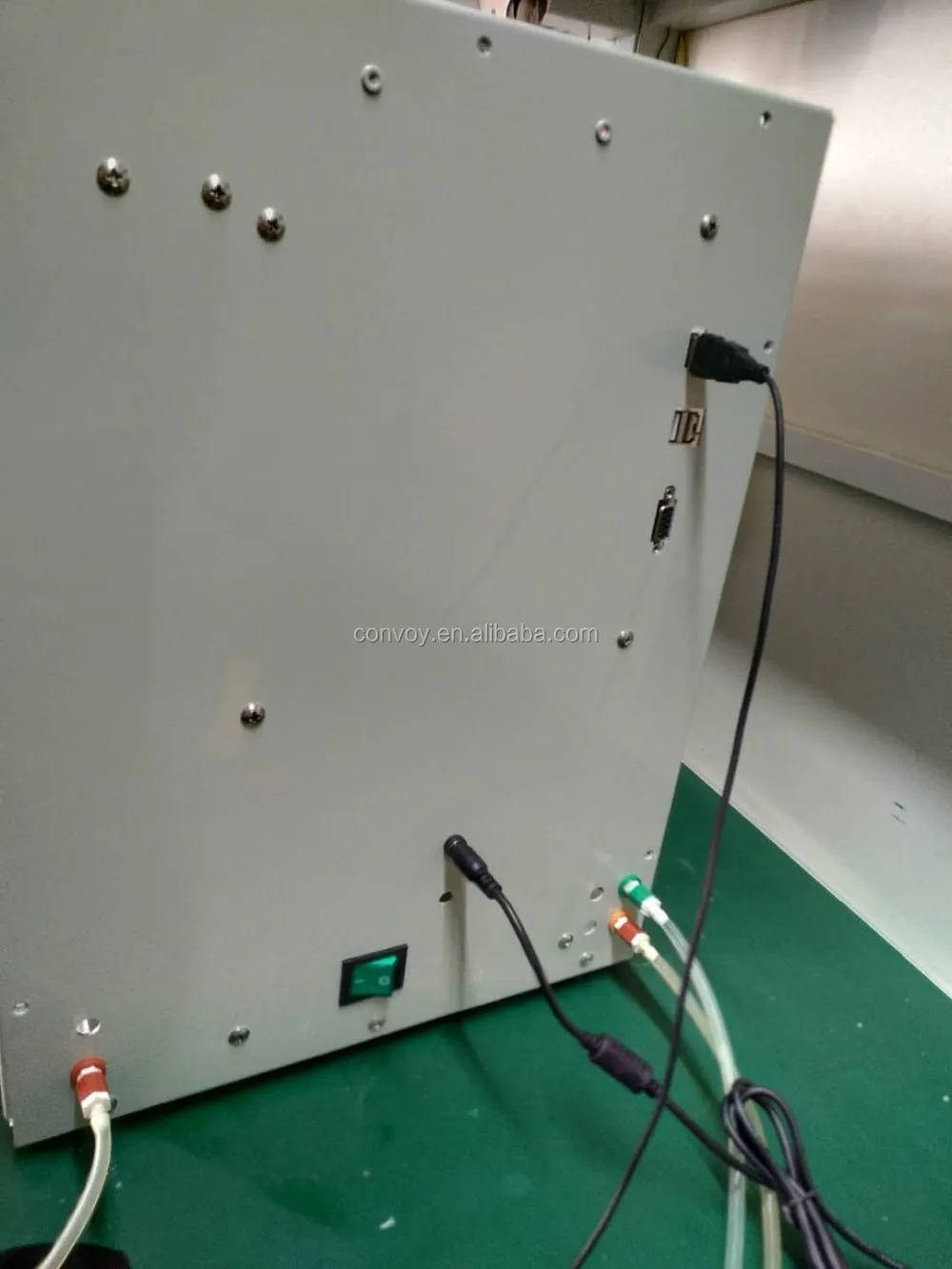

Back Of The Analyzer

On the back of the instrument is the reagent keyboard and USB interface

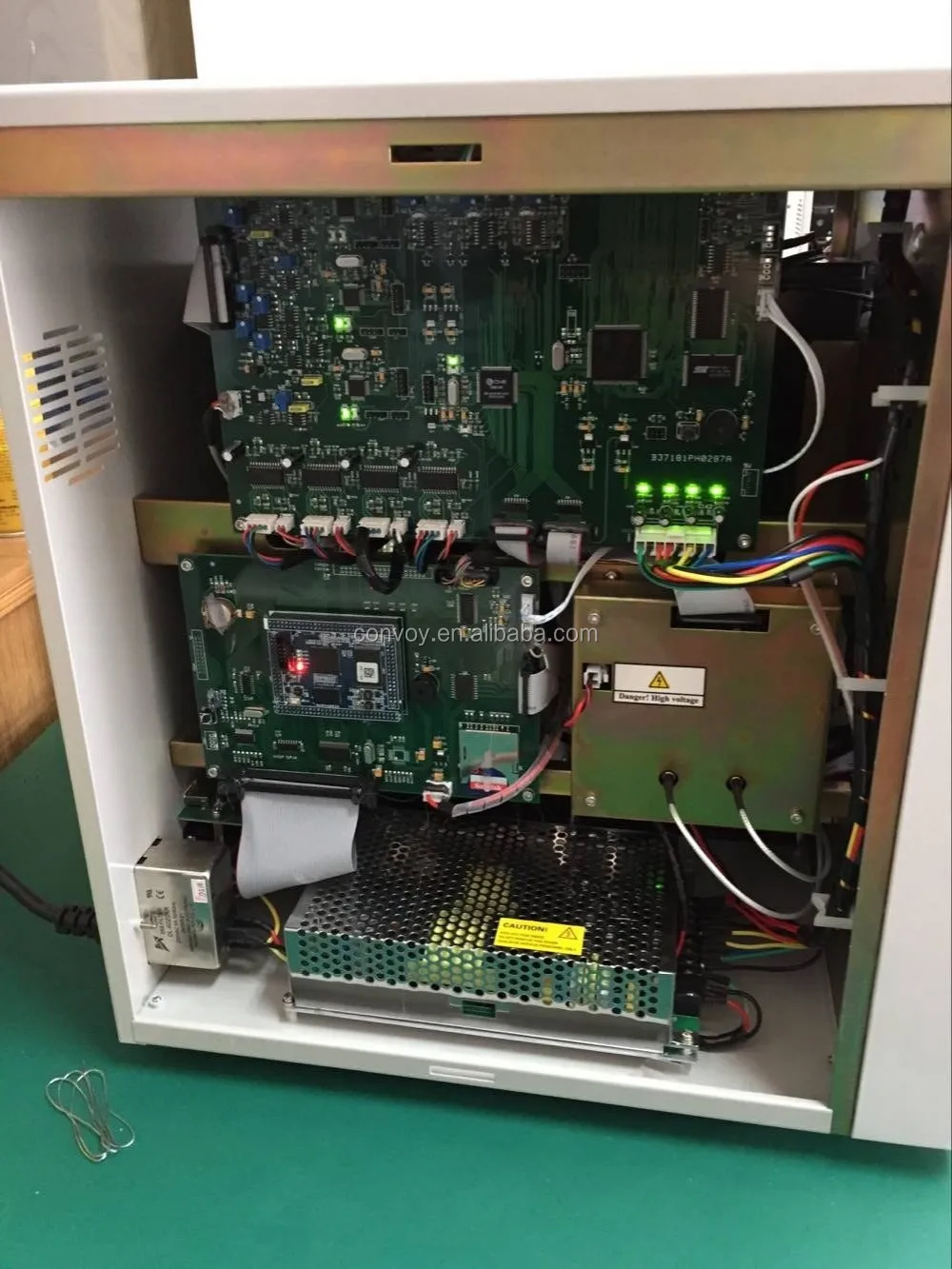

Side Of The Analyzer

On the side of the instrument are some components such as the solenoid valve circuit board are measured.

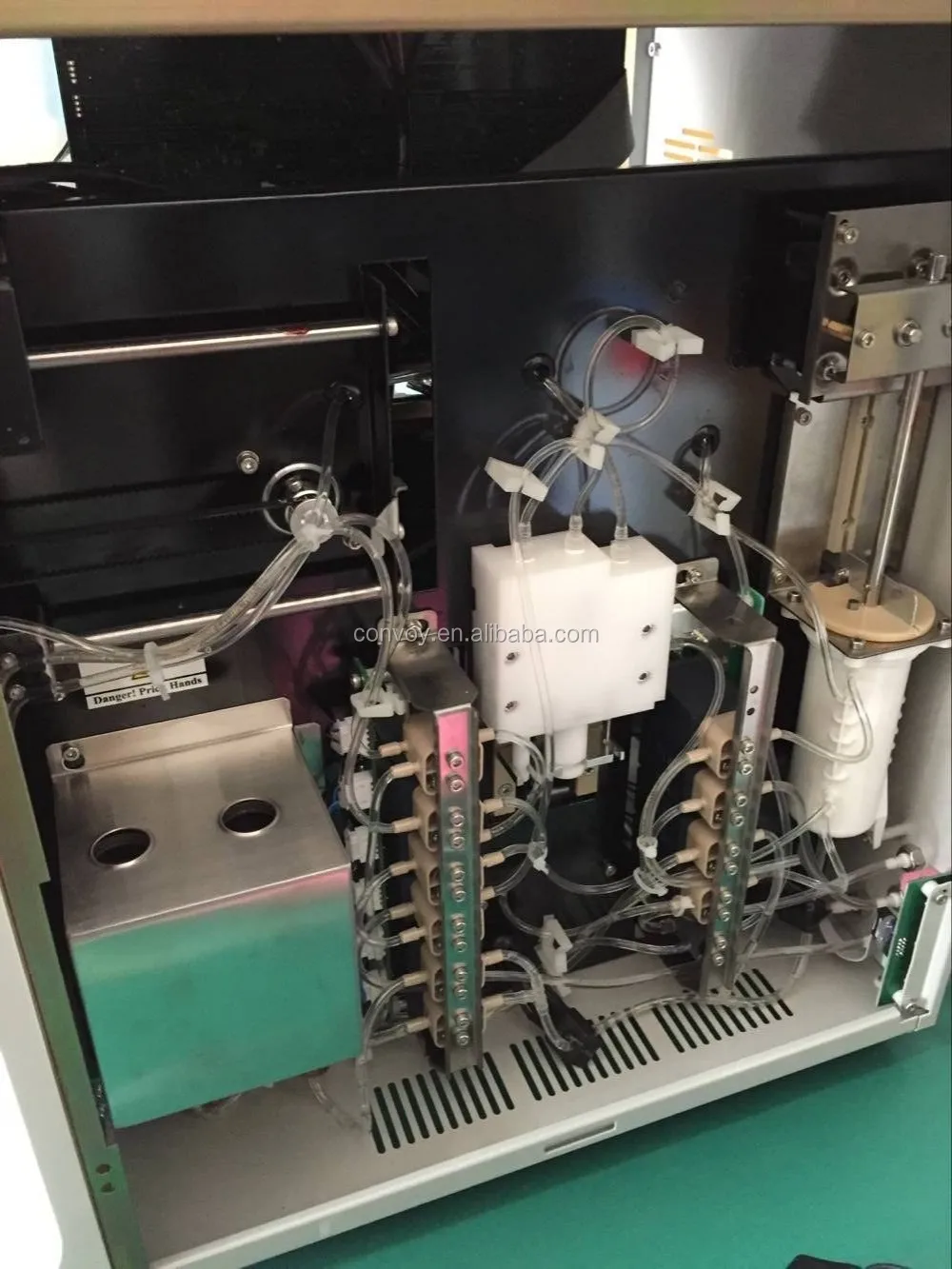

Inside Of The Analyzer

The motor sensor circuit and other components of the instrument are distributed inside the machine.

Packing&Delivery

We use export-specific packaging wooden box packaging to ensure that the first phase is intact during transportation.
The packaging process is as follows, and every detail is subtle and appropriate. All the random accessories will be packed into wooden boxes, including instructions, liquid pipes, cables, etc., to ensure that you can use them when you open the box.
