600w Metal Mini Turning Lathe Machine for Motorized Metalworking 3-jaw Chuck Mini Lathe

  • 1 - 9 Sets
    $440.00
  • 10 - 99 Sets
    $415.00
  • >=100 Sets
    $385.00
Model Number:
180CC000000000001V2
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Horizontal
Place of Origin:
Shanghai, China
Brand Name:
VEVOR
Condition:
New
Dimension(L*W*H):
84*48*47CM
Certification:
CE ISO
Voltage:
220V
Power:
600W, 110V/60Hz
Distance Between Centers:
12" (300mm)
Swing Over Bed:
7" (180mm)
Swing Over Cross Slide:
4" (95mm)
Width of Bed:
4" (100mm)
Spindle Bore:
1inch (21mm)
Gross Weight:
68kg (149.6lbs)
CNC or Not:
CNC
Automatic Grade:
Automatic
After-sales Service Provided:
Engineers available to service machinery overseas
Max. Swing Diameter:
400mm
Power(W):
600W
Weight:
65KG
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton Packing
Port
shanghai

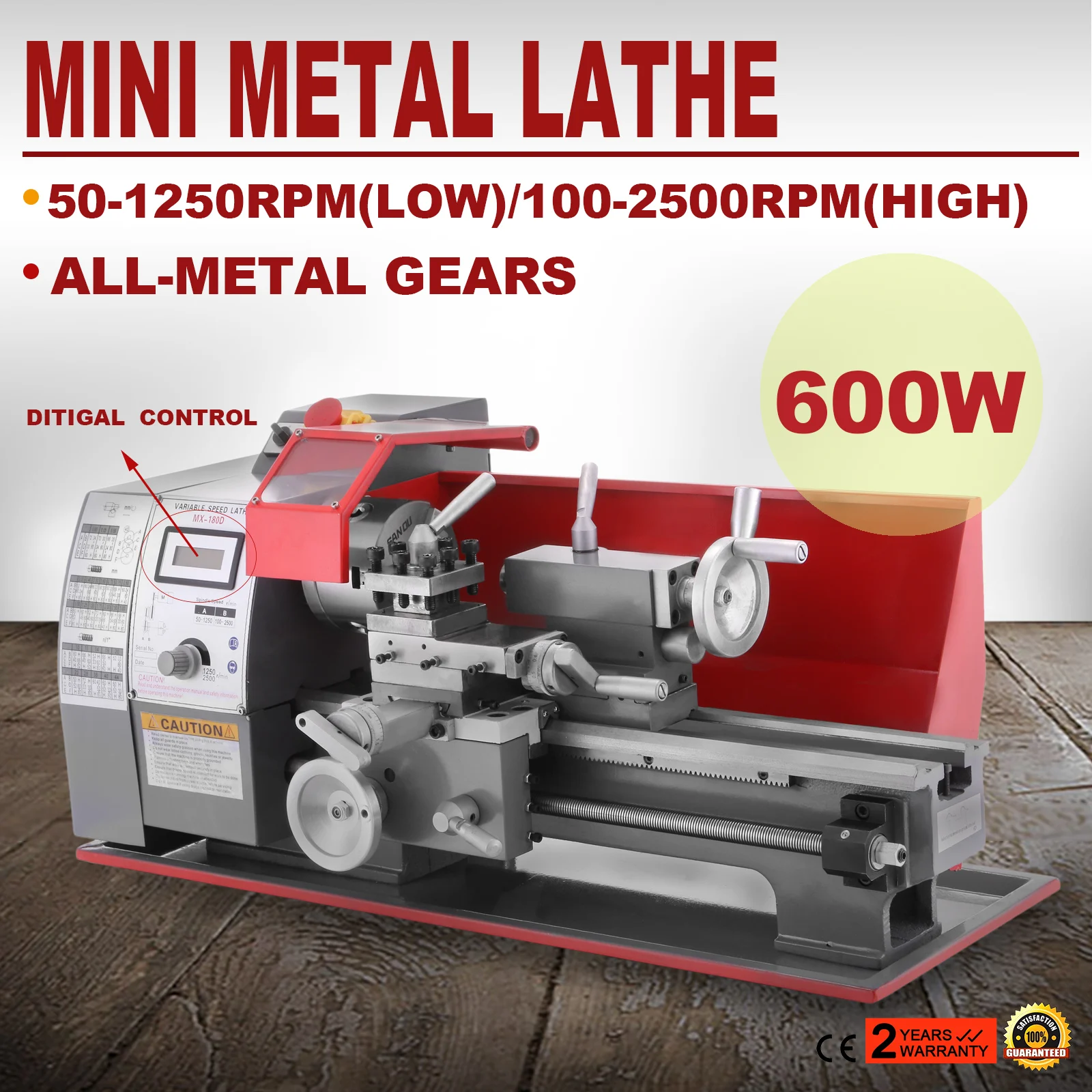

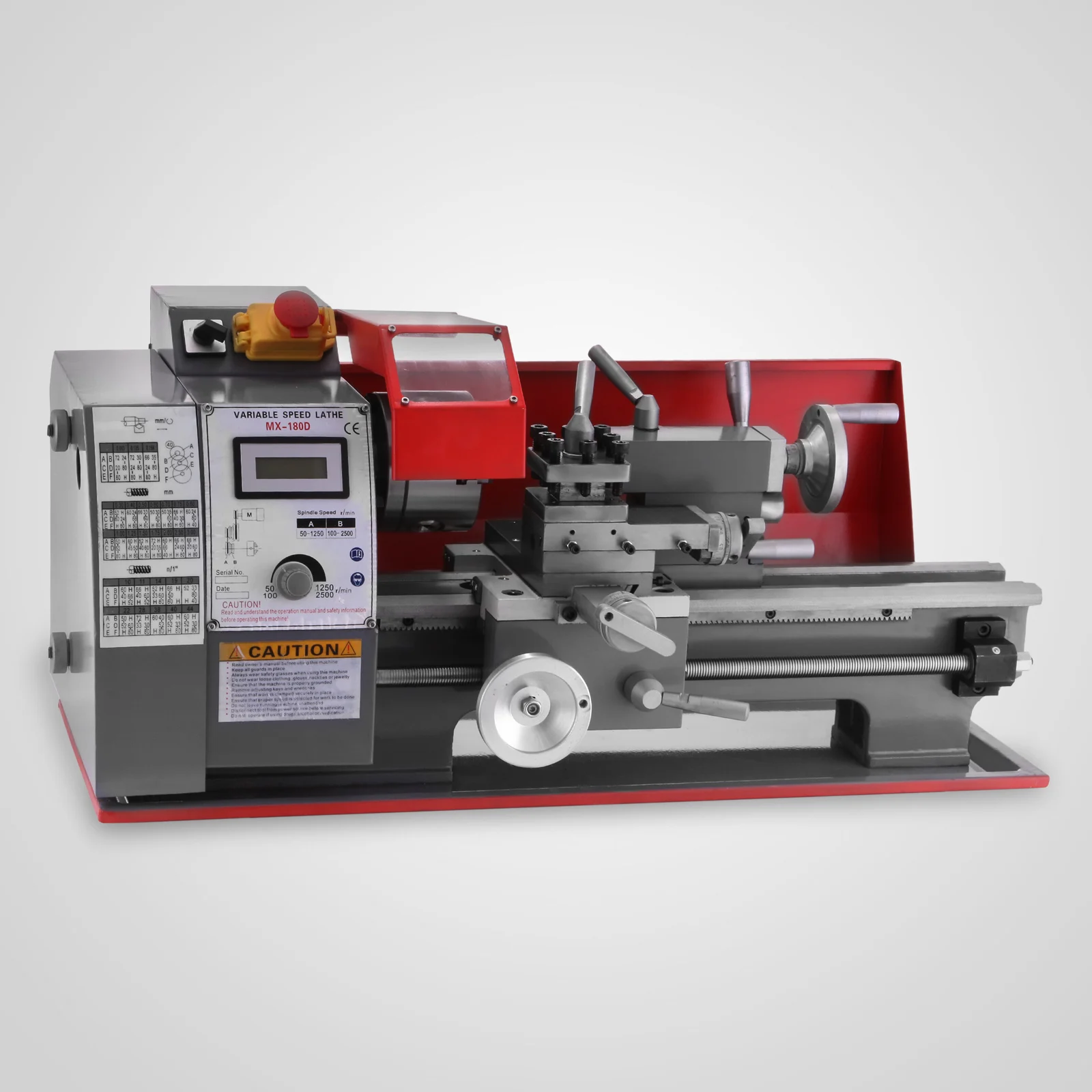

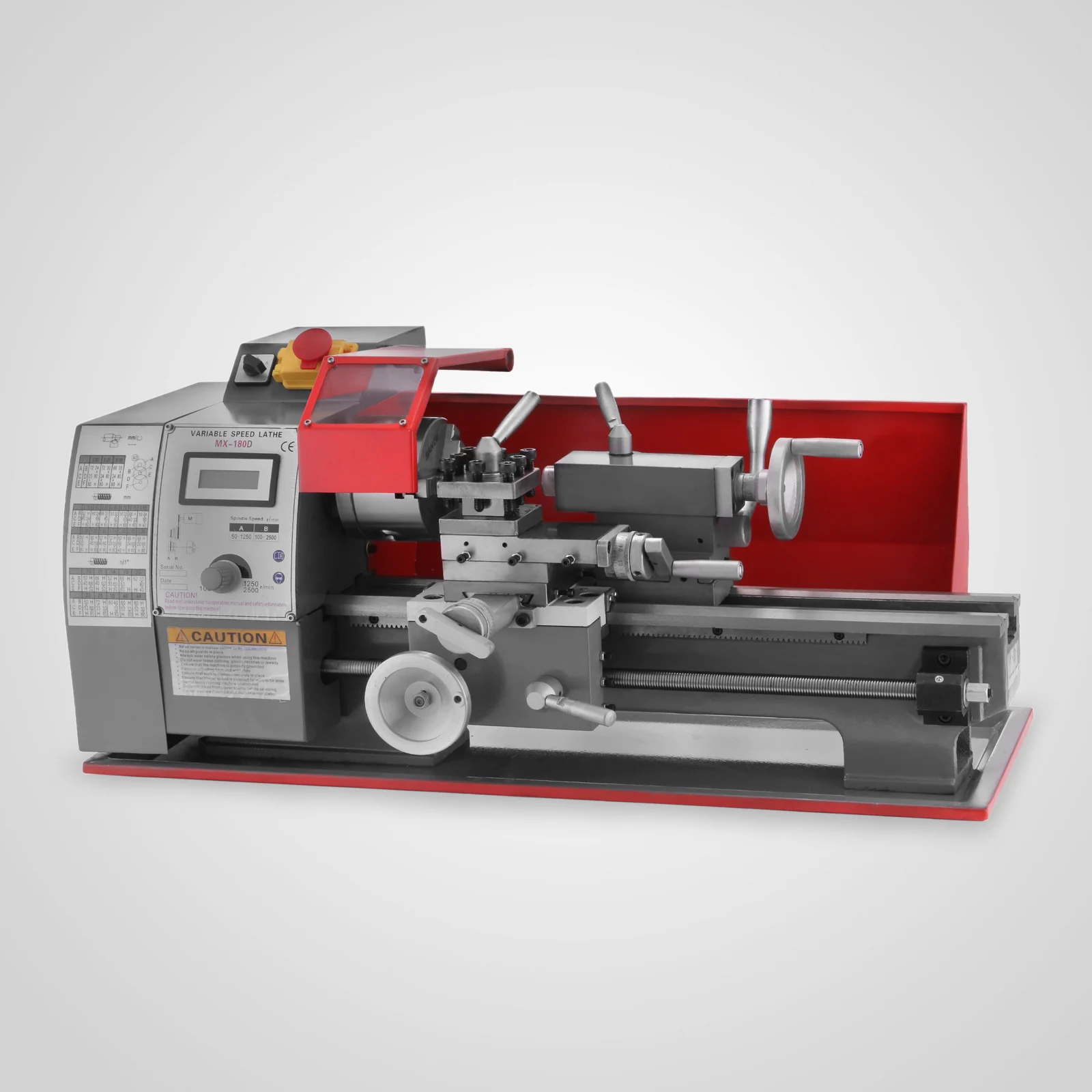

600w Metal Mini Turning Lathe Machine for Motorized Metalworking  3-jaw Chuck Mini Lathe



Introduction

This 600W miniature lathe is a benchtop lathe which is designed to perform various types of metal, jade and wood turning. It is an ideal equipment for single-processing or small batch production and can be used in areas such as mini precision parts processing, sample processing and modeling works in Industry and school teaching, vehicle maintenance, home maintenance, scientific research units. It is also perfect for hobbyists and modelers who is looking to add finite detail to their construction project.

Whether you’re turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge.

Application

· Suitable for turnings of metal, wood, jade, etc.

· Ideal for use in labs, workshops, engineering and education.

· Can be turned within foreign aid, turning thread, turning taper and so on.

Product advantages

· This micro lathe with a number of electronic control system for the magnetic induction digital single-chip control the transition wheel system can be 2-speed mechanical speed

·

Emergency shutdown: Just take the red cover to shut, which is very safe.

·

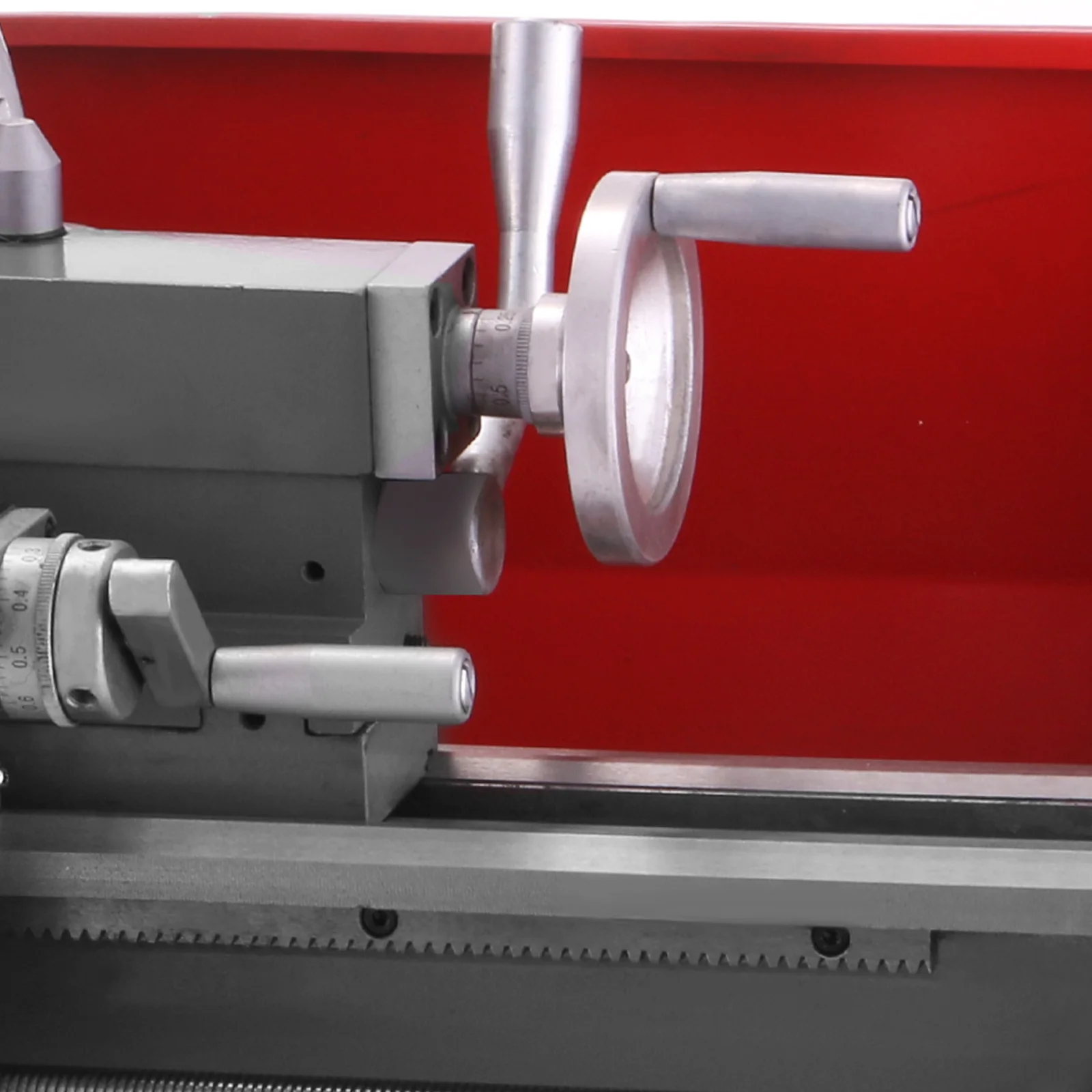

· Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized or adjusted by lateral movement.

· By adjusting the speed switch, the spindle speed can be adjusted from 50 to 2500RPM.

· Equipped with all-metal gears of strong power, this machine is wear-resistant, durable, more accurate rotation and in particular, more precise, accurate and professional.

· Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.

· Automatic tool with multi function and usage, infinitely variable.


Features

· CE certification.

· DC motor driven.

· Stepless speed regulation.

· High-frequency quenched slideway.

· Variable spindle speed of 50-1250/100-2500RPM.

· Spindle bearings use precise tapered roller bearings.

· Speed infinitely variable, easy to read via digital speed display.

· Prism bed guides inductively hardened and precision ground

· Rails have been quenched with high frequency and elaborate milling.

· Spindle can be adjusted positive and reverse rotation.

· 600w strong power, 300mm processing distance.

· High precision, able to turn out standard qualified works.

· Metal gears, metal shell, metal hand wheel,All metal gear without any plastic parts.

Technical

· Power: 600W, 110V/60Hz

· Distance Between Centers: 12" (300mm)

· Swing Over Bed: 7" (180mm)

· Swing Over Cross Slide: 4" (95mm)

· Width of Bed: 4" (100mm)

· Taper of Spindle Bore: MT3

· Spindle Bore: 1inch (21mm)

· Range of Spindle Speeds: 50-1250RPM(LOW)/100-2500(HIGH)

· Range of Longitudinal Feeds: 0.08-0.16mm

· Range of Threads: 10-44T.P.I (0.5-3mm)

· Top Slide Travel: 2" (55mm)

· Cross Slide Travel: 3" (75mm)

· Tailstock Quill Travel: 2.5" (60mm)

· Taper of Tailstock Quill: MT2

· Gross Weight: 68kg (149.6lbs)

· Package Dimensions: 780*480*420mm (31"*19"*17")

Package

· 1 X Mini Lathe

· 1 X 3-jaw Chuck (100mm)

· 1 X Splash Guard

· 1 X Chip Tray

· 1 X Toolbox

· 1 X English User Manual

Tool Box Accessories

· 5 X Change Gears

· 3 X External Jaws

· 1 X Fasten Thimble

· 1 X Oil Can

· 1 X Chuck Wrench

· 5 X Hexagon Wrenches

· 2 X Screwdrivers
