60W/1.25A 48VDC Power Supply Industrial PoE Injector

  • 1-9 Pieces
    $69.00
  • 10-99 Pieces
    $67.00
  • >=100 Pieces
    $65.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 20 Pieces) Less
Samples: $69.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $69.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
E-link
Model Number:
LNK-INJ300
Product name:
POE Injector
Data Rate:
10/100/1000M
Connector:
2xRJ45
Standard:
IEEE802.3at
Max Power per Port:
30W per port
Input Power:
48~57VDC
Mounting Options:
DIN-Rail / Wall-mount
Dimensions (WxDxH)::
95 x 70 x 30 mm
Weight::
0.25KG
Warranty:
5 Years

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X10 cm
Single gross weight:
1.0 kg
Package Type:
One pieces in one carton. Support OEM Service.
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated

60W/1.25A 48VDC Power Supply Industrial PoE Injector



Product Description







Model: LNK-INJ300 Series

Overview

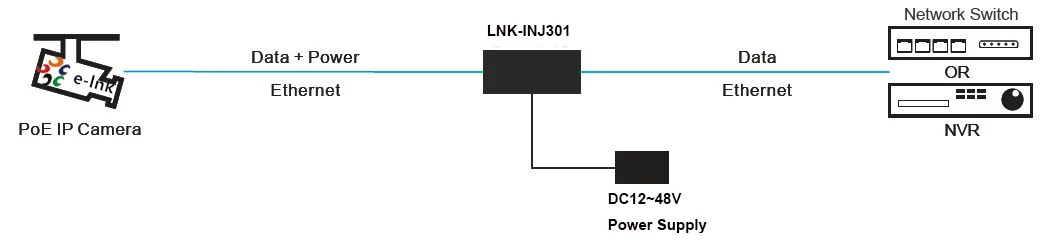

The LNK-INJ300 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.







Features

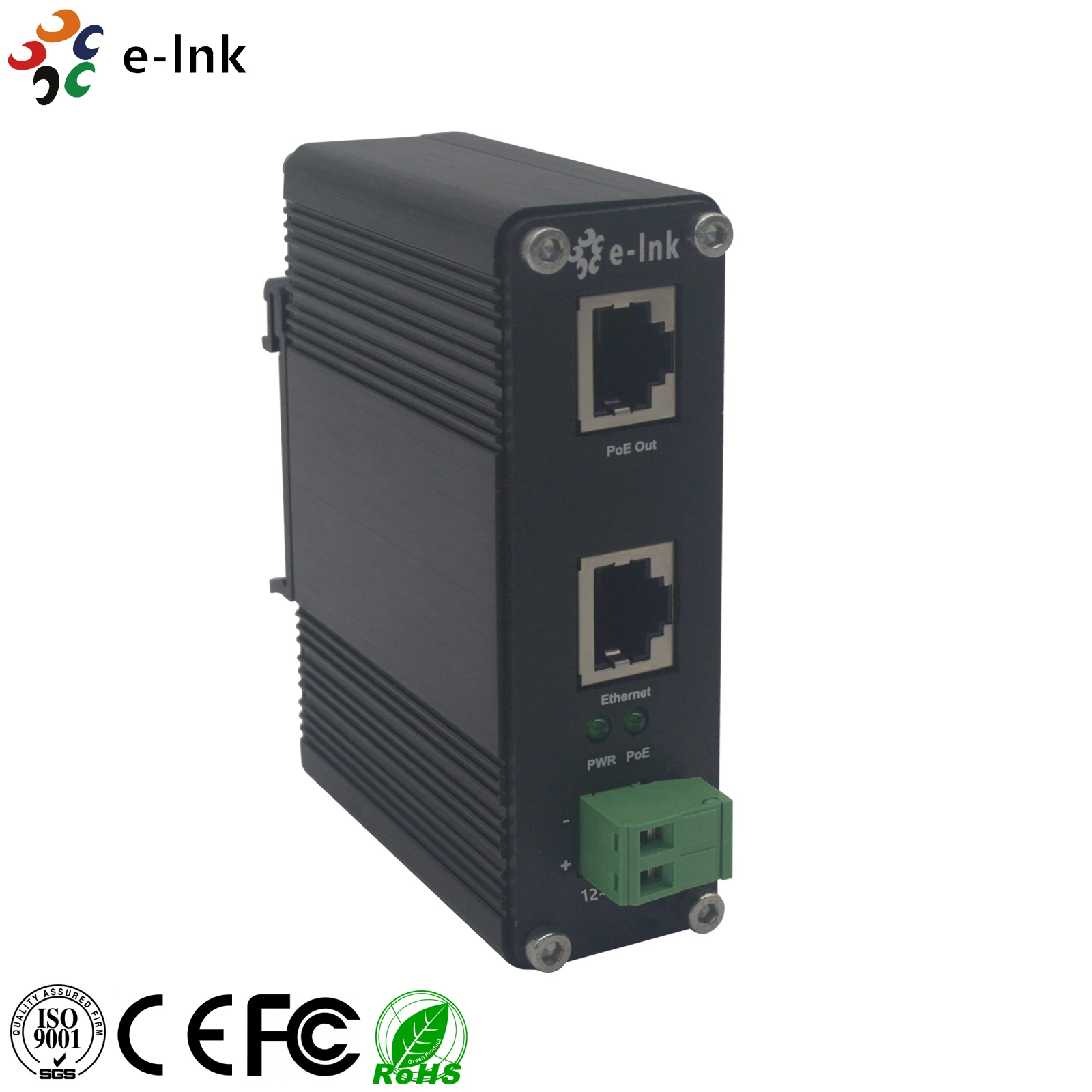

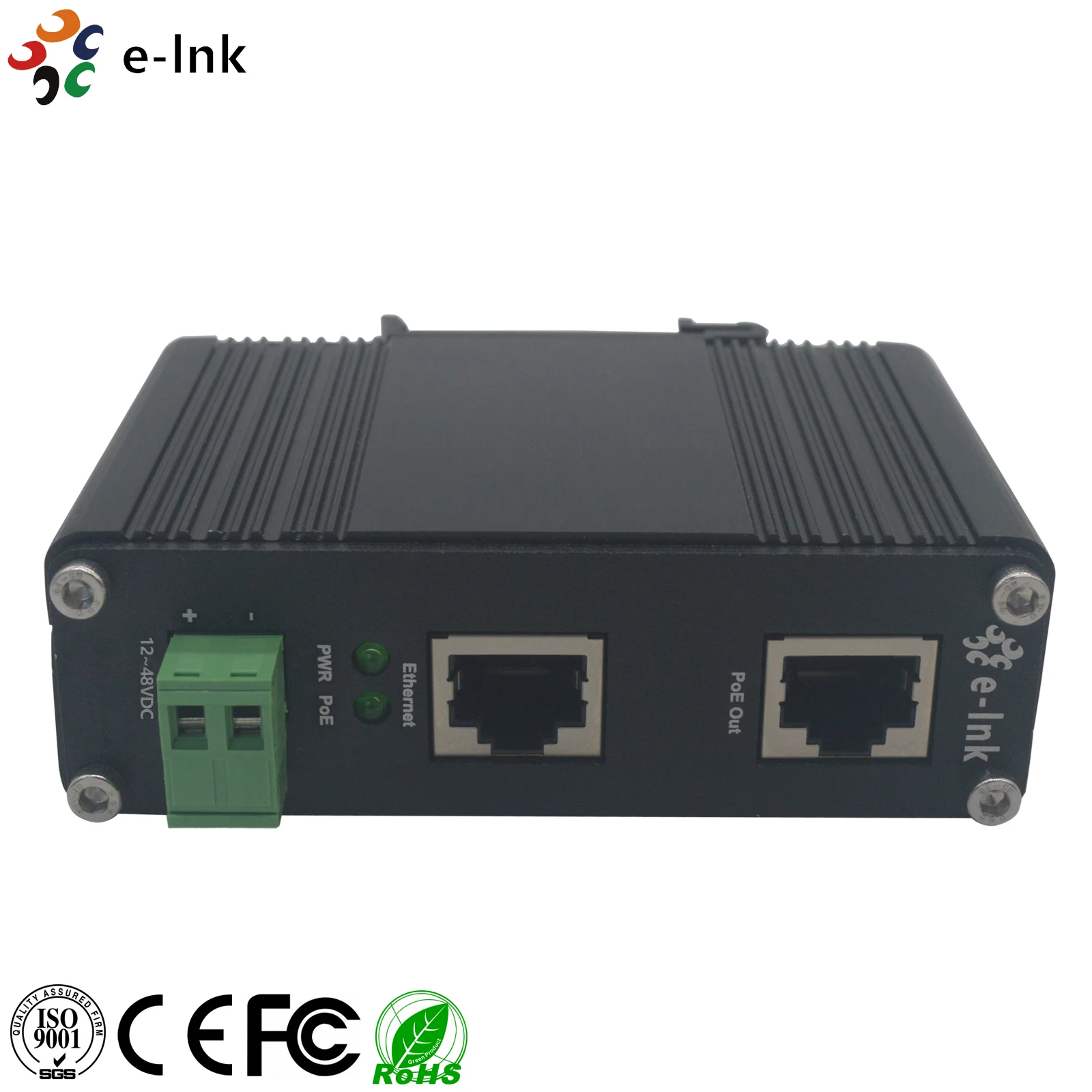

  • 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power
    Over Ethernet Output Port(Data + Power)
  • Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment
  • Support 10/100/1000Base-TX

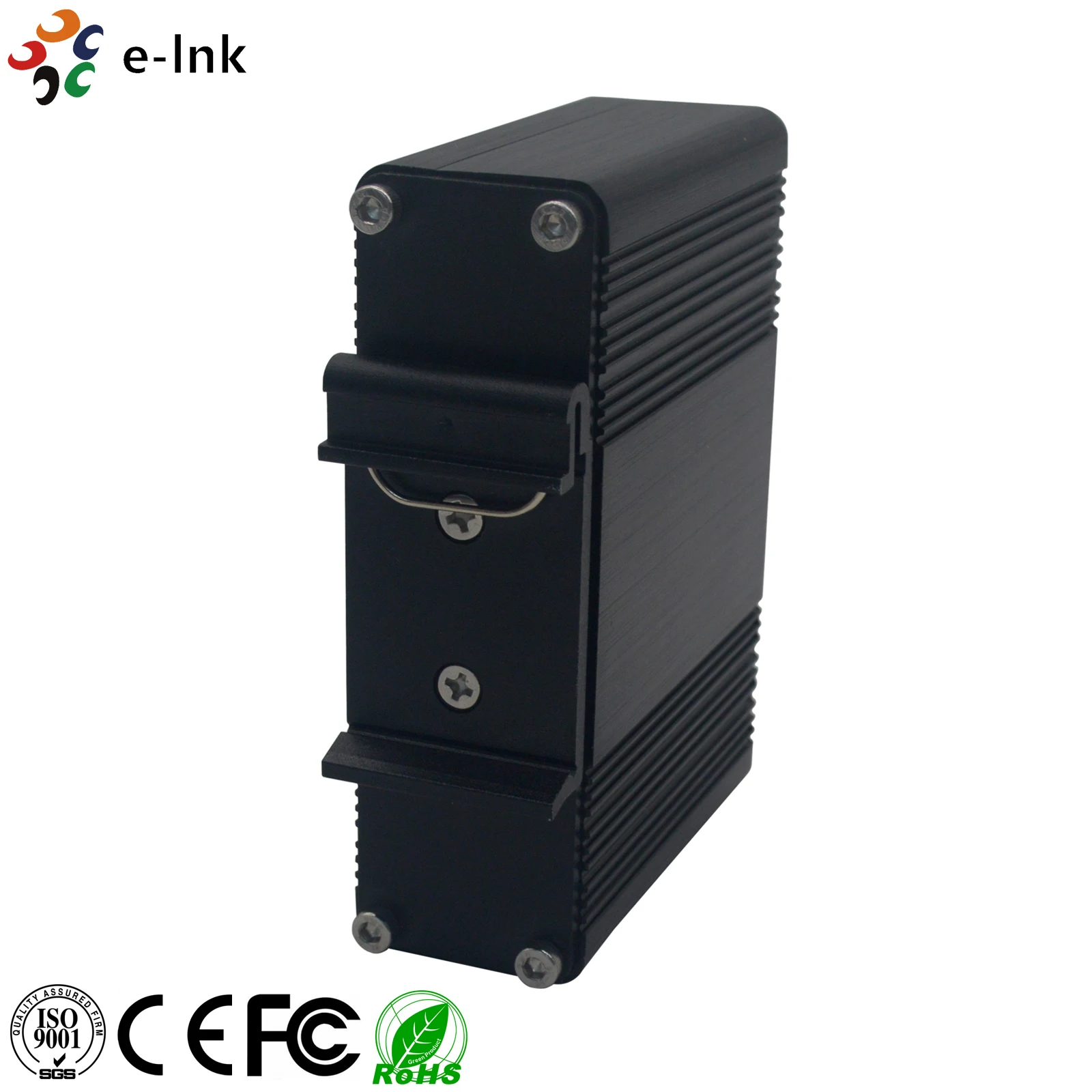

  • Support DIN-Rail & Wall-mount installation.
  • Extensive LED indicators for PoE diagnostics
  • Environmentally Hardened -40°C to 80°C
    (-40°F to 176°F) operating temperature



Warranty

  •  5-Year Warranty





Technical Indexes

Ethernet

Standards:

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

2x RJ45

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Power:

48~57VDC (Terminal Block)

Power Consumption:

36W Max.

PoE:

Standard:

IEEE802.3at

Port:

RJ45

Max. Power per Port:

30W Max per port (Alternative B Mode)

LED Indicators:

Power:

Power Status

PoE:

PoE Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV



Ordering Information

Model

Description

LNK-INJ300

Hardened Gigabit 1-port Ethernet Input + 1-port PoE+ Output Injector

Mounting Options

 Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

 60W/1.25A 48VDC Power Supply. Open Wire for Terminal Block

 Power Supply is to be purchased separately.
