60W 80W 100W 130W 150W 180W 200W 300W Co2 Laser Tube For Cutting Engraving Machine

Feedback Ratings
  • 1-4 Pieces
  • 5-9 Pieces
  • 10-19 Pieces
  • >=20 Pieces
Model Number:
- +
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)


Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Report Suspicious Activity
Quick Details
Applicable Industries:
Manufacturing Plant, Home Use, Printing Shops
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RX-laser energy
Laser Engraving
Product name:
Co2 Laser Tube
Laser type:
Sealed CO2 Laser Tube
6 Months
Laser power:
Max Power:

Packaging & Delivery

Selling Units:
Single item
Single package size:
158X35X35 cm
Single gross weight:
30.0 kg
Picture Example:
Lead Time :
Quantity(Piece) 1 - 1 2 - 10 11 - 50 >50
Est. Time(days) 3 5 10 To be negotiated
Video Description
Product Description

What is co2 laser glass tube?

CO2 laser tube is mainly used for laser engraving machine, laser marking machine, laser engraving machine, laser cutting machine, is the core component light, and can be carved and cut acrylic, cloth, leather, bamboo, wood, engraving, etc.
[HARD GLASS PART] the part formed by firing into the discharge tube GG17 material, water-cooled jacket, storage units and back to the trachea and components. Sealed-off CO2 laser is typically three pipe structure. Innermost discharge tube, the middle is the net water jacket, the outermost layer is the gas storage units, return pipe is used for communicating and gas discharge tubes.

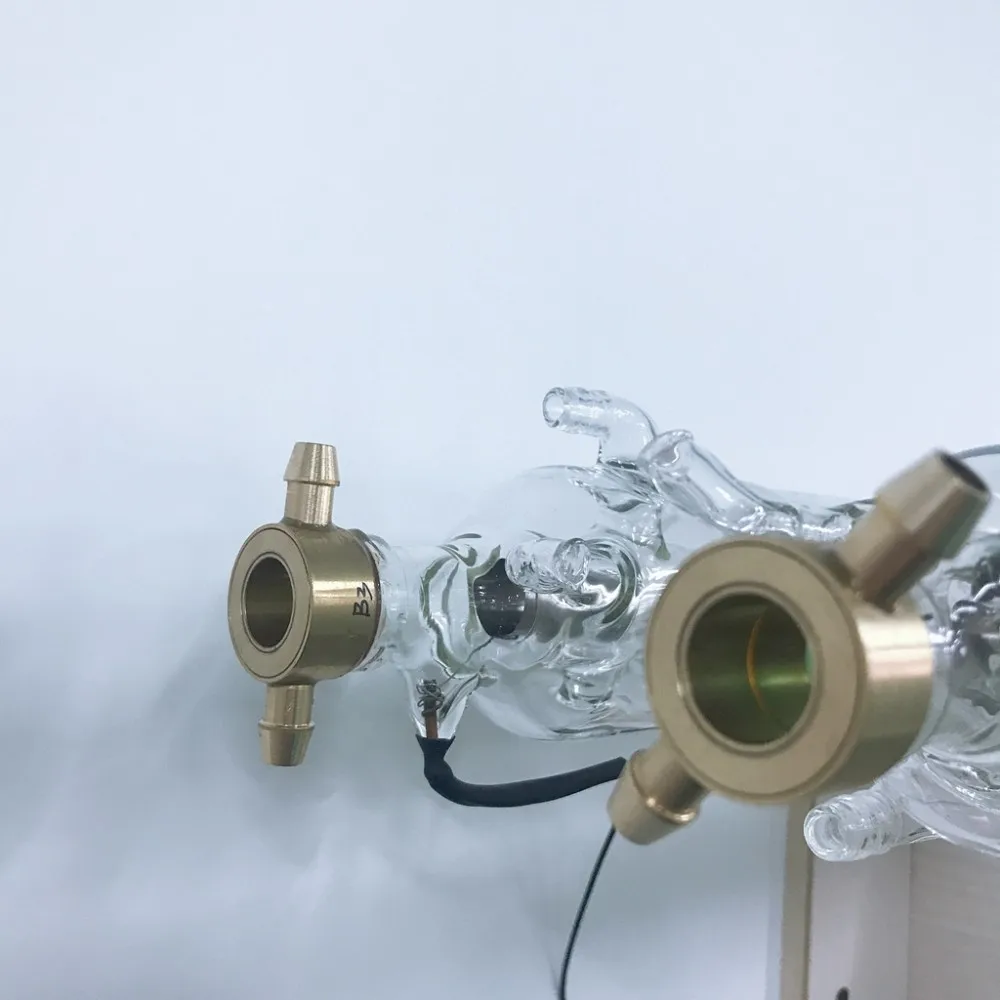

[ELECTRODE PORTION]: CO2 lasers generally use cold cathode is cylindrical in shape, the choice of the cathode material has a great influence on the life of the laser, the basic requirements for cathode materials are: sputtering rate, small gas absorption rate, commonly used metals material nickel.

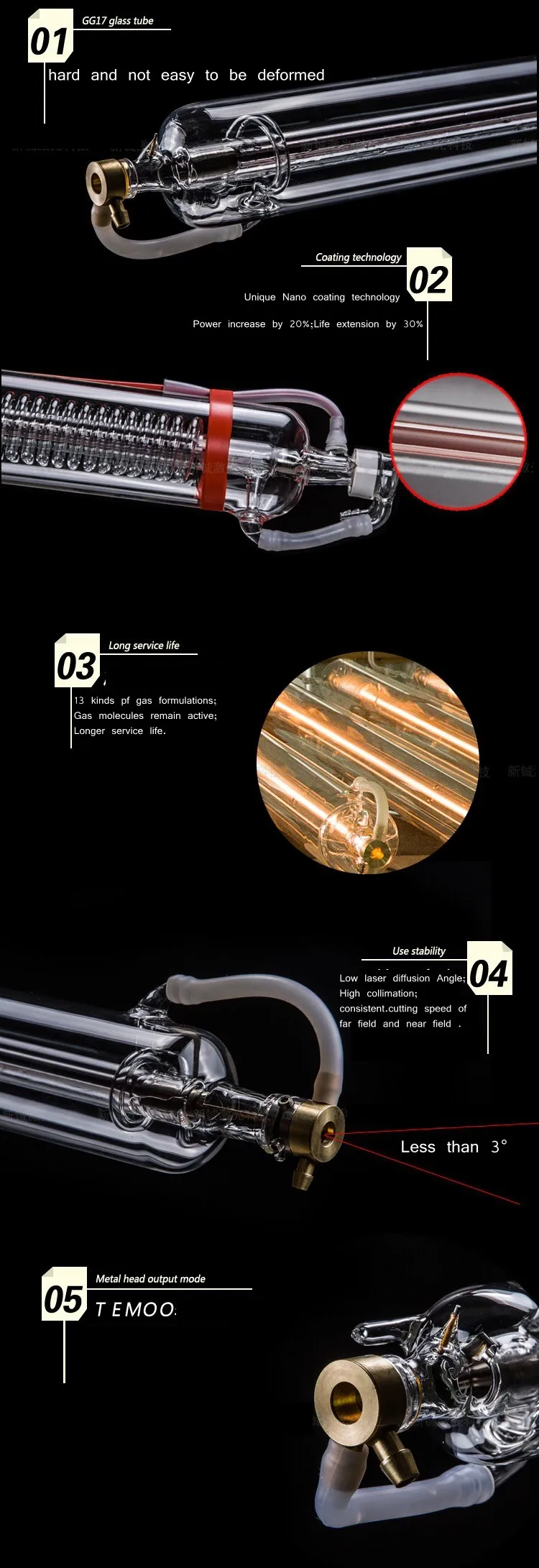

1.Stability: the discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00. The power is table. It is competitive for industrial application.
2. Power: The power is 30% higher than other laser tube with same length.
3. Long Life: the catalyst coating on discharge tube with unique electrode processing makes the laser out put is more stable, avoid power weaken during long time working.

CO2 Laser Tube Application

1) It's a laser source used on co2 laser cutting/ engraving machine to do laser cutting/ engraving on most of non-metal materials;
2) Mainly used industry: outdoor sign, gift, garment, shoes manufacture, as well as medical therapy;
3) Main materials processed with laser cutting/ engraving: leather , cloth , paper, glass, acrylic , wood, MDF, color board, etc.
4) SPT CO2 laser tube has a high quality laser beam

How to identify a good or bad laser tube?

1)Install the laser tube properly;
2)Prepare a piece of acrylic board;
3)Put the acrylic board on the light outlet of the laser tube for laser dot test;
4)If it can form a standard conical hole (it proofs the standard TEMOO Basement Membrane Mode was applied), it means the laser tube is qualified. Then you can use it without any worry.

Installation Requirement

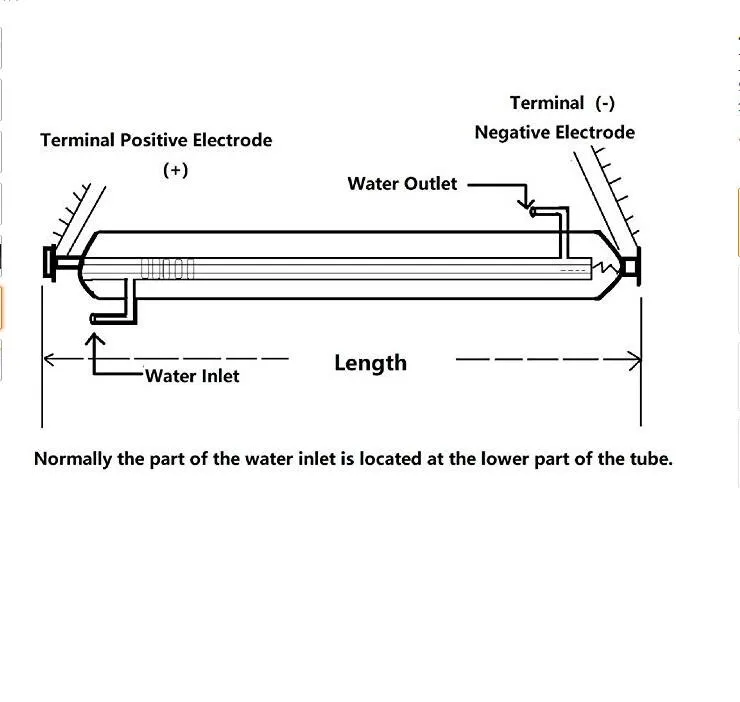

Make sure to follow the operation instruction of model S2 as shown in the illustration. The dedicated power P12should be equipped. The positive pole of laser tube is in high voltage (the ignition voltage is 19kv).
It may cause the following consequence when it is failed to follow the instruction: Arcing; the inner tube
will be punctured by electricity and may cause water leakage.
Operation conditions

Water cooling: using purified water; 2 to 5 liter/minute;
water temperature: 10-40c.
The operating environment: temperature 2-40c; humidity 10-60%.
The working current: test current is 29mA. Maximum working current is 29mA. The running current
must be kept below 27mA. The life span can reach 8,000 hours if the current is kept below 25mA.
The ammeter must be connected to the negative electrode of laser tube.When it is working under over-high current for long term, the negative pole will appear light yellow and the life span will be shortened rapidly.
To protect dust from going into the insulation sheath, please wrap it with plastic film.
Working Performance
Cutting function.
Engraving function: Very good.

When the working current is 4mA and the tube is in the state of preionization,
the laser can be used for high-frequency impulse engraving.
Key Notes
Do not clean the exterior surface of the output widow mirror with tools such as tampon; otherwise
the output power will be seriously affected. The followings are the designated methods to
clean up pollution in the exterior surface of window mirror:
1) When the mirror is polluted, do not turn on the laser.
2) Blow the mirror surface sideways with an air blower.
3) Spray the pure alcohol on the mirror surface with sprayer.
4) Turn on the laser after the alcohol gets fully volatilized.
5) If the methods above don't work effectively, it is necessary to ask for the professional
to use tampon with alcohol to clean the mirror surface from middle to edge. The best solution
is to prevent the window from being polluted.
Attention: it is forbidden to clean the mirror with acetone.
The screws in the front and back ends of the laser tube are not allowed to be moved,
otherwise the output power will be declined, even the tube will be scrapped.
Put the acryl 300mm far away from output mirror, when testing its laser spot.
The laser beam is invisible light. Please wear protective glasses when debugging the laser.
The positive pole is in high voltage. Pay attention to the security marks.
Storage and Transportation Requirement
Pour out cooling fluid in the event of storage and transportation, and cover the output terminal with a dust-proof plastic bag. The storage environment is 2-40c , and the requested humidity is 10-60%. Pack the laser as in the original way.
Important notes: it is requested to use adhesive tape to cement the sponge together with laser tube
to prevent the tube from vertically sliding during transportation. The sponge in the side of output mirror
must be 70 mm beyond it, and the sponge in the side of reflecting mirror must be 50 mm wider.

Technical Data

Model RX-100LT

1)Power 100w

2)Max power 120w

3)Length 1450mm

5)Diameter 80mm

6)Customized  available

More details, please contact us directly.

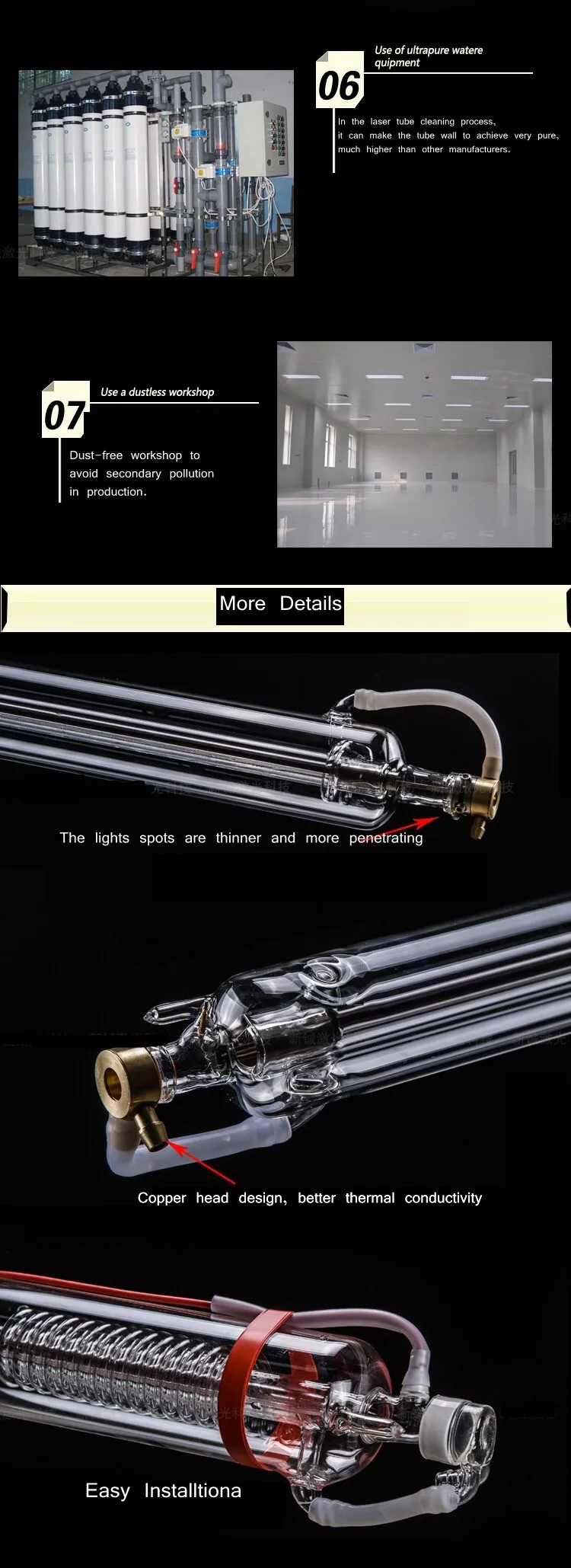

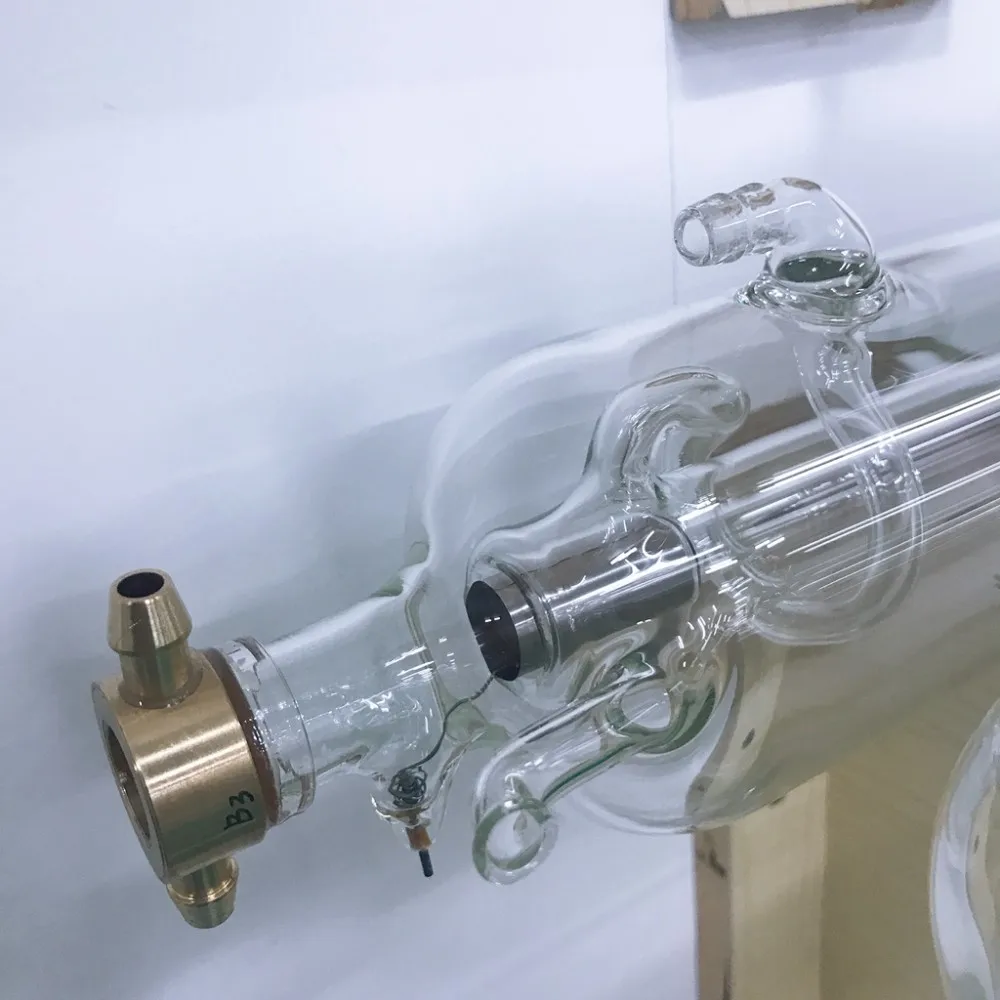

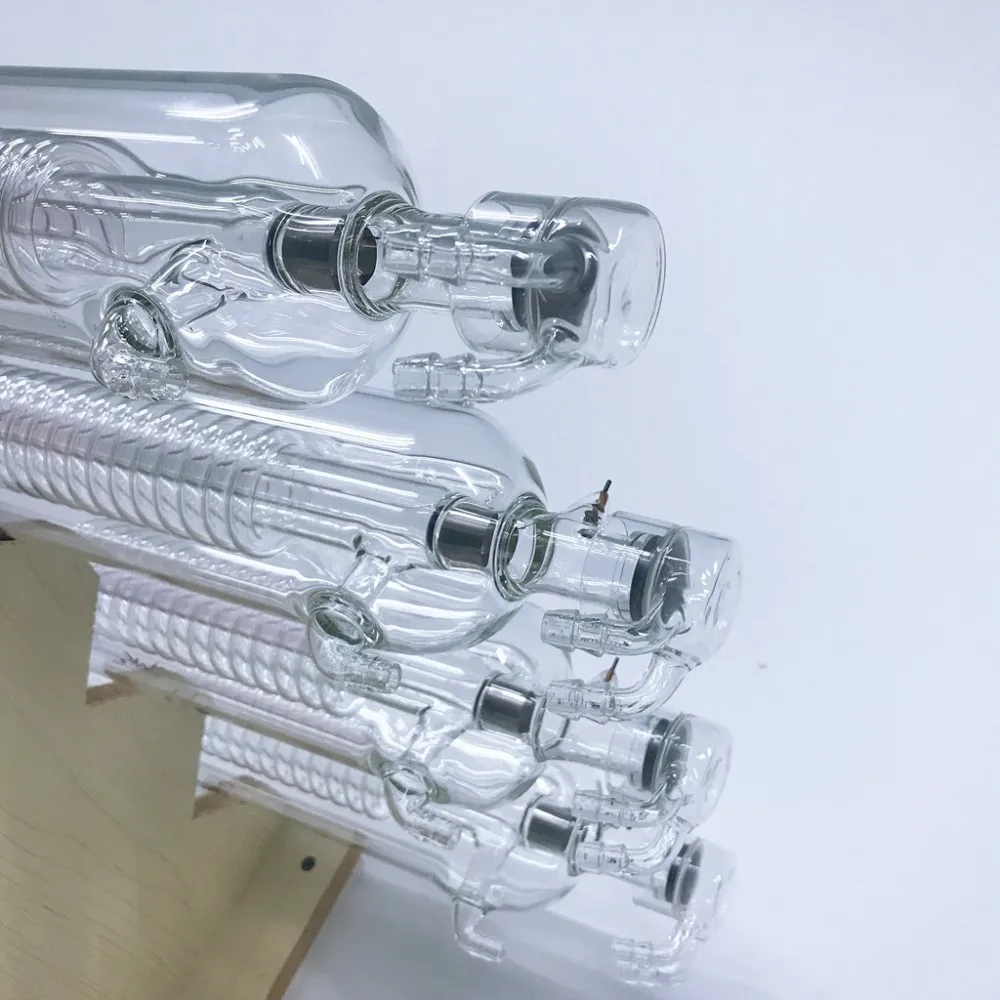

Detailed Images
Where to use

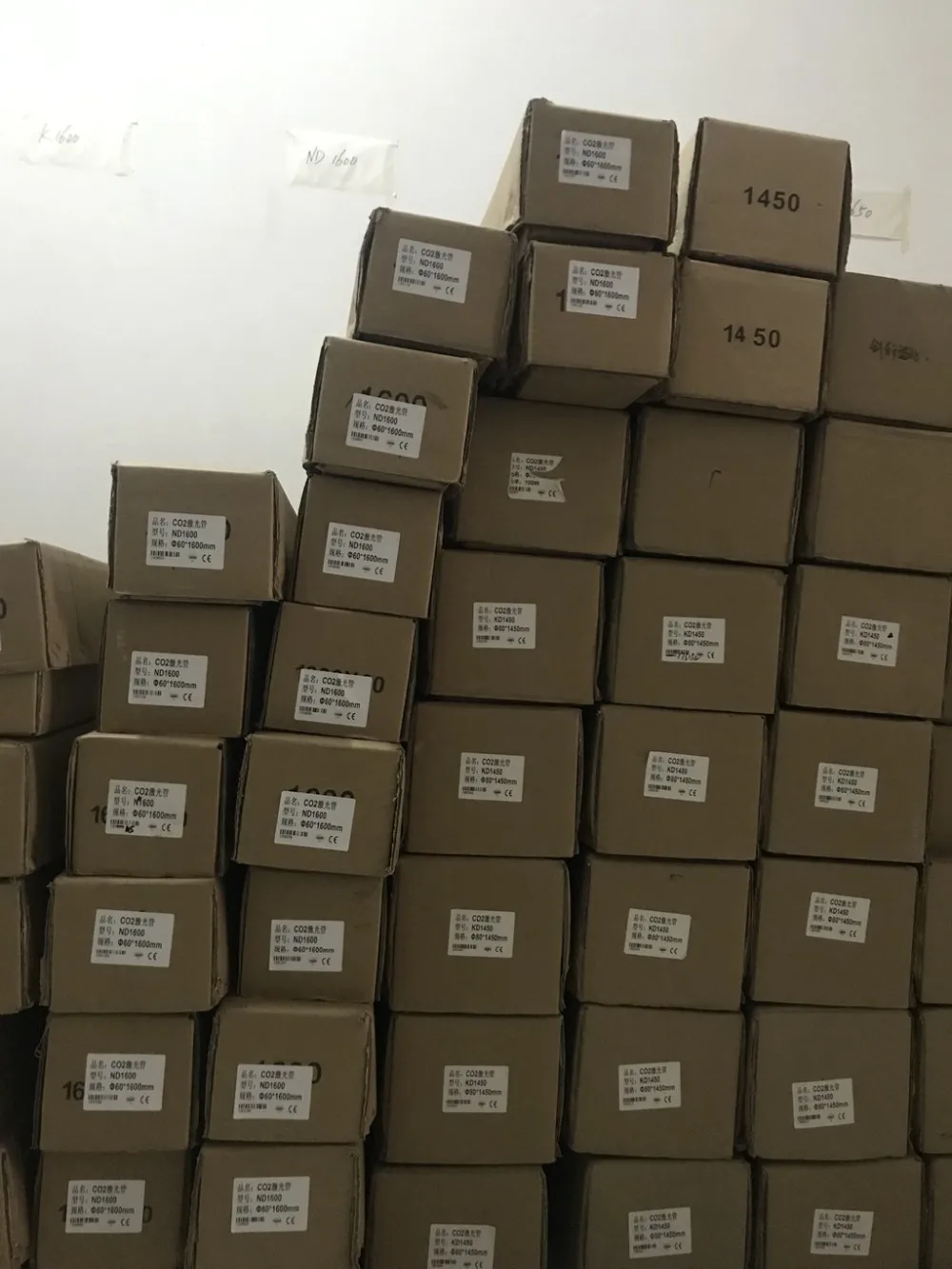

Packing & Delivery
Shipping carton + quake-proof foam or according to your requirement.
Contact us

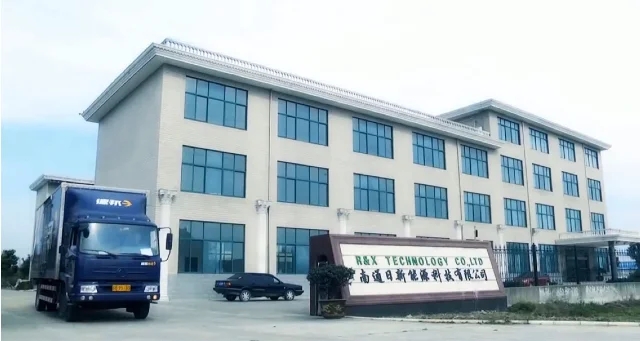

We have been manufacturer for over ten years. Welcome to your visit!
