60W Military Hand Cranking Dynamo Power Generator with Seat Stand

Feedback Ratings
US $340.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
OEM
Model Number:
gr-hpg-60w
Type:
hand cranking
Rated power:
60w
Output voltage:
DC12V/14V/28V optional
Rated current:
3.5A, max. 5A
Rated speed:
60rpm
Output cable:
4x0.75mm2, 2m in length
work temp:
-40 to 125 C
Size:
550*310*110mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
55X27X33 cm
Single gross weight:
34.0 kg
Package Type:
each in wooden box
Lead Time :
Quantity(Piece) 1 - 1 >1
Est. Time(day) 7 To be negotiated
Video Description

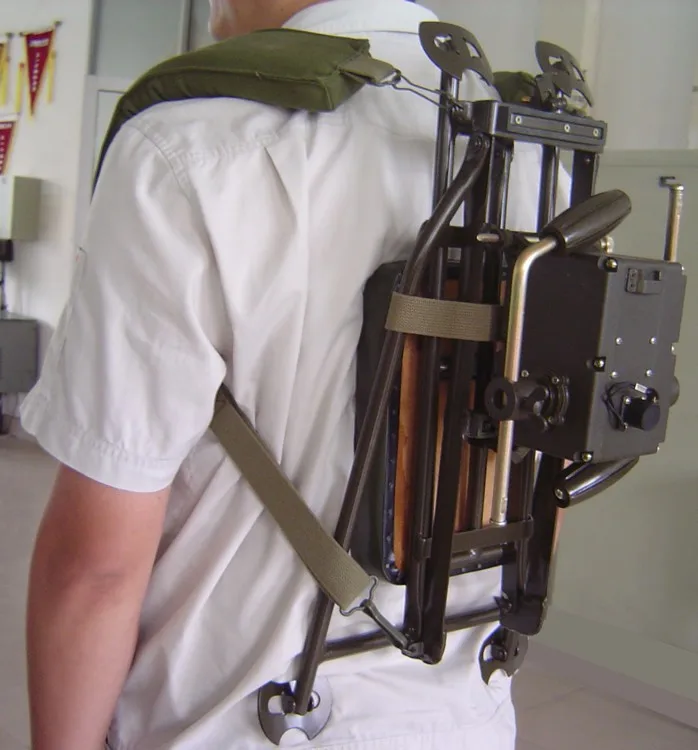

60w Hand Cranking Dynamo Power Generator for both military and civilian use






Used as emergency power supply to radio station and fast charging battery
Apply Nd-Fe-B brushless motor
Rated power from 30w to 65w
2 output voltages are available: 12V / 24V, other custom voltages may be possible
Current & thermal overload protection
With double cranking handles, easy for long use
With foldable seat stand
Pedal stand and tree mount kit , tripod are optional
Highly reliable and long lifetime
Ammeter is optional
Rated power: 60w
Output voltage:

Supply:14±0.5V/4.5A

Charging:15±1V/1-2.5A

Rated speed: 60rpm

Output cable: 4x0.75mm2, 2m in length
Work temp.: -40 to 125ºC
Dimension: 550*310*110mm



Made by national-owned military factory in compliance with military standard, high quality is guaranteed



Production Standard: GJB1842-93 (China National Military Standard)
Quality Certificate: ISO9001-2008








Well packed in wooden box, very safe




Packaging Details
