66 way 3 row L-Q smart home metal 3 phase power distribution box/control panel box/distribution board

FOB Reference Price:Get Latest Price
$51.20 - $248.20 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
matech
Model Number:
Smart home L-Q(MAX 66P)
Product Name:
66way Electrical Distribution box
External dimension:
720*480*140mm/G.W.: 15KGS
Application:
Loading breaker & control module for smart home/building
Material:
Glass panel+metal box/cover+AL alloy frame/rack/hinge/din rail
Certificate:
CE, ISO9001, CCC
Color:
White+black+golden
Installation type:
wall-mounted(flush mounted)
Installation type +:
panel and cabinet split-type installed
closed type:
Magnetic adsorption
Open degree:
180° from right to left
Supply Ability
Supply Ability:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
small panel and panel prame packed into a non-woven bag, larger one packed into a pearl wool case .
all parts in one export brown carton box.
pallet available for large quality and customer requirement.
Port
Shanghai, China
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 5 To be negotiated
Video Description
Product Description

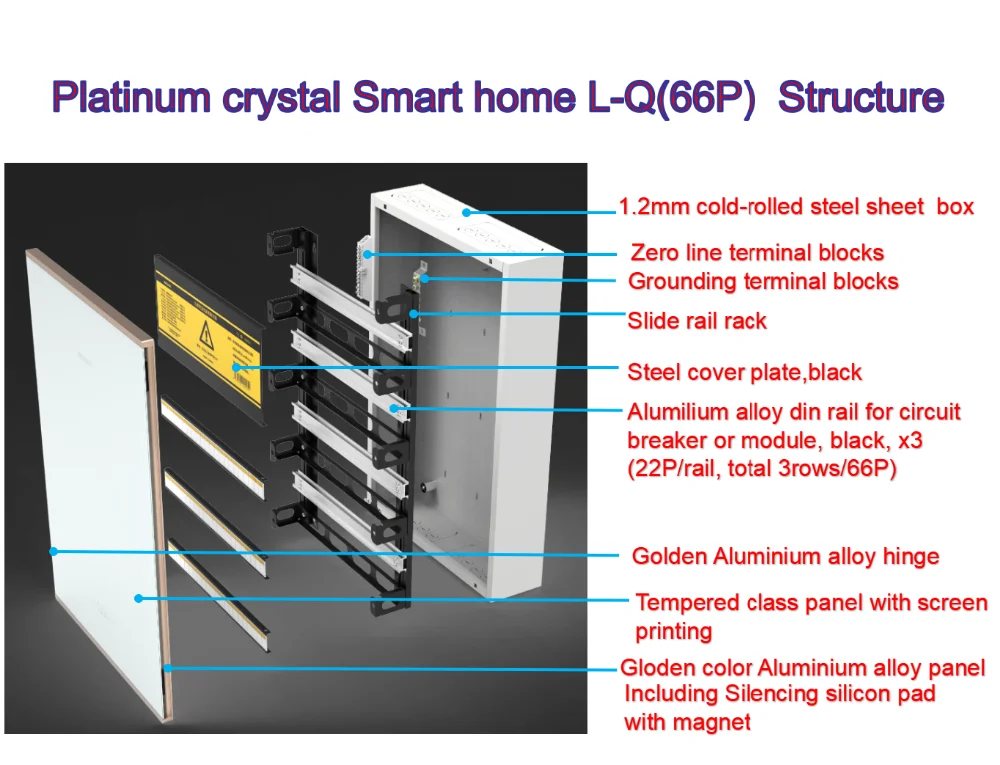

 Material details: L-Q , 66P(3row)

66 way indoor electrical distribution box with tempered glass panel:

Tempered glass panel with white screen printing

Logo:laser printing

Golden Aluminium alloy panel frame

Golden Aluminum alloy hinge

1.2mm cold-rolled steel sheet bottom box

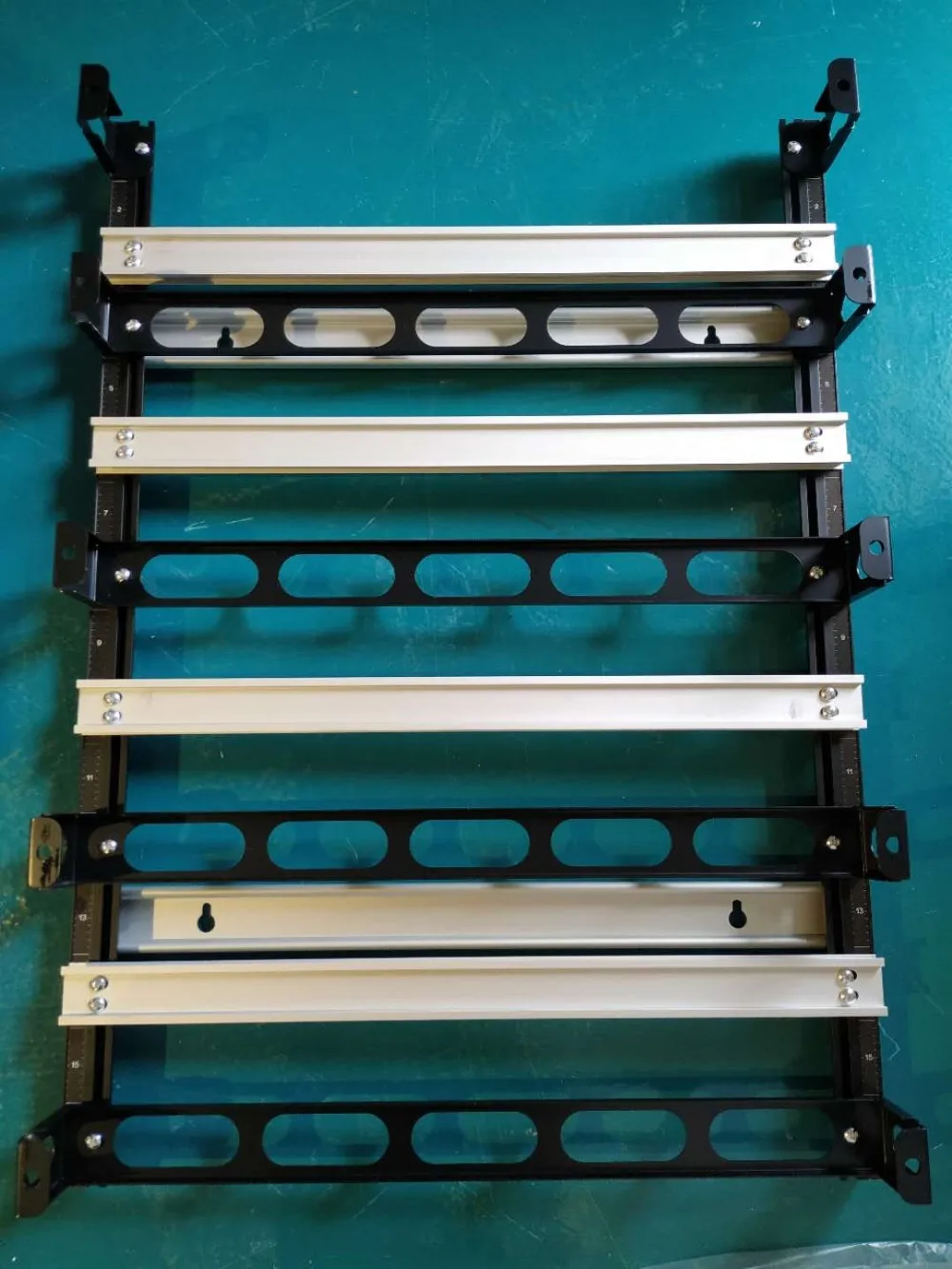

Alumilium alloy din rail for circuit breaker or module, black, x3,(22P/rail, total 3rows/66P)

※Cover for din rail: black steel with powder coating,x3

Zero line termial blocks:10 joint, x1

Grounding terminal blocks:10 joint, x1

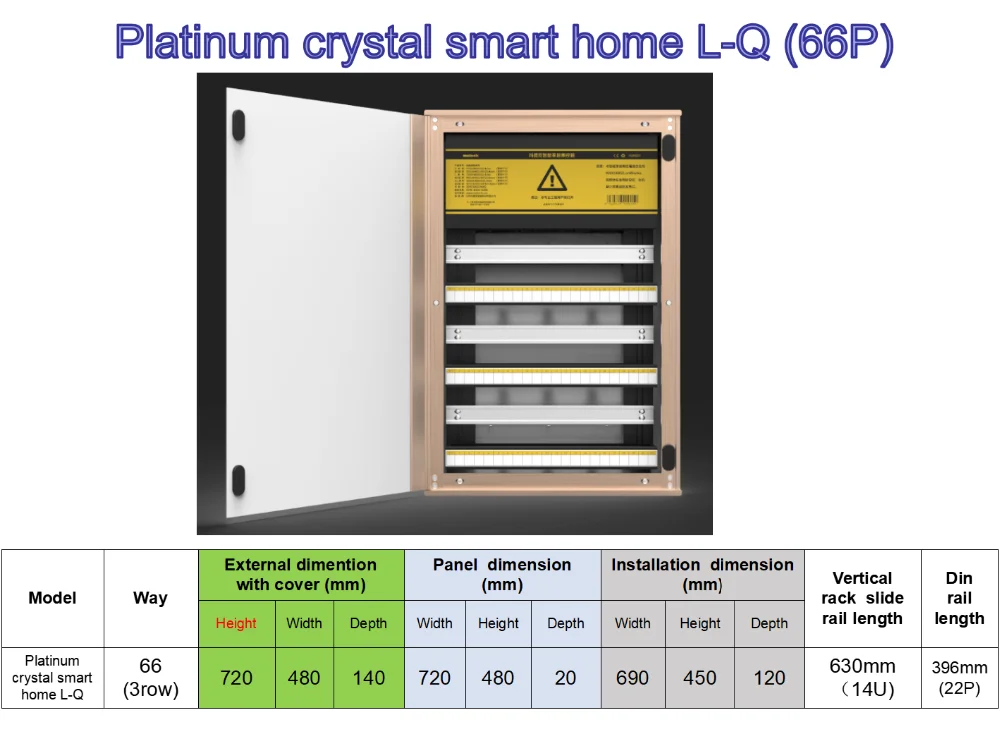

 Dimensions:(HxWxD) L-Q

※ External dimension(mm): 720x480x140

※ Panel dimension (mm): 720x480x20

※ Installation dimension(mm): 690x450x120

Vertical rail length: 630mm

※Per Din rail length: 396mm(22P)



Description /Model
External  dimension (mm)
 Panel dimension (mm)
Installation dimension(mm)
14 way, 1 row /Platinum crystal C-Q/R
332X246X114
332X246X14
300X210X100
20 way, 1 row /Platinum crystal SM-D-Q/R /Platinum metal SM-Q/R
470X310X14
470X310X14
440X270X100
26 way, 2 rows /Platinum crystal SM-E-Q/R
470x310x114
470x310x14
 450x275x100
32 way, 2 rows /Platinum crystal M-C-S-Q/R
480X380X117
480X380X17
450X350X100
42 way, 2 rows /Platinum crystal smart home S-C
520X450X137
520X450X17
495X420X120
63 way, 3 rows /Platinum crystal smart home L-C
790X450X137
790X450X17
765X420X120
44 way, 2 rows /Platinum crystal smart home S-Q
560X480X140
560X480X20
530X450X120
66 way, 3 rows /Platinum crystal smart home L-Q
720X480X140
720X480X20
690X450X120
110 way, 5 rows /Platinum crystal smart home XL-Q
1040X480X140
1040X480X20
1010X450X120

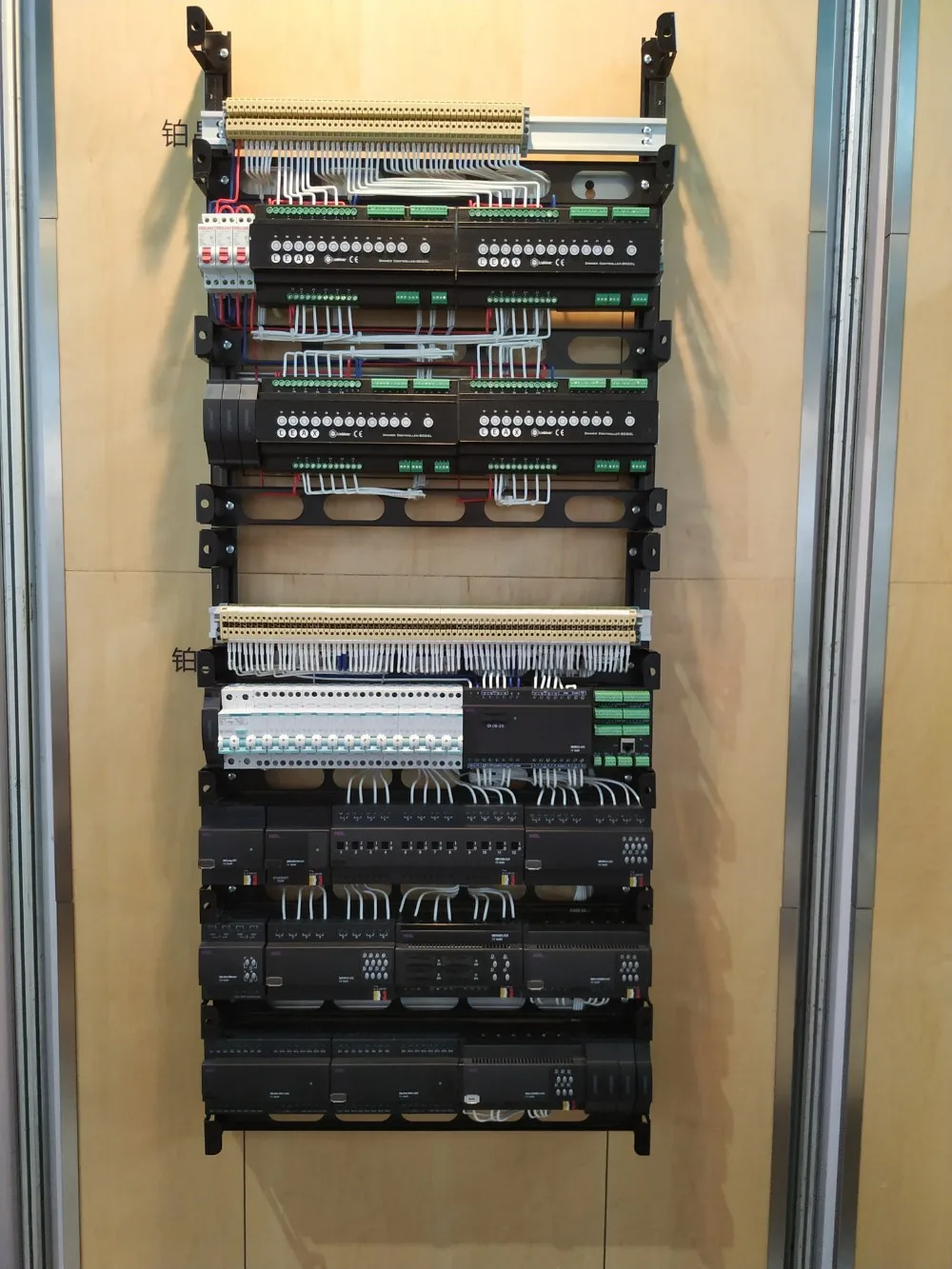

The effect with circiut breaker and smart home control modules: modules can suitable for KNX, ABB, HDL etc. see below pictures:


Related Products

      Platinum crystal

      SM-D-Q(Max.20P)

Platinum crystal smart home

     S-C(Max.42P)


        Platinum crystal

           C-Q (Max.14P)

Our Company

Jiangxu MATECH Intelligent Technology Co., Ltd.,established in 2013 with ten million RMB registered fund, is a company specialized in high-end intelligent distribution box research and development.
The founder Wenbin Cao have been engaged in building wiring project for long time since 2001. He found that the traditional distribution boxes could not satisfy the users any longer with the rise of Smart Home. The users have better taste in the appearance, space structure and manufacture concept.
Perfect appearance and exquisite manufacture are our basic pursuit. What's more, we are absorbed in more convenient installation and debugging, which could reduce lots of fussy operation for integrators.
MATECH means material technology change.
We redefine the concept of intelligent distribution box. We believe that wonderful things have occurred.

Certifications
Packing & Delivery

Packing

small panel and panel prame packed into a non-woven bag, larger one packed into a pearl wool case .
all parts in one export brown carton box.
pallet available for large quality and customer requirement.

Delivery

Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.

FAQ

Q: Where is your comapny located?
A: Our company is located in
liyang city
Jiangsu province,  it is near to Shanghai, Nanjing & Hangzhou.


Q: Are you trading company or manufacturer ?
A: We are manufacturer, aslo can do trading with foreign clients.

Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we can provide the sample,  the cost of product and freight is based on customers.

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance ,balance before shippment.

Q: Is OEM & ODM available?
A: Yes.

Q: How long is your warranty?
A: 2 years.
