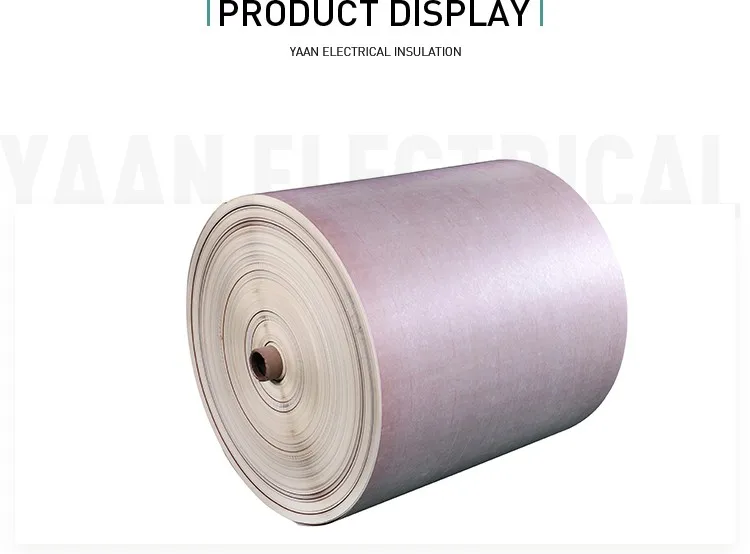

6650 NHN nomex paper polyester film buy from china online

FOB Reference Price:Get Latest Price
$0.10 - $49.50 / Kilogram | 100 Kilogram/Kilograms (Min. Order)
Lead Time:
Quantity(Kilograms) 1 - 10000 >10000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
YAAN
Model Number:
6650 NHN
Type:
Insulation Paper
Material:
Composite Polymer
Application:
High Voltage
Rated Voltage:
0-20KV
Tensile Strength:
10.4Mpa
Temp.class:
class H(155℃) of Flexible Laminate insulation
certification:
UL , ROHS and ISO9001
Form:
roll,sheet,strip
Nominal Thickness:
0.15mm/0.17mm/0.20mm/0.25mm/0.30mm/0.33mm on request
Breakdown Voltage:
8Kv / 9Kv / 10Kv
Bond Strength At Room Temp.:
No delamination
Bond Strength At(200±2)℃,10Min:
No delamination,No blister,No adhesive flow
Sampel:
free sample and big quantity of stock
Export experience:
about 15 years
Factory:
more than 20 years
Supply Ability
Supply Ability:
100000000 Kilogram/Kilograms per Month
Packaging & Delivery
Packaging Details
Flexible Laminate insulation is by carton and pallet or your request.
Port
Qingdao,Ningbo,Shanghai
Lead Time :
Quantity(Kilograms) 1 - 10000 >10000
Est. Time(days) 15 To be negotiated
Product advanage

6650 NHN nomex paper polyester film buy from china online

Features of Factory 6650 NHN electrical insulation material with UL


6650 Polyimide film/polyester fiber non-woven fabric flexible laminate is a three-layer flexible composite material.

--According to different thicknesses of nomex paper, 6650 Polyimide film/polyester fiber non-woven fabric flexible laminate can be divided into kinds. The thicker one(0.05mm) with yellow line, the other one(0.04mm) with orange line.

.


--The thicker Polyester film you choose, the higher electrical strength is.

Properties
Units
Values
Nominal thickness
mm
0.15
0.17
0.20
0.23
0.25
0.30
0.35
Thickness tolerance
mm
±0.02
±0.03
±0.04
Grammage and tolerance
g/m2
180±25
210±30
240±30
260±35
300±40
350±50
430±50


Tensile
strength
MD
No bending


N/10mm
≥80
≥120
≥140
≥180
≥190
≥270
After bending
≥80
≥105
≥120
≥150
≥170
≥200
TD
No bending
≥80
≥105
≥120
≥150
≥170
≥200
After bending
≥70
≥90
≥100
≥120
≥130
≥150




Elongation
MD
No bending


%
≥15
/
After bending
≥10
≥5
TD
No bending
≥20
/
After bending
≥10
≥5
Breakdown Voltage No bending
KV
≥6
≥7
≥9
≥10
≥12
≥15
≥18
Bonding property at room temp.
/
No delamination
Bonding property at 180±2℃ 10min
/
No delamination, no bubble, no adhesive flow
Temp. index of heat-resistance in a long term (TI)
/
≥155

Insulation material:
0.17mm....7KV
0.20mm.....9KV
0.25mm......12KV
Insulation material:
-Thickness:0.08-0.47mm
- In rolls, in sheets, in strips
- Color: White sheet with orange or yellow line.Other colors can be provided on request.

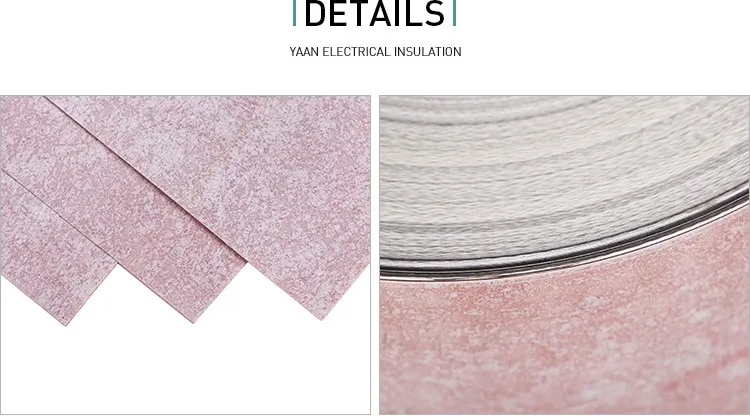

Product details

Wrapped by proctective film;
Packed by standard import & export cartons or.iron pallets.

The 6650 NHN nomex paper polyester film buy from china online is used in Oil-immersed transformer.
