6mm 4ft x 8ft uv protected pmma acrylic sheet

FOB Reference Price:Get Latest Price
  • 500 - 9999 Sheets
    $4.10
  • 10000 - 19999 Sheets
    $3.97
  • >=20000 Sheets
    $3.86
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
XT, customize
Model Number:
PP000
Material:
mma pmma
Thickness:
1.5mm to 300mm, 1mm to 12mm
Size:
1220*2440mm, 2050mm*3050mm
Color:
clear,transparent,Opal white, black&white, opaque colors,
Color2:
more than 80 standard colors , color can be customized
Product name:
acrylic sheet
Sheet type:
Cast Acrylic sheet/Extruded Acrylic sheet
Application:
Advertising, sign, craft, decoration, construction, show stand
Raw Material:
100% virgin lucite material
Certificate:
ISO9001:2008, SGS, ROHS, MSDS,
Certificate2:
Report with Tensile strength, compression strength and impact strength
Free Sample:
Available
Density:
1.2g/cm3
Supply Ability
Supply Ability:
120000 Ton/Tons per Year Payment: 30-45% T/T in advance,the balance paid before shipment;
Packaging & Delivery
Packaging Details
PE film/Kraft paper, export wooden pallet
Port
Shanghai, Shenzhen, Guangzhou, Ningbo
Product Description

6mm 4ft x 8ft uv protected pmma acrylic sheet

The advantages of acrylic sheet :

1 .Excellent Transparency
The light transmission of the clear acrylic can reach to 92.5% .
2. Excellent Weather resistance
High adaptability to natural environment, even for a long time in the sunlight, wind blowing and raining will not change the performance, anti-aging performance is good, protect the product not yellowing, undeformed and the material invariance for years;
3. Good Processing Performance
Both suitable for mechanical processing include laser cutting and CNC cutting and heat forming
4. Excellent Comprehensive Performance
Acrylic has wide varieties ,rich colors, and has extremely excellent comprehensive performance, provides a variety of choices for designers, acrylic can be dyed, the surface can be engrave, painted, silk screen or vacuum coating

Property
Unit
Inspection Standard
Value
Total light transmittance
%
≥91
92.5
Hot forming temp
Degree
-
140-180
Heat Distortion
Degree
-
87
Specific Gravity
T/m3 or kg/dm3
D792-60T
1.2
Tensile strength
Mpa
≥70
77
Tensile Fracture strain
%
≥3
4.2
Rupture
Kg/CM²
3X10^4
Tensile modulus of Elasticity
Mpa
≥3000
3287
Simply Supported Beam without notched impact strength
KJ/m2
≥17
35
Vicat softening temperature
≥100
108
Rockwell Hardness
HRL
≥90
98
Dimensional change on heating(Shrinkage)
%
0.6
Heat Shrink Ratio
%
≤2.5
2
UV Protection
Year
≥3
3

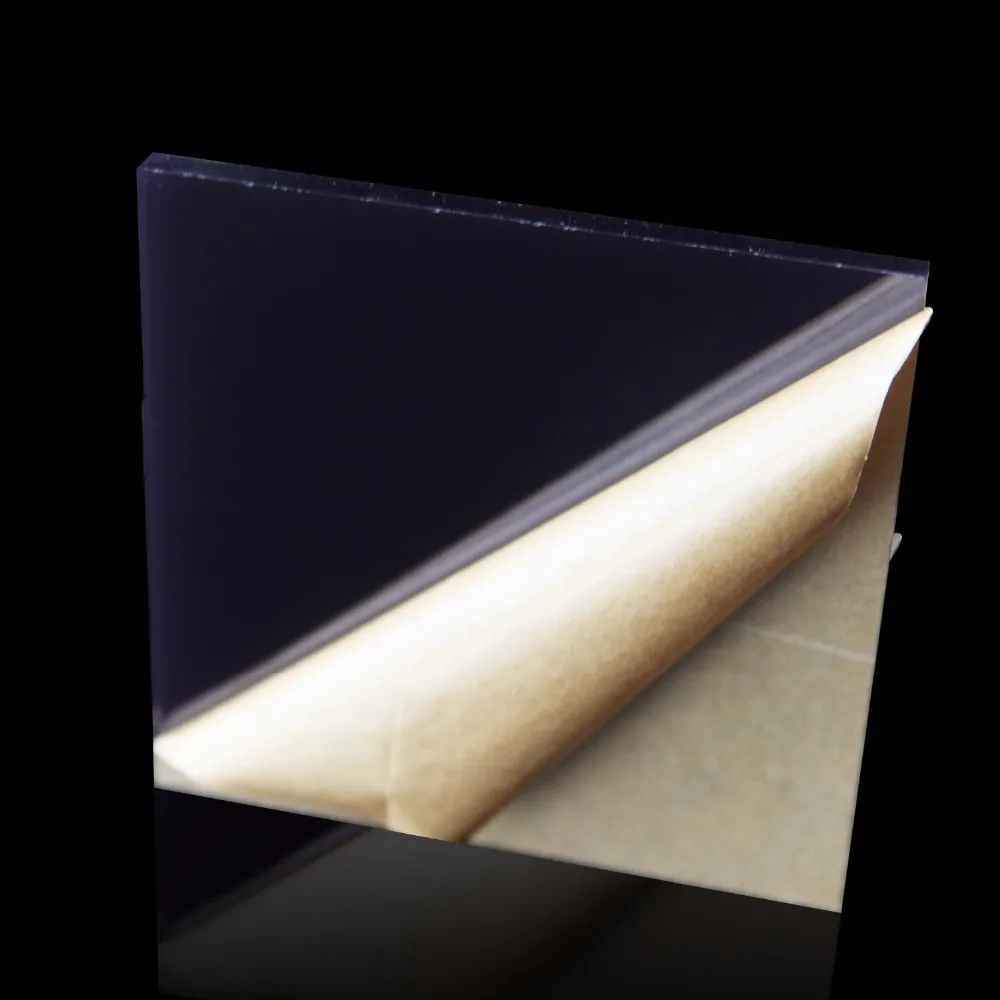

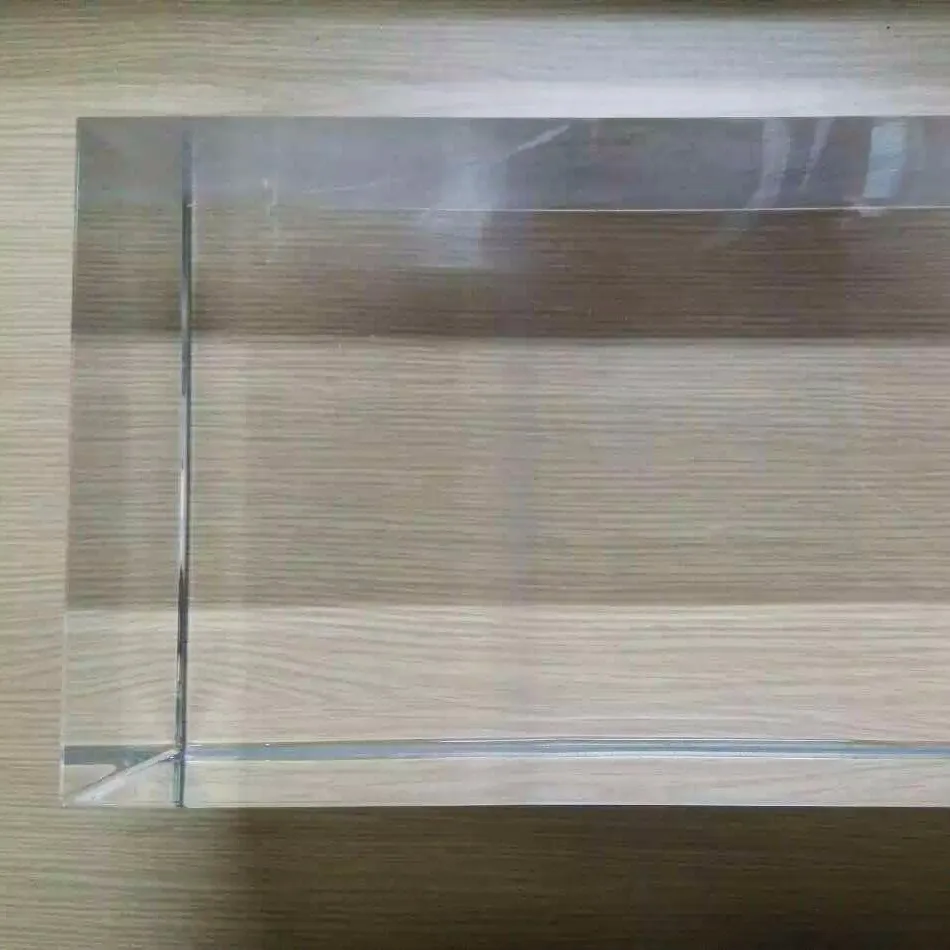

Detailed Images
Honor

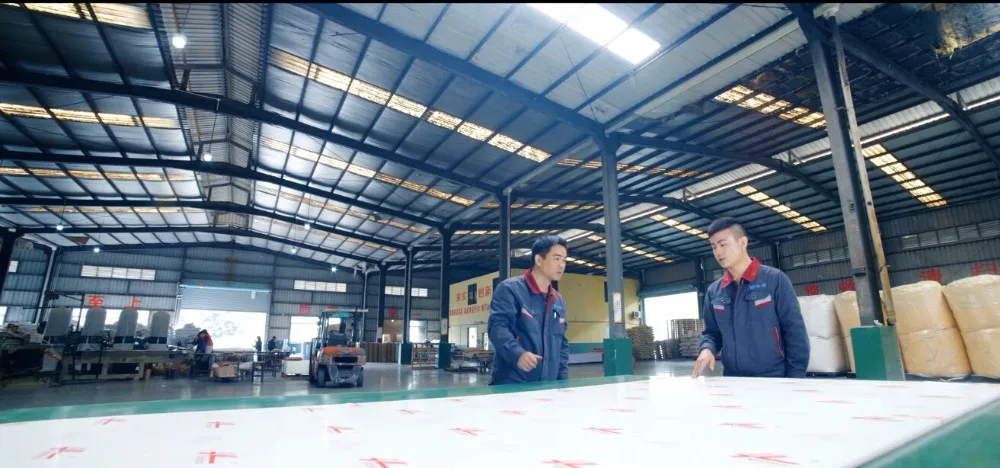

Xintao Group was founded in 2002, with revenue 128 million dollars, which is a collection of production and trade, mainly engaged in producing cast acrylic,extruded acrylic and PS sheet; annual output 60000 TON. Xintao acrylic is the largest manufacturer in China.
Xintao owned:
3 factories: Anhui Xintao, Dongguan Xintao, Foshan Xinshuntao; 19 production lines, 10 ton/line/day.
3 brands:Xintao cast acrylic, Xinshun extruded acrylic, Xinlian PS sheet;
10 flagship stores, Shenzhen,Dongguan,Huizhou, ,Foshan, Zhongshan,Guangzhou,Shanghai,Anhui and so on.
7 sales offices: 5 serving for domestic market, 2 serving for oversea market;
Long-term and stable cooperation with the logistic companies guarantee emergenct demand and transportation.

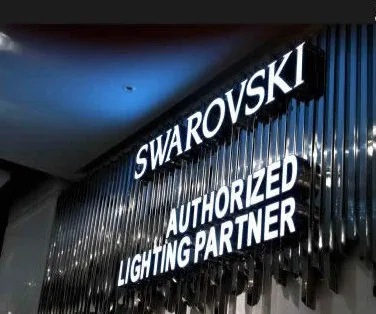

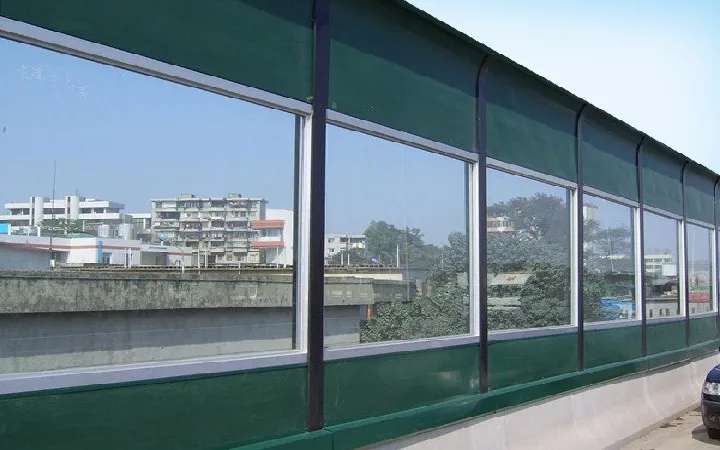

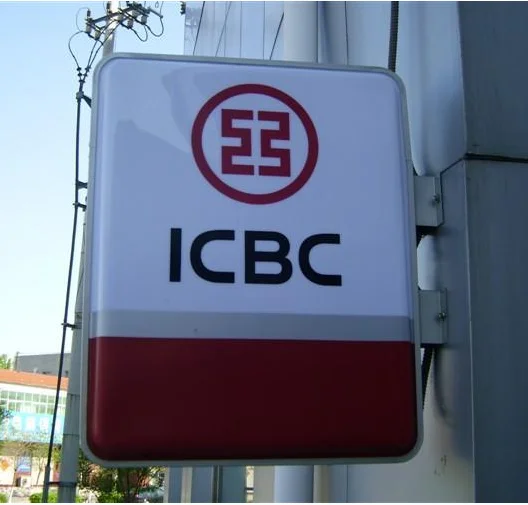

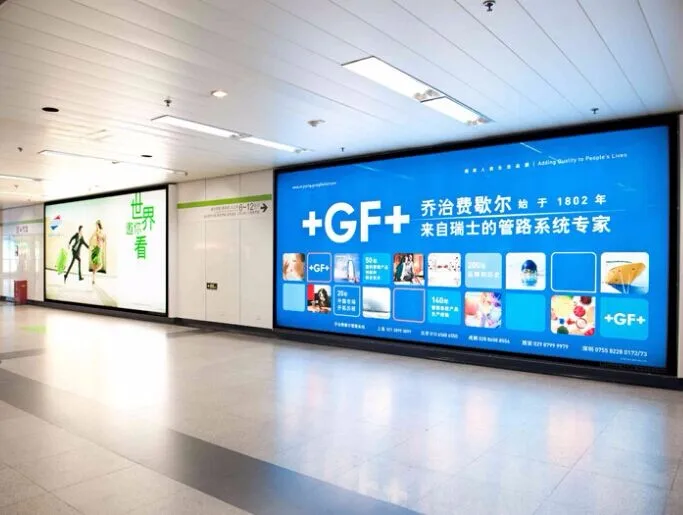

Application

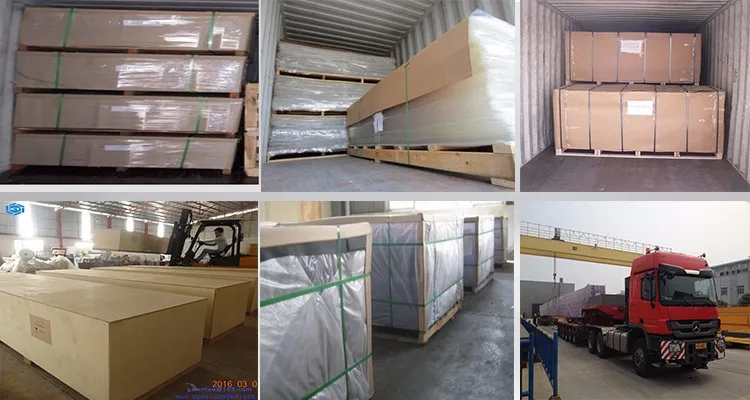

Packing & Delivery

One-stop solution from RFQ to after-sales service

* Inquiry and consulting support.
* Sample testing support.

* Small trail order support


* FAQ for how to use the acrylic sheet/panel support.
* Quality inspection and report support.
*We will help you for the installtion and application.

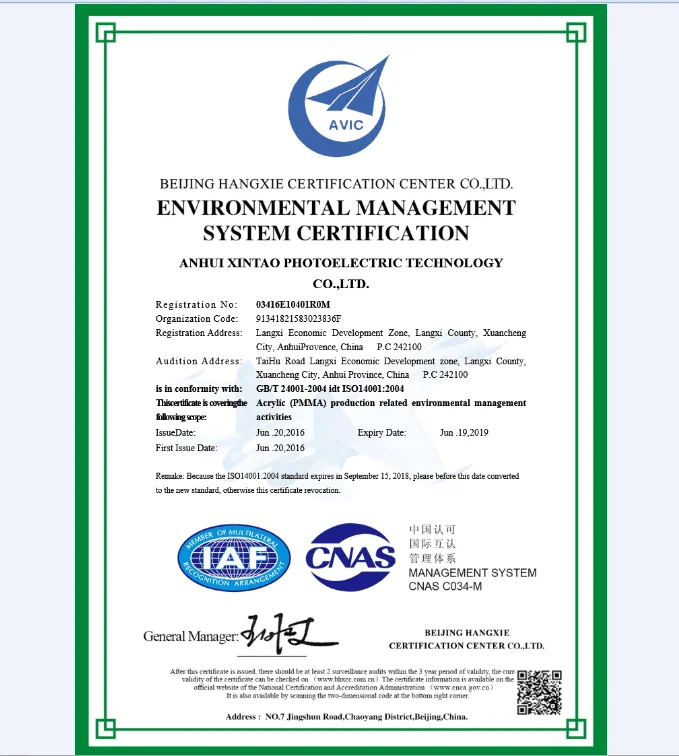

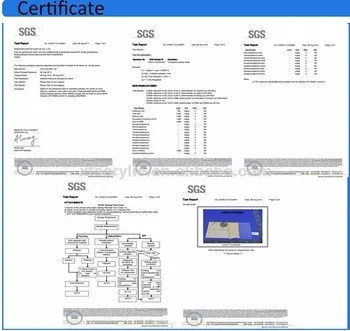

Certifications
FAQ

Difference Between Extruded Acrylic Sheet & Cast Acrylic Sheet

Extruded acrylic sheet and Cast acrylic sheet are all belongs to acrylic products. But there is still some different points because of the difference production process. Detailled difference between Extruded acrylic sheet and Cast acrylic shee as follow:
1. Transparency :Cast acrylic sheet transparency is more than 98%, while the Extruded acrylic sheet is only around 92.5%;
2. Property :Cast acrylic sheet has high molecular weight, excellent stiffness, strength and excellent chemical resistance. This feature is suitable for small quantity processing, there are unmatched flexibility in color and surface texture, and complete product specifications for a variety of special purposes.
Compared with the Cast acrylic sheet, the extrued acrylic sheet has low molecular weight, weaker mechanical properties. However, this feature is conducive to bending and thermoforming process, fast plastic vacuum forming in dealing with the larger size sheet;
3. Tolerance :Extruded acrylic sheet thickness tolerances is lower than cast acrylic sheet. Extrusion acrylic sheets is crowded high-volume automated production, the tolerances can be controlled at ± 0.1mm. Cast acrylic sheet tolerances is increasing based on the thickness (check the acrylic sheet size of chart);
4. Color & thickness : the Extruded acrylic sheet color adjustment is inconvenience because of the big extrusion machine, so the product is limited by a certain color,normally only keep the clear color , also the thickness normally is under 12mm because of the extrusion technology. The cast acrylic is easy to make any color.
5. Exterior : Cast acrylic sheet is high transparent without dotting . For the Extruded acrylic sheet will be squeezed edge dotting. For the B-level board can see the edge is yellow. For the A-level panel edge also seems a little yellow.
6. SIZE : Extruded acrylic sheet will choose 1.83M * 1.22M and 2.44M * 1.22M, the width is notmally around 1.22m . While Cast acrylic sheet length and width can be customer chosen , (but not too wide, this will cause deformation and big tolerance, check check the acrylic sheet size of chart).
7. APPLICATION : EXTRUSION ACRYLIC sheet is normally used for LED products , light guide panel , diffuse panel and someplace need the small tolerance sheets. Cast acrylic sheet is used for the handcraft products or the bathroom, with the varity thickness and color. For the other place , both is ok.
