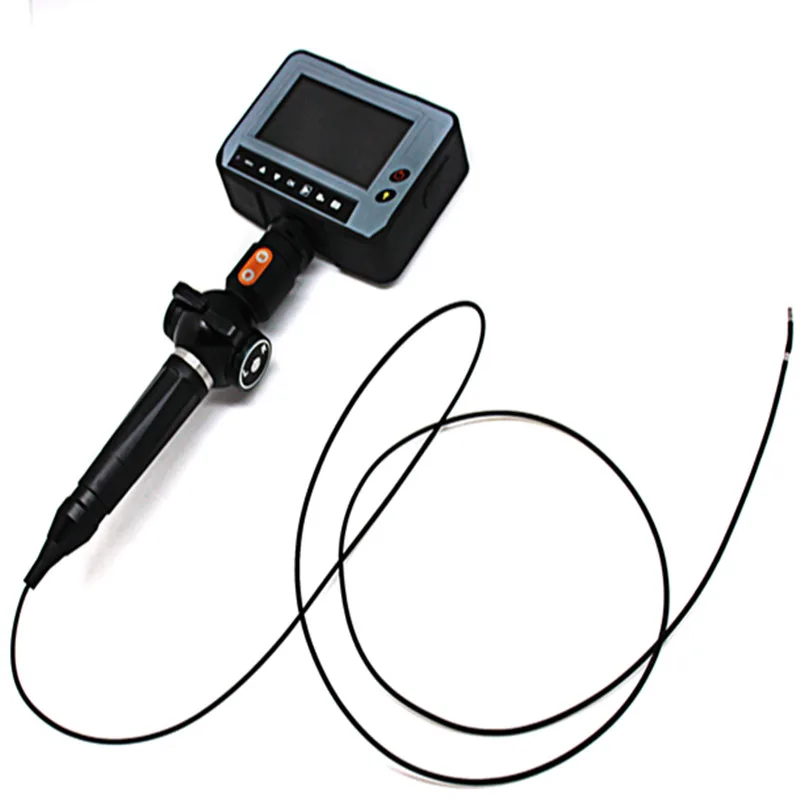

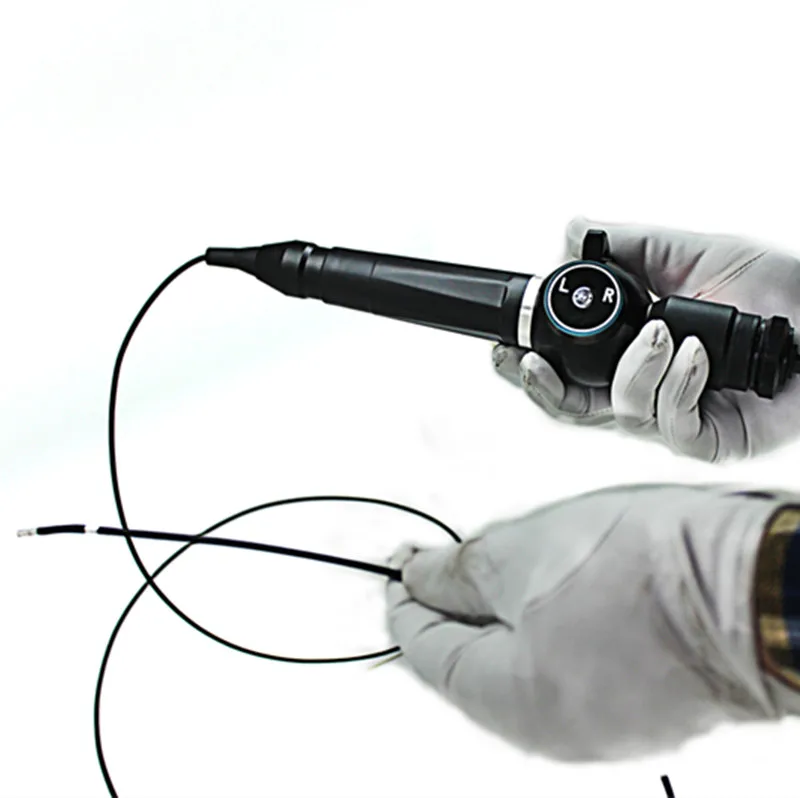

6mm video borescope security infrared camera for Public security use

FOB Reference Price:Get Latest Price
$3,500.00 - $5,000.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 2 - 10 11 - 30 >30
Est. Time(days) 5 10 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
NGTEC
Model Number:
SNR6100F-J
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Product name:
video borescope
Lens:
6mm
Cable:
1.5m
Feature:
4ways articulating
Display:
4.3inch
Image Sensor:
1/4 CMOS
Resolution:
680*480
Keyword:
borescope
Warranty:
1 Year
FOV:
90degree
Type:
Digital Camera
Style:
Mini Camera
Technology:
Pinhole
Supply Ability
Supply Ability:
100 Unit/Units per Month borescope
Packaging & Delivery
Packaging Details

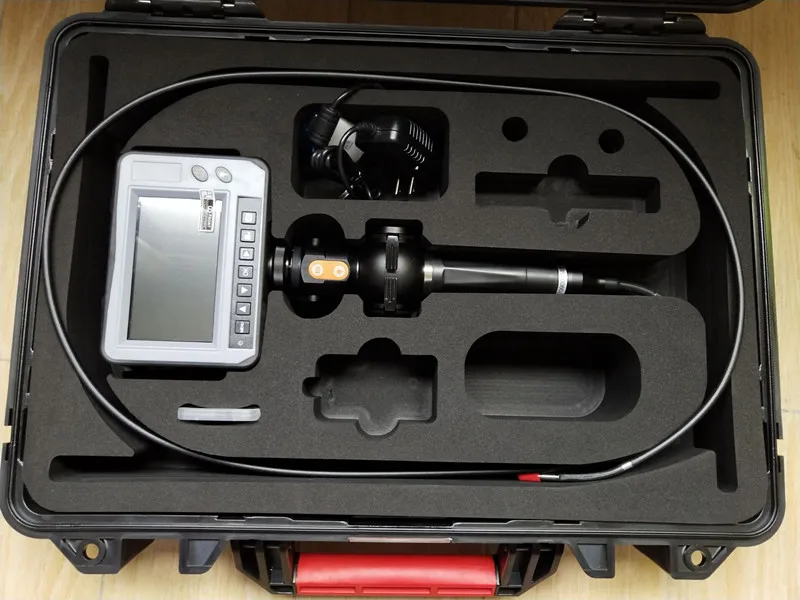

Borescopes are mainly packed with Tool case and carton
Port
Ningbo / Shanghai / Shenzhen
Lead Time :
Quantity(Units) 1 - 1 2 - 10 11 - 30 >30
Est. Time(days) 5 10 20 To be negotiated
Video Description
Product Details
Display:
4.3inch
Lens:
6mm
Cable:
1m-3m can be made
Resolution:
680*480
FOV:
90degree
DOV:
3cm~unlimited
Feature:
4ways articulation
Waterproof:
IP67

Technological advantage
1, Portable design, easy to operate, charging for lithium, work time extension lasting, to examine a variety of industrial piping or the narrow and complicated inner space of a device corrosion, crack, weld, foreign body, wear and the internal parts processing etc. can be fine by comprehensive detection;
2, ergonomic design concept, beautiful appearance, perfect the use of feelings;
3, braided tube outer cover smooth polyurethane (four layer structure), alloy steel lens shell, rotating joint outer cover wear black steel woven sets of products in the harsh working environment, durable;
4, optical system lens, depth of field, wide angle large, dark ring mirror illumination increased several times than the normal lens;
5, the mechanical control of the four direction of rotation, single side bending is greater than 150 degrees, the control of flexible labor saving, improve working efficiency, the relative power steering failure rate is low;
6,  intelligent camera, video integrated function, easy to record the test data;
7,  super bright 4LED lighting, lighting system design optimization;
8, 4.5 inch LCD display, providing smooth, real, clear, stable and stable detection screen; image can be mirror, zoom, contrast and other functions.


Application domain:
1, aerospace industry: used in aircraft structure, engine, blade inspection products
2, automobile production, maintenance: for automobile parts, engine inspection products
3, power production, construction units: for wind power plant, hydroelectric power plant, thermal power plant and electric power construction units to detect the product endoscope detection
4, precision casting and mechanical manufacturing: for the production of machinery parts, casting unit inspection products
5, petroleum, chemical, pressure vessel industry: used in the petroleum, chemical, and pressure vessel industry's inspection products
6, railway, ship, construction engineering, research units: for the locomotive, turbine, engineering, pharmaceutical, food pipeline inspection products
7, defense and military security, security: for weapons and equipment, public safety inspection


Specification:

Camera OD
6mm
FOV
90
Resolution
450.000 pixels
Camera case
Alloy steel
DOV
3cm~unlimited
Lighting type
940nM infrared light
Articulation
4ways
Control way
Internal mechanism of internal resistance
Bend angle
>120°
Probe length
1.5m-3m

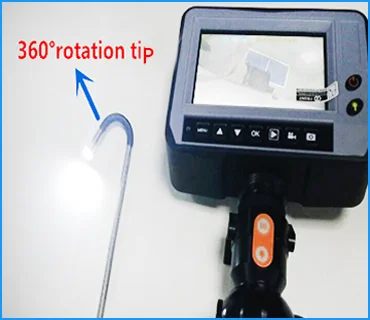

Axial control
360°rotation
Insert tube
Tungsten cable
Weight
3.4KG for whole equipment
Size
14.5cm X 10.5cm X 4.5cm
Power supply
Lithium battery: 2000maH, 3.7V
Structure material
PC shell
LCD screen
Highlight 4.5 inch monitor
Brightness adjustment
Manual adjustment
Data I/O port
USB2.0 port, Tvout video signal output
Memory
8G high speed SD card (maximum support 32G)

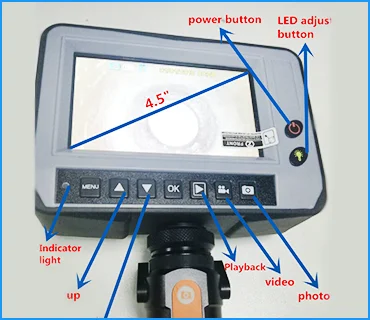

Key function
Menu operation, video, photo
White balance
Automatic white balance
Image function
Image image, zoom, preview
Language support
Supporting 7 countries
Display Operating temperature
-10℃~50℃
Relative humidity
Maximum 90%, no condensation
Video probe operating temperature
-20℃~60℃
Waterproof
IP67
Storage temperature
-20℃~60℃
MorePopularProducts
Product Application
Company Information
Product Process
Certificates
FAQ

Q:Are you a factory ?
A:We are a factory setted up more than 10years and export more than 5years

Q:When is the delivery date?
A:5-15 days in general

Q:Could you send me a quotation ?
A:Sure, before the exactly quotation we need information followed:
1.Product model
2.Product specification
3.Product quantity


Q:How about the shipping ways?
A:Our products are mainly shipped by door to door express like DHL, TNT, UPS, FEDEX, etc.,

Q:What about the shipping package?
A: Goods mainly packed by Tool cases and cartons.
