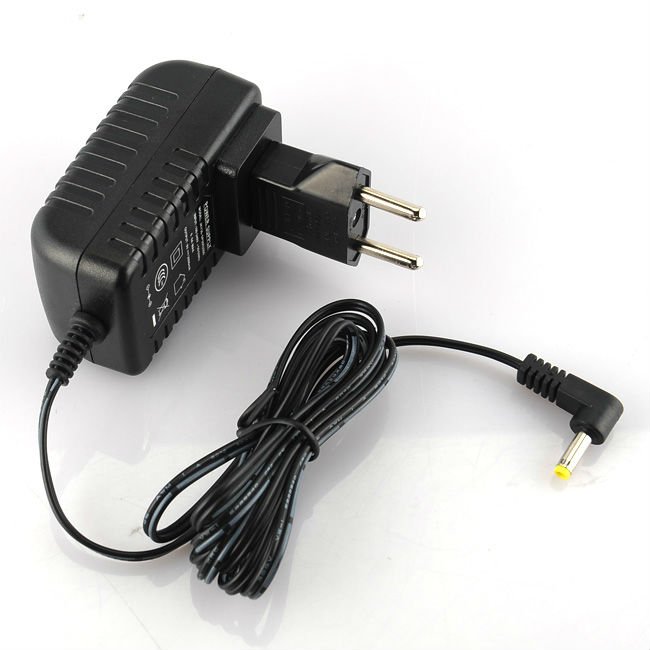

6v 300ma dc adaptor

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Piece | 100 Piece/Pieces samples are available (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Hylook
Model Number:
HL-W06-003
Connection:
Plug In
Output Type:
DC
Color:
Black
Warranty:
12 months
Ripple noise:
100mv
Input Voltage Range:
AC 100-240V
Power cord length:
1.2m
Efficiency:
>85%
Packaging Quantity:
100pcs/carton
Material:
ABS
DC connector:
5.5mm*2.1mm
MOQ:
100pcs
Usage:
Switching
Supply Ability
Supply Ability:
5,000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Package quantity: 50pcs/carton Dimensions: 44*39.5*18.5cm
Port
Shenzhen
Lead Time :
within 7 days after receipt of payment

                                                      6v 300ma dc adaptor







                    Good quality and competitive price

                    Small size, light weight and easy taking

                    High reliability and long life

                    Brand new, work as genuine parts, and 100% OEM compatible







TECHNICAL PARAMETER:



l         Input Voltage:                          AC100-240, (50/60Hz)

l         Range Voltage:                       AC90-264, (47/63Hz)

l         Output Power:                        1.8w

l         Output Voltage:                       6v

l         Output Current:                       300ma

l         Over Current Protection:        120% min

l         Over Voltage Protection:       120% min

l         Short Circuit Protection:         Auto Recovery

l         Load Regulation:                    ±5%

l         Leakage current:                     0.25mA/240Vac

l         Overload:                                  >105% rated output power

l         Protection type:                        Hiccup mode, recovers automatically after fault condition is removed

l         Overvoltage:                             120%-160%

l         Protection type:                        Clamp by internal circuit

l         Over-temperature:                  140 degree Celsius typically

l         Protection type:               Shut down O/P voltage, recovers automatically after temperature goes down.







GENERAL SPECIFICATIONS:



l        Operating Temperature:       0-40°C

l        Storage Temperature:          -20-85°C

l        Temperature coefficient:     +/-0.03%/ degree Celsius ( 0-40 degree Celsius)

l        Humidity:                              5~95%RH

l        Withstanding Voltage:         AC 3000V(Min)(between input and output) 5mA(Max)

l        Insulation Resistance          DC 500V 100MΩ (min) (between input and output)

l        Efficiency:                                88% MIN

l        Vibration:                           10 to 500Hz, 2g 10mins/1cycle, period for 60mins, each along X,Y,Z axes







 Terms of payments and MOQ



T/T (30% as deposit,70% before shipping)

Western Union

MOQ:100pcs







 Time of delivery



5-7 days after get deposit and also depend on your order QTY.





Package

  1. small white box.
  2. PE plastic bag
  3. Modified and customer supply also available.





Test



Burn-in text

Power supply shall be burn-in for 4 hours under normal input and 80-100% rated load at 40°C±5°C





Height



 1m,the product should be fall off on the hardwood with the thickness of 20mm,and the hardwood shall be put on the base of the cement or on the ground without flexibility.Apply two times on all surface.





MTBF



  The MTBF shall be at least 50000 hours at 25°C,full load and input condition.









 Product Features:



 1.Safety performance, high reliability and safety in accordance with the standards and procedures for applying for Certification of production



2. are original authentic electronic components,OVP OCP SCP,



3. Bright green power IC solutions, low-power design, efficiency in more than 83% static power consumption is minimal, low heat, high temperature burn-in of full load, 100% after 4 hours, strict aging test, the constant voltage constant current test, negative rate is low, the quality assurance



4.All materials are free from (and not exceed the prescribed limits) of the European limit / disable cadmium, chromium, lead, mercury, PBB and PBDE, six kinds of toxic substances.



 5.a large number of SMD, compact structure, small size, fine appearance



 6.Packing: export packaging, a single white box, and then into the outside box



 7.GB USA Europe Regulations United Kingdom Regulations Australia Regulations Korean regulatory sundial optional, etc. can be customized according to customer needs.











We offer:



 1.Good quality: with professional and experienced engineers, strict with quality, low repair rate, strong production capacity.



2.Competitive price: We are factory ourselves, so that we can control the cost and to seek more profit for our customers.



3.Excellent service: online service for customers, good after-sales service: provide the replacement or free accessory if any problems within 1 year warranty



 4.OEM orders and large wholesale, the cable length and plug are customizable.
