7.3m/24ft German Motor Industrial Ceiling Fan

FOB Reference Price:Get Latest Price
$1,650.00 - $2,000.00 / Set | 1 Set/Sets (Min. Order)
Electric Current Type:
AC
Model Number:
XV5-7.3
Air Volume:
13600 M3/MIN
Speed:
50RPM
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Applicable Industries:
Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Advertising Company
Blade Material:
Aluminum-magnesium alloy
Mounting:
Ceiling Fan
Place of Origin:
Henan, China
Brand Name:
ZX
Power:
1.5kw
Voltage:
220V/380V
Certification:
CE
Warranty:
1 YEAR, 1 Year
After-sales Service Provided:
Online support
Product name:
7.3m/24ft German Motor Industrial Ceiling Fan
Motor origin:
Germany
Color:
Customizable
Usage:
Industry Greenhouse
Application:
Warehouse,industry,etc.
Fan Diameter:
7.3M/24FT
Number of blades:
5/6
Product type:
Industrial Giant Ceiling Fan
Feature:
Low Noise Energy Saving
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
1.One for Blade and other spare parts
2.One for Motor and Control Box
Port
Qingdao Shanghai Tianjin
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 25 To be negotiated
Video Description
Specification


7.3m/24ft German motor Industrial ceiling

Fan Manufacturer


This series of industrial energy-saving fans is a high-volume low-speed fan with a diameter of 7.3 meters and a rotation speed of only 50 RPM. This series introduces the wing blades manufactured by Belgium's advanced technology and applies the principle of air science to promote the most effective air movement and form a circulating airflow field within a certain spatial range, resulting in an oversized natural breeze system.
Can be customized according to customer size
Industrial fan specifications
Model
Maximum speed
Fan body weight
Motor Power
XV5-7.3
50RPM
127KG
1.5KW
XV6-7.3
50RPM
140KG
1.5KW
XV5-6.1
60RPM
120KG
1.5KW
XV6-6.1
60RPM
130KG
1.5KW
Detailed Image

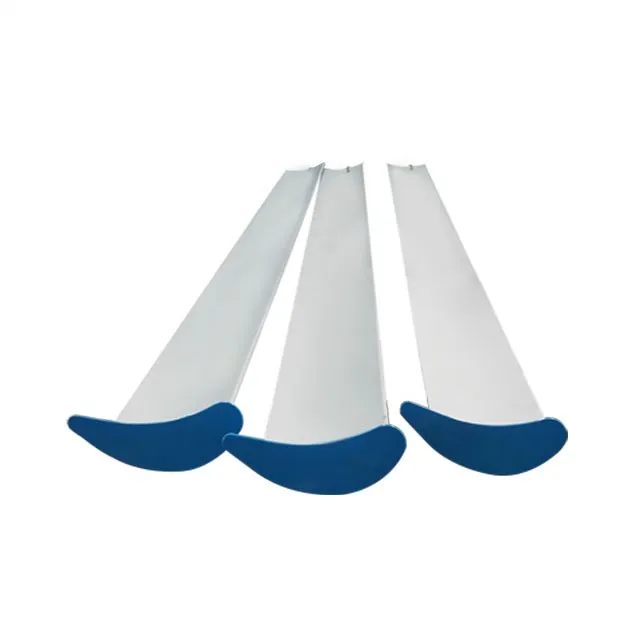

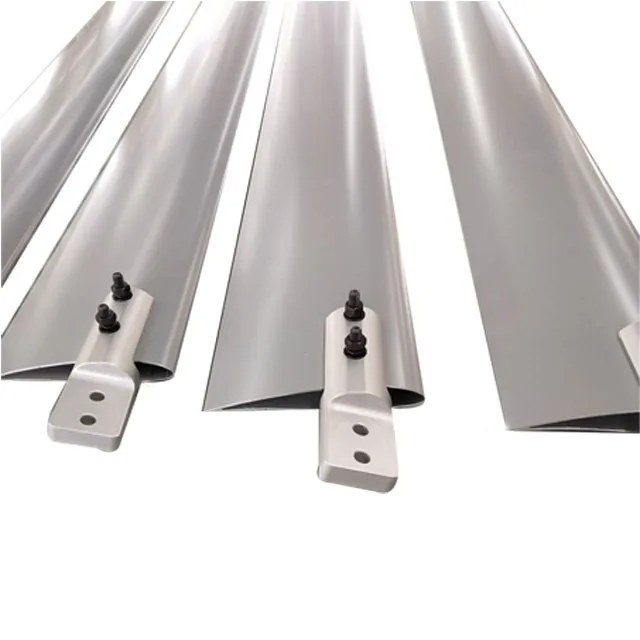

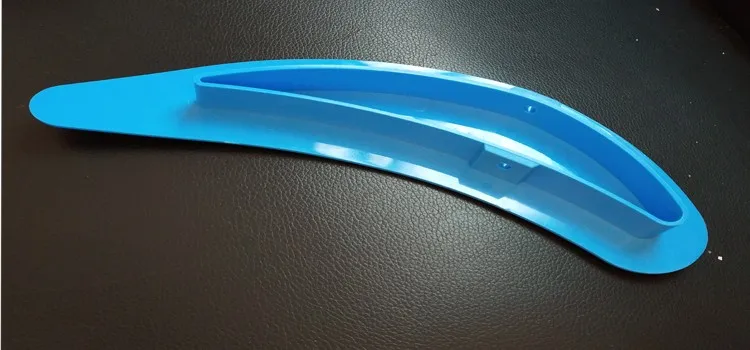

Belgium wing type high strength aluminum magnesium alloy fan blade

The unique wing design of the tail wing increases the stall angle, reduces drag, reduces wind noise, and stabilizes the blade. The fan blade material is imported from Belgium with special high strength magnesium alloy.

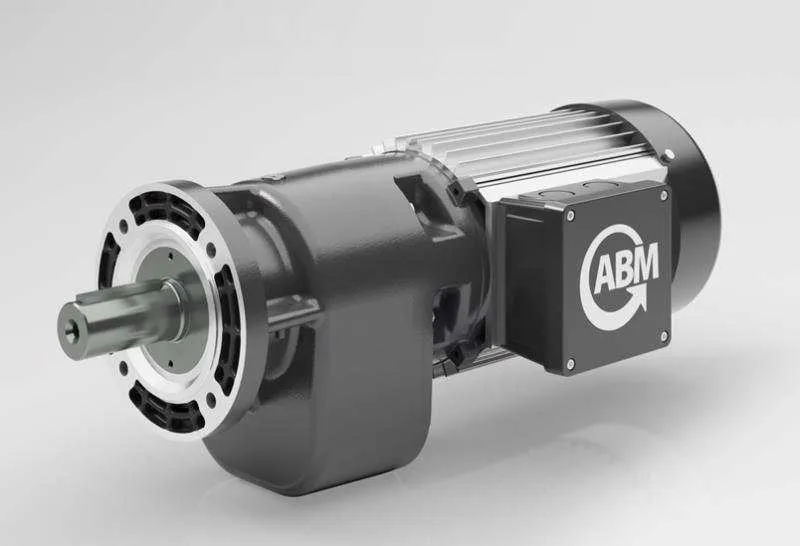

Motor Speed Reducer - Germany imported brand
SEW deceleration motor is small in size, light in weight, large in transmission torque, stable in starting, and low in loss. It also provides double oil seal design for exclusive products to prevent oil leakage.According to customer's different requirements. All aspects ensure the long-term stable and reliable quality of the geared motor.

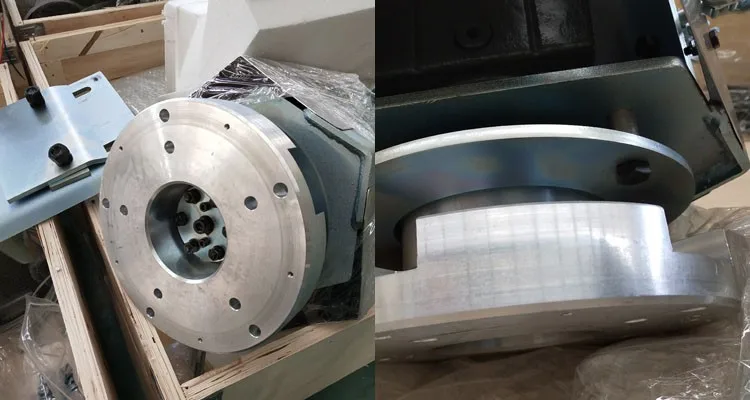

CNC cutting high-strength aluminum alloy wheels

Each wheel that is processed and molded will undergo precise balancing tests to ensure that the large fan rotor has a good balance of performance and also improves the safety performance of the fan.

According to the different needs of different customers, the company introduced domestically-made imported models to choose from.

For details, please click "China Motors".

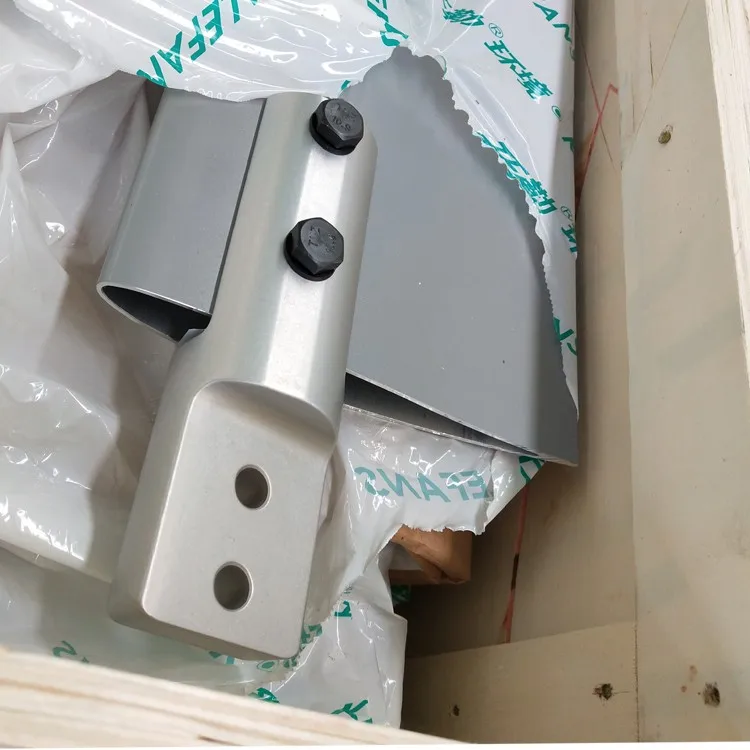

Jacketed Connector
The petiole of this product adopts high-strength magnesium alloy 5A06 extruded bar, and the tensile strength reaches more than 400MP.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running.
Applications

Cooling of personnel

The cooling experience can reach 5-8°C, which brings a natural wind comfort experience to the human body.

Natural ventilation

Industrial energy-saving fans can effectively promote air mixing throughout the entire space, achieve the effect of improving air quality, and obtain a healthy, comfortable and safe working environment.

Balanced temperature

This can balance the indoor temperature and avoid the energy consumption caused by the uneven temperature.

Dehumidification and dehumidification

It promotes indoor air circulation in the entire space, reduces air humidity, and effectively avoids the problems of storage deterioration and rot caused by moisture generated by other ventilation schemes.

Installation Process


step1     Site Planning

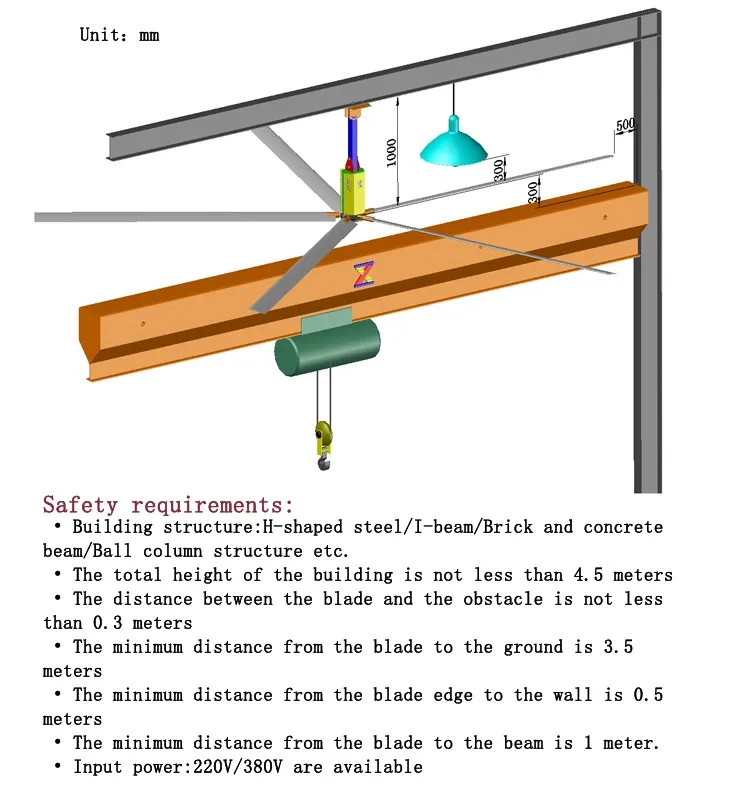

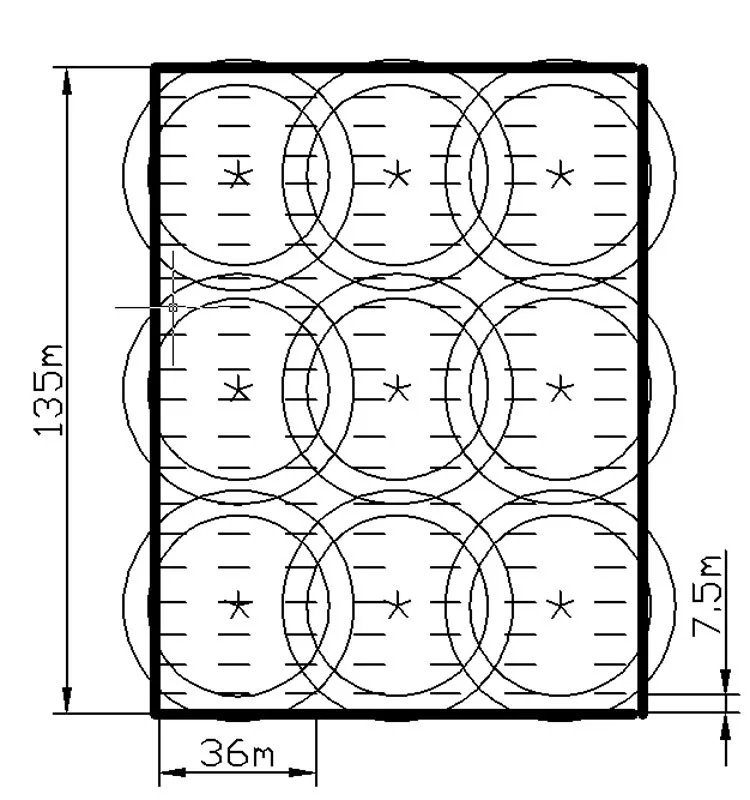

 Industrial energy-saving fan application design(for nine sets)


Step2    Select installation method

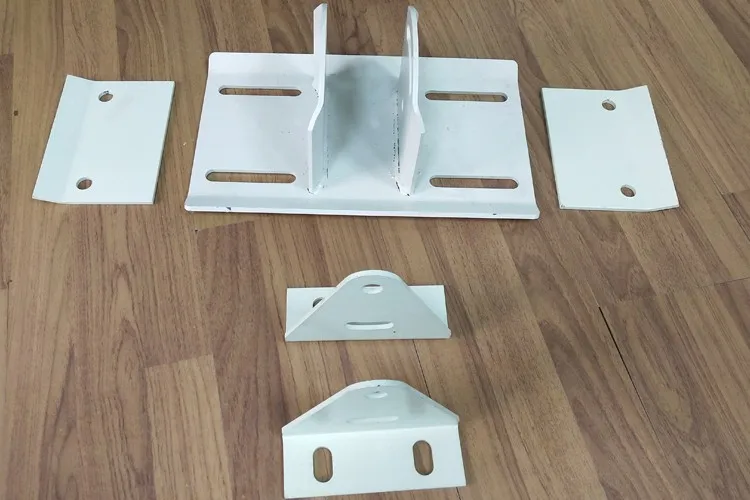

The installation structure takes a wide variety of forms. We provide you with three common installation methods:

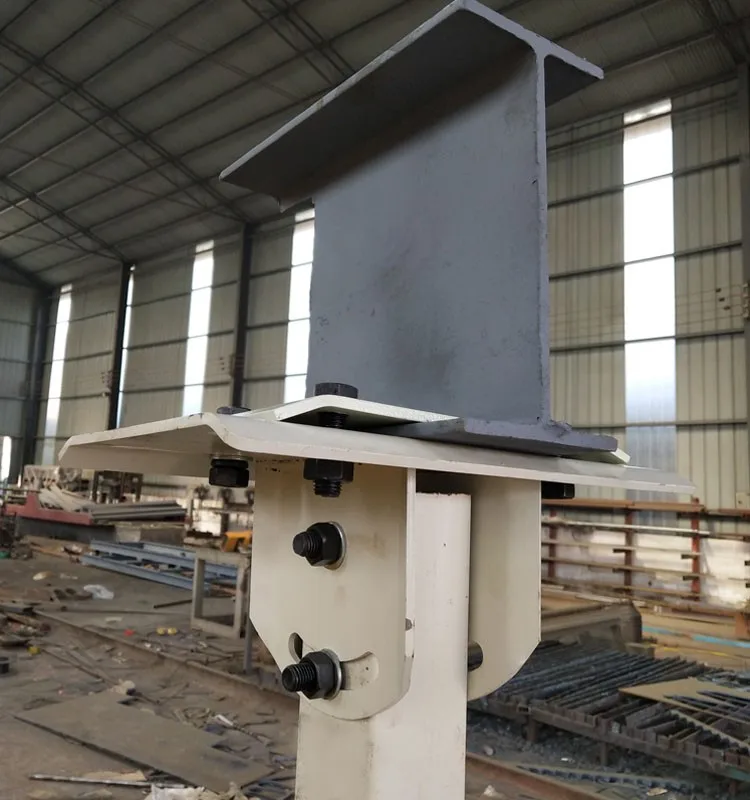

            H-shaped steel

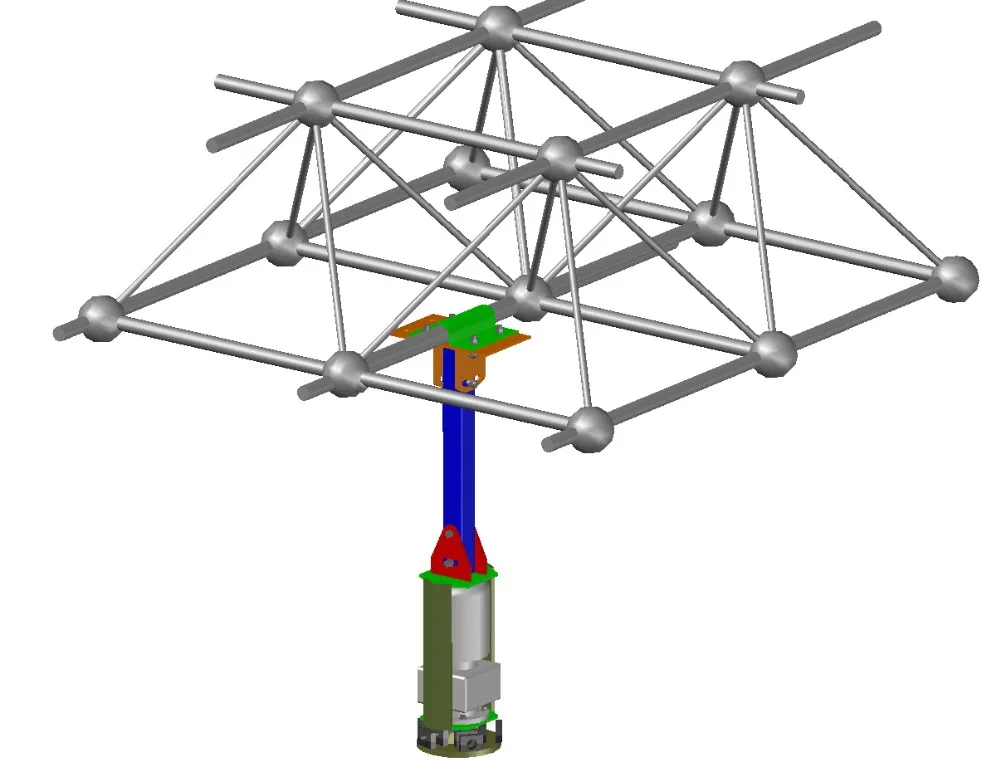

               Spherical type

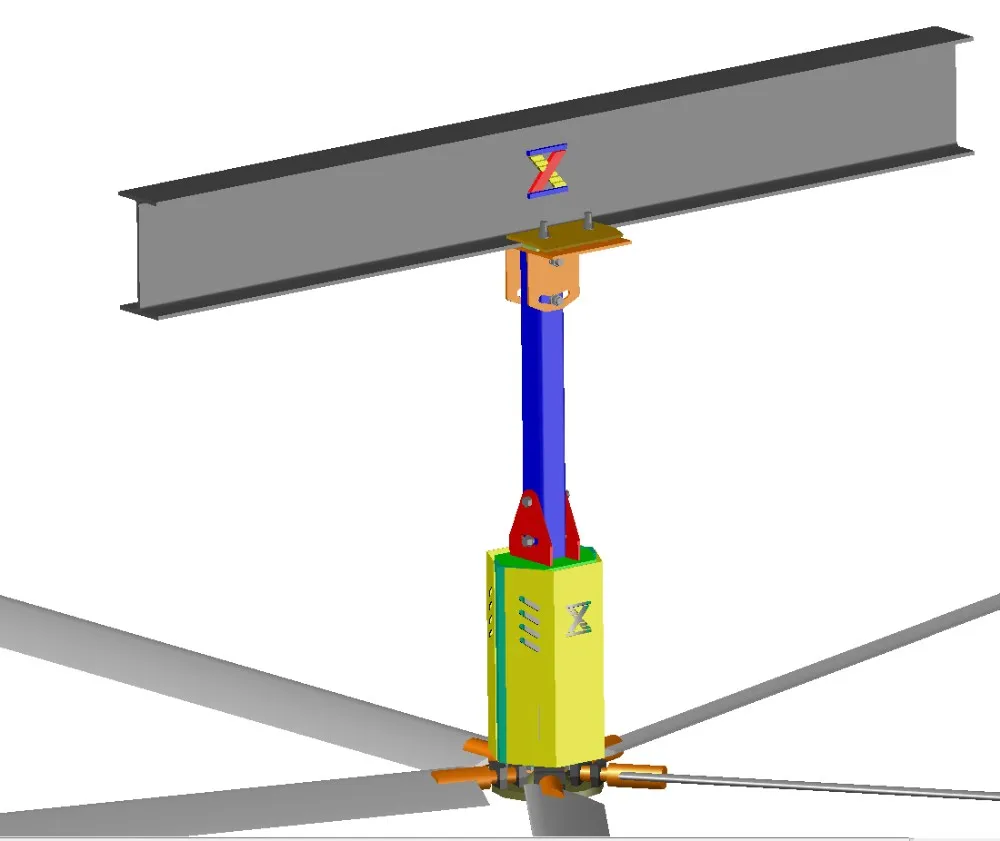

                    I-beam



Step3 Measurement and installation

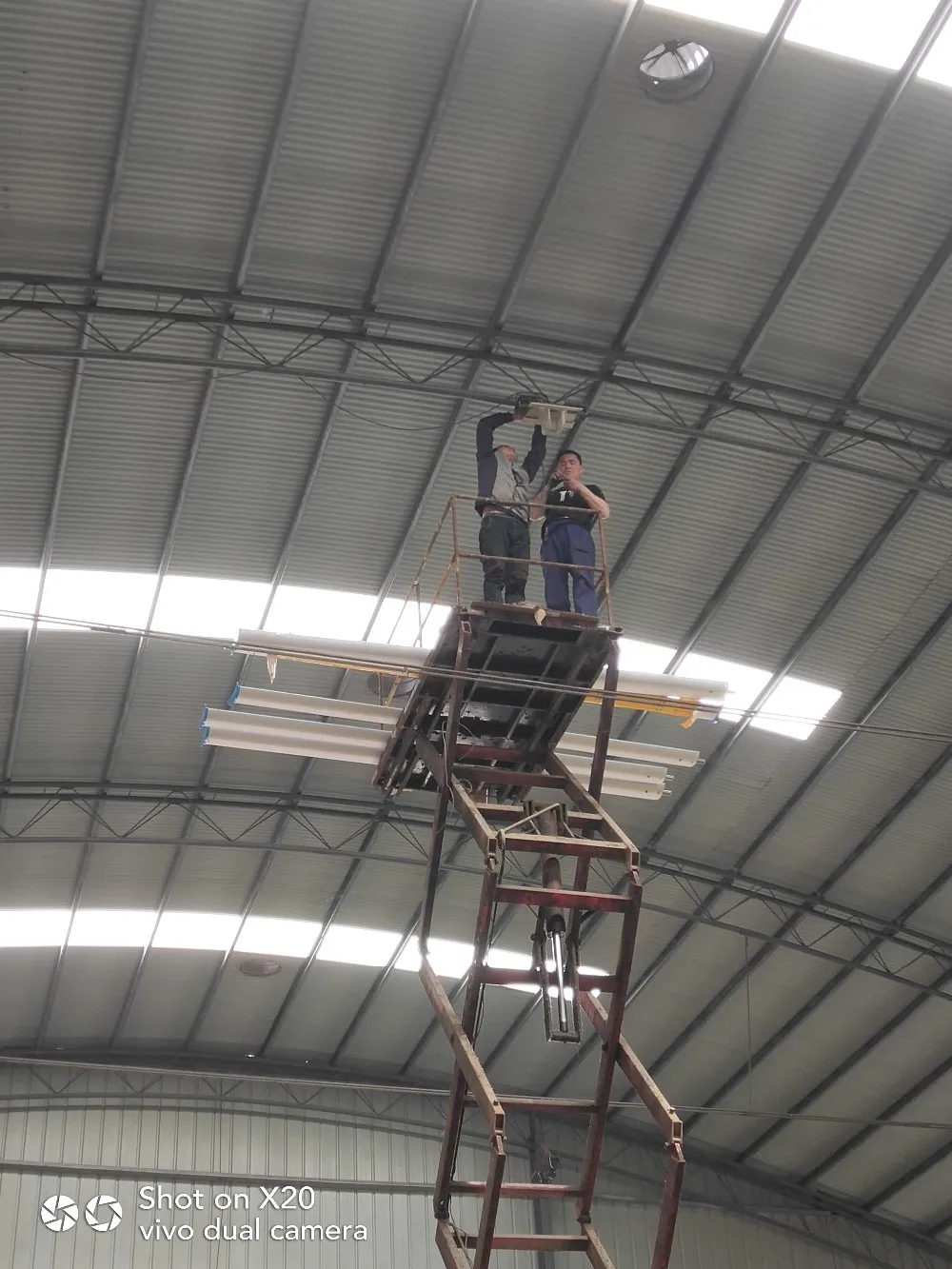

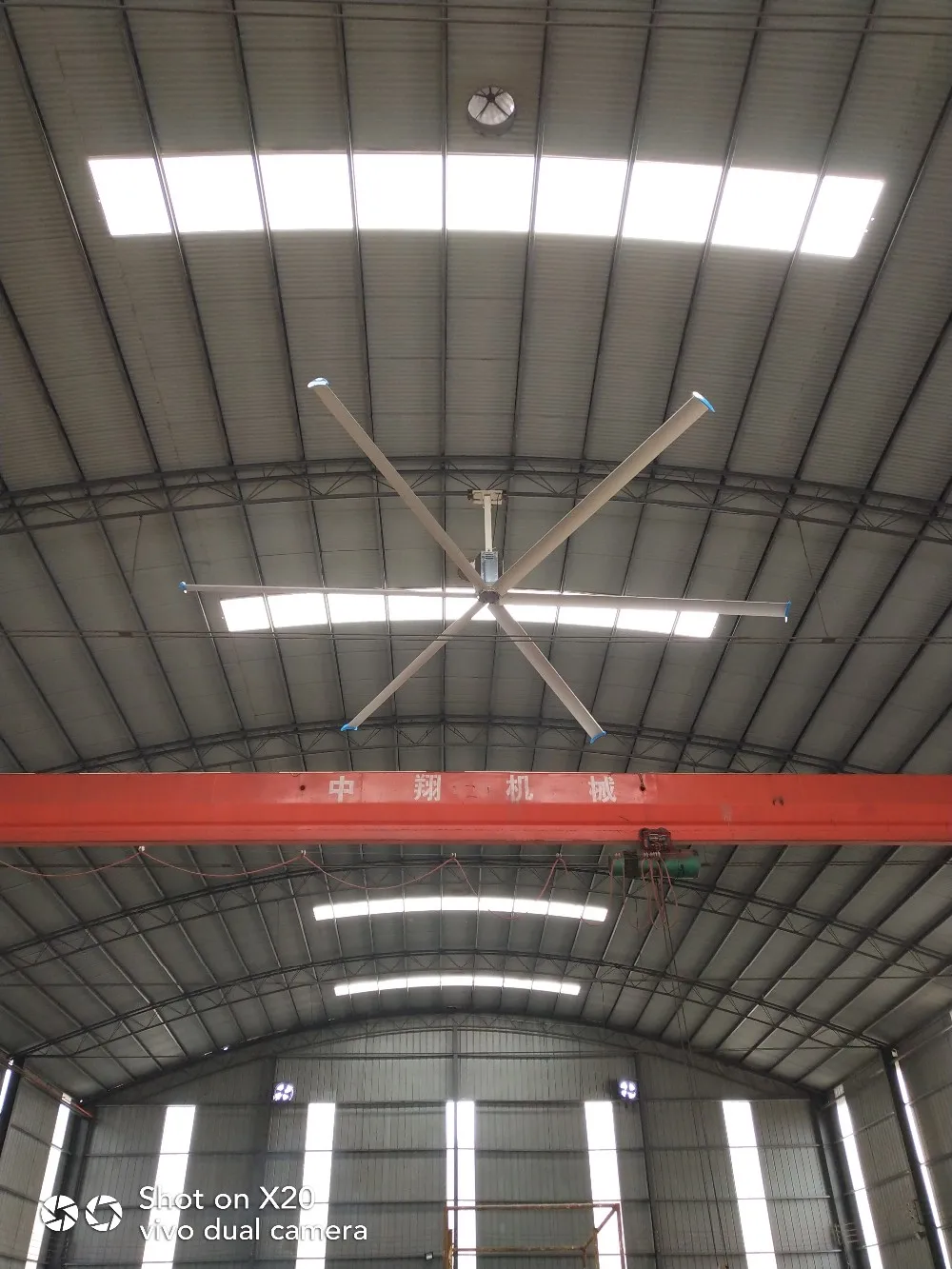

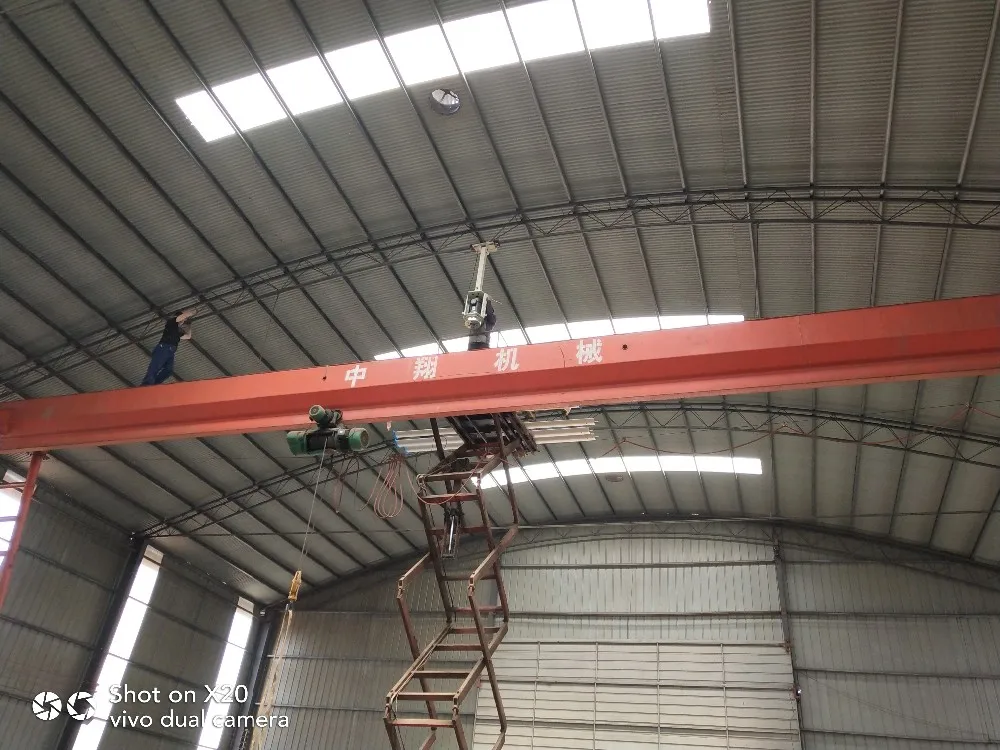

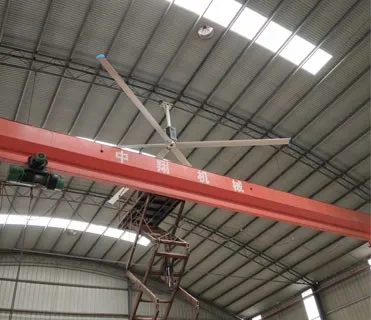

On-site installation display
