7 bbl or 800L stout dark beer making equipment

FOB Reference Price:Get Latest Price
$50,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
7 bbl or 800L
Lead Time:
Quantity(Sets) 1 - 30 >30
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Fermenting Equipment
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Tiantai or OEM
Processing Types:
Alcohol
Voltage:
3phase/380V/50Hz or Customized
Power(W):
15-70Kw depends on size
Dimension(L*W*H):
Various in different models
Weight:
Various in different models
Certification:
CE ISO
Warranty:
3 years
After-sales Service Provided:
Field installation, commissioning and training
Appearance:
Stainless steel or Red Copper clading
Thickness of Tanks:
3mm for interior shell/2mm for exterior shell
Color Available:
Mirror SUS, Luxury red copper
Heating:
Electric/Steam/Direct fired
Heat Insulation:
Heat Insulation
Inner Polishing Precision:
0.4 Micrometer
Volume Design:
Properly according to the capacity request
Controlling System:
Temperature, Pressure auto control
Plants Type:
Turnkey or Customerized
Application:
dark beer making equipment
Supply Ability
Supply Ability:
400 Set/Sets per Year dark beer making equipment
Packaging & Delivery
Packaging Details
Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL
Port
QINGDAO PORT CHINA
Lead Time :
Quantity(Sets) 1 - 30 >30
Est. Time(days) 60 To be negotiated

7 bbl or 800L stout dark beer making equipment



Introduction

7 bbl or 800L stout drak beer making equipment  produced by us is a set of technological

equipment for the production of "live" and filtered beer, which includes mill-brewhosue(mash/lauter/kettle/whirlpool tun)-fermenter-bright beer tank-filter-glycol chilling unit-CIP-control panel -keg filler and rinser etc.Brew master make their beer attractive to consumers

by unique brewing process and distinctive beer taste. If desired, these beer brewing plant can be placed

directly in places of consumption of beer: restaurants,brewpub, bars, hotels, tourist and shopping centers.

Interpreter may be faced with polished brass, copper besides stainless steel.





Configuration

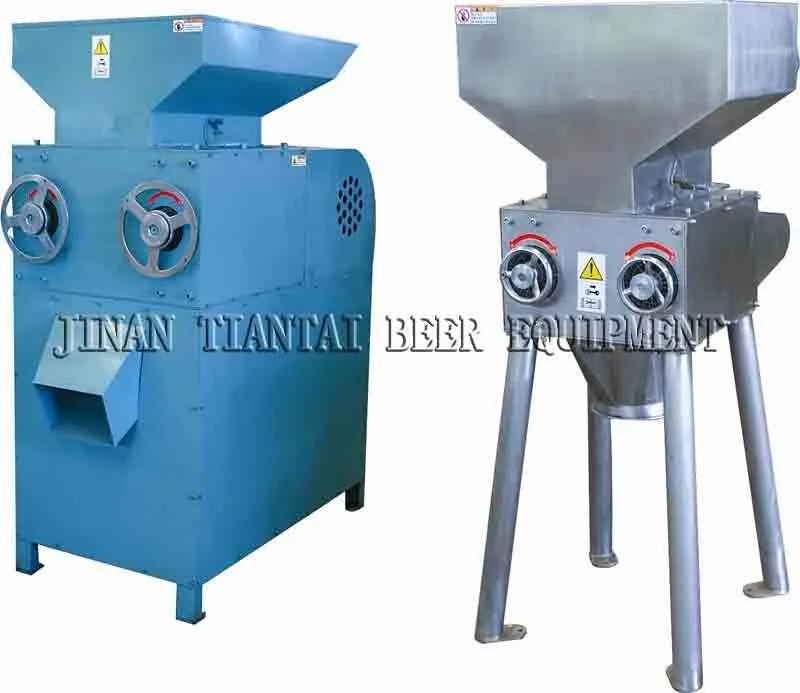

1.Malt Milling Unit of dark beer making equipment
The mill consists of stainless steel and plastic painting type;
The roller speed can be adjustable according to barley size;


2.Brewhouse Unit of dark beer making equipment

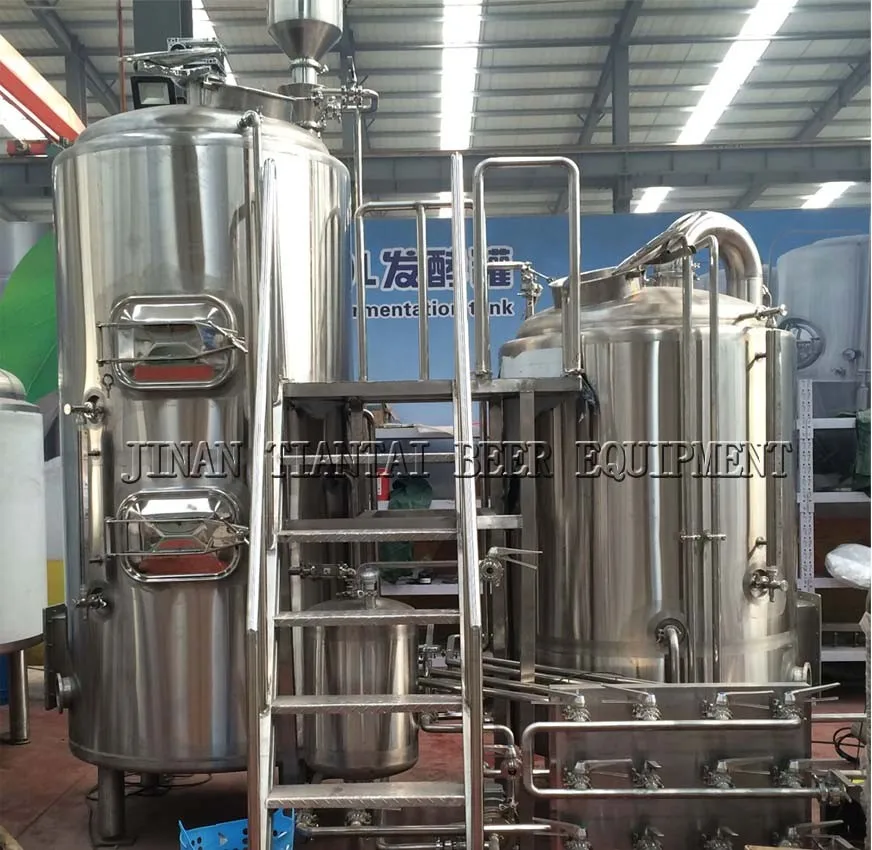

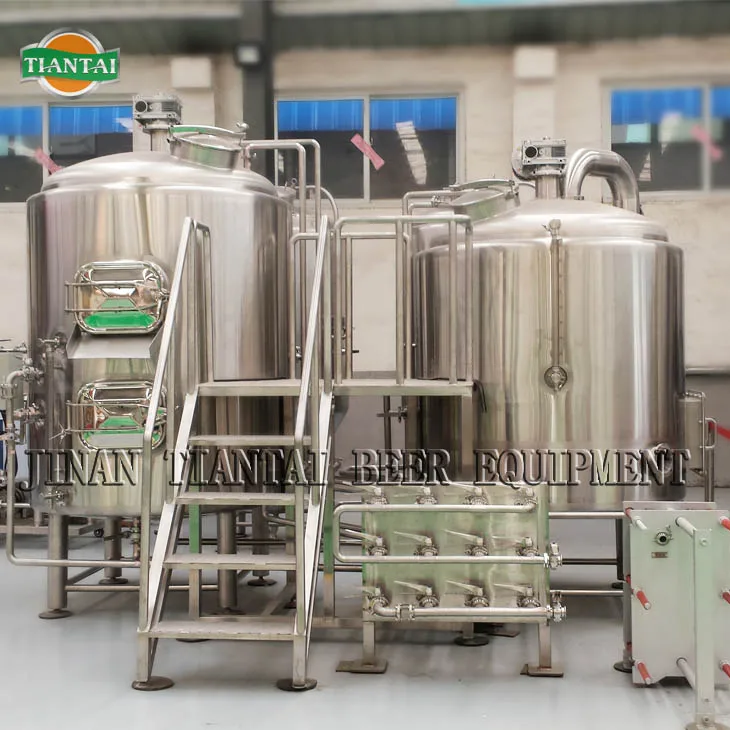

In 7bbl or 800L brewery system, one of common structures is mash/lauter whirlpool tun and brew kettle.
The whirlpool tun is located under mash/lauter tun, which can save floor area efficiently compared with separated standing whirlpool tun. In addition, the wort after lautering can run into whirlpool tun firstly by gravity, then be pumped from whirlpool tun to brew kettle. It can advoid vaccum forming in lauter tun, more safe design. And, during mashing, the brew kettle can be regarded as hot liquor tun to supplying hot water from mashing and sparging. This structure is really functional and affordable.
Sparging in mash/lauter tun. Looks very nice!

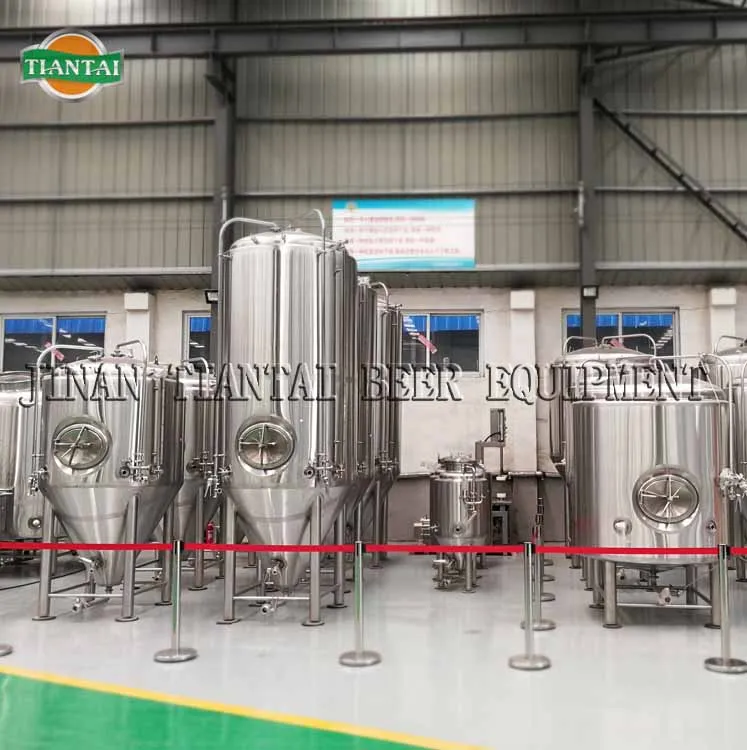

3.Jacketed Conical Fermenter of dark beer making equipment
The capacity and quantity of fermenter depends on brewhouse capacity, production, floor area, budget etc.
If the brewhouse is 7 bbl mash/lauter whirlpool tun and brew kettle, we suggest single batch or double batches fermenter as the brewmaster is able to brew 1-2 batches per day by this structure. If the fermenter is 21 bbl or larger and the brewmaster can not brew 3 batches per day, it means the fermenter can not be filled within 24hours. It will affect the beer flavor more or less.

4.Beer Filter Unit of dark beer making equipment
In restaurant or bar, beers are always served as craft beer without filtration
5.Double Wall Bright Tank with insulation of beer fermenting equipment
The brite tank is equipped with carbonation port and stone for beer maturation;
The brite tank is equipped with level tube to see beer level inside conveniently;
The brite tank can be vertical or horizontal according to your building, preference etc.

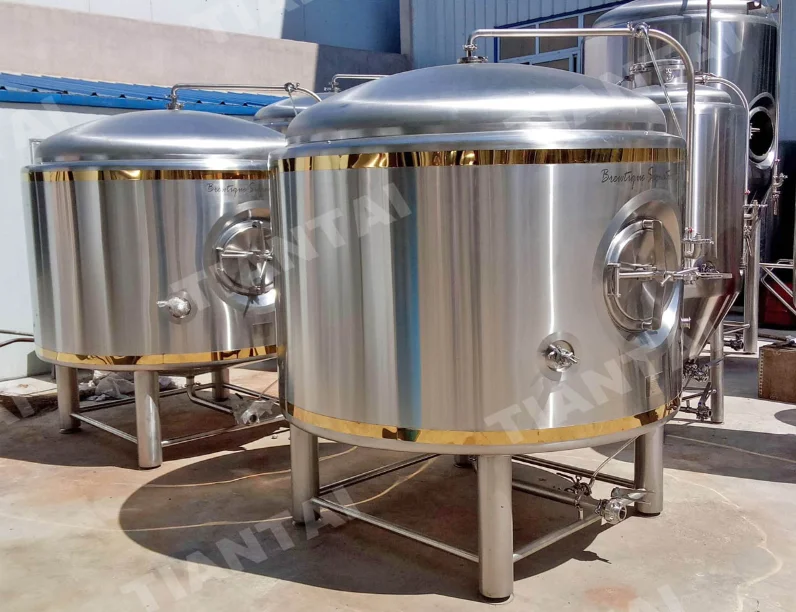

A.Vertical brite tank with decorative copper strip and brewery logo

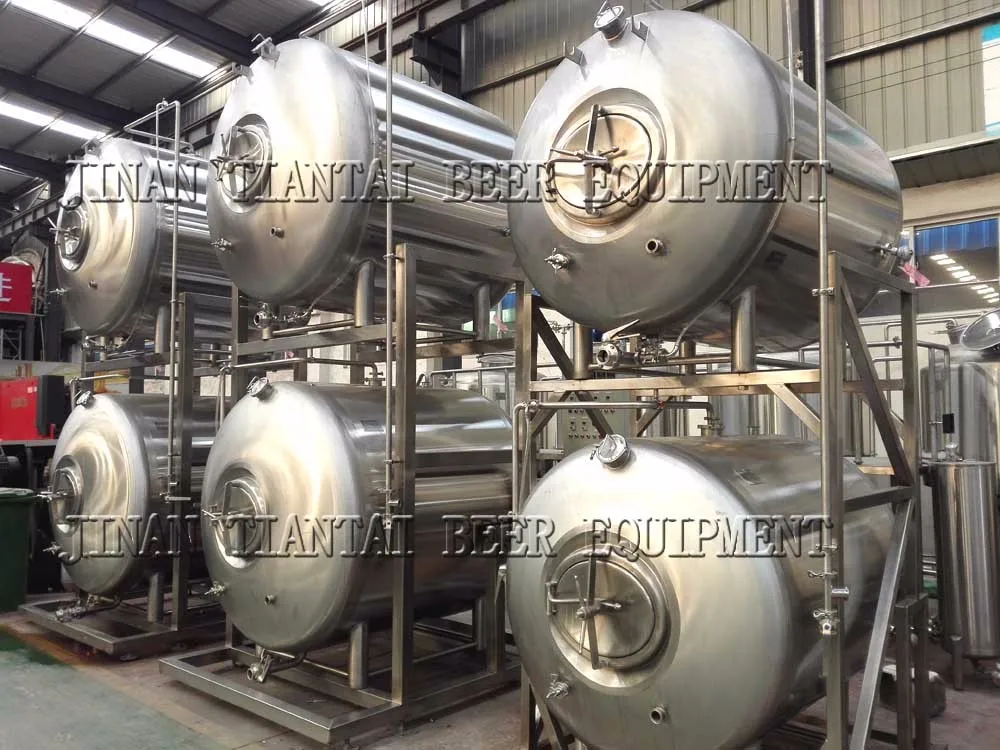

B.Stacked horizontal brite tank with insulation
6.Cooling Unit of dark beer making equipment
Insulated glycol water tank
Efficiency chillers with R404A, R410A or R407C freon.
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included

7.Manual or Auto Controlling Unit of dark beer making equipment

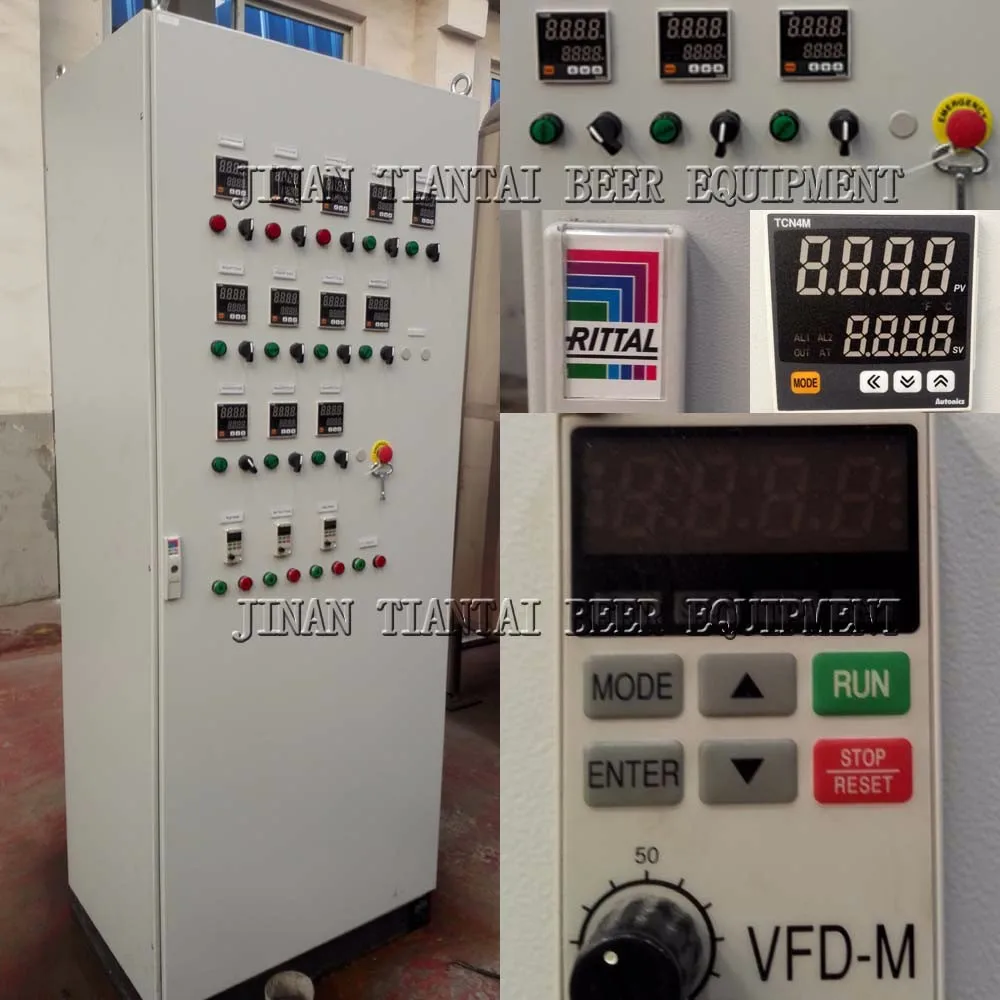

A.Manual Instrument Control panel is common, practical, affordable and stable. Although one part does not work, it would not affect other part.

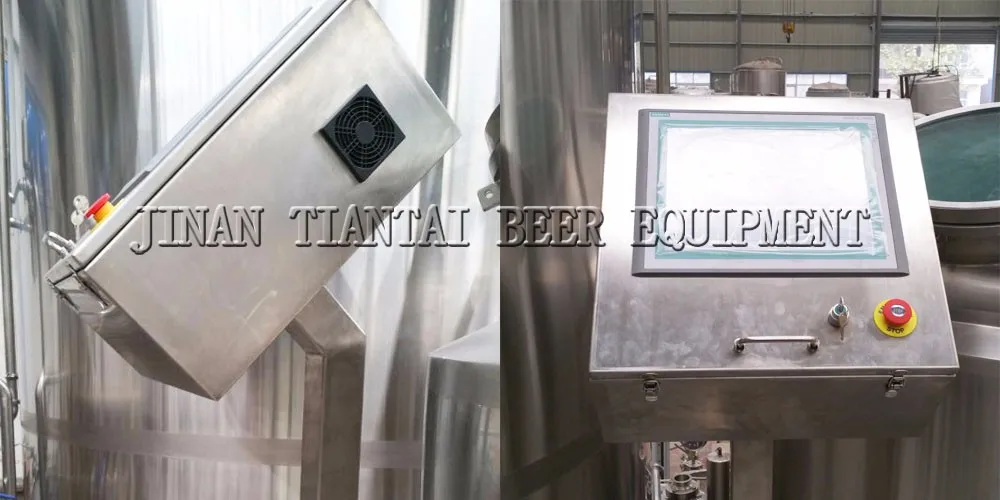

B.Auto PLC control panel is modern, beautiful and visual. You can overview the brewing process with vivid flow chart. And you can input a few of stages temperature and time for step mashing.
8.Beer Dispense of dark beer making equipment
Beer dispensing columns and faucets for directly beer service

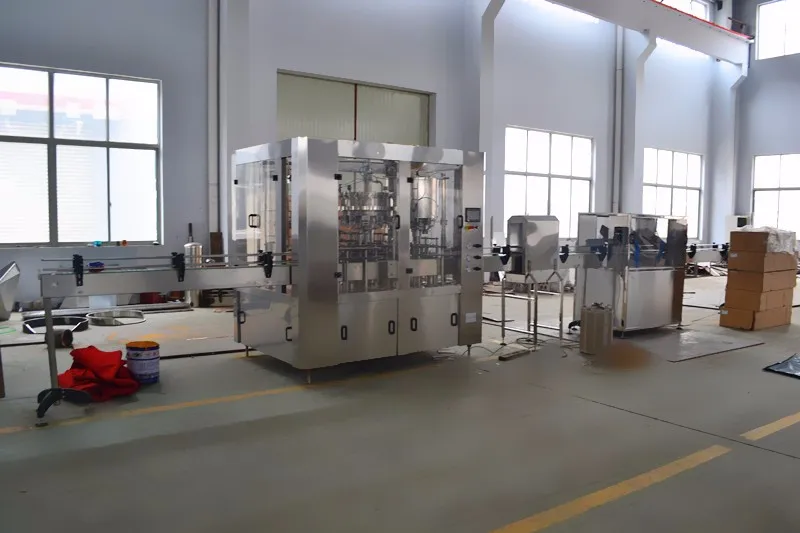

Keg filling and rinsing machine
Manually bottling machines for self consumption
9.Other Facilities of dark beer making equipment
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor



Portable electric heated CIP skid



Our service

 a.) Free consultation service before, during, and after sales;

Your questions would be replied within 24 hours by our sales team.



b.) Project planning and design services;

There are professional engineers and technicians in our company, so we can customize the equipment

according to your requirements. What is more, both 2D and 3D drawings can be supplied for your reference.



c.) Free debugging instruction of equipment Training of equipment maintenance and operating;

We would send profession engineers to help you assemble all of the tank and train the operator freely.



d.) Warranty;

Provide 36 months complete warranty for tanks body and lifetime maintenance service;

All of the accessories and auxuliaries facilities are guaranteed for one year.





Company Information

Shandong tiantai beer equipment Co.,Ltd is a professional dark beer making equipment manufacturers .

We are specialized in professional design,manufacture,installation and commissioning of various beer brewing equipment and supporting facilities, which includes miller, auger, brewhouse, fermenter, filter,

bright beer tank, glycol water tank, chiller, control panel, CIP for small and mediumsized brewery,

hotel,bar and etc. What is more, we can supply CE and ISO certificate for customers.



Friends, if you are interested in our 7 bbl or 800L stout dark beer making equipment, please contact us

freely to get detailed configuration and price list. Looking forward to talking with you.
