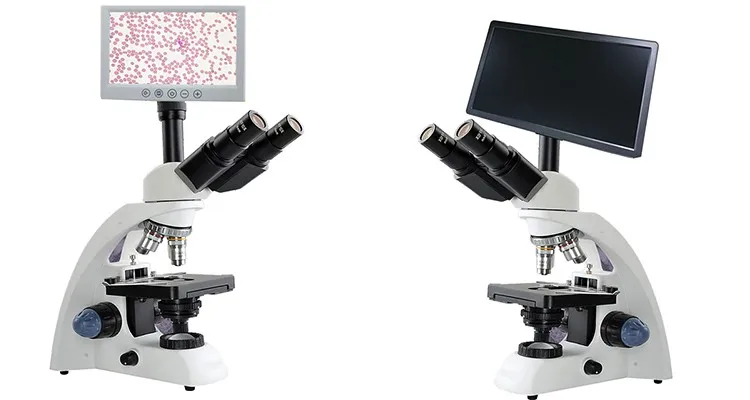

7 inch China LED light video biological lcd microscope/microscope with lcd monitor

Feedback Ratings
  • 1-19 Pieces
    $283.10
    $298.00
  • 20-49 Pieces
    $214.70
    $226.00
  • >=50 Pieces
    $151.05
    $159.00
5% OFF Discount ends in : : :
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Contact Supplier
Samples - $298.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Dovoll
Model Number:
SG-50
Theory:
Biological Microscope
Drawtube:
Trinocular
Magnification:
40X-1000X
Illumination:
LED Illumination
Power Supply:
100~240V
Light source:
Adjustable LED Lights
Focusing:
Coaxial Coarse & Fine
Working Stage:
Double Layer Mechnical
Eyepiece:
Wide Field Eyepiece WF10X
Nosepiece:
3 Holes
Objective:
4X/10X/40X/100X
Color:
White

Packaging & Delivery

Selling Units:
Single item
Single package size:
24X26X32 cm
Single gross weight:
8.0 kg
Package Type:
Polyfoam protection and strong carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 5 >5
Est. Time(days) 15 To be negotiated
Video Description
Product Display

WORLD-WIDE CUSTOMER COMMENTS & FEEDBACK:

1. Here is some of comments from our world-wide customers.

2. You can check all the comments at our company profit.

3. Please visit www.dovoll.en.alibaba.com

4. Click" company profit, then choose" Rating Reviews" OR" Transaction History".

5. Then you can see all comments from our clients.


(Please note: all our customer comments is real one, NOT FAKE!!! NOT FAKE!!! NOT FAKE!!!)

Alibabba.com suppliers platform show that:



We never got any complain.


[ TRUST YOU WILL LIKE OUR SERVICES, QUALITY AND PRICE ]

Parameter
Specification
Binocular biological microscope SG50 (NEW)
Optical System
finite Optical System
magnification
40x-1000x.(40x-1600x optional)
Head
30° Inclined, 360° Rotatable
Nosepiece
Backward quadruple nosepiece
Stage
Double Layers Mechanical Stage 126×115mm, Moving Range 76×50mm, Fine Division0.1mm
Focusing System
Coaxial Coarse And Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 28mm,With Safty Stop
Illumination
3W LED lighting, predetermined center, continuous brightness adjustable.
Condenser
Abbe Condenser NA1.25 with Aperture Diaphragm
Power Supply
External Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A
Filter
Blue filter Φ 38
Package Size
 Packing Box240*214*365mm
gross  weight
4.3KG

Eyepiece
 large field of viewBinocular,Interpupillary Distance 50-75mm
Field
WF10X/18mm

objective lens
finite  Achromatic Objective
Magnification
4X
10X
40X
100X(oil)
Condenser NA
0.1
0.25
0.65
1.25
Distance(mm)
18.3
11
3.8
1.35

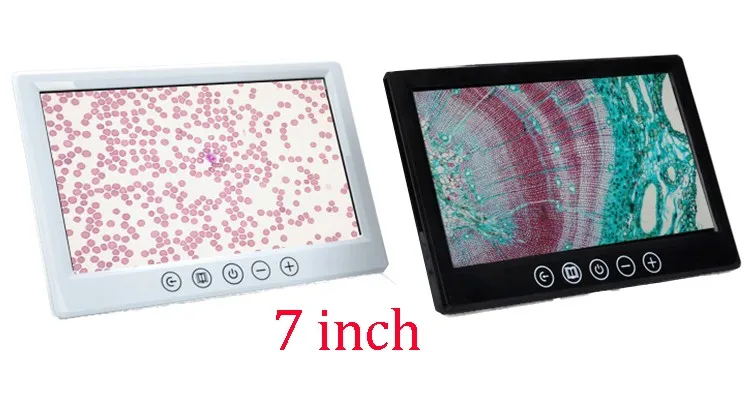

1. Size: 7 inch

2. Weight: 0.5 kg

3. CCD pixels:1024*600 . 1/2.86 inch

4. Pixel size: 2.75*2.75 um

5.LCD screen: HD 1080P

6. Frame rate: 60FPS

7. White balance: manual, automatic

8. Brightness: Automatic / Manual

9. Color: R/G/B adjustable

10.OSD: UI design, mouse control

11. Edge enhancement: YES

12.Photo/Video: YES

13. Cross cursor: adjustable

14. Image comparison: YES

1. Size: 9.0 inch

2. Weight: 0.7 kg

3. CCD pixels: 1920*1080. 1/2.86 inch

4. Pixel size: 2.75*2.75 um

5.LCD screen: HD 1080P

6. Frame rate: 60FPS

7. White balance: manual, automatic

8. Magnification: 10X

9. Brightness: Automatic / Manual

1. Color: R/G/B adjustable

11.OSD: UI design, mouse control

12. Edge enhancement: YES

13.Photo/Video: YES

14. Cross cursor: adjustable

15. Image comparison: YES

16.SD card: SD2.0. 32G

17. Interface: HDMI/USB

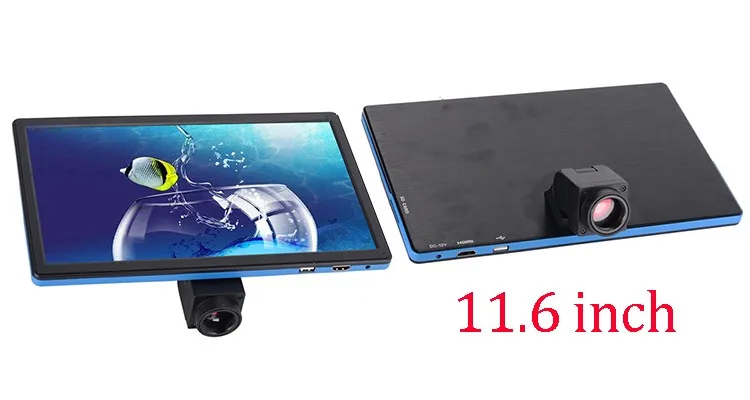

1. Size: 11.6 inch

2. Weight: 1kg

3. CCD pixels: 1920*1080. 1/2.86 inch

4. Pixel size: 2.75*2.75 um

5.LCD screen: HD 1080P

6. Frame rate: 60FPS

7. White balance: manual, automatic

8. Magnification: 10X

9. Brightness: Automatic / Manual

1. Color: R/G/B adjustable

11.OSD: UI design, mouse control

12. Edge enhancement: YES

13.Photo/Video: YES

14. Cross cursor: adjustable

15. Image comparison: YES

16.SD card: SD2.0. 32G

17. Interface: HDMI/USB

Product Details
Packaging & Shipping
NO.
Name
Number
Note
1
Microscope host
1

2
Binocular tube
1
3
Double Layers Mechanical Stage
1

4
Eyepiece(10X/16X)
4

5
Objective(4X.10X.40X/100X)
4
6
Power line
1

7
Warranty card
1

8
Certification
1

9
Specifications
1

10
HD LCD screen (7 inch )
1

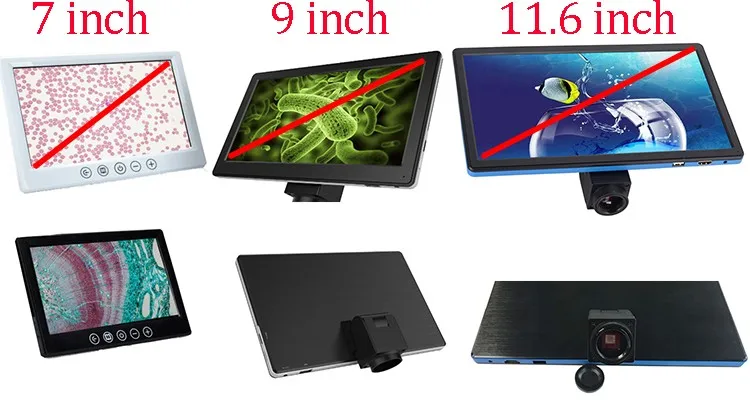

Optional 9inch / 11.6 inch
11
Filter
1
Blue filter Φ 38
12
Packaging
1
polyfoam protection and strong carton
13
Shipping time

5-15 days after receive the deposit
Related Products

Hot Promotion

1. Free inspection for any order

2. Free shipping for order more than 5000 USD

3. Get 10% off for all online and offline orders

4. Up to 50 USD COUPON

Product Application

Biological microscope is widely used in medical and health institutions, laboratories, NongKeSuo units, research institutes and institutions of higher learning for biology, bacteriology and pathology observation, teaching and professional study, clinical experiment and routine medical inspection, the product modelling is novel, structure and uses a variety of advanced technology, make the instrument easy to use, safe and reliable.

Our advantages


1. Manufacturer direct price

2. Nice quality and nice price

3. Small order welcome

4. Support OEM

5. Support 7 day refund money

6. Provide technical support


Company Information

     Qingdao Dovoll Technology Co., Ltd.Integrates the design, development, manufacture and sales of integrated enterprises, and provides a complete set of optical imaging system solutions! Years of study and hard-working have developed a series of classical optical products, and promote the development of the national optical industry, the optical products laid a solid foundation for the long-term development. Products are widely used in agriculture, industry, electronics, metallurgy, medical, chemical, aviation, astronomy and other industries and scientific research, education, defense and other departments. Filled a number of gaps for the optical industry.
    Qingdao DE shimmer, science and technology in order to "pioneering and innovative, realistic, good faith" for the spirit, for the purpose of "high quality, high-tech" committed to the development of the national optical electric industry, to give back to society, and the love of old and new customers to the enterprise product.
