700 X 500 X 500mm 3d printing large prototypes , MINGDA MD-755 3d printer machine industrial

Premium Free Inspection
FOB Reference Price:Get Latest Price
We offer premium service for Trade Assurance orders. Learn more
1 Set/Sets 3d printer machine (Min. Order)
Supply Ability:
1000 Set/Sets per Month 3d printer
Port:
SHENZHEN
Overview
Quick Details
Type:
Digital Printer
Condition:
New
Plate Type:
Screen Printer
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MINGDA
Model Number:
MD-755
Usage:
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, 3d printer
Automatic Grade:
Semi-Automatic
Color & Page:
Single Color
Voltage:
110V/220V
Gross Power:
1000W
Dimensions(L*W*H):
930 x 700 x 1070mm
Weight:
180KG
Certification:
CE FCC ROHS
After-sales Service Provided:
Engineers available to service machinery overseas
3d printer appearance:
Fully enclosed metal frame
Printer Display:
5.0 inch LCD touch screen
Max build volume:
700 x 500 x 500mm
3d printer Heatbed:
20mm Aluminum , flat
3D Printing speed:
50-200mm/s
Positioning precision:
Z: 0.02mm; X Y: 0.01mm
Extruder temperature:
260 degree
Language:
English
Interface:
USB, SD card
3d printer material:
PLA ABS HIPS TPU Carbon Wood
Packaging & Delivery
Packaging Details
Strong wooden package ---- MINGDA 3d printer
Delivery Time
Shipped in 3 days after payment

700 X 500 X 500mm 3d printing large prototypes , MINGDA MD-755 3d printer machine industrial



New Innovation! First Rail structure 3D printers on market!



MINGDA Team is specialized in industrial 3d printer scope , with experienced engineers and manufacturing equipment , ODM OEM 3d printer .



MINGDA 3d Printers series ( L x W x H ) , 1mm is equal to 0.03937inch


MD-4C build volume 300 X 200 X 200mm
MD-6C build volume 300 X 200 X 500mm
MD-6L build volume 300 X 400 X 500mm

Larger 3d printer could be customized , 1000 X 1000 X 1000mm



Unique features :


1) Fully enclosed design, stable temperature inside, prevent model distortion in Winter.
2) 5.0 inch LCD screen, English User-Friendly interface, easy-operation
3) Linear guide rail for X/Y axis, instead of optical rods
4) 16mm diameter Dual ball screws on both sides, rather than single screw at 8/10/12mm
5) 10mm thickness heating bed, power 700W, heating faster, keep flat during long time heating
6) UPS (Uninterruptible Power System), resume printing after interruption



MingDa MD-755 3d printer , 700 X 500 X 500mm 3d printing for large prototypes



Parameters

3D Printer Technical Sheet


MD-755 3D Printer ( Length Width Height ) ( 700 X 500 X 500mm)

Printing precision

0.05-0.2mm

Printing Materials

PLA / ABS / HIPS / PP / PE / PETG / TPU / Nylon / Carbon Fiber etc

Filament Diameter

1.75mm

Nozzle Diameter

stand 0.4mm

Speed

0-200mm/s

Positioning Precision

Z axis : 0.002mm    X / Y axis: 0.010mm

Print Technology

FDM

Temperature



Nozzle

0-260 degree

Platform

0-110 degree

Platform Heating Time

Less than 5 minutes

Nozzle Heating Time

Less than 1.5 minutes

Electrical



Connectivity

USB/SD Card

AC Input

95-265V, 50/60Hz

Machine Power

1000W

Software



Software

STL, G-Code

Operation Software

Operation Software

Supports

Windows, Linux, Mac OX

3D Design Software

SolidWorks, PRO/E, UG, Maya,3dx Max, AutoCAD, Rhino etc.

Physical Dimensions



Printing size

700 x 500 x 500mm

machine Dimensions

930 X 700 X 1070mm

Shipping Box

1050 X 800 X1200mm

Machine Weight

180kg

Shipping Weight

250kg



Product Description





1) MINGDA Professional industrial 3d printer machine , High end design , high speed , high precision , high stability



1.1 Fully enclosed design , Anodized stainless metal frame. Sturdy and beautiful appearance. Also temperature is stable inside the machine , so that to ensure printing quality

1.2 Large 5.0 inch LCD screen , English interface , user friendly

1.3 Filament rack on the top , no worry about the filament breaking



2) Switch and UPS device. UPS (Uninterrupt Power System)



2.1 Electromechanical switch. No worry it stop working after long time use

2.2 UPS device. In case interruption during printing.For example, by considering its large build volume, we adopt the UPS device in case the power off suddenly

2.3 Effective fan for power supplier. Also no worry about the machine overheat during long time printing



3) Professional Inner structure



3.1 Linear guide rail for X / Y Axis. Precision and stability is better than thos who is built with rods

3.2 57 stepper motor , printing faster. Also the self patented nozzle, melting faster and no block.

3.3 Quiet fan, low noise. Cool the nozzle effectively



3.4 Z Axis adpots the dual ball screws on both side , 16mm diameter is more stable than single 8 / 10 / 12mm

3.5 10mm thickness heating bed, instead of just a plate. Heating faster without distortion / bent

3.6 Double parallel plate , to adjust the heating bed easily and precisely



4) Adopt the fluorine lights and filament sensor.



4.1 Fluorine lights is better to check the printing condition, no sharp to eyes

4.2 Filament Sensor, detect and pause printing in case the filament breaking and used out



5) Modular design and high quality parts. The cables are modular design so that you can know where it is if the problem come out. Also easy to replace it.



The most importantly, the cables can be okay even in fire, such as 1000 degree. So we can ensure the machine working 10-15days without stop

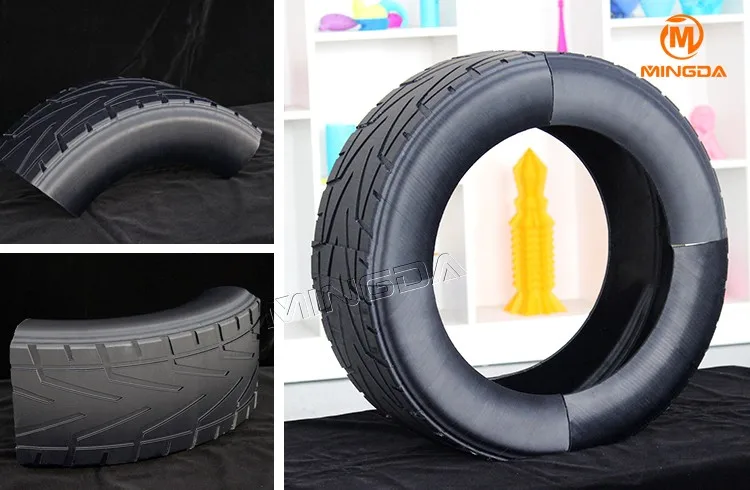

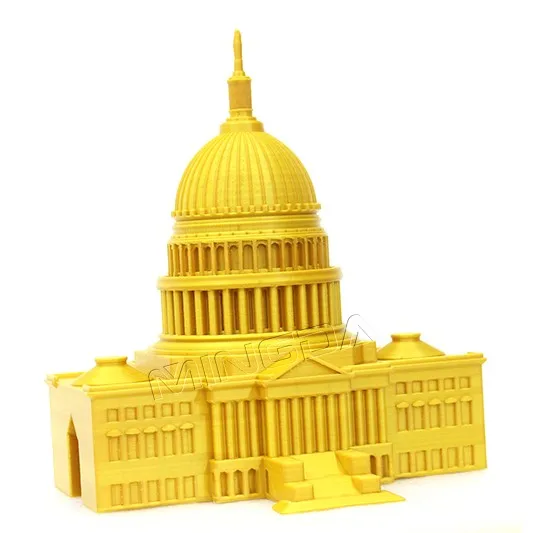

6) This 3d printer machine has been widely applied for plastic models, architecture, auto parts, electronics, engraving, air craft, toy, shoes, energy, hand modeling, phone case etc.





3d printecontributes a lot to our daily life by help us design and additive manufacturing. Kindly pls check the model examples.



700 X 500 X 500mm 3d printing large prototypes , MINGDA MD-755 3d printer machine industrial

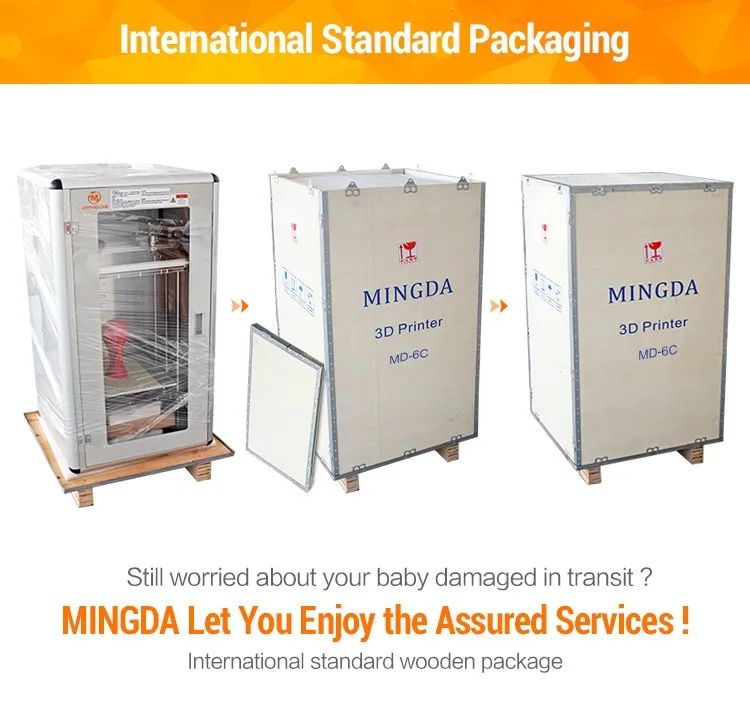

Packaging & Shipping





1. One set 3D printer machine

2. One roll filament , one masking tape

3. Power plug

4. SD card with manual,software and some model samples

5. One maintenance kit (spare nozzles, tubes, Tweezers, Tape, Knife, pliers, screwdrivers etc)

6. Strong Wood package , suitable to transportation




Our Services





MINGDA 4C 3d printer service ,  one year waranty and lifetime technical support



We have exclusive server for every customers who purchase MINGDA 3d printer. Please feel free to contact with your after service staff anytime once any help needed, we will spare no effort help with the solution.



We have professional technicians and responsible sales for 3d printer kit , offering email service Monday-Sunday. You should receive a response within 24 hours by mail. All MINGDA people are willing to resolve your problem.



If you are interested in MINGDA MD-4C / 6C / 6L industrial 3d printer, Pls do not hesitate to contact with us , We will provide best quality and best service for you .



3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer price with 3d printer with industrial 3d printer price



Company Information



About us (MINGDA 3D Printer - Pioneer 3D printer Manufacturer)



MINGDA Technology is one of leading companies that introduces 3D printing technology in China. Corporate with MIT and other worlds famous university ,mingda has the rich experience and advanced technology in the 3d printer field. Our R&D team was built up in the year 2010 , the first model Glitar1 was launched two years later in 2012 after the strict quality control ,test and market survey.



MINGDA have a professional internet sales item and after service system, aimed at providing excellent 3d

printers, technique services ,as well as perfect  3d printer solution.

CE / FCC SGS / CQC

MINGDA 3d printer or MINGDA 3d printer or MINGDA 3d printer or MINGDA 3d printer or MINGDA 3d printer or MINGDA 3d printer



FAQ



1.What is the application of digital 3d printer ?

For personal design, as personal collections, gift for friends. Model sample for testing and showing. The finished object could be used for one person workshop, industry, school, design department, hospital, school.etc.



2.What certificates do you have?

Since Europe and America are our main markets, all of our products are with CE / FCC test.



3.Can you put my brand name (logo) on these products OEM service?

YES, Of course. In order to explore the market better and provide more convenient services to global customers, in the year of 2014, we sincerely invite overseas agent to create bright future together.



4.  What payment method do you accept?

T/T, Western Union, PayPal, .L/C, D/A, etc.



5. How will you deliver my goods to me?

 We always ship by air and sea. In the mean time, we cooperate with international expresses such as DHL, UPS, TNT to enable our customers get their goods rapidly.



Welcome your enquiry, 700 X 500 X 500mm 3d printing large prototypes , MINGDA MD-755 3d printer machine industrial
