75" multi-point touch television and conference system from Huion

  • >=1 Sets
    $4,390.00
Cabinet Color:
Lead Time:
Quantity(Sets) 1 - 200 >200
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Screen Size:
>70inches, 75 Inch
Interface Type:
LAN, USB, VGA, HDMI
Resolution:
4K(3840*2160)
Receiving System:
NTSC, PAL
Brand Name:
Huion
Model Number:
KAMVAS HUB GT-750
Type:
LCD
Backlight Type:
LED
Place of Origin:
Guangdong, China (Mainland)
Touch control type:
Infrared and electromagnetic
Outline dimensions:
1737.2mm*1015.2mm*106.7mm
Input voltage:
AC90-264V 50/60 Hz
Functions:
Smart television, interactive smart panel, electronic whiteboard
Weight:
88Kg
Products Status:
Stock
PC:
Built in OPS PC
Pen resolution:
5080LPI
Pressure level:
2048Levels
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton package with wooden crate outside
Port
Shenzhen Port
Lead Time :
Quantity(Sets) 1 - 200 >200
Est. Time(days) 20 To be negotiated
Product Description

Applications

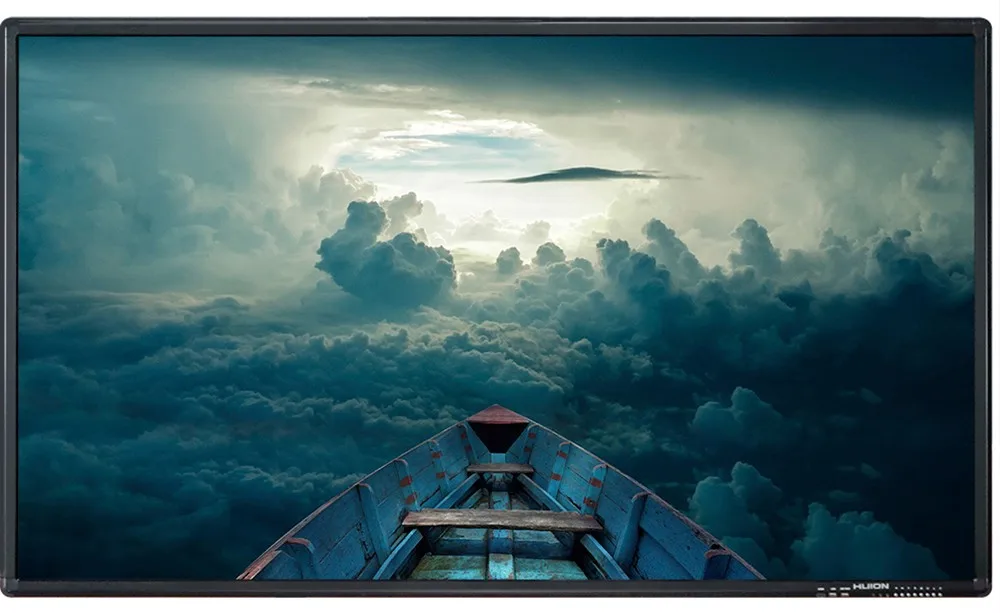

Kamvas Hub GT-750 is a 75-inch, 4K resolution LCD TV that functions as an interactive smart panel and collaboration tool, making collaboration easy and brainstorming sessions fun. Kamvas Hub can also mobilize learning by getting everyone in your classrooms out of their seats and eager to learn and achieve more when they’re free to express themselves and explore their interests. And it is also suitable for many other fields such as exhibitions, finance, transportation, retail, entertainment, telecommunications, medical, industrial, public information, radio and television etc.


Main Functions And Details
1. Multi-touch function, easy to drag, zoom and rotate the object.
2. Handwriting input function and supporting double pen simultaneous operation.

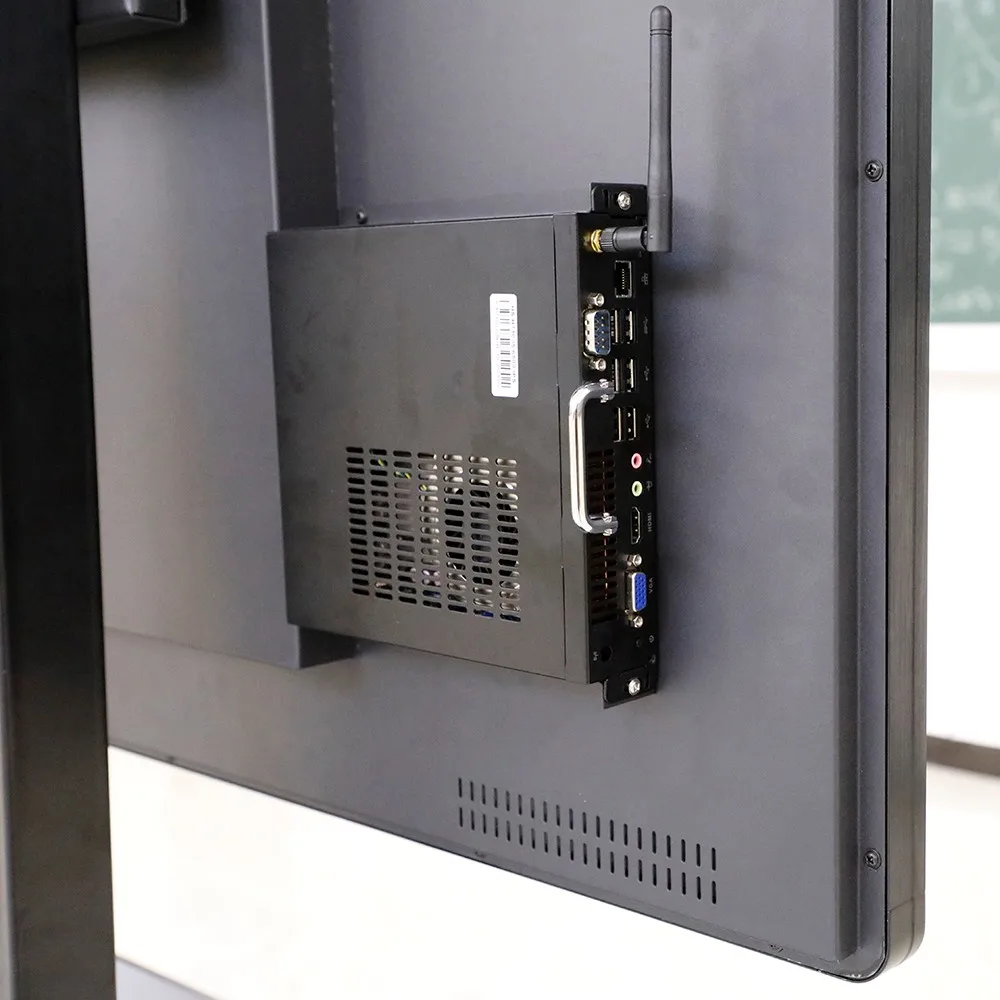

3. Extensible OPS computer to realize all-in-one function.

4. Intelligent user interface, easy to operate.

5. Multimedia interface, with film, music, pictures and text playback function, support U disk, USB mobile hard disk, MP3, card reader and other USB storage devices.

6. A variety of audio and video effects.

7. Large screen display, with high resolution and excellent color accuracy, can provide dynamic display area, automatically adjust the size.

8. Separate auditory function.

9. Supporting a variety of computer display formats, and having the function of adaptive display.

10. With smart USB interface, automatic switching between Android and PC.

11. Automatic signal recognition function.

12. Can be connected to the computer, audio and so on.

13. Supporting whiteboard function, easy to write, erase, annotate and save, write fluently.


Ultra high definition (4K) LCD with lifelike displaying effect

Elegant, sleek design  and solid structure with aluminium alloy shell


Abundant input and output interfaces like HDMI, VGA, AV, USB2.0


Excellent for remote conference, training, education and entertainment etc.

 Ample kinds of compatible software with android and windows dual operation system


Ten points touch and easy to rotate objects

Specifications

General Specifications
Item
Specification





Panel
LCD Size
74.52’’
BackLight Source
LED
Resolution
3840x3(RGB)x2160
Brightness
350cd/m2(Typ.)
Contrast Ratio
1200:1
Response Time
5ms
Frame Rate
60Hz
Viewing Angle
178°(H)/178°(V)
Life Time
30,000 hrs(Typ.)
(x% NTSC)/ Gamut
72%
Viewing area
1649.664(H)x 927.936(V)mm
Chromatic value
1.07Billon(10bit)

Supply
Voltage
AC90-264V 50/60 Hz
Maximum Power
≤280W
Standby Power
<0.5 W


Environment
Working Temperature
0℃ ~ 40℃
Storage Temperature
-10℃ ~ 60℃
Storage Humidity
10% ~ 60% RH Non-Condensing
Working Humidity
20% ~ 80% RH Non-Condensing





Rear Interface
Inside Speaker
*2
Power AC Input
*1
Power Switch
*1
TV Interface
*1
VGA Input
*1
HDMI Input
*3
VGA Output
*1
Earphone Output
*1
Ethernet
*1
Front Interface
HDMI Input
*1
USB 2.0
*2



Others
Net Weight
88KG
Product Size
1737.2*1015.2*106.7mm
Rack Name
Rack XD2174
Material
Aluminum / sheet metal
Color
Black
VESA Hole
400(W)*400(H)mm




Accessories
Power Cable
*1
Remote Control
*1
Touch Pen
*1
Certificate of quality
*1
Warranty Card
*1
User Manual
*1
Installation Manual
*1
Related Products
Certifications
Packaging & Delivery

Packaging details:

White  box or OEM

Delivery:

Huion offers door to door services by air or by sea just depend on your actual request. Such as DHL, UPS, TNT, FEDEX,EMS.
For delivery by air, it takes 7-15 working days to your office.

Company Information

 Shenzhen Huion Animation Technology Co., Ltd. is a high-tech enterprise which has the core technology and ability to research and develop independently for near ten years. It is a well known manufacturer which produces animation products and other handwritten input digital products.
Huion's main product lines include Interactive Smart Panel, USB Pen Tablet, Wireless Pen Tablet, Signature Pad, Pen Tablet Monitor and LED Tracing Board, OEM and ODM are welcome, We serve complete services which include: software design, PCB layout, mechanical design, industrial packaging design and SMT to assembly, etc.

FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A:Sample needs 7-15 days, mass production time needs 7-45 days or more according to the order quantity.

Q3. Do you have any MOQ limit?
A: Yes, but MOQ varies because of different product type, 1 pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-15 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
