78 keys usb fully programmable keyboard with magnetic card reader for pos system

FOB Reference Price:Get Latest Price
$25.00 - $35.00 / Pieces | 10 Piece/Pieces (Min. Order)
Model Number:
KB78
Screen Size:
Other
Samples - $35.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LIF
After-sales Service Provided:
Online support
Warranty:
1 Year, 1 Year
CPU:
/
Product name:
78 keys usb fully programmable keyboard with magnetic card reader
Original Place:
Shenzhen
Interface:
PS/2 or USB
Material:
ABS
Connector:
RJ-45
Operating system:
Window, Android, Linux
Key number:
78keys
Key lifetime:
20,000,000 times
Package:
Carton Box
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
78 keys usb fully programmable keyboard with magnetic card reader for pos system: 10pcs/ctn
Port
shenzhen

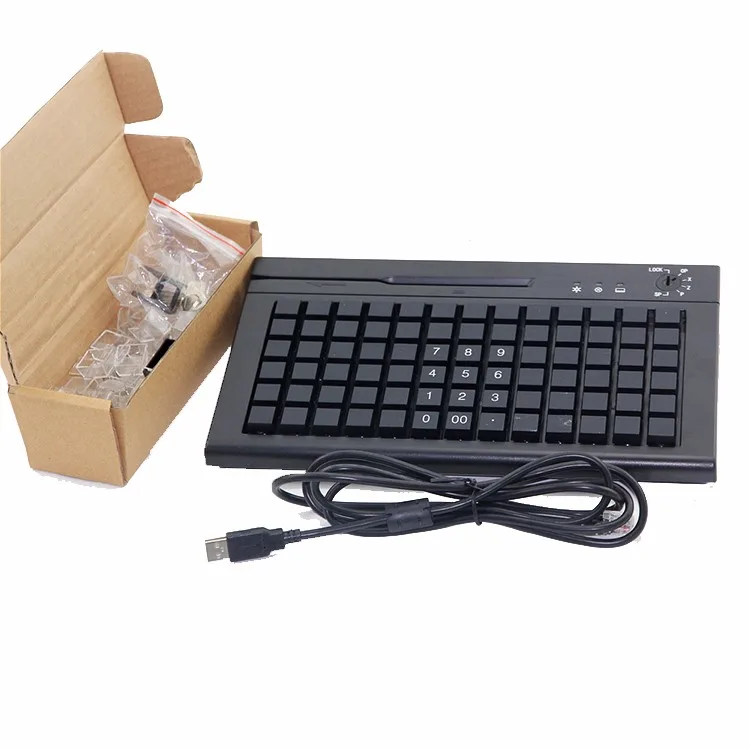

Detailed Images

78 keys usb fully programmable keyboard with magnetic card reader for pos system

Product Description

78 keys usb fully programmable keyboard with magnetic card reader for pos system

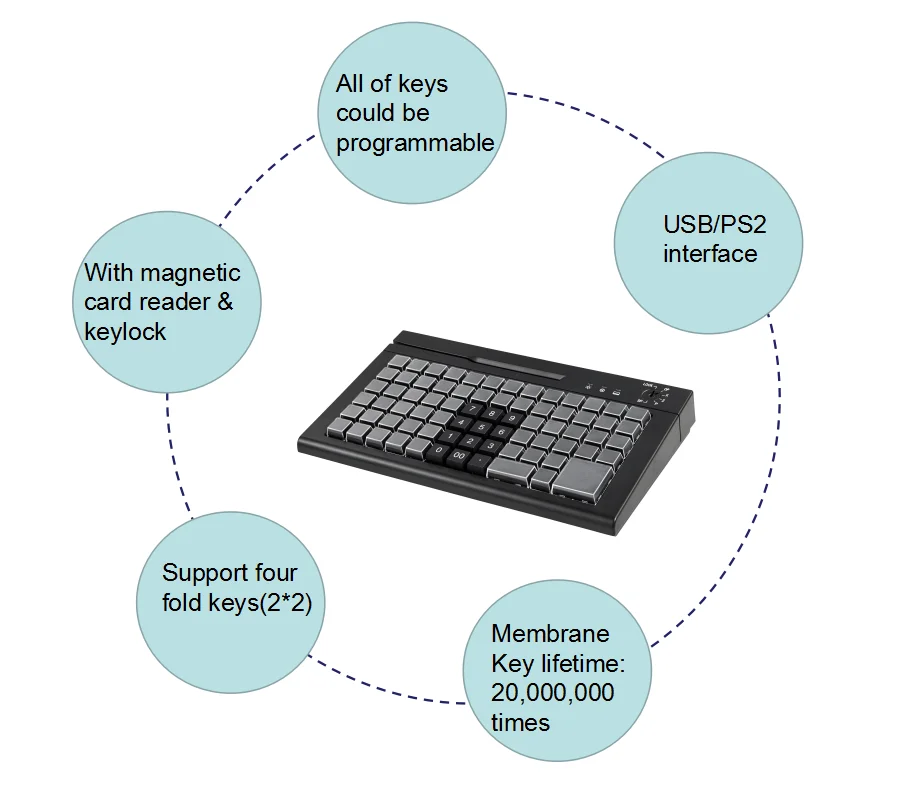

Basic Feature:

◈ Operating system:
            The PS/2 is suitable for DOS, Win9X, Win Me, Win2000,Win XP, Win7-32bits
            The USB is suitable for Windows, Android, Linux
◈ Interface: PS/2 or USB
◈ Connector: RJ-45
◈ Single track, dual track or three track
◈ No battery and don't install any drivers when the interface is USB
◈ Damaged keys can be easily replaced to save cost
◈ The ESD protection from the metal plate is enhanced(With internal strong metal plate to enhance the protection against ESD is increased)
◈ Equipped with different standards keypad(1-fold, ,1.25-fold,2 fold)

Environmental:

◈ Working Temperature: 0±45 ℃
◈ Working Humidity: 10%-- 90%
◈ Working Voltage: DC+5V ±10%
◈ Working Current: ≤150mA
◈ Storage Temperature: -20 ±50 ℃
◈ Stroke: 4.0--0.5mm

Programmable Feature:

◈ All keys can be programmed with characters without limit 100 years data retention without additional battery Multi-country code
◈ Capacity Per Key: 1 to 255 characters and 16 layers per key
◈ Multiple key: a key can be programmed with different character strings Normal operation by itself or connected with other keyboard
◈ Any key can be defined as the function of the Caps/Scroll/Numeric Lock

Magnetic Feature:

◈ Accord with ISO7811, IBM, AAMVA, JIS-2 The power supply: DC+3.3V
◈ Card Swipe Speed: 10-120cm/s
◈ Life circle of Head: ≥500,000
◈ Coercive Force: 300-4,000 Oe
◈ The header, tailed, separator, prefix code, suffix code and track sequence can be programmed through MSR setting
◈ The Density of Magnetic Stripe
                 Track 1--210BPI with max 76 characters
                 Track 2--210BPI with max 104characters or 75BPI with 37 characters;
                 Track 3--210BPI with max 104 characters

Keyboard:

◈ Key number: 78keys
◈ Style: Membrane Key
◈ pressure:15±55g
◈ Key lifetime: 10,000,000 times
◈ Electro-Static discharge, the EMC Radiation Test is B(according to the standard like GB 4943, GB/T 17626)

Electronic Lock Feature:

◈ 6 levels of the lock
◈ Lifetime: ≥3000
◈ Four key types: the "SUP" control 3 levels; the "SP" control 6 levels; the "Z" control 4 levels; the "PZ" control 5 levels.

Packing List

78 keys usb fully programmable keyboard with magnetic card reader for pos system

Item
Inner Box(mm)
Outer Box(mm)
G.W.(kg)
Qty/Ctn
LIF-KB78
380*220*60
405*345*470
14.5
10pcs/ctn
Company profile

78 keys usb fully programmable keyboard with magnetic card reader for pos system

Introduction:

Shenzhen Long Island Forever Co.Ltd was built in September 2007 by a group of senior experts who in love with technological research and development. It is a manufacturer which combine R&D,production and sale.The main business covers financial electronic equipment, commercial R&D, electronic products manufacture and the OEM/ODM services of related products. It has got the certification of IOS 9001:2000 in 2009, and now it is honored with the Nation High-tech Enterprise and the Shenzhen High-tech Enterprise.

Our factory:


◆ Address: Longhua,shenzhen
◆ Area: 2000 square meters
◆ Product line: 5-6 lines
◆ R&D team: 15 people
◆ QC team: 10 people
◆ Staff: ≥100 peopl

Technical Support & Testing machine:

◆ For about ten years in the R&D and manufacture the programmable keyboard and magnetic card reader, LIF has great product design capacity and rapid reaction capacity, we not only manufacture the products which could satisfy our clients, but also repose the demands of clients quickly.
◆ Every production through rigorous labor and accurate equipment testing before leaving the factory.

Certifications

78 keys usb fully programmable keyboard with magnetic card reader for pos system

FAQ

78 keys usb fully programmable keyboard with magnetic card reader for pos system



Contact us for more details about price, packing, shipping and discount ! ! ! ! !
