7M Manual high Lighting Tower 4VA1600 with Regular metal halide light
moving light tower
Packaging & Delivery
Single package size:
Single gross weight:
wooden box or open frame type
1 - 1
2 - 5
To be negotiated
1. Features: small size, light weight, built-in cable.High color temperature ensures the camera image without distortion.
2. Working voltage of mobile lighting vehicle system is DC12V or AC220V.
3. Mobile lighting vehicle adopts 300W metal halide lamp as the light source, with high luminous efficiency, color temperature close to the sunlight and long service life.Power: 300W, 500W, 1000W, etc., for customers to choose.
4, installed in the roof, the selection of floodlight lamp accessories, can achieve a radius of 50 meters floodlight lighting, the selection of spotlight-type lamp accessories, can achieve 150 meters of close range lighting and 200 meters of distant lighting.
5. Wind resistance of mobile lighting vehicle is 70Km/h.
6. The wind resistance of mobile lighting vehicle in the closed state is 100km/h.Mobile lighting truck, mobile lighting group, explosion-proof working lamp, omni-directional lifting working lamp, lifting lighting device
Basic Model :4VA1600
Dimensions Length :2260mm (7'5")
Width: 1050mm (3'5")
Height :2700mm (8'10")
Full extending Height (m/feet) :7m (23')
Gross weight :435kg(960 lb)
Engine Engine model :KD225 (KOHLER)
Number of cylinders :1
Engine characters :4 cycles, Air-cooled diesel
Combustion System: Direct injection
Engine aspiration :Naturally aspirated
Emission level :(50/60Hz) Regular
Alternator Standard configuration :Mecc alte
Frequency (HZ) :50/60
Rating voltage: ( 50/60Hz) 220/110V (50HZ), 240/120 (60HZ) AC
Alternator insulation Class: H
Alternator protection grade :IP23
Mast & Lights Type of Lights :LED Light
Light's fixture Oval
Luminous flux: 33000 LM/light
Number & power of lights :4×300W
Number of mast sections :5
Mast extension: Manually
Mast rotation: Not available
Light tilt :Manually
Trailer Trailer suspension & axle with brakes Single torsion axle without brake
Tow bar A style tow frame with supporting jack
Stabilizing legs & number 2 pcs drawable bar with manual jacks
Wheel's rim size & tires 13" rim with regular tires
Tow adapter 2" ball adapter
Tail lights Tail reflector
Max towing speed 80km/h
Additional Features Fuel tank Type Punch forming steel sheet
Fuel tank capacity :38 liters
Operating hours with full load :63 hours
Wires & electric components Regular
Generator starting type or controler Key starting
Generator canopy Rotational moulding plastic trunk with steel sheet base
Power outlet sockets Don't supply for standard configuration, just for option
Tool box with the maintenance tools
Max. against wind when fully extended 20 m/s
Acoustic pressure 77dB(A) at 7 meters away
Standard colour White trunk with Black or Galvanized all of the steel components
Max. # of units loading in 40' container (Some components would be detached) :18sets
Packing & Delivery
Packing Details : Packing, wooden box.
Delivery Details : 3-30 days after order
1. container picture
2. wooden box picture

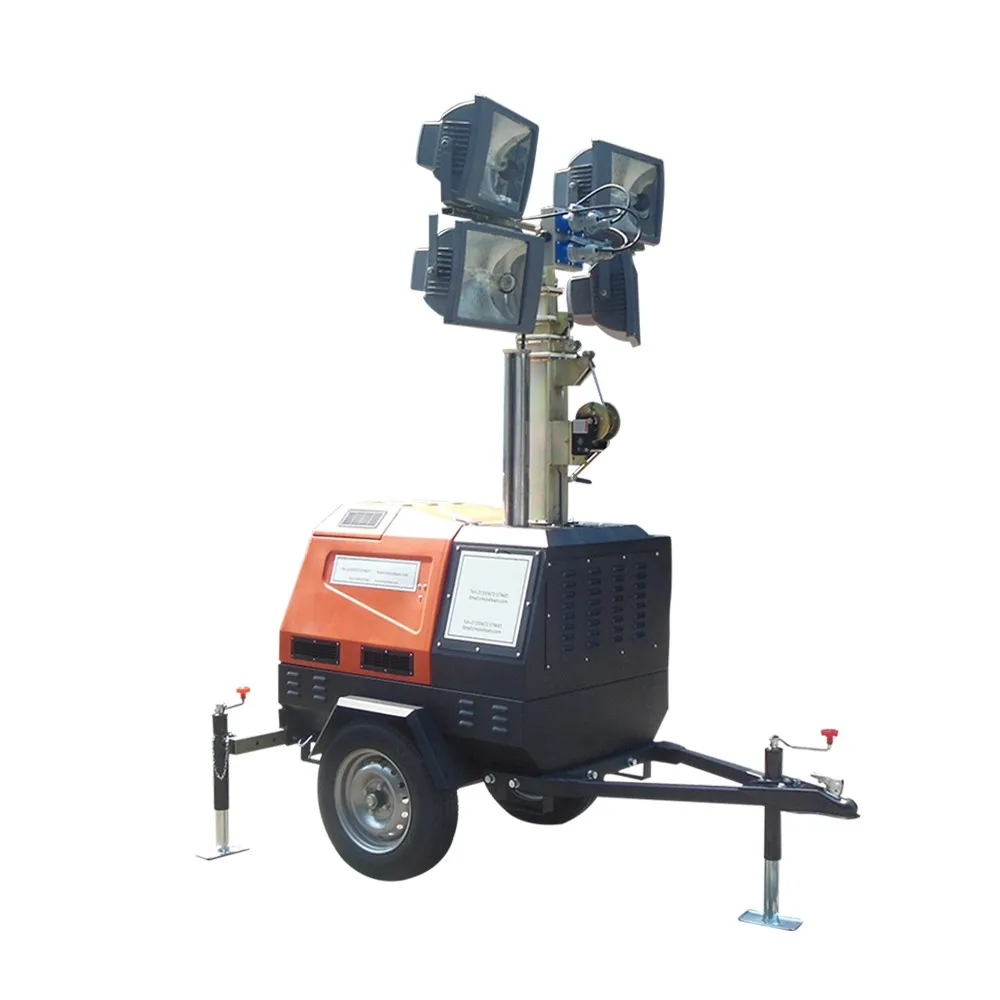

3.1600W mobile lighting tower set
1 ,Our recent business license
2,Certificate of opening bank of enterprise
Hong Kong customers, in the Canton fair now visit our exhibition hall and products, have been keeping close cooperation with us.
At present, we mainly purchase pumps and diesel engines from our company.
Last year, the uzbek customer visited our factory and cooperated with us for a long time, acting as our company's automatic feeding and concrete mix truck, creating the brand of uzbekistan mixing car.
Successfully sold Chinese agitators to all over uzbekistan and neighboring countries.
Morocco customers visit factory photos, and purchase loader and excavator products.
And keep enough attention to our other products, such as diesel engines and concrete mixers.
Q: Are you trading company or manufacturer ?
A: We are factory and have many years of production and sales experience.
Q: How long is your delivery time?
A: Generally it is 7-15days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, but we need charge samples fees.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below.
Q:What kind of pumps do you make?
we mainly produce centrifugal pumps ,self priming pumps,multistage centrifugal pumps,sewage pumps,mini small gas online water pumps and so on.
Q: What about your products?
Our products are mainly exported to Afica southeast Asia,south korea,Mexico and other countries.Our products are strictly tested to ensure the quality and will not cause problems for export.
