7bbl 800l small beer producing equipment manufacturer and supplier

FOB Reference Price:Get Latest Price
$34,000.00 - $98,750.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
Support Sea freight
Report Suspicious Activity
Quick Details
Fermenting Equipment
Place of Origin:
Shandong, China
Brand Name:
Tiantai OEM
Processing Types:
15-70Kw Depends
1~5 Tons
3 years
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
7bbl 800l small beer producing equipment manufacturer and supplier
Thickness of Tanks:
3mm for interior shell/2mm for exterior shell
Color Available:
Mirror SUS, Luxury red copper
Electric/Steam/Direct fired heating
Heat Insulation:
Polyurethane or Rockwool with Thickness=80mm
Volume Design:
Properly according to the capacity request
Controlling System:
Temperature, Pressure auto control
Plants Type:
Turnkey or Customerized
Supply Ability
Supply Ability:
100 Unit/Units per Year
Packaging & Delivery
Packaging Details
Packaging : We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble
a.Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of
causing damage to the surface of our products.
b. Container cargo: the equipment will be bound firmly and won't easily swing to the side, or up, or down.Shipping: Deliver from Qingdao port within 30-45 days after the payment
Qingdao port

7bbl 800l small beer producing equipment manufacturer and supplier





Beer Brewing System is used for lab ,pub,bar,hotel,restaurant,industry brewery etc. from 50L to 30000L per day. Brewing process inlcude Milling, mashing, lauterung, boiling, whirlpool, wort chilling, fermentation&maturing, cooling, temperature controlling, cleaning, filling etc..So complete beer brewing system including brewhouse, fermentation tanks, bright beer tank, glycol system, controlling system, beer filling machine ect.We can provide the design solution from drawing until after installation.






1. Malt Milling System

Malt Mill: Material: carbon steel and chrome plate roller;

Double roller type malt mill machine;

Equipped with motor, belt pulley, belts, etc;

Working capacity, power and dimension is decided according to mashing system.



2. Mashing System

Inner-Jacket (SUS304 SS) thickness: 3.0mm;

External-Jacket (SUS304 SS) thickness: 2.0mm;

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner

Insulation: Rock wool; TH=80mm






The Heating



The steam heating would require a boiler/generator.

It heat evenly and fast, also easy to control temperature,

not scorch the pot.


Direct fire

The burner and agitator are equipped with kettle.

If you adopt decoction mashing way,

the wort is easier to scorch.

If so, the steam heating is more suitable.



The electric heating behaves well for the volume

under 500L, saving the investment on the boiler/burner,

if there is no condition to use the boiler/burner

or it is more economical by using electricity.



The structure

Two vessels

Mash/lauter tun+Kettle/whirlpool tun

Mash/lauter whirlpool tun+Brew kettle tun

Three vessels

Mash tun+Lauter tun+Kettle/whirlpool tun

Mash/Kettle tun+Lauter tun+Whirlpool tun

Four vessels

Mash tun+Lauter tun+Kettle tun+Whirlpool tun


The Manway

Stainless steel



Easy to observe the tank inside




False bottom/filter




False bottom/filter

We use the Laser cutting V-wire False Bottom/Filter.

This kind of False Bottom/Filter is more stronger, even

and nonpollution of welding.Using this false bottom

when lautering, you will find that the grain bed

is easy to form well and it will be also easy to clean

when you finish the lautering.









We now use the Long-style rake;

the teeth of the rake is varied

so that it can agitate the wort lengthways and transversely,

plus its length, the rake can help to make the malts mix

with the water soon and make the wort flow smoothly

and help to form a efficient grain bed for better lautering.

In addition, the automatic rake lifting units is optional

for customer.




3. Fermentation System

Fermentation happens in tanks which come in all sorts of forms, from enormous cylindro-conical vessels, through open stone vessels, to wooden vats.Most breweries today use cylindro-conical vessels, or CCVs, which have a conical bottom and a cylindrical top. The cone's aperture is typically around 60°, an angle that will allow the yeast to flow towards the cone's apex, but is not so steep as to take up too much vertical space.


Wort Fermentation or maturation

Interior Shell

SUS304 full welded; TH=3mm

Exterior Shell

SUS304 full welded; TH=2mm


Polyurethane; TH=80mm

Glycol Jacket

Dimpled plate on cone and side

Head and Bottom

Dished head and 60 degree cone bottom

Sampling valve

Full sanitary perlick style sampling valve

Safe valve

Mechanical relief valve 2 bar on CIP arm

Pressure gauge

Shockproof pressure gauge with two gauges on CIP arm

Beer outlet

Rotating racking arm and port on cone with butterfly valve

Hopping port

Dry hopping port with solid end cap


4pcs completely SUS304 heavy duty legs with leveling pad and legs support






4. Glycol cooling System

Glycol water supply for wort cooling and fermentation cooling.Its structure usually include Glycol water tun+1 or 2 chillers(the cold liquor tun is optional).

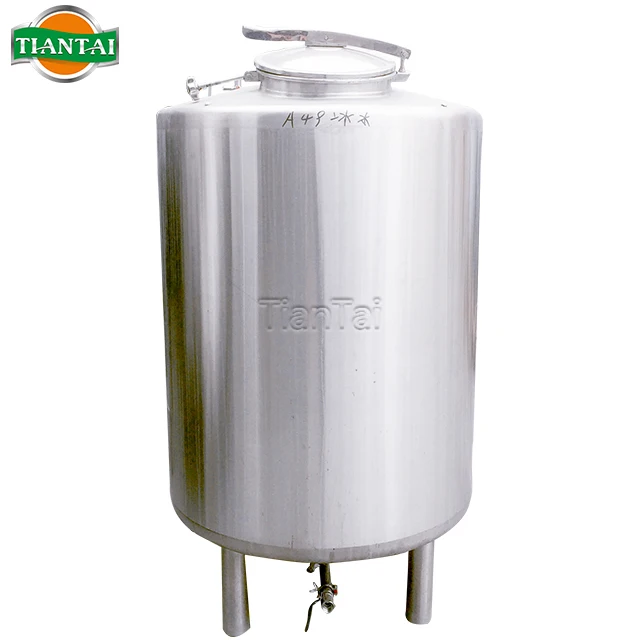

Glycol Water Tank:

Inner-Jacket (SUS304 SS) thickness: 3.0mm;

External-Jacket (SUS304 SS) thickness: 2.0mm;

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner

Insulation: Rock wool; TH=80mm


Usually for the large beer system,we suggest with chiller+glycol water tank+
cold water tank for the glycol cooling system.The smaller beer system with
chiller +glycol water tank.



5. Controller System


Brewhouse, fermenter, BBT, glycol chilling unit, CIP controlling

Assembling Style

Floor Type/Wall hanging

Electrical Parts

World wide brand CE certificated

Exterior Shell

SUS304 full welded; TH=2mm


Instrument Panel; PLC Panel with Touch Screen









6. CIP System

Caustic Tank:

Material is SUS304;

Thickness is 2mm;

Interior Finish Polish: 0.2~0.4 μm


Sterilization Tank:

Material is SUS304;

Thickness is 2mm;

Interior Finish Polish: 0.2~0.4 μm



7. Our service

a.) Free consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Free debugging instruction of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to named port or station by buyer;
e.) Training of equipment maintenance and operating personally;
f.) New production techniques;



8. FAQ

Any other queation, contact with me without hesitation!
Q:What size of building do I need?
For a brewpub, size depends on a lot your yearly volume and how many different types of beer you want to brew.The minimum area request is around 20m^2.There are also estimated area requests in our different brewery systems in specification above.
For microbreweries the main factor is yearly volume.For small microbreweries, floor space of 300m^2 usually is enough .
About details on your project,we can give you exact dimensions and requirements.
Q:What utilities do I need for a brewery?
Typically water,electricity and drains are needed.
In general, 3 phase electricity is common and suitable for 220/380/440 voltage with 50/60Hz.The size of the water connection is determined by the size of
For brewery project we provide our customers with detailed requirement on the utilities and their respective location.
Q:Not being a brewer, can i start a brewery?
Yes! There are not so many brewers. Tiantai can help you or one of your employees learning how to brew, including familiarizing you with operating brewery equipment, stuying recipes, grasping quality control and so on.
Above all, Tiantai can also offers a wide variety of services such as project planning, layout design, installation, and after sales services etc.
These services are free!
Q:Where can I get my ingredients ?
Almost every country or area can find a supplier for malt,hops,yeast etc. Tiantai company can also help to get good quality raw materials here.If you find the ingredients hardly, we can make arrangement to shipped to you.
Q:How long does the equipment last?
Given the fact that most facility in a brewery are made of stainless steel,the longevity of a brewery is long. In a conditon of proper maintenance and the careful use of chemicals,a brewery can be used intensively for about 20 to 30 years.For some equipment, such as fillers and labeler with a lot of moving parts, a shorter lifespan should be considered and more maintenance will be necessary.
In brief, depending on the use.
Q:Can I brew all types of beer with the Tiantia equipment?
Contrary to the open-vessel fermentation system mainly used in Eastern Europe and Germany,all beer styles can be brewed with our system.This means that a wide variety of ales and lagers can be made.Given the infectious style of Lambics,we do not recommend brewing or packaging these beers on shared equipment.


9. Our company




Tiantai beer equipment company born more than 14 years after the craft brewing equipment was introduced to China in the 1990’s. 14 years ago, the first craft beer equipment was introduced to China by a college in Jinan city. Some pioneers in this filed started their long journey to study this completely new and secret beer brewing system. At that time, commercial beers are not rarely seen. An ordinary man can afford a bottle of beer daily, like Tsingdao, Haerbin, Snow white etc. However, beer brewing is still a mystery for most of the people in China until the first mini craft beer brewing system was introduced. The new conception moved those pioneer to started one company to build small beer equipment which were specially for bar, pub, restaurant where they believe their systems will be popular. This company, after a long time growing and changing, now is the largest one in China. One of the owner of Tiantai company was fortunately to be one of the first pioneers at that time.
