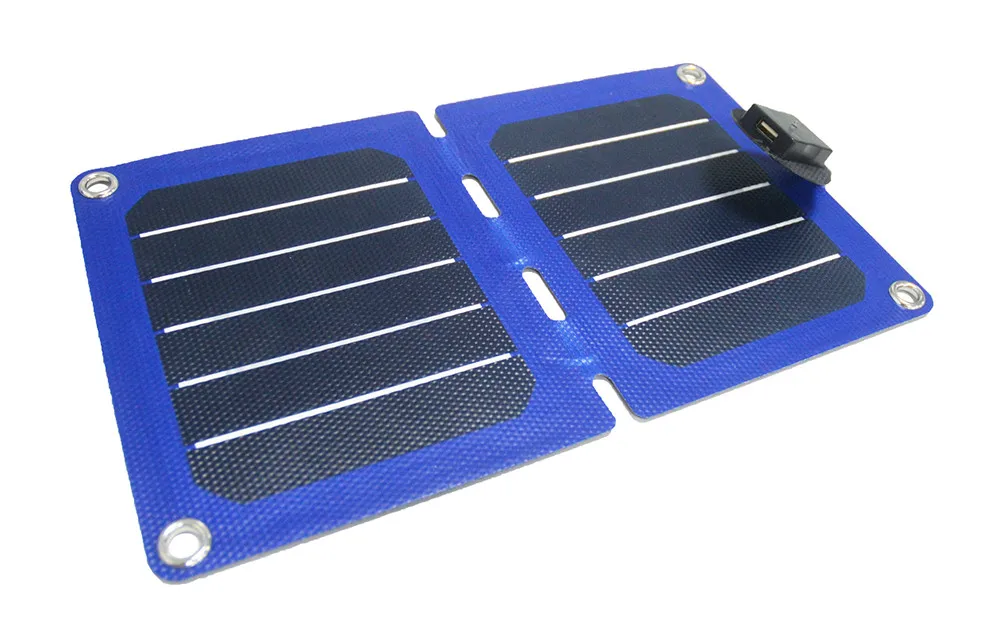

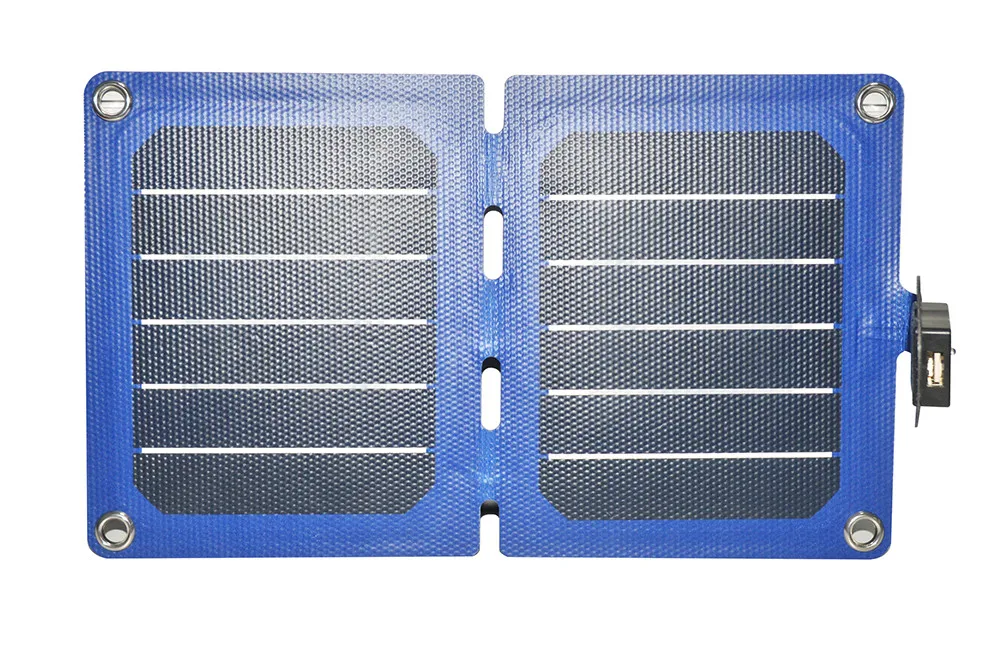

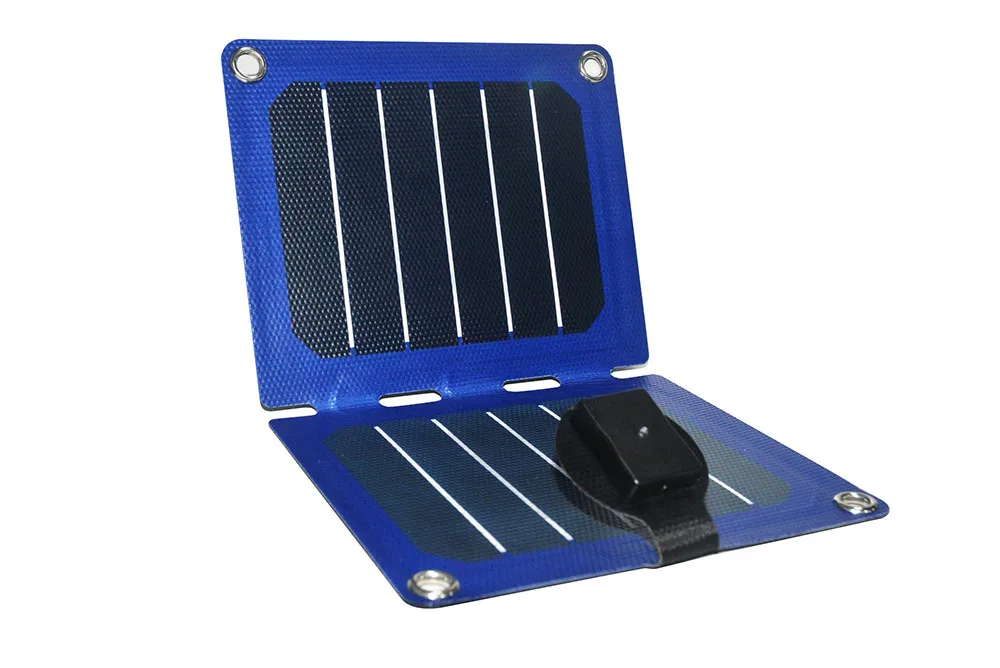

7w Laminated ETFE solar charger panel

FOB Reference Price:Get Latest Price
  • 100 - 499
    US $15.00
  • 500 - 999
    US $14.00
  • 1000 - 1999
    US $13.60
  • >=2000
    US $13.00
Supply Ability:
65000 Perch/Perches per Month
Port:
yantian of shenzhen
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SUNGOLD
Model Number:
sunpower Portable Solar Charger panel
Accessories:
Charger Adapter
Flexibility:
Portable
Cell Brand:
Sunpower
Power:
7W
Maximum voltage:
6V
size:
200mm *170 * 25mm
USB output:
5V
Maximum Current:
1.4A
Net weight:
0.2KG
Compatible Systems:
IOS,Android
waterproof grade:
IP67
Packaging & Delivery
Packaging Details
Solar Charger panel kit
Product Description

Structure Explain.

1.With mountain-climbing buckles, the solar panel modules can be fixed on knapsack and other items.
2.To place mobile phones, power banks and other items to be charged.
3.With overvoltage protection, short-circuit protection and over-retain protection to protect the circut.
4.Charging lamp
5.With super magnet to fix the module when it folding.


Using Instructions:
1.The panel should be located toward the sunshine where is no hanging branches or obstacles.
2.Unfold the solar module and the position should be facing the sunshine.
3. In order to make the module obtaining the maximum output power, the suggestion is adjust the facing direction according to the movement of solar trajectory.
4. The solar module could be fixed on the corresponding items by the inserting the climbing buckle into the 4 holes

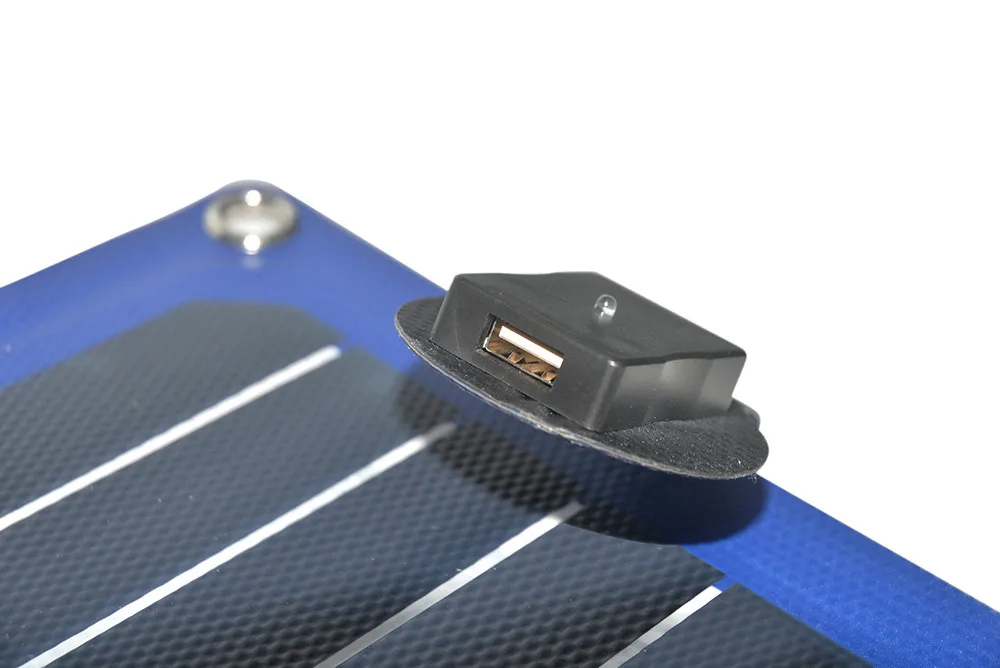

5.The signal light will turn Blue when the charging device connected with the USB output interface through the charging line.
6.When the charging device is full charged, should pull out the charging line from the USB output interface.

Notice:
1.Do not bend over, although this product do better impact-resistant than normal crystalline silicon and amorphous silicon, also no step and heavy pressure and no scratch with sharp object.
2.Output Voltage will be changed under the different sunlight.
3.While charging the Li-battery, the li-batteries must have circuitry to prevent over charging. Mobile phone and other digital devices have protection board, in making DIY charging equipment, pay attention to protection of lithium batteries.

Type
Module Size
N.W
Max Power
Max Power Voltage
Maximum Current
USB output
Module
mm
Kg
W
V
A
V
7W
200*170
0.2
7W
6V
1.4A
5V
Detailed Images
Company Information

About Us

Shenzhen Sungold Solar Co., Ltd committed to research and development solar panels. We have professional teams providing high quality solar panels with good service team. Thousands of our PV panels are applied to generate clean energy all over the world .We use top-quality solar cells and EVA , TPT, strengthen glass , seal silicon etc . 6years professional staff team assurance the ISO quality system standard.

Hardware Advantage

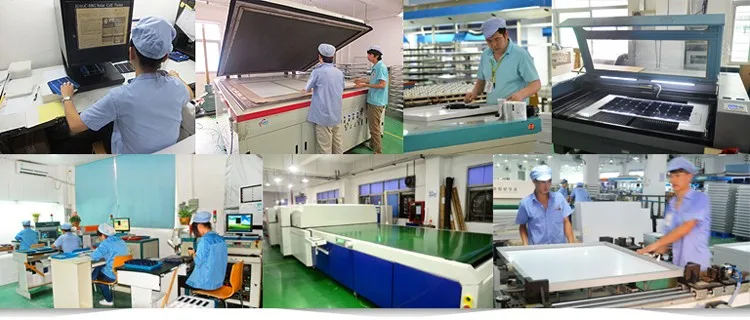

We introduces the newest production line, testing machine, laser cutting machine , non-Pb soldering line , module testing machine , laminating machine and so on. We use top-quality solar cells and EVA,TPT, strengthen glass, seal silicon etc. Our experienced staff work together well to assurance quality under effective ISO system.


In addition, we adopt a single string tester ,SUNPOWER single test instrument 1: Professional sunpower Solar IV tester, with the international certification of AAA steady state solar simulator and related test accessories, can IV performance solar cells for fast and accurate measurement, classification sorting, etc.

Enterprise Certificate.

Our products are exported to Europe ,Americans and other Asian countries with TUV,IEC61215&61730,ISO and CE international standard.

Market Advantage

Sungold solar have sold solar panel series products to USA, Canada, Germany, United Kingdom, Denmark, Sweden, Poland, Italy, Greece, Australia, New Zealand, Japan, Korea, India, South Africa, and so on.
We are always on the way, never stop….
