8 Channels High Definition Hard Disk Mobile DVR mini dual lens car dvr

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    $1.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Icarvisions
Model Number:
JH8-HD-GFW
Language:
English / Chinese
Operation Interface:
Graphical menu operation interface
Password security:
Permissions setting of administrator & user
Video display:
Single picture, 1~9 pictures
Signal system:
PAL / NTSC
Image compression:
H.264 Main profile
Audio input:
8 channels
Audio output:
2 channels
Image resolution:
CIF / HD1 / D1 / 960H optional
Video coding:
ISO14496-10
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
eco-packing
Port
Shenzhen
Video Description

8 Channels High Definition Hard Disk Mobile DVR mini dual lens car dvr



1.Product Introduction





Mobile DVR / Car DVR (with 3G, 4G, GPS, Wi-Fi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, police car, tour bus, tanker truck, escort car etc. Operated with CMS (Central Monitoring Software) to realize fleet management online, and achieve a full range of car monitoring functions such as real time video & audio monitoring, GPS, car tracking, GEO-Fence, voice intercom, car temperature, car alarms, driving route record, Text to Speech, PTZ control, anti fuel theft, anti hijack, even as car black box for car crash recorder, real time car monitoring via mobile phones of iPhone, Android, iPad system.

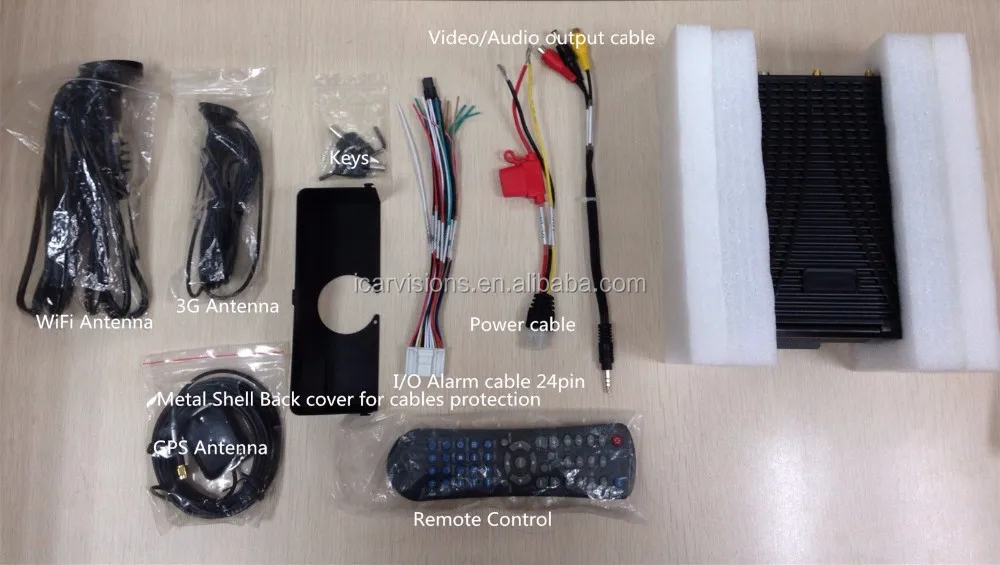

(Standard Package)


2.Specification



FunctionPerformance
SystemLanguageEnglish / Chinese
Operation InterfaceGraphical menu operation interface(OSD menu)
Password securityPermissions setting of administrator & user
VideoVideo inputSupport 8 channels CIF/HD1/D1/960H  camera Video input
Support 1-CH 720P/1080P IPC + 8-CH 960H/D1/CIF Video input
Video output2 channels (1 as φ3.5 Phone Jack, 1 in the 24pin connector)
Video displaySingle picture, 1~9 pictures
Signal systemPAL / NTSC ( PAL@200 frame 960H/sec; NTSC@240 frame960H/sec )
Image compressionH.264 Main profile
AudioAudio input8 channels
Audio output2 channels (1 as φ3.5 Phone Jack, 1 in the 24pin connector)
Record formatSynchroniz ed video & au dio recording
Recording&
Storage
Image resolution CIF / HD1 / D1 / 960H optional
Video codingISO14496-10
Video bit rateCIF: 1536Kbps ~ 128Kbps,
HD1/D1: 2048Kbps ~ 400Kbps,
960H: 2048Kbps ~ 400Kbps,
8 grades of image quality optional, Grade1 as best, Grade8 as lowest
Audio bit rate40Kbps
StorageUp to 2TB HDD/SSD and 1 SD card for backup(at 3G/4G model option )
AlarmAlarm input8 channels, alarm activated by low voltage (<1V) or high voltage (>5V)
Alarm output1 channel, 12V output
Communication PortsRS485RS485×1
RS232RS232×2
RJ45 network1 x RJ45, support IPC camera with maximum of 1080P
USB2 x USB 2.0 ports, the front panel one to download video files & upgrade firmware; the back panel one is optional.
Wireless Communication3GBuilt-in 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) module optional
4GBuilt-in 4G(TDD-LTE / FDD-LTE) module optional
Wi-FiBuilt-in Wi-Fi( 2.4 / 5.8 Ghz) optional
GPSBuilt-in GPS module. Real-time geographic coordinates, speed information
G-SensorBuilt-in G-Sensor
SoftwarePC playbackVideo files playback in PC with analysis of the vehicle status
CMSV6 / IVMSWireless real-time video & audio monitoring, GPS, alarms, etc.
Software UpgradeUpgrade through the front USB2.0 & hard disk or CMS/IVMS platform remote upgrades
Electric Spec
Voltage Input+8~+36V8V~36V (please to ensure of safe voltage of vehicle before use; operation over 36V for long time will cause damage to the MDVR)
Voltage Output12V12V(+/-0.2V),Max 3A
ACC Detection4Vpower-on
5Vpower-off
Video Input Resistance 75Ω75Ω at each video input resistance
Video Output Voltage 2Vp-p2VP-P CVBS output analog signal, screen input requires resistanc 75Ω
I / O port<1V low voltage alarm
>5V high voltage alarm
Operation Temperature-40℃~80℃at draughty environment
Dimension 192*184*61mm (With protective cap 248*184*61mm)






3.Order model

The product can Built-in GPS module,3G/4G module,WiFi (2.4/5.8GHz) module,you can  choose a model according to your request.





ModuleJH8-HD-NNNJH8-HD-GNNJH8-HD-GWNJH8-HD-GENJH8-HD-GFNJH8-HD-GNW-5.8JH8-HD-GWW-5.8JH8-HD-GEW-5.8JH8-HD-GFW-5.8
GPS/GPSGPSGPSGPSGPSGPSGPSGPS
3G/4G//WCDMAEVDOFDD/WCDMAEVDOFDD
WiFi 2.4/5.8GHz/////WiFi 5.8GHzWiFi 5.8GHzWiFi 5.8GHzWiFi 5.8GHz
