8 FTA Tuners professional ird dvb-s2 to ip converter headend equipment IPTV Gateway Biss IRD with up to 240 spts channels

  • 1-4 Sets
    $999.00
  • >=5 Sets
    $949.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Sets)
Contact Supplier
Samples - $999.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dibdvb
Model Number:
IRD1218
Input interface:
8 *DVB-S2/ISDB-T/ATSC/DVB-C
Output interface:
IP/ASI
Output channels:
244 SPTS or 14 MPTS
IP Protocol:
UDP/RTP
BISS:
Supported
Free to Air:
Yes
Application:
IPTV Headend Systems

Packaging & Delivery

Selling Units:
Single item
Single package size:
62X54X14 cm
Single gross weight:
7.68 kg
Package Type:
Export Carton Packaged , or as per customer's request. One Set Per Carton.
Lead Time :
Quantity(Set) 1 - 1 2 - 5 >5
Est. Time(days) 3 5 To be negotiated
Product description
IRD1218 provide a best-of-class gateway platform for Cable and IPTV operators. It is a high density digital TV Head end for contribution of digital TV via IP Networks and end to end IPTV solutions, like multiscreen OTT/IPTV transcoding or edge modulation or Transmission. The platform provides the following processing functions: 8 RF Free To Air Demoduation, DVB-IP Gateway for DVB-S/S2, DVB-C, DVB-T2, ATSC, ISDB-T, BISS Descrambling, Remultiplexing, Scrambling, PSI/SI-Processing, user-defined PID passthrough, Distribute Audios and Videos to IP either 240 SPTS for IPTV streaming or 14 MPTS IP and 2 separate ASI for Digital TV platform.

IRD1218 working performance and MTBF(Mean Time Between Failure) is Comparable to famous foreign brands, which both hardware and software optimization and tuner material is according to the most rigorous testing requirements of production. At present, hundreds of overseas operators, customers and large partners recommend DIBSYS receivers and world famous brand equipment to operate in IPTV and Cable TV systems for a long time. In order to improve the product function and help customers to meet the fully applicable needs of the products, DIBSYS will acknowledge product usage and recommendations to all customers from time to time
Specifications
Tuner input
Number of RF ports
8 Ports RF inputs /Loop Out
Connector
F-female, 75 ohm
DVB-S/S2 Mode
Input Frequency
950-2150Mhz
Symbol rate
2~45Mbauds (DVB-S QPSK)
1~45Mbauds (DVB-S2 QPSK)
2~30Mbauds (DVB-S2 8PSK)
Signal Strength
- 65 ~ -25dBm
Convolution encoding Rates
DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10
Convolution encoding Rates
DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10
Roll Off
0.35 for QPSK; 0.35, 0.25, 0.2 for 8psk
Demodulation Mode
QPSK, 8PSK (Only dvb-s2)
LNB Polarity Selection
horizontal, Vertical
LNB Band Selection Tone
0/22KHz selectable
Specturm Inverse
Auto, On, Off
DVB-C Mode
Input Frequency Range
30 ~ 1000MHz
Input Level
51~75dBμV
Symbol Rate
1~7MBaud
QAM Encoding
ITU-T J.83 Annex A(DVB), Annex B, Annex C
Constellation
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Bandwidth
6MHz, 7MHz, 8MHz
ISDB-T Mode
Input frequency range
30 ~ 900MHz
Bandwidth
6MHz
Constellation
DQPSK, QPSK, 16QAM, 64QAM
Interleave
0, 4, 8, 16
Transmission Mode
2K, 4K, 8K (FFT)
FEC (Code Rate)
1/2, 2/3, 3/4, 5/6, 7/8
ATSC RF Mode
Compliant with ATSC A/53 standard
Input frequency range
30 ~ 900MHz
Bandwidth
6MHz
Constellation
8VSB
Streams Output
BISS descrambling
BISS-1 and BISS-E
DVB-ASI
2x independent ASI, BNC, 75Ω
Comply to EN50083-9
188 bytes per packet
Max.Bitrate ≤100Mbps
MPEG-2 OVER IP
1 Port 100/1000M base-T, Full Duplex
Max.Bitrate ≤800Mbps
UDP/RTP, Multicast/Unicast
Flexible switching either MPTS or SPTS Mode
Max.Streams16 MPTS(DVB), 244 SPTS(IPTV)
7x188 bytes per UDP packet
Multiplexing
PSI/SI table
PAT, PMT, NIT, TOT, TDT, BAT enable/disable
Input/Output Charset
LATIN, GB2312, UTF-8
Max.Programs
Up to 512 programs to multiplex, 64 service id per one MPTS out
Editable information
PAT/SDT/CAT/NIT/TOTTDT Interval(ms), Service ID; Program number
Management
100M Base-T Ethernet, RJ45
Web Browner IE 8.0 or above
6 Keys
Up, Down, Left, Right, Enter, Esc
2 lines 20char LCD
Status, Alarms LED
Time Zone
UTC+13:00 - -13:00
Software-Reboot
Environment
Rated Voltage
AC 85-260V  50/60Hz
Rated power
35W
Operating temperature
 -10 ~ 50°C
Storage temperature
-10 ~ 75°C
Dimensions
460mm (L) *483mm (W) *44mm (H)
Weight
5.7Kg
Related Products

8/12/16/20/24 FTA DVB-S2/DVB-C/DVB-T2/DTMB/ATSC IRD

8 Tuner DVB-S2/DVB-C/DVB-T2/ATSC IRD with 4 CI Slot

(4 Tuner optional)

8 Tuner DVB-S2 Biss/FTA DVB-T2/ATSC/ISDB-T IRD

(16 Tuner optional)

Hot selling
Sales Contact

Does this equipment meet your requirements? If not, just contact with me. I can select suitable equipments for you according to your requirements. Hope can help with your project.



Coral Zhu

E-mail: coral @ dibdvb.com

Skype: dibsys18

Whatsapp: +8615757108582

Our Company

With years of export experience along with best quality, advanced technology and excellent service, Dibdvb Technology has won numerous customers' trust and support all over the world.

We are mainly engaged in Broadcast tv and iptv business which includes the following several kinds:


1. Carrier grade broadcast cable tv equipments: Broadcast Encoder and Transcoder, Professional IRD, Mux and Scrambler, Modulator, Transmitter and Set top box
2. Carrier/Economy grade multiscreen iptv encoder/transcoder
3. Digital Video Modulator with HD MI/CVBS inputs, DVB-C/T/ISDB-T/ATSC modulator in 1RU/Compact Chassis
4. Broadcast DVB-C/T2/MMDS solutions
5. Carrier grade iptv solutions
6. Hotel tv systems base on ALL-IP or ALL-RF solution
7. Docsis3.0 CMTS Over Coaxial Cable to Internet
8. OLT and ONU GEPON

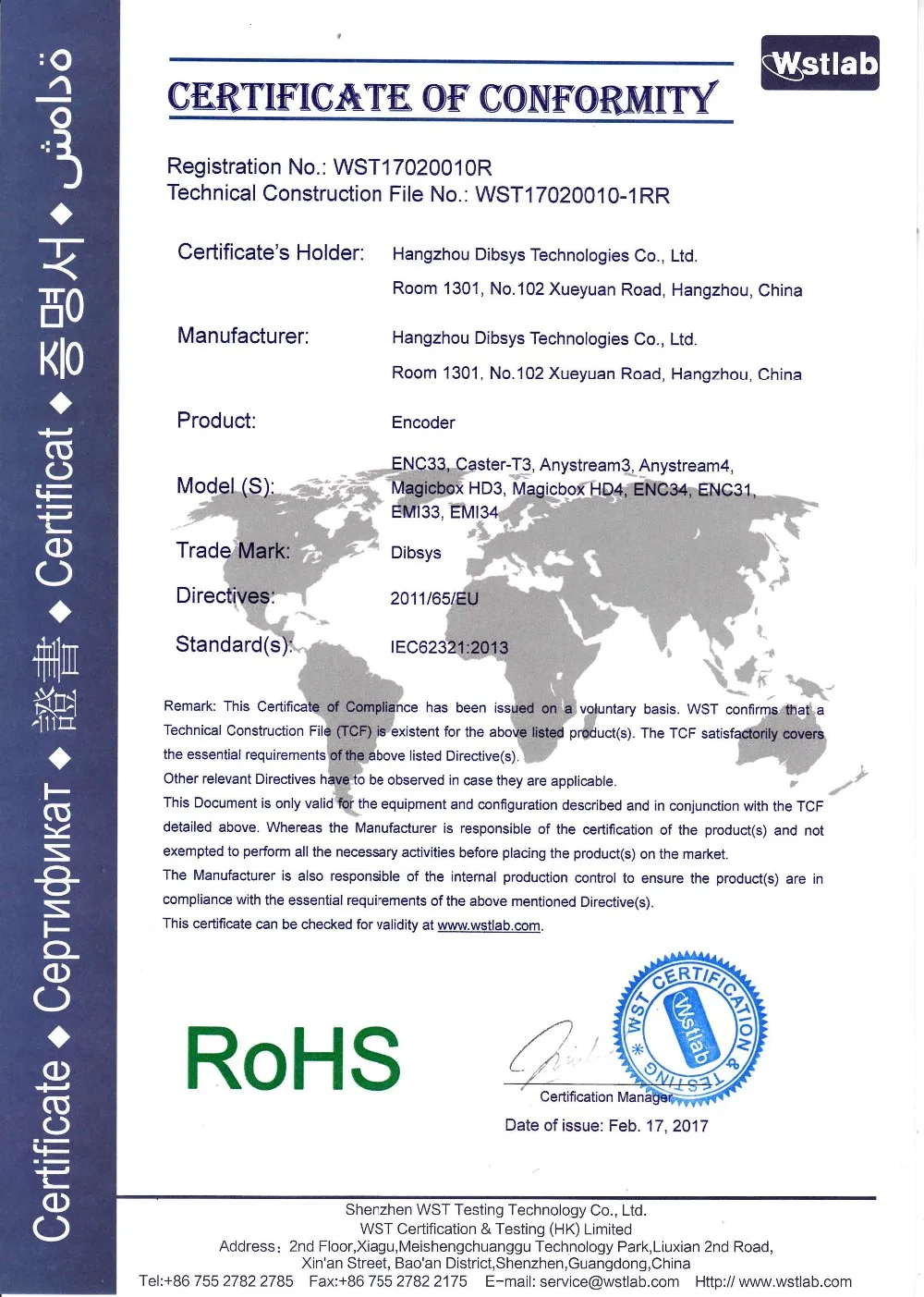

Certifications
