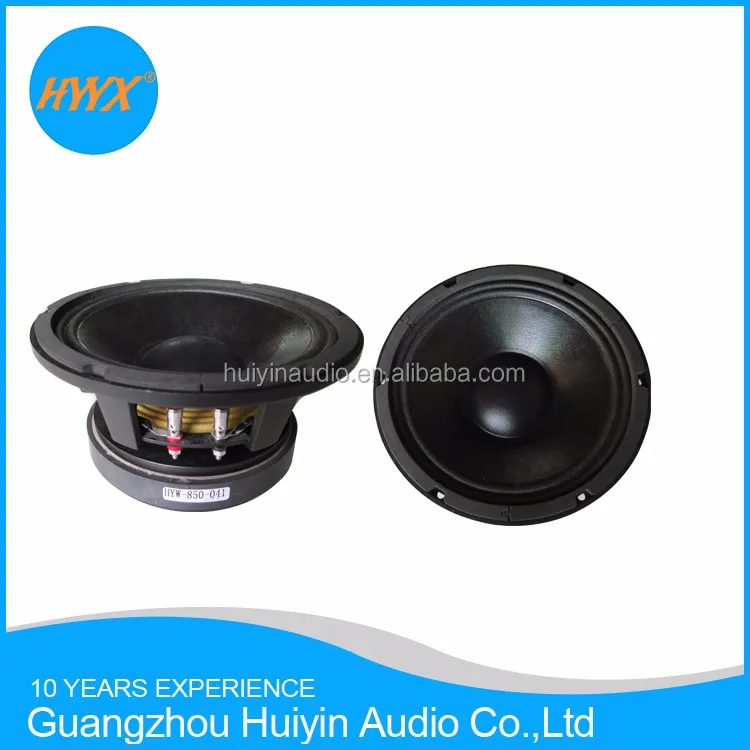

8" PA Mid-Bass driver/ Raw woofer speaker in China

FOB Reference Price:Get Latest Price
$15.00 - $35.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
HYYX
Model Number:
HYW-850-041
Type:
Passive
Use:
Computer, Home Theatre, Karaoke Player, Mobile Phone, Portable Audio Player, Stage, Car audio, Outdoor
Channels:
3 (2.1)
Special Feature:
Portable
Place of Origin:
Guangdong, China
Nominal diameter:
8 inch
Impedance:
8 ohm
Rated power handing:
200W
Sensitivity:
95dB
Magnet material:
Ferrite
Magnet diameter:
155mm
Voice coil material:
CCAW
Voice coil diameter:
50mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1, Plastic bags + inner box + master box
2, Customized box with logo
Port
Huangpu port, Guangzhou
Lead Time :
About 20 days, according to the order qunatity
Product Description


Features :


- 400W continuous program power capacity , 200W RMS
- 95dB sensitivity
- 60hz-5khz Frequency response
- 2" CCAW Voice coil and fiberglass former
- Ideal model for 2-way or 3-way speaker system

Speccification :

Specification
21Nominal diameter
210/8
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm

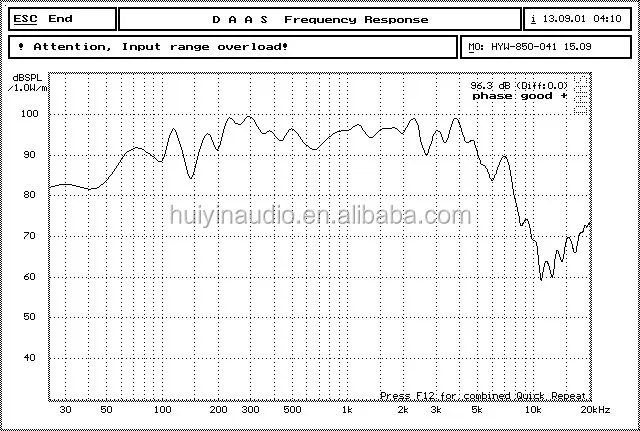

Frequency response
60-5k
Hz
Magnet size
145x25
mm
Magnet material
Ferrite
Sensitivity (1w/1m)
94
dB
Nominal power handling
250
Watts
Continuous power handling
500
Watts
Voice coil diameter
50/2 "
mm/ inch
Winding material
CCAW
Cone material
Paper
Surround material
Cloth

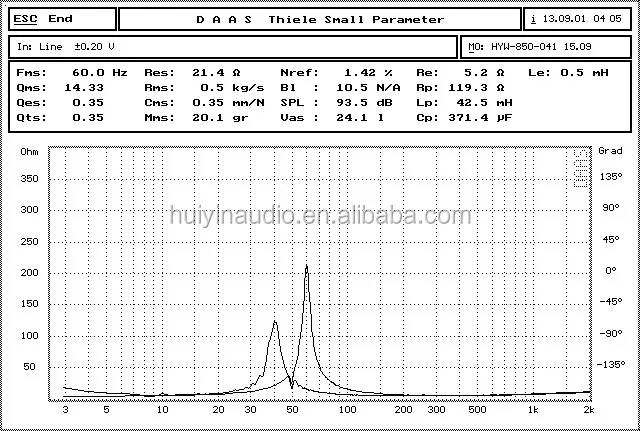

T/S Parameter
Fs
60
Hz
Re
5.2
Ω
Qes
0.35
Qts
0.35
Qms
14.33
Vas
24.1
L
Rms
0.5
kg/s
Cms
0.35
mm/N
Mms
20.1
gr
BI
10.5
N/A
Rp
119.3
Ω
Lp
42.5
mH
Cp
371.4
uF
Le
0.5
mH
Xmax (One-way)
3.5
mm
Mounting information
Overall diameter
211/8.3
mm/inch
Bolt Circle diameter
197/7.8
mm/inch
Baffle Cutout diameter
187/7.4
mm/inch
Depth
127/5
mm/inch
Flange thickness
8/3.15
mm/inch
Shipping information
Net weight
4
KG
Shipping weight
4.5
KG
Shipping box
250x250x165
mm
